TP-Link Omada EAP215-Bridge KIT for long-range 5GHz network links

The TP-Link EAP215-Bridge KIT is a pair of outdoor wireless bridges designed to carry a network connection between separate locations without installing a physical data cable across the full distance. It is well suited to linking buildings, remote CCTV equipment, offices, farms and other hard-to-wire network points.

The kit operates on 5GHz with wireless rates up to 867Mbps and supports point-to-point as well as point-to-multipoint bridge deployments. Signal indicators help with directional alignment, while Omada management provides additional configuration and monitoring options.

Is This Right for You?

• Choose this kit when you need to extend an Ethernet network between two locations using a directional outdoor wireless link.
• It is suitable for connecting a remote building, network switch, NVR or IP cameras back to the main network.
• For longer links, good positioning and careful antenna alignment are important. The quoted 5km transmission distance is not a guaranteed real-world range.
• This is a 5GHz bridge solution rather than a conventional dual-band indoor Wi-Fi access point intended primarily for general room coverage.

How It Works

The kit uses two directional bridge units. One connects by Ethernet to the main network and communicates wirelessly with the second bridge at the remote location. Ethernet devices can then connect to the bridge at the far end, effectively carrying the network connection across the wireless link.

The original kit supports automatic pairing, while signal-strength LEDs assist with positioning and alignment during installation.

Why Choose This Product?

• Long-range wireless networking: TP-Link specifies transmission distances of up to 5km, making the bridge useful where laying cable between sites would be difficult or costly.
• AC867 5GHz performance: Wireless data rates of up to 867Mbps provide considerably more link capacity than older 300Mbps bridge products.

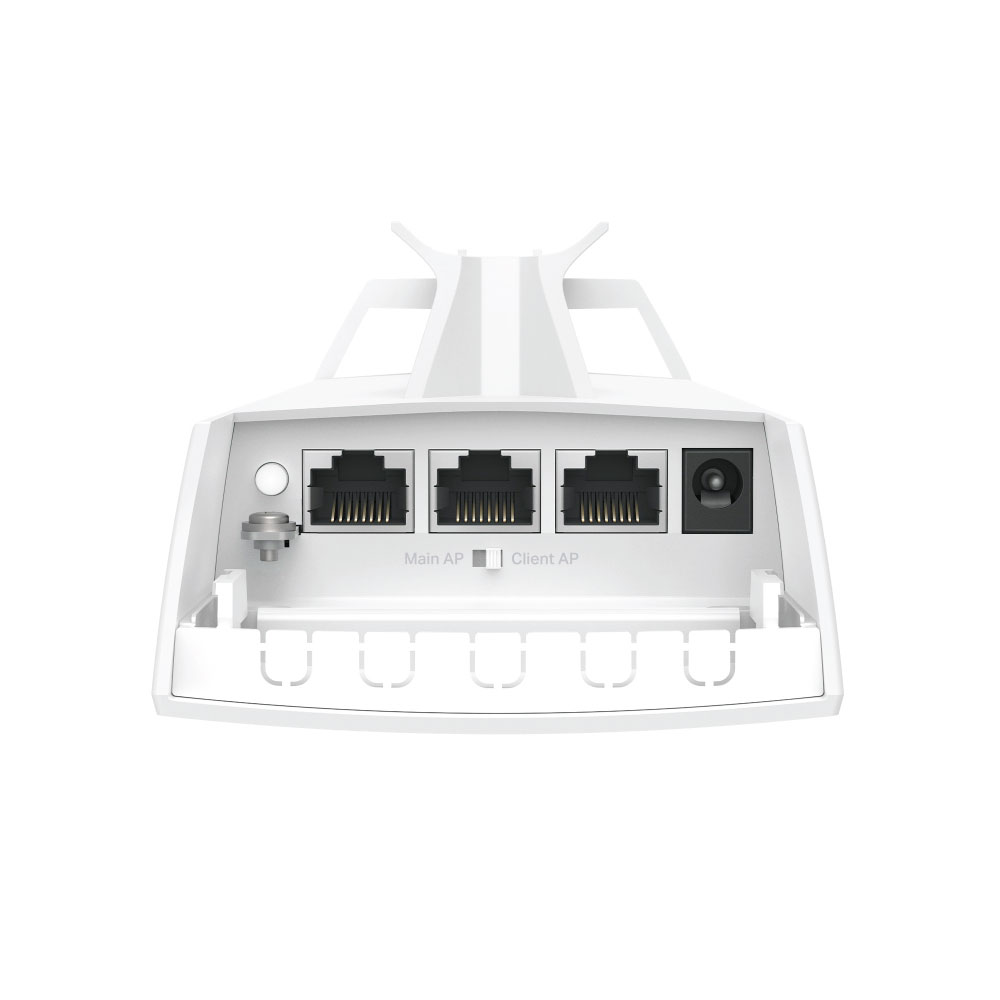

• Three Gigabit ports: Each bridge provides multiple wired connections, which can reduce the need for a separate network switch when connecting several nearby devices.
• Pre-paired deployment: The two bridges in the original kit are designed to pair automatically, reducing initial configuration work for a straightforward point-to-point installation.
• Outdoor construction: The IP65 enclosure and 6kV lightning protection are designed for properly installed outdoor network links.
• Omada management: The bridge can operate independently or form part of an Omada SDN deployment for centralised configuration and management.

Before You Buy

• This is a directional 5GHz wireless bridge. Correct positioning and alignment of the two bridge units is important for good link performance.
• The advertised maximum transmission distance and wireless rate are not guaranteed. Obstacles, interference, weather, network load and installation conditions can reduce both range and throughput.
• The locally documented version supports 12V DC and 24V Passive PoE. Passive PoE adapters are supplied with the kit.
• Pole-mounting accessories are included. Wall-mounting hardware is optional and should be purchased separately when required.
• Omada SDN centralised management requires a compatible Omada controller. Standalone management is also supported.
• Ethernet network cabling between each bridge and its local network equipment is required and is not listed as part of the supplied kit.

Technical Specifications

What’s in the Box

• 2 × TP-Link EAP215-Bridge units
• 2 × Passive PoE adapters
• 2 × Power cords
• 2 × Mounting kits
• 1 × Installation guide
