Description

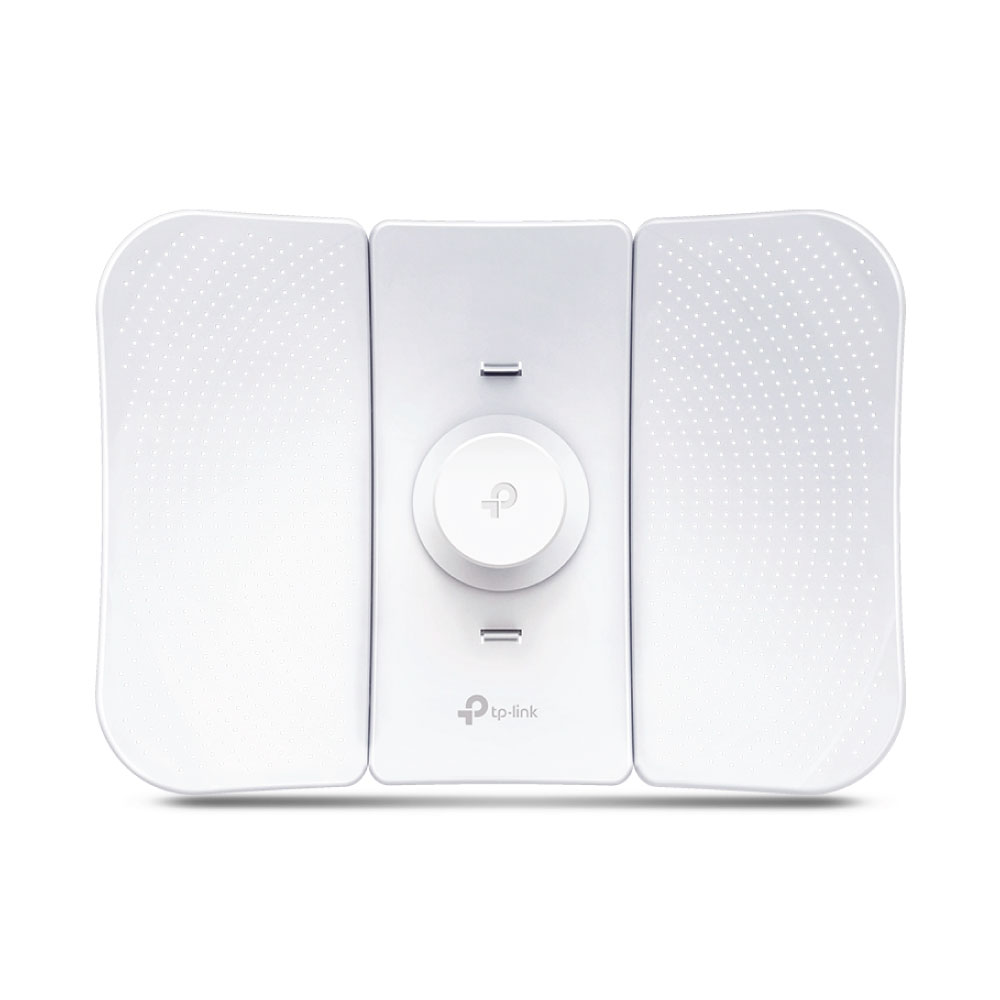

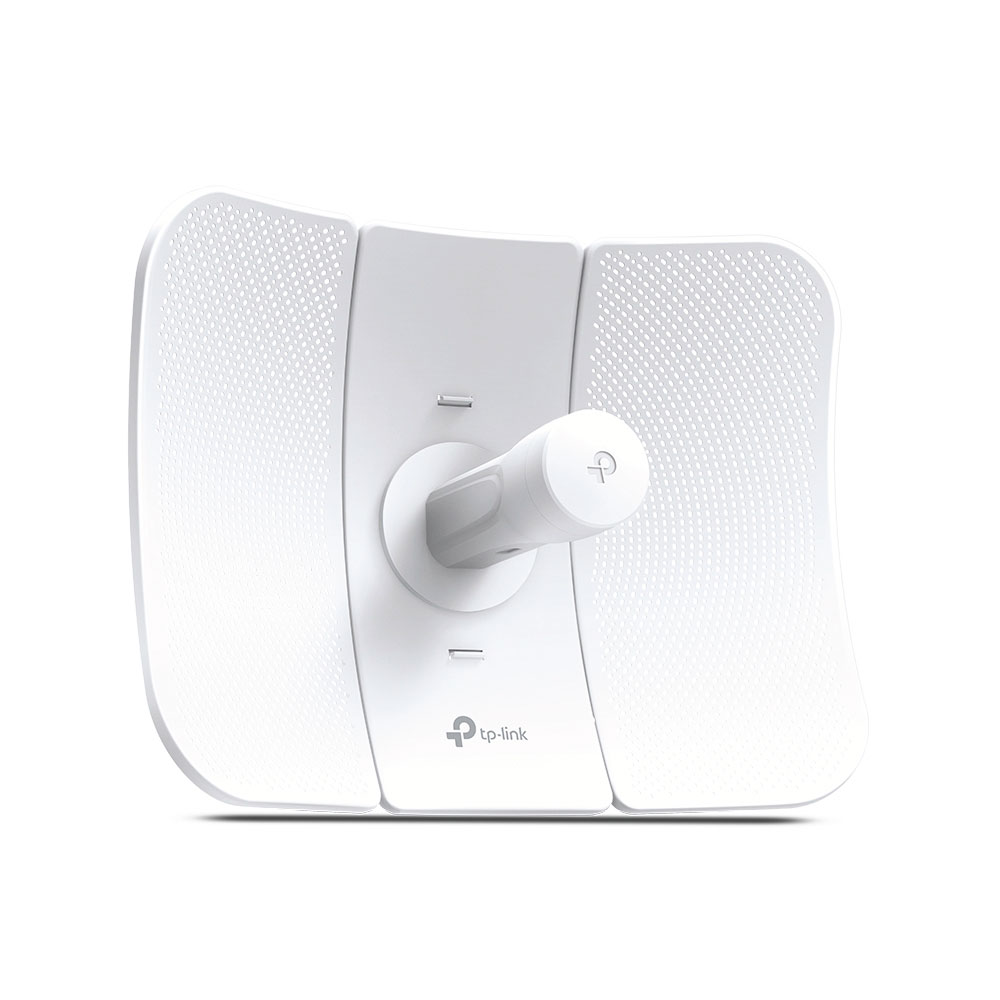

TP-Link CPE710 Outdoor CPE for Fast, Directional 5GHz Wireless Links

The TP-Link CPE710 combines 802.11ac wireless performance with a focused 23dBi directional antenna, making it suitable for outdoor links where ordinary indoor access points do not provide the required antenna directivity.

Its Gigabit Ethernet interface, weather-resistant enclosure and included passive PoE system make it practical for mounting on a pole while keeping the network and power connection at a more convenient indoor location.

Is This Right for You?

• Suitable for point-to-point links between buildings and other directional outdoor wireless connections.
• A good choice when you need 5GHz 802.11ac performance and a high-gain directional antenna rather than broad omnidirectional Wi-Fi coverage.
• Designed for fixed outdoor installation where the antenna can be accurately aligned toward the other wireless endpoint.
• For a two-ended point-to-point link, compatible equipment is required at both ends of the wireless connection.

Why Choose This Product?

• Focused long-distance connectivity: The integrated 23dBi Cassegrain directional antenna concentrates the wireless signal into a narrow beam rather than spreading coverage in every direction.
• Faster 5GHz wireless link: 802.11ac support provides a physical wireless rate of up to 867Mbps with an 80MHz channel.
• Gigabit wired interface: The 10/100/1000Mbps Ethernet port provides suitable wired capacity for the unit’s higher wireless data rate.
• Built for outdoor installation: The IP65 enclosure is designed to resist water and dust, while specified ESD and lightning protection add resilience when correctly installed and grounded.
• Flexible network roles: AP, Client, AP Router and AP Client Router modes allow the CPE710 to be adapted to different outdoor networking requirements.
• Centralised management: TP-Link Pharos Control can be used for device discovery, status monitoring, firmware management and network maintenance.

Before You Buy

• The CPE710 operates on the 5GHz band and supports IEEE 802.11a/n/ac.
• It uses 24V passive PoE. Do not assume compatibility with standard 802.3af, 802.3at or 802.3bt PoE equipment.
• The included passive PoE adapter accepts 100-240VAC, 50/60Hz and supplies 24VDC at up to 0.5A.
• Directional wireless equipment requires proper aiming and a suitable installation position for dependable performance.
• Actual throughput and usable wireless distance depend on alignment, interference, obstacles, network traffic and the capabilities of the equipment at the opposite end.
• Lightning and ESD protection depends on correct installation, grounding and cable shielding.

Technical Specifications

What’s in the Box

• 1 × TP-Link CPE710 Outdoor Wireless CPE
• 1 × 24V 0.5A Passive PoE Adapter

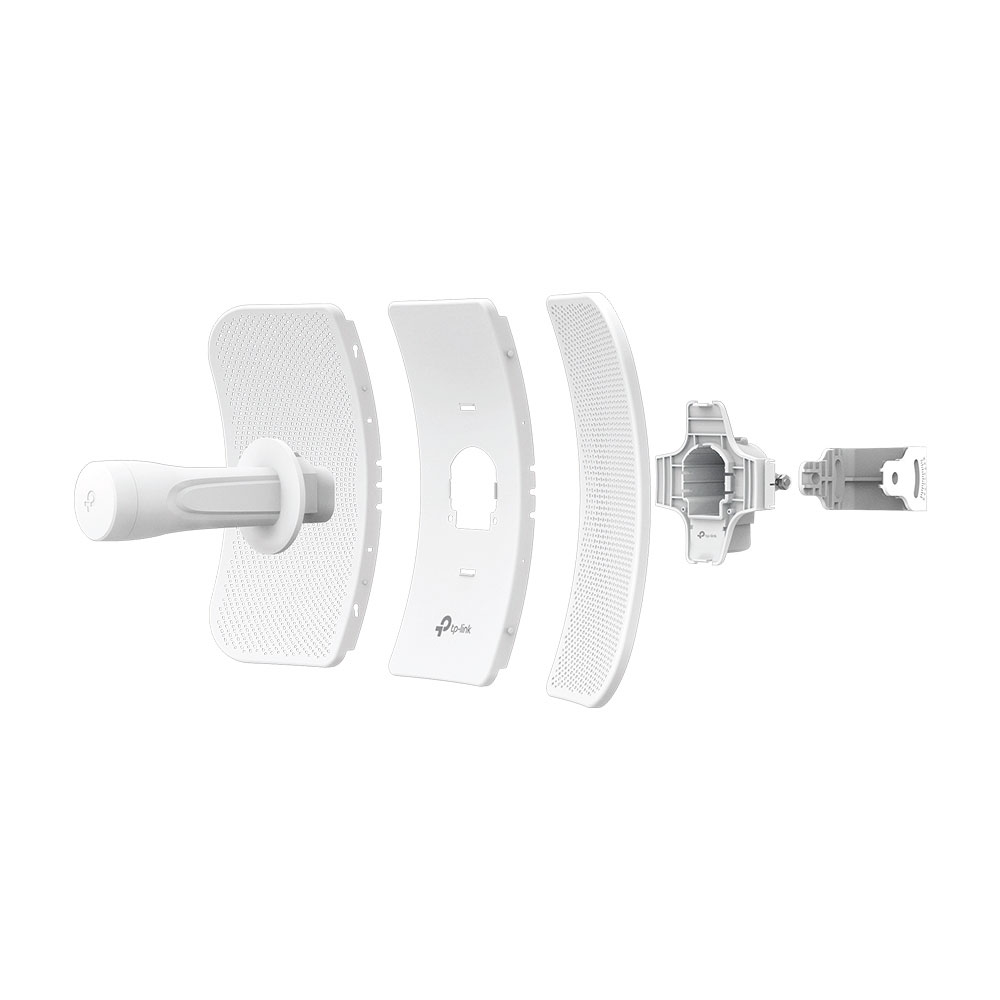

• Pole Mounting Kits
• AC Power Cord
• Installation Guide
