Description

Hikvision iDS-7208HQHI-M1/XT 8-Channel AcuSense DVR for Smarter Hybrid CCTV Recording

The Hikvision iDS-7208HQHI-M1/XT combines eight analogue camera inputs with AcuSense deep-learning functions designed to reduce less useful motion events and make important footage easier to find. It is particularly well suited to homes, shops and businesses upgrading an existing coaxial CCTV installation.

Along with HDTVI, AHD, HDCVI and CVBS cameras, the recorder can incorporate compatible IP cameras. AcuSearch, human and vehicle classification, facial recognition and perimeter protection provide considerably more useful event handling than a basic DVR, while H.265 Pro+ compression helps make better use of available hard-drive capacity.

Is This Right for You?

• Choose this model for CCTV systems requiring up to eight directly connected analogue cameras.
• It is a practical upgrade when compatible coaxial cabling and HDTVI, AHD, HDCVI or CVBS cameras are already installed.
• It suits sites where human and vehicle filtering can reduce time spent reviewing irrelevant motion events.
• Hybrid support allows compatible IP cameras to be added where network cameras are useful.
• If you need more than one internal hard-drive bay, choose a recorder designed for multiple SATA drives instead.

Why Choose This Product?

• Smarter motion detection: Motion Detection 2.0 uses deep learning to classify human and vehicle targets across the analogue channels, helping reduce events caused by movement such as leaves or changing light.
• Faster incident searches: AcuSearch is supported on up to four channels, helping operators locate relevant human or vehicle footage more efficiently.
• Advanced analytics: The recorder supports facial recognition on up to two channels or perimeter protection on up to four channels for installations needing more targeted event analysis.
• Flexible camera support: HDTVI, AHD, HDCVI, CVBS and IP compatibility makes the DVR suitable for both new and upgraded CCTV systems.
• Higher-resolution Lite recording: Recording is supported up to 3K / 5MP Lite at 12 fps, with 1080p recording at up to 15 fps.
• Efficient storage: H.265 Pro+ compression reduces recording storage requirements compared with less efficient compression formats.
• Audio over coax: Compatible HDTVI equipment can use audio functions over the coaxial camera connection, reducing the need for separate audio cabling in suitable installations.

Before You Buy

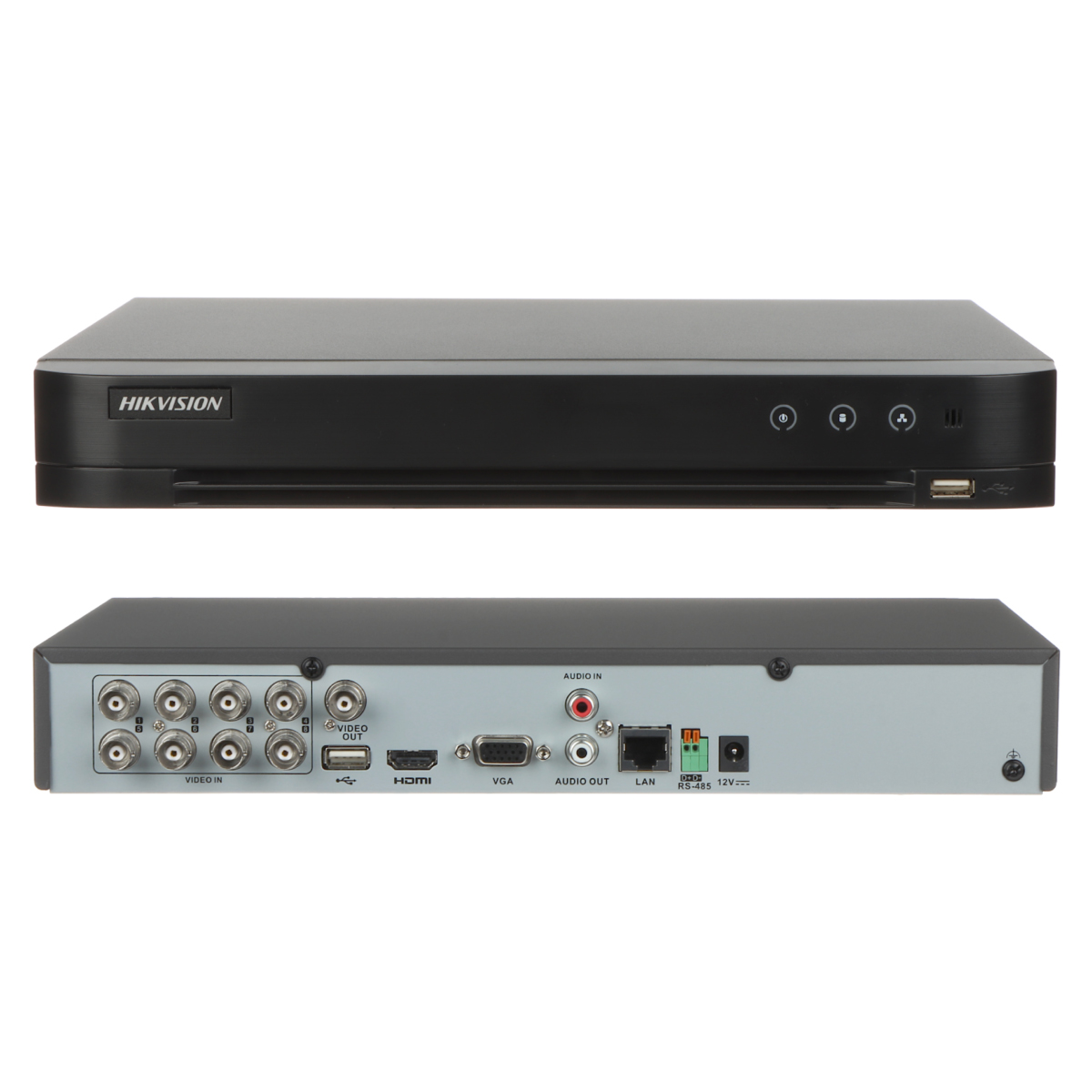

• The recorder has 8 physical analogue BNC camera inputs.
• Compatible IP cameras up to 6MP are supported, with expanded IP configurations supporting up to 12 network-camera channels. Expanded IP mode may affect availability of certain smart functions depending on configuration.
• Face picture comparison, Motion Detection 2.0 and perimeter protection cannot all operate simultaneously. Enabling one of these analysis modes makes the other two unavailable.
• One internal SATA interface supports a surveillance hard drive up to 10TB. A hard drive is required for local recording and is sold separately.
• An Ethernet network connection is required for Hik-Connect and other network functions. Wi-Fi connectivity requires a compatible USB Wi-Fi dongle.
• The DVR requires 12 V DC, 1.5 A power.
• Hikvision also offers versions with additional audio and alarm connections. Check the full package suffix when these connections are specifically required.

Technical Specifications

What’s in the Box

• 1 × Hikvision iDS-7208HQHI-M1/XT AcuSense Turbo HD DVR

Surveillance hard drive sold separately.
