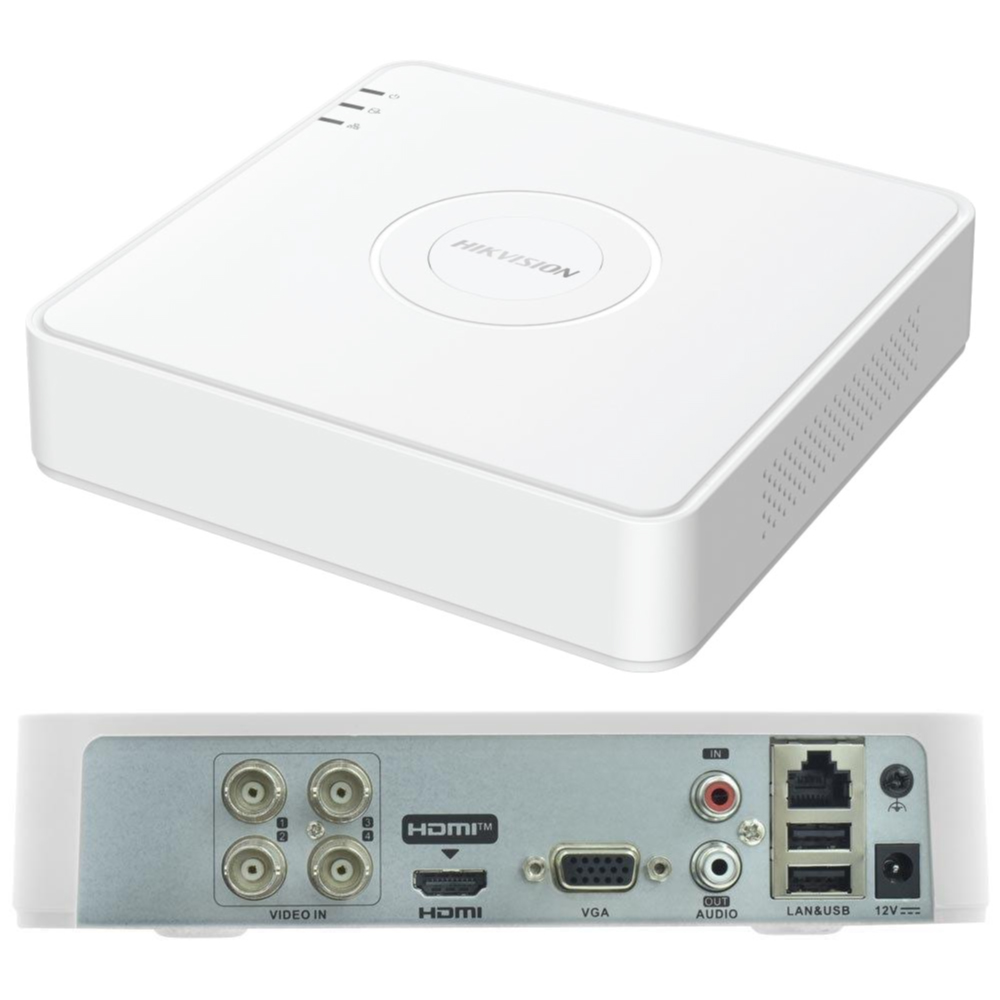

Hikvision DS-7104HGHI-M1 4-Channel Turbo HD DVR for Compact CCTV Systems

The Hikvision DS-7104HGHI-M1 is a compact four-channel Turbo HD digital video recorder suited to smaller analogue CCTV installations and upgrades. It accepts HDTVI, AHD, HDCVI and conventional CVBS camera signals, while also providing limited IP camera support.

Motion Detection 2.0 adds human and vehicle classification across the analogue channels, helping you search useful events more efficiently instead of treating every movement as equally important.

Is This Right for You?

• Suitable for CCTV systems requiring up to four directly connected analogue cameras.
• A practical choice when working with compatible HDTVI, AHD, HDCVI or CVBS cameras.
• Useful for mixed systems that need analogue recording with the option to add compatible IP cameras.
• Consider a higher-specification recorder if you require full-resolution 1080p recording rather than 1080p Lite, more than four analogue channels or higher-resolution IP camera support.

Why Choose This Product?

• Smarter motion filtering: Motion Detection 2.0 distinguishes human and vehicle targets on the analogue channels, helping reduce events caused by movement such as leaves or changing light.
• Works with several analogue formats: HDTVI, AHD, HDCVI and CVBS support makes the recorder useful for new installations as well as selected CCTV upgrades.
• Efficient video storage: H.265 Pro+ compression is designed to reduce the amount of storage required for recorded footage.
• Hybrid camera capability: The recorder provides four analogue inputs and supports network cameras, with configuration supporting up to five IP channels at up to 2MP.
• Remote connectivity: Ethernet networking and Hik-Connect support allow the recorder to form part of a remotely accessible CCTV system when correctly connected and configured.
• Flexible display connection: HDMI and VGA outputs can operate simultaneously for straightforward connection to compatible monitors.

Before You Buy

• The DS-7104HGHI-M1 provides four BNC analogue camera inputs and supports HDTVI, AHD, HDCVI and CVBS video signals.
• Its recording capability includes 1080p Lite; it is not a full-resolution 1080p recorder at the normal full frame rate.
• The recorder has one internal SATA interface. Hikvision’s exact-model datasheet specifies support for a hard drive of up to 4TB.
• A hard drive is required if you want footage recorded locally.
• Compatible IP cameras can be added at up to 1080p resolution, with the recorder supporting one IP channel as standard and configuration up to five IP channels.
• Power input is 12V DC, 1.5A.
• There are no alarm input or alarm output terminals on this model.

Technical Specifications

What’s in the Box

• 1 × Hikvision DS-7104HGHI-M1 Turbo HD DVR

Surveillance Hard Drive sold separately

Storage Guide – Choosing the Right Hard Drive

The amount of storage you need depends on the number of cameras, camera resolution, recording schedule, and how long you want to keep your footage.

Quick Reference

Suggested starting capacities for typical CCTV systems:

Choose a larger drive when recording continuously, using high-resolution cameras, or keeping footage for longer periods.

Consider More Storage If You:

• Record continuously, 24 hours a day
• Use 4MP, 6MP, or 8MP/4K cameras
• Need to retain footage for 30 days or longer
• Have busy areas with frequent movement
• Record audio together with video
• Plan to add more cameras later

Calculate Your Storage Requirements

For a more accurate estimate, use the Storage Calculator below. Enter your number of cameras, resolution, recording hours, frame rate, compression format and required retention period.

Calculate Your Storage Requirements
Opens Seagate website in a new tab.

Please note: These figures are general guidelines and do not guarantee a specific recording period. Actual storage use will vary according to your camera and recording settings. Always check the NVR’s maximum supported hard-drive capacity before ordering.
