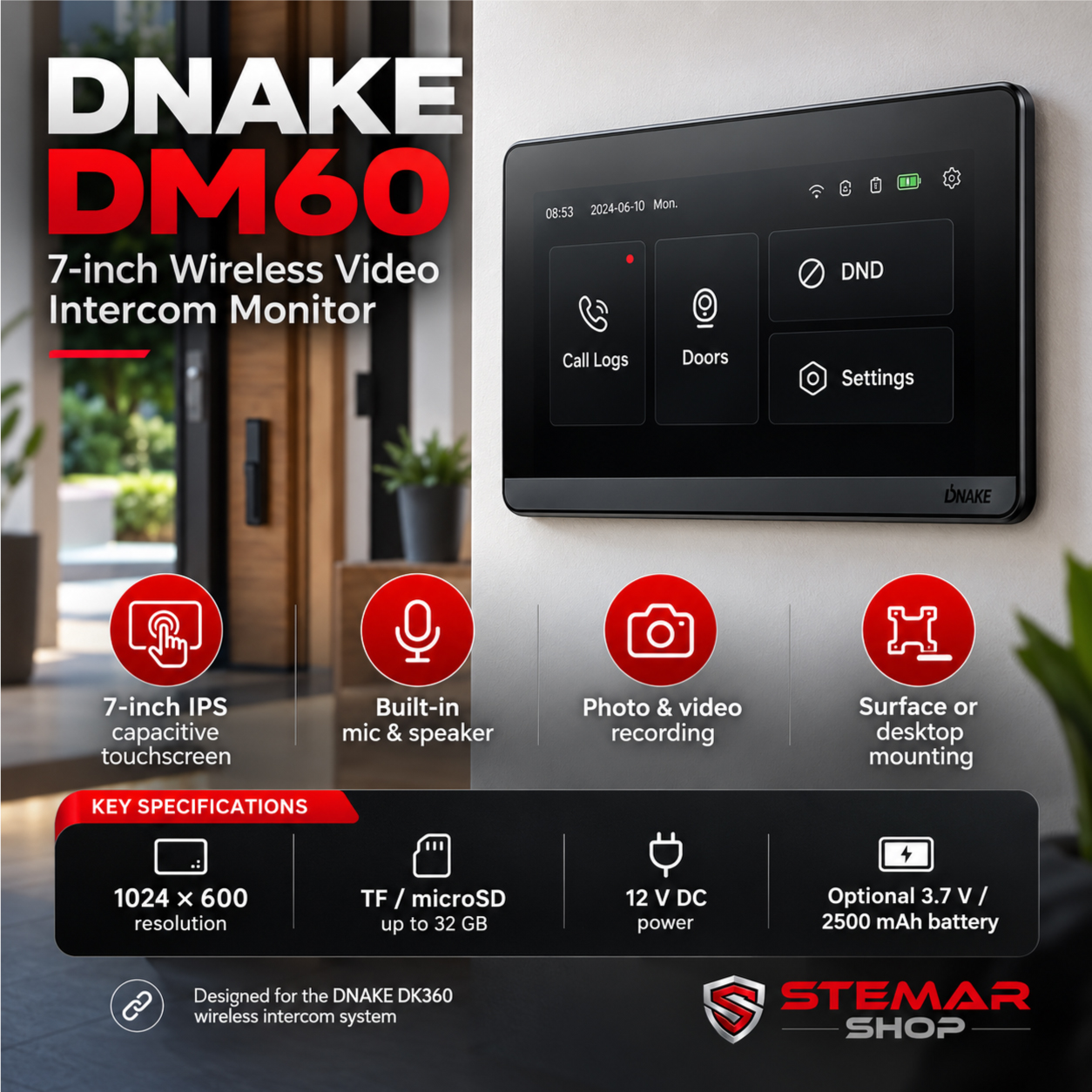

DNAKE DM60 7-inch IPS touchscreen indoor monitor lifestyle image

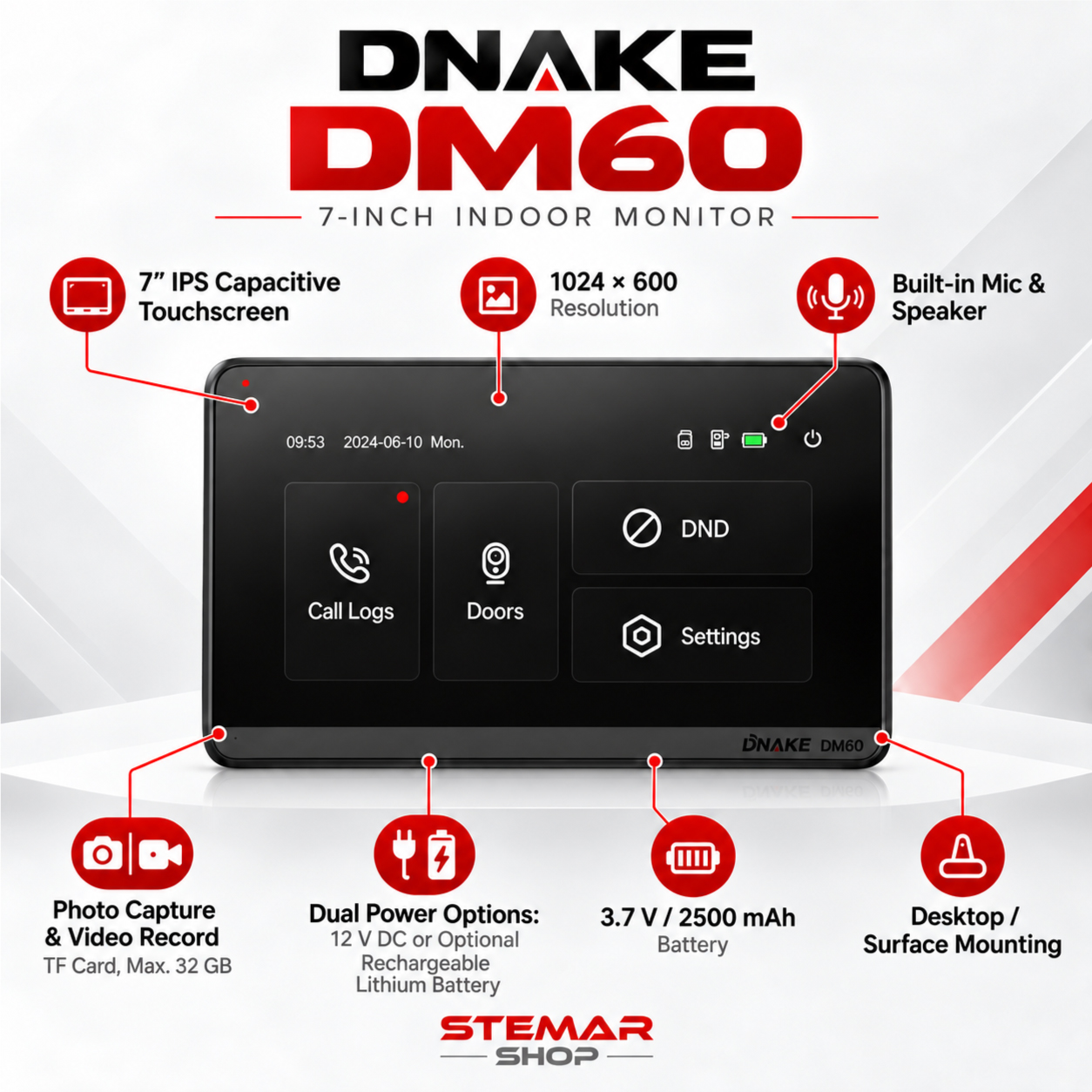

DNAKE DM60 7-inch IPS touchscreen indoor monitor lifestyle displaying features
DNAKE DK360W Wireless Video Doorbell monitor

DNAKE DM60 7-inch Wireless Video Intercom Monitor

R2,175.00 Incl. VAT



The DNAKE DM60 is a 7-inch touchscreen indoor monitor for the DNAKE DK360 wireless video doorbell system, giving you a dedicated screen for viewing visitors, answering calls and reviewing locally recorded events.

  • 7-inch IPS capacitive touchscreen with 1024 × 600 resolution
  • Built-in microphone and speaker with echo cancellation for two-way communication
  • Supports photo capture and video recording to a TF/microSD card up to 32 GB
  • Flexible surface-wall or desktop installation
  • Runs from 12 V DC, with support for an optional 3.7 V / 2500 mAh rechargeable lithium battery
  • Designed for use as the indoor monitor within the compatible DNAKE DK360 wireless doorbell system
Add To Wishlist
Remove From Wishlist
SKU: PL-1803 Categories: , , Brand:

Description

DNAKE DM60 7-Inch Indoor Monitor for the DK360 Wireless Doorbell System

The DNAKE DM60 adds a clear, dedicated 7-inch touchscreen interface to the DK360 wireless video doorbell system. From the monitor you can answer visitors, communicate through the built-in microphone and speaker, monitor the paired door camera and review locally saved snapshots or video.

Its slim 191 × 127 × 20 mm housing can be surface-mounted on a wall or placed on a desktop, making it equally practical for an entrance hall, reception desk, office or security point.

A Dedicated Screen for Your Entrance

  • 7-inch IPS touchscreen: The 1024 × 600 display gives you a convenient dedicated view of visitors without relying entirely on a phone.
  • Two-way communication: A built-in microphone, speaker and echo cancellation support clear conversations with visitors at the paired door station.
  • Local event recording: Insert a TF/microSD card to save visitor snapshots and video directly on the monitor.
  • Flexible placement: Install the DM60 on a wall or position it on a desktop to suit the room and installation.
  • Optional battery operation: In addition to its 12 V DC supply, the monitor supports an optional 3.7 V / 2500 mAh rechargeable lithium battery.

Check Your Setup

The DM60 is an indoor monitor for the DNAKE DK360 wireless doorbell platform and works with the compatible DC300 door camera. It is not a complete doorbell kit on its own.

  • A compatible DNAKE DK360 system and DC300 door camera are required for normal video-doorbell operation.
  • The monitor requires a 12 V DC power source when not operating from the optional rechargeable battery.
  • A TF/microSD card is required for local snapshot and video recording and is sold separately. Maximum supported capacity is 32 GB.

Works with the DNAKE DK360 System

The DM60 is designed as the indoor answering monitor for the DNAKE DK360 wireless video intercom family, working with the DC300 outdoor door camera to provide live visitor video, two-way communication and supported access control.

A compatible DK360 system can support up to 2 indoor monitors and 2 DC300 door stations in total, making an additional monitor useful when you want a second answering point elsewhere in the property.

Compatible productRelationship
DNAKE DK360 / DK360W SystemWireless video intercom system
DNAKE DC300 Door CameraCompatible outdoor door station
DNAKE SA002 Solar PanelOptional solar charger for the DC300 door camera

Technical Specifications

ModelDM60
Product typeIndoor video intercom monitor
Operating systemLinux
Display7-inch IPS LCD
TouchscreenCapacitive
Display resolution1024 × 600
RAM128 MB
ROM128 MB
Audio codecG.711
AudioBuilt-in microphone and speaker with echo cancellation
Video codecH.265
Local recordingPhoto capture and video recording
Memory card supportTF/microSD up to 32 GB
Power supply12 V DC
Optional batteryRechargeable lithium, 3.7 V / 2500 mAh
AntennaBuilt-in
InstallationSurface wall mounting or desktop
Dimensions191 × 127 × 20 mm
Operating temperature−10 °C to 55 °C
Operating temperature with battery−10 °C to 45 °C
Storage temperature−40 °C to 70 °C
Operating humidity10%–90%, non-condensing

What’s in the Box

  • 1 × DNAKE DM60 7-inch indoor monitor

TF/microSD card (up to 32GB) sold separately – View MicroSD Cards

Additional information

Dimensions191 × 127 × 20 mm

Compatible Products & System Expansion

The DNAKE DK360W can be expanded to support up to 2 door stations and 2 indoor monitors in total. The complete kit already includes one DC300 door camera and one DM60W indoor monitor.

ProductHow it fits into the system
DNAKE DK360W Wireless Video Doorbell Kit – PI1800You are viewing. Complete system supplied with 1 × DC300 door camera and 1 × DM60W indoor monitor.
DNAKE DC300 Door Camera with Rain Shield – PI1802Compatible replacement or additional door station. The DK360W system supports up to 2 door stations in total.
DNAKE SA002 Solar Panel for DC300 – PI1803Optional solar charging accessory for the DC300. Each DC300 that requires solar charging needs its own SA002 panel.
DNAKE DM60 7-inch Wireless Video Intercom Monitor – PI1801Standalone indoor monitor in the DNAKE DK360 range. Spectrum lists this separately as model DM60; the DK360W kit itself is supplied with the DM60W monitor.
DNAKE XH1200 12 V DC 0.5 A Switching Power Supply – PI1804Replacement or spare 12 V DC power supply specifically for the standalone DNAKE DM60 monitor.

Expansion note: The DK360W supports a maximum of 2 door stations and 2 indoor monitors in total. The supplied kit already accounts for one door station and one indoor monitor.
