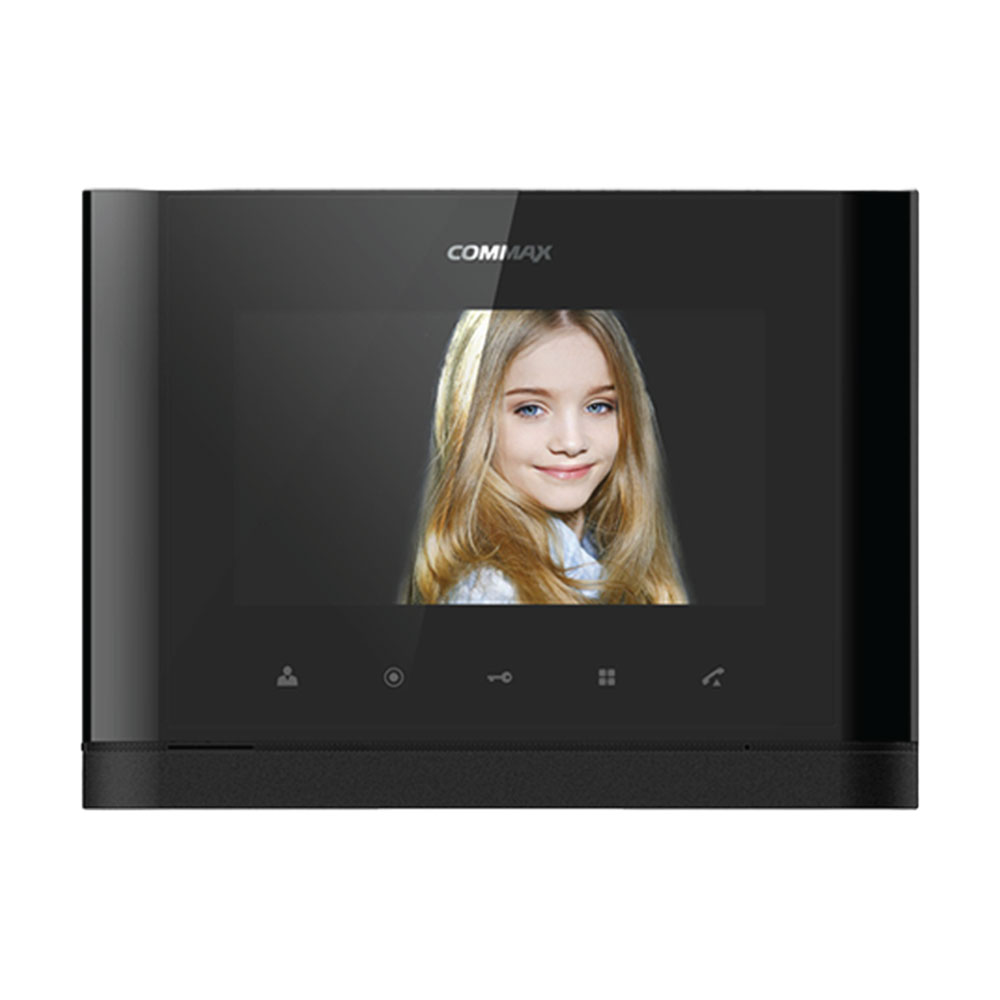

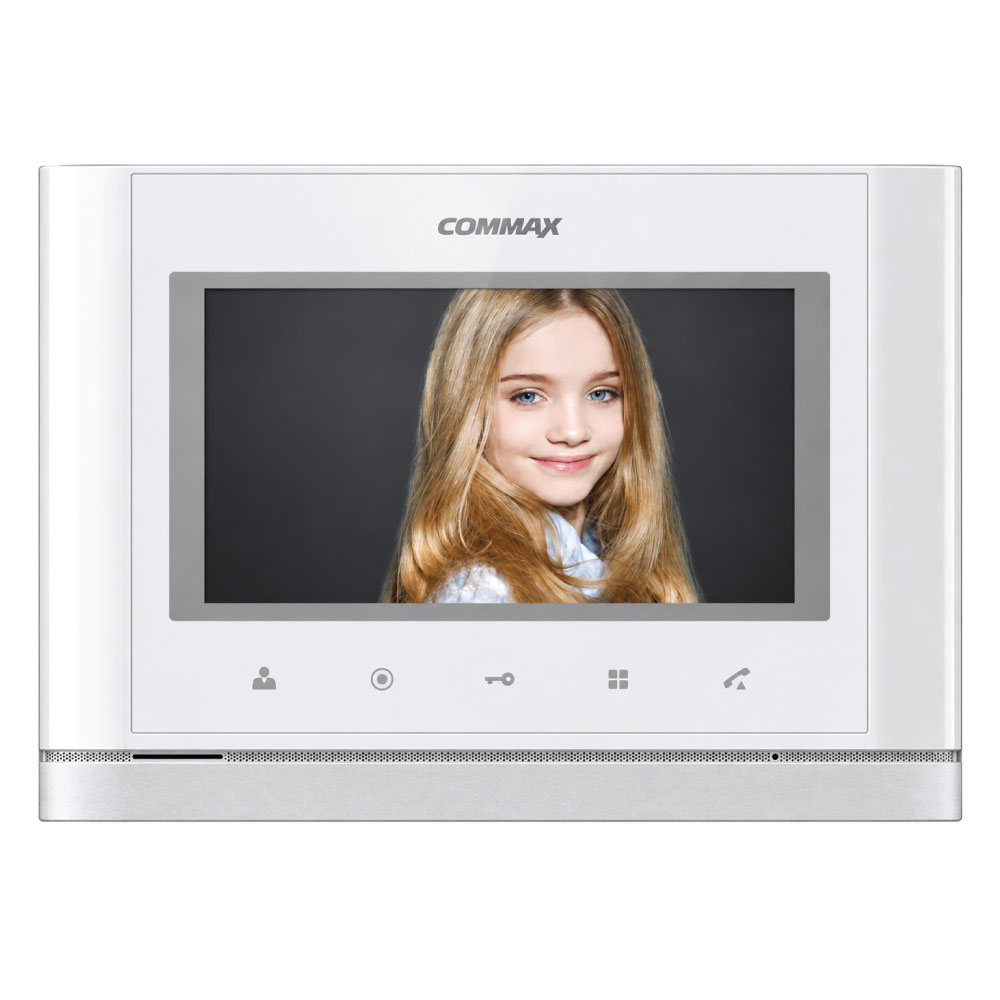

Commax CDV-77M 7-Inch Colour Video Intercom Monitor | Hands-Free | Black or White
R2,585.00 Incl. VAT
The Commax CDV-77M is a stylish 7-inch colour video intercom monitor designed for homes, offices and residential entrances. Available in black or white, it provides clear visitor viewing, convenient hands-free communication and touch-sensitive controls.
- 7-inch colour TFT LCD: View visitors clearly on a generously sized indoor display.
- Hands-free communication: Speak to visitors through the built-in microphone and speaker without lifting a handset.
- Touch-sensitive controls: Modern, easy-to-use controls with a clean, minimalist appearance.
- Expandable system: Supports up to two door cameras, two monitors and two interphones in a suitable Commax installation.
- Black or white: Choose the finish that best complements your interior.
- Wired installation: Requires a compatible Commax 4-wire video door station, sold separately.
Description
Commax CDV-77M – Elegant 7-Inch Hands-Free Video Intercom Monitor
See who’s at your entrance and speak to visitors without opening the door. The Commax CDV-77M combines a large 7-inch colour display, hands-free two-way communication and touch-sensitive controls in a slim, wall-mounted indoor monitor.
Designed for residential and office video intercom installations, the CDV-77M offers practical visitor communication with support for system expansion. Choose between a glossy black or white finish to complement your interior.
Choose the Right Colour
Both CDV-77M variants offer the same core functions and technical specifications. The difference is the exterior finish.
| Colour | Appearance |
|---|---|
| Black | Glossy black finish suited to contemporary and darker interiors. |
| White | Glossy white finish suited to light-coloured walls and minimalist interiors. |
Select your preferred colour before adding the monitor to your basket.
Why Choose the Commax CDV-77M?
- Large colour display: The 7-inch TFT LCD provides a convenient view of visitors at the entrance.
- Comfortable hands-free conversations: Communicate using the integrated microphone and speaker without holding a handset.
- Touch-sensitive operation: Convenient controls help maintain the monitor’s clean, modern appearance.
- Support for two entrances: Connect up to two compatible video door cameras to monitor separate entrance points.
- Expandable communication: Supports a system configuration with up to two monitors and two interphones.
- Door release functionality: Operate a suitably connected door release through the video intercom system.
- Slim wall-mounted design: The 18 mm profile provides a neat indoor installation.
Before You Buy
The CDV-77M is an indoor video intercom monitor, not a complete video intercom kit. A compatible Commax video door camera and the appropriate interconnecting wiring are required for visitor video communication.
- Connection: Uses a 4-wire connection to compatible Commax door cameras and interphones.
- Power: Requires a suitable AC mains connection.
- System expansion: Supports up to two video door cameras, two monitors and two interphones.
- Door release: Requires a suitably connected door release system.
- Installation: Designed for indoor surface wall mounting.
Technical Specifications
| Brand | Commax |
|---|---|
| Model | CDV-77M |
| Product Type | Indoor video intercom monitor |
| Colour Options | Black / White |
| Display | 7-inch colour TFT LCD |
| Communication | Hands-free, two-way audio |
| Controls | Touch-sensitive buttons |
| Video Format | PAL / NTSC selectable |
| Door Camera Connections | Up to 2 |
| Monitor Connections | Up to 2 monitors per supported system |
| Interphone Connections | Up to 2 |
| Wiring | 4-wire connection |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Standby Power Consumption | 3 W |
| Maximum Power Consumption | 12 W |
| Door Camera Cable Distance | Up to 28 m using 0.5 mm diameter conductors |
| Interphone Cable Distance | Up to 30 m using 0.65 mm diameter conductors |
| Mounting | Surface wall mounting |
| Operating Temperature | 0 °C to 40 °C |
| Dimensions (Length × Width × Height) | 244 × 180 × 18 mm |
What’s in the Box?
- 1 × Commax CDV-77M 7-inch video intercom monitor in your selected colour
Additional information
| Colour | Black, White |
|---|
Specifications
- Brand: Commax
- Model: CDV-77M
- Product Type: Indoor video intercom monitor
- Available Colours: Black / White
- Display: 7-inch colour TFT LCD
- Communication: Hands-free, two-way audio
- Controls: Touch-sensitive buttons
- Video Format: PAL / NTSC selectable
- Door Camera Support: Up to 2
- Monitor Support: Up to 2 monitors
- Interphone Support: Up to 2 interphones
- Door Release: Supported with suitable connected equipment
- Wiring: 4-wire
- Power Supply: 100–240 V AC, 50/60 Hz
- Standby Consumption: 3 W
- Maximum Consumption: 12 W
- Door Camera Distance: Up to 28 m with 0.5 mm conductors
- Interphone Distance: Up to 30 m with 0.65 mm conductors
- Mounting: Surface wall mounting
- Operating Temperature: 0 °C to 40 °C
- Dimensions: 244 × 180 × 18 mm
