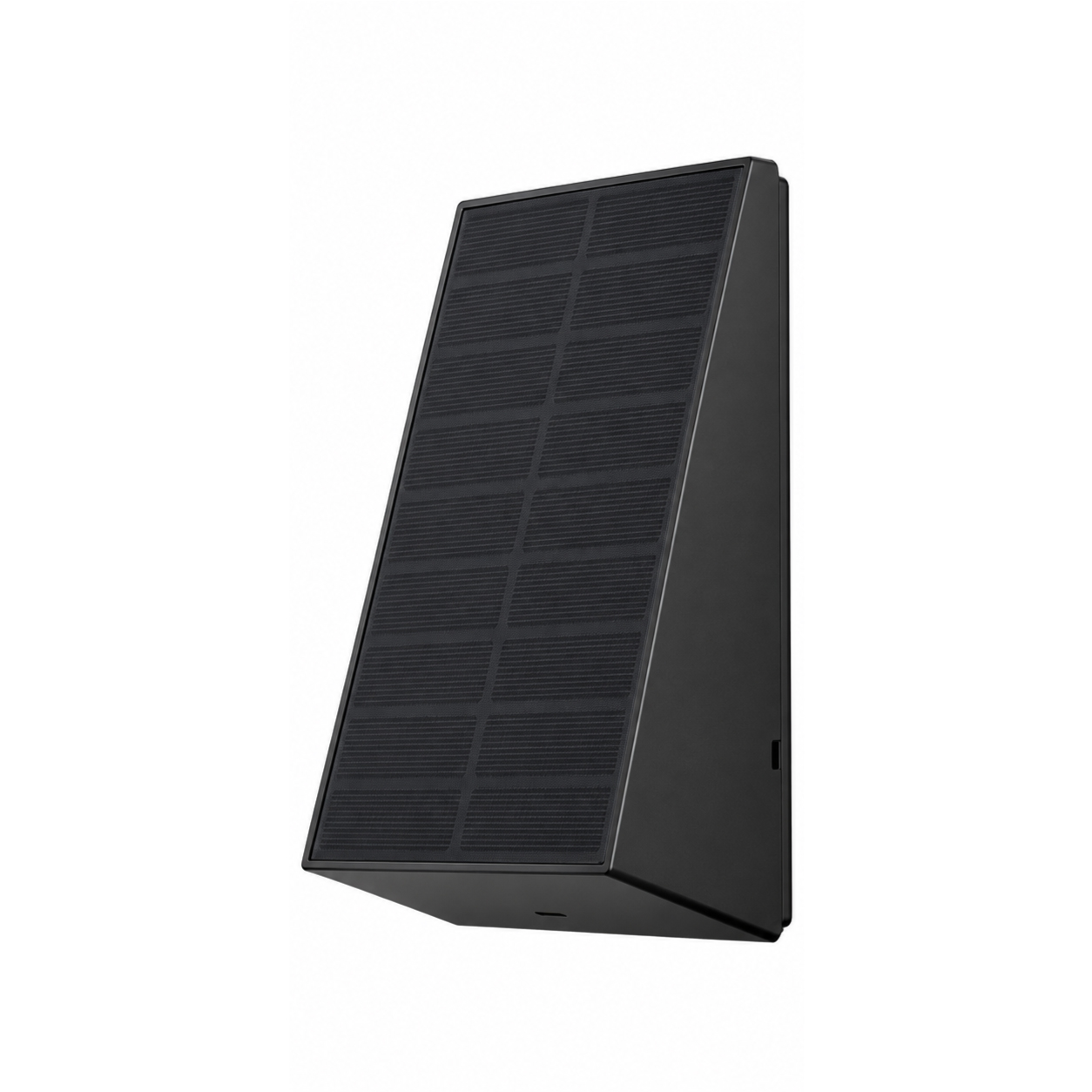

DNAKE SA002 solar panel for DC300 door camera side perspective view
DNAKE SA002 Solar Panel for DC300 Door Camera - Image 2

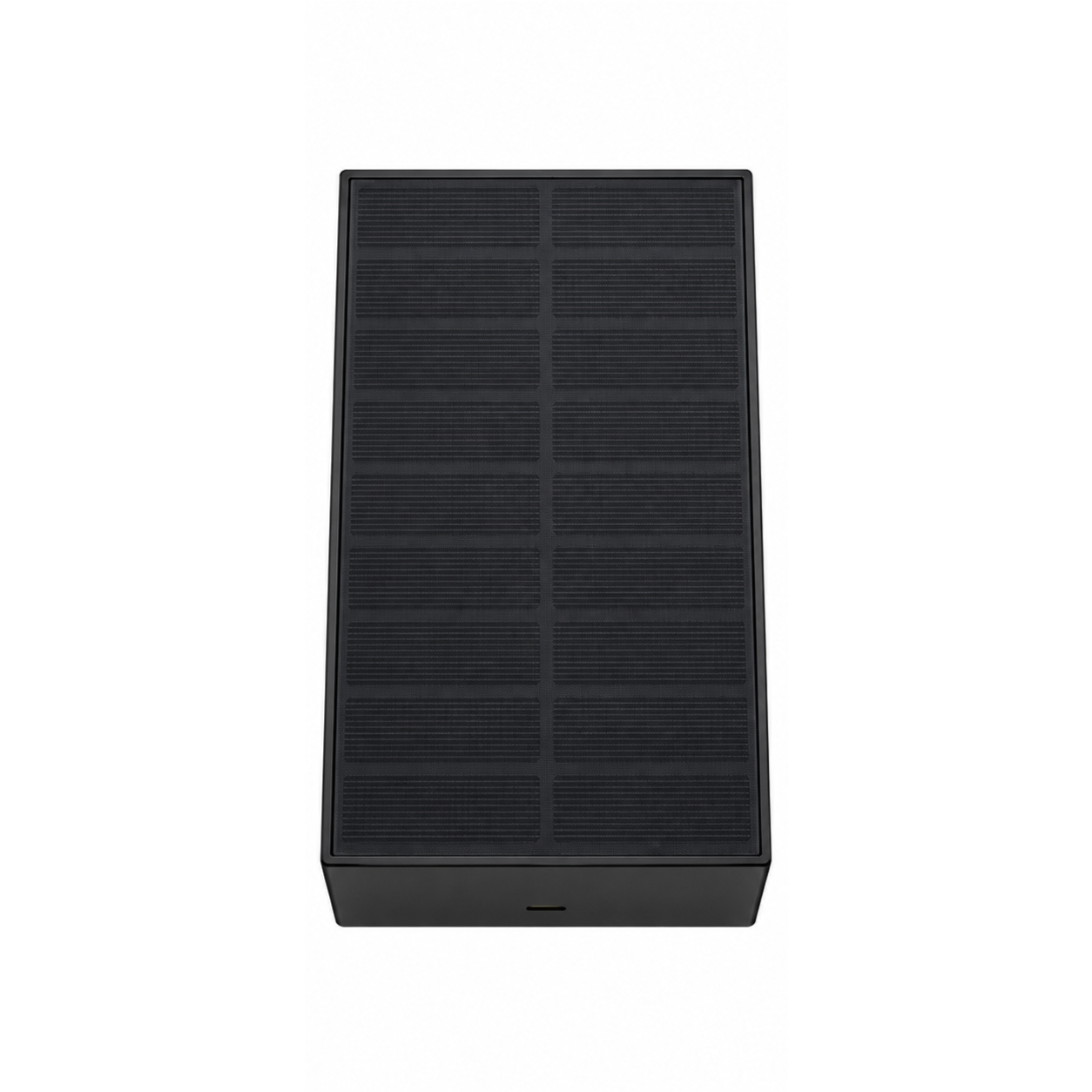

DNAKE SA002 Solar Panel for DC300 Door Camera

R649.00 Incl. VAT

The DNAKE SA002 is a compact solar charging panel designed for the DC300 outdoor door camera used in the DNAKE DK360 wireless video intercom system, helping reduce the need for manual battery charging where suitable sunlight is available.

  • Designed specifically for the DNAKE DC300 door camera
  • 5 V, 300 mA solar output with maximum power of 1.6 W ±0.1 W
  • IP65-rated construction for outdoor installation
  • Compact 152 × 91 × 53 mm black housing
  • Connects to the DC300 solar charging input
  • For compatible DNAKE DC300 installations; not intended as a general-purpose solar panel
Add To Wishlist
Remove From Wishlist
SKU: PI-1803 Categories: , , Brand:

Description

DNAKE SA002 Solar Panel – Optional Solar Charging for the DC300 Door Camera

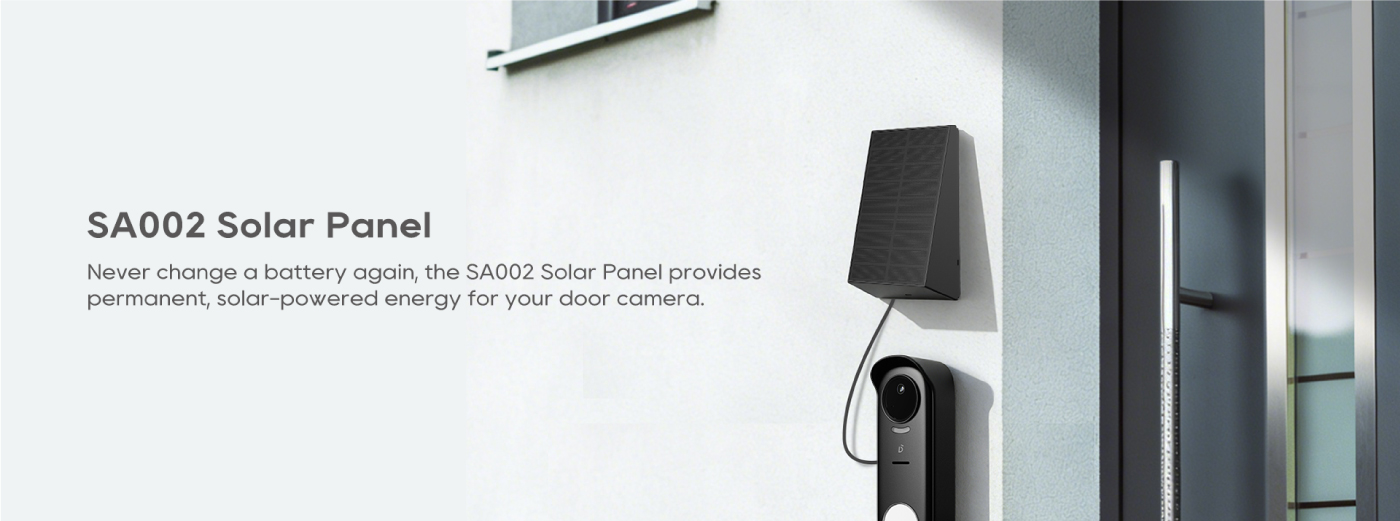

The DNAKE SA002 gives the DC300 wireless door camera an optional solar charging source, making it particularly useful for gates and entrances where regular access to mains power is inconvenient.

Its compact outdoor-rated housing is designed specifically for the DC300 used in the DNAKE DK360 wireless doorbell system, providing a neat dedicated charging solution rather than relying on a generic solar panel.

Keep the DC300 Charged with Solar Power

  • Purpose-built for the DC300: Designed around the power requirements and solar input of the compatible DNAKE door camera.
  • Compact solar output: Provides 5 V at 300 mA with a maximum rated output of 1.6 W ±0.1 W.
  • Outdoor installation: An IP65 rating makes the panel suitable for exposed entrance and gate installations.
  • Small footprint: At 152 × 91 × 53 mm, the panel can be positioned near the door camera without adding a bulky solar array.

Check Your Setup

The SA002 is designed for the DNAKE DC300 door camera. The DC300 provides dedicated GND and SOLAR+ terminals for connecting a compatible solar panel.

The solar panel is an optional accessory and is not required when the DC300 is powered from its rechargeable battery or a suitable 9–24 V DC supply.

Designed for the DNAKE DC300

The SA002 is the dedicated optional solar charging panel for the DNAKE DC300 door camera used in the DK360 wireless video intercom family.

Compatible productRelationship
DNAKE DC300 Door CameraDirectly compatible solar charging accessory
DNAKE DK360 / DK360W SystemCompatible through the system’s DC300 door camera

For systems using two DC300 door stations, each camera that requires solar charging needs its own SA002 solar panel.

Technical Specifications

ModelSA002
Product typeSolar charging panel
Compatible deviceDNAKE DC300 door camera
Power voltage5 V
Power current300 mA
Maximum power1.6 W ±0.1 W
IP ratingIP65
MaterialPlastic
ColourBlack
Operating temperature−20 °C to 50 °C
Storage temperature−10 °C to 25 °C
Dimensions152 × 91 × 53 mm

What’s in the Box

  • 1 × DNAKE SA002 solar panel

Additional information

Dimensions152 × 91 × 53 mm

Downloads & Documentation

Product DatasheetPDF

Compatible Products & System Expansion

The DNAKE DK360W can be expanded to support up to 2 door stations and 2 indoor monitors in total. The complete kit already includes one DC300 door camera and one DM60W indoor monitor.

ProductHow it fits into the system
DNAKE DK360W Wireless Video Doorbell Kit – PI1800You are viewing. Complete system supplied with 1 × DC300 door camera and 1 × DM60W indoor monitor.
DNAKE DC300 Door Camera with Rain Shield – PI1802Compatible replacement or additional door station. The DK360W system supports up to 2 door stations in total.
DNAKE SA002 Solar Panel for DC300 – PI1803Optional solar charging accessory for the DC300. Each DC300 that requires solar charging needs its own SA002 panel.
DNAKE DM60 7-inch Wireless Video Intercom Monitor – PI1801Standalone indoor monitor in the DNAKE DK360 range. Spectrum lists this separately as model DM60; the DK360W kit itself is supplied with the DM60W monitor.
DNAKE XH1200 12 V DC 0.5 A Switching Power Supply – PI1804Replacement or spare 12 V DC power supply specifically for the standalone DNAKE DM60 monitor.

Expansion note: The DK360W supports a maximum of 2 door stations and 2 indoor monitors in total. The supplied kit already accounts for one door station and one indoor monitor.
