DNAKE DK360W Wireless Video Doorbell Kit | 500 m Range (2MP)

Description

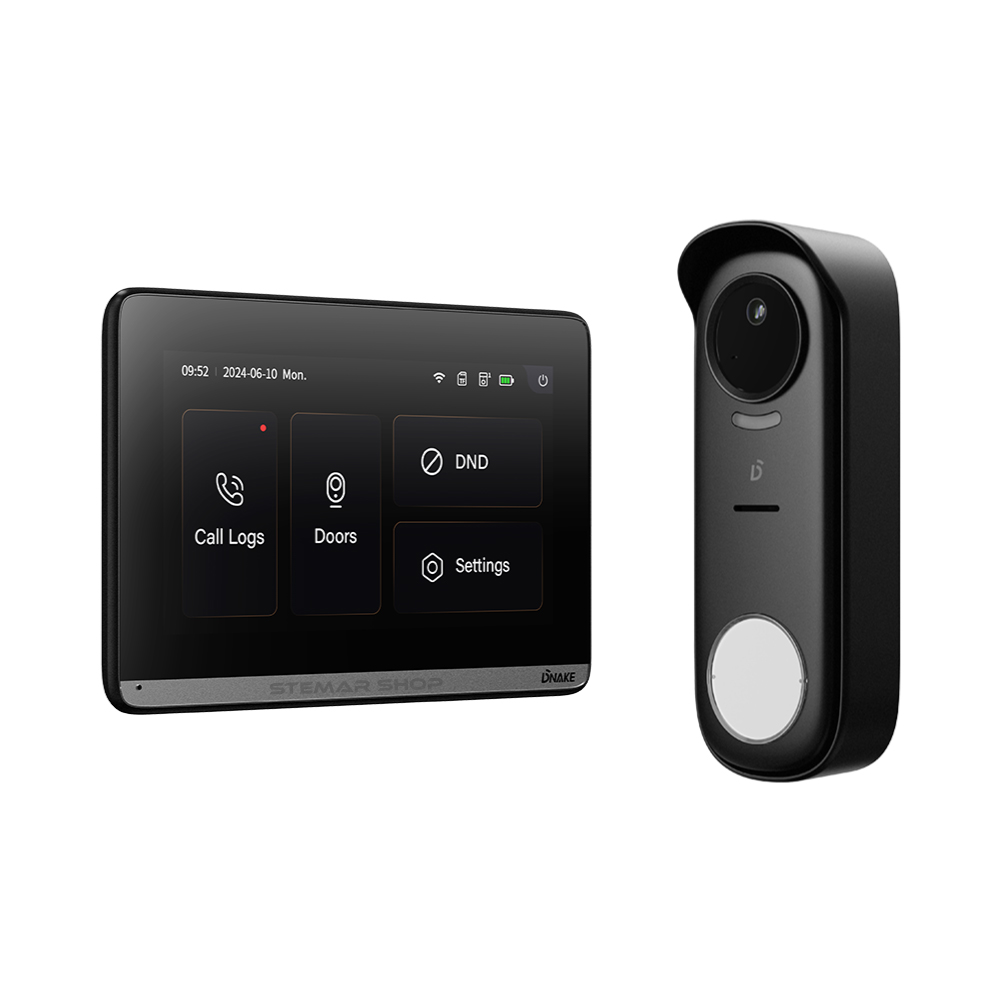

DNAKE DK360W – Long-Range Wireless Video Intercom for Gates and Remote Entrances

The DNAKE DK360W solves one of the awkward problems with gate intercoms: getting reliable communication from an entrance back to the house or office without trenching a long communication cable. The DC300 outdoor station communicates directly with the DM60W indoor monitor using Wi-Fi HaLow, with a range of up to 500 m in an open area.

You still get the things that make a proper video intercom useful every day: a dedicated 7-inch touchscreen inside, 1080p visitor video, two-way audio, gate or lock control, local photo and video recording, and remote access through the DNAKE Smart Pro app.

Made for the Gate That’s Too Far from the House

Wi-Fi HaLow is the key difference here. Rather than depending on your normal household Wi-Fi reaching all the way to the gate, the DC300 and DM60W use their own long-range wireless connection for intercom communication.

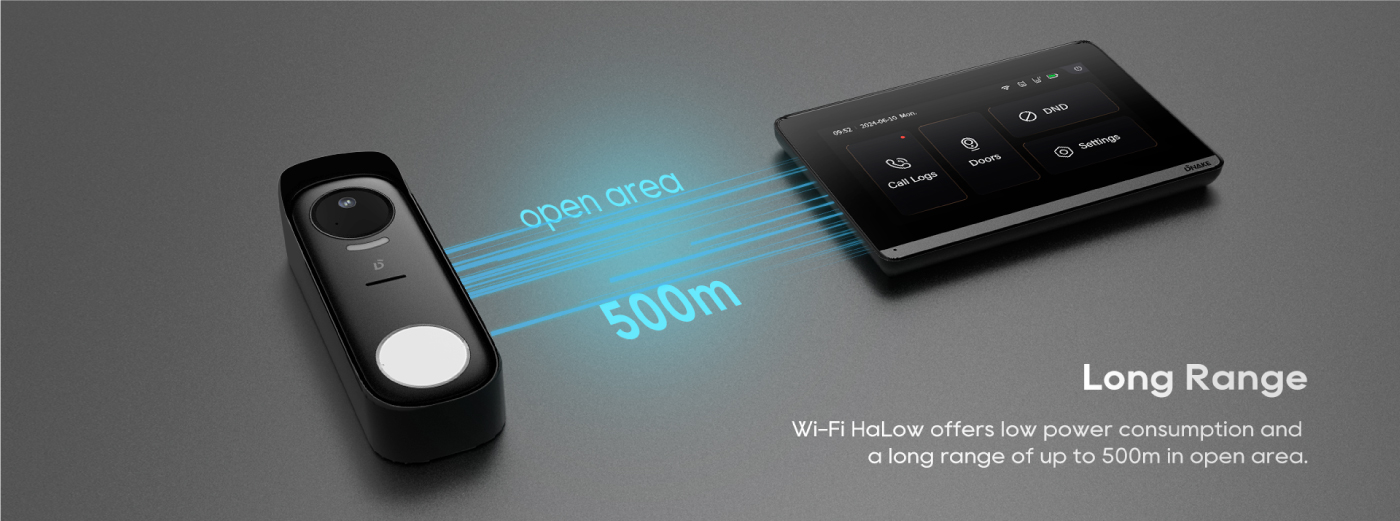

The system supports up to 500 m between the door station and indoor monitor in an open area. Actual range will depend on walls, buildings, terrain and other obstructions, but the design makes the DK360W particularly appealing for long driveways, detached gates, farms, estates and larger commercial properties.

Clear 1080p Video at the Entrance

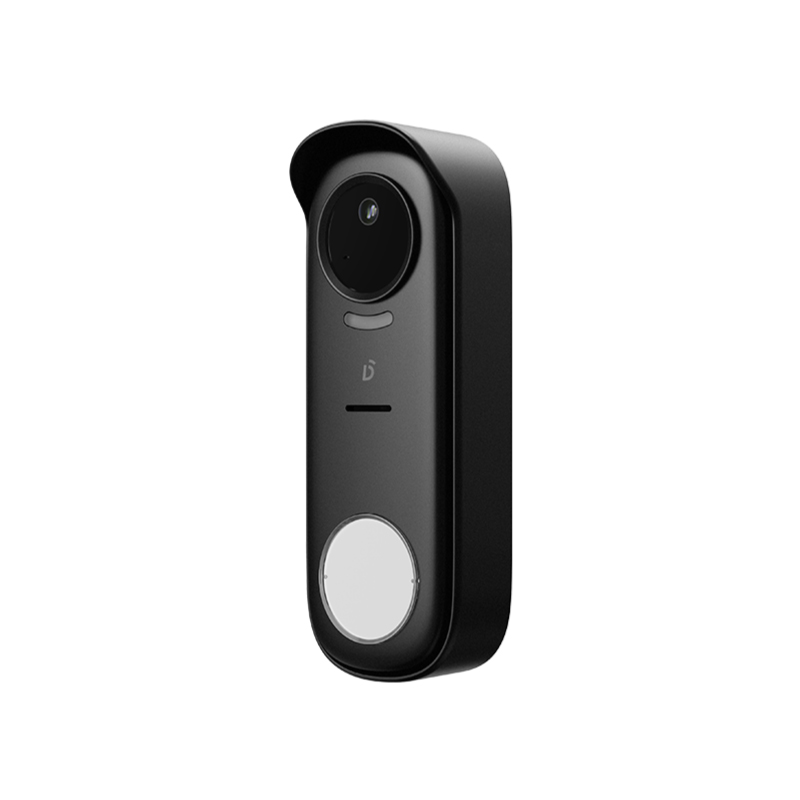

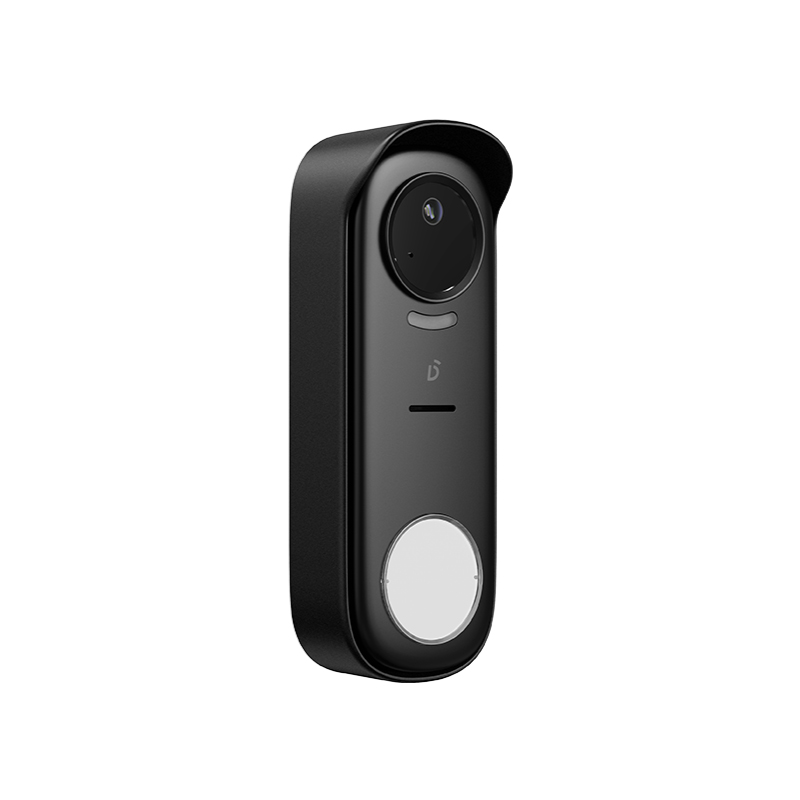

The DC300 gives you a 2MP 1920 × 1080 view of the person at the entrance, with a 110° horizontal viewing angle to cover more of the area around the call point. White-light compensation assists when additional illumination is needed.

• 2MP Full HD camera: 1920 × 1080 visitor video at up to 15 fps.
• 110° horizontal view: Useful where visitors do not always stand directly in front of the camera.
• IP65 outdoor protection: Designed for surface-mounted outdoor entrance installations.
• Tamper alarm: Provides additional protection against interference with the outdoor station.
• Single call button with name plate: Keeps the visitor interface simple and obvious.

A Proper Indoor Monitor – Not Just a Phone Notification

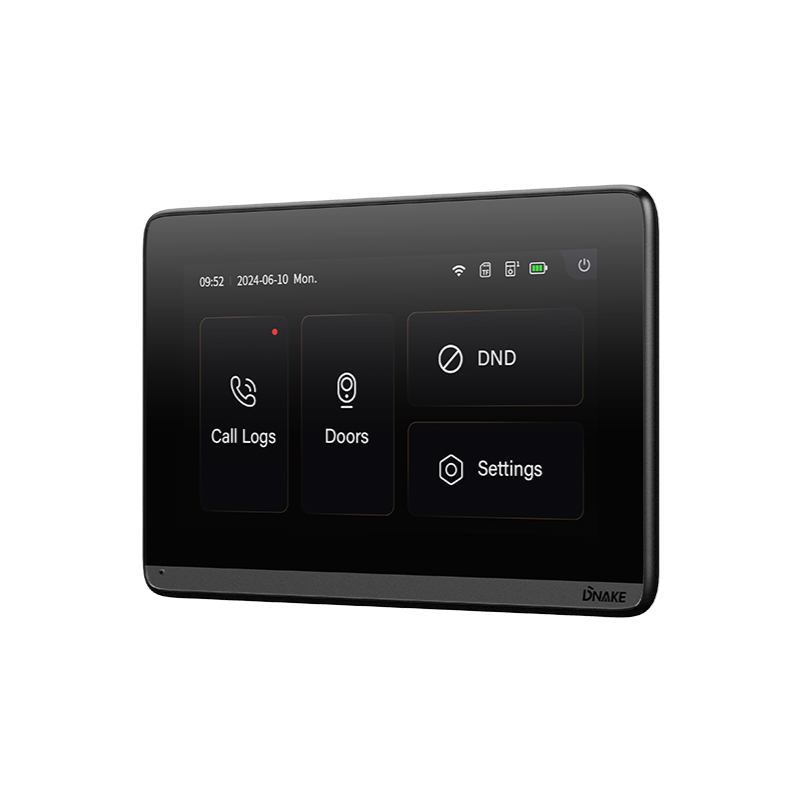

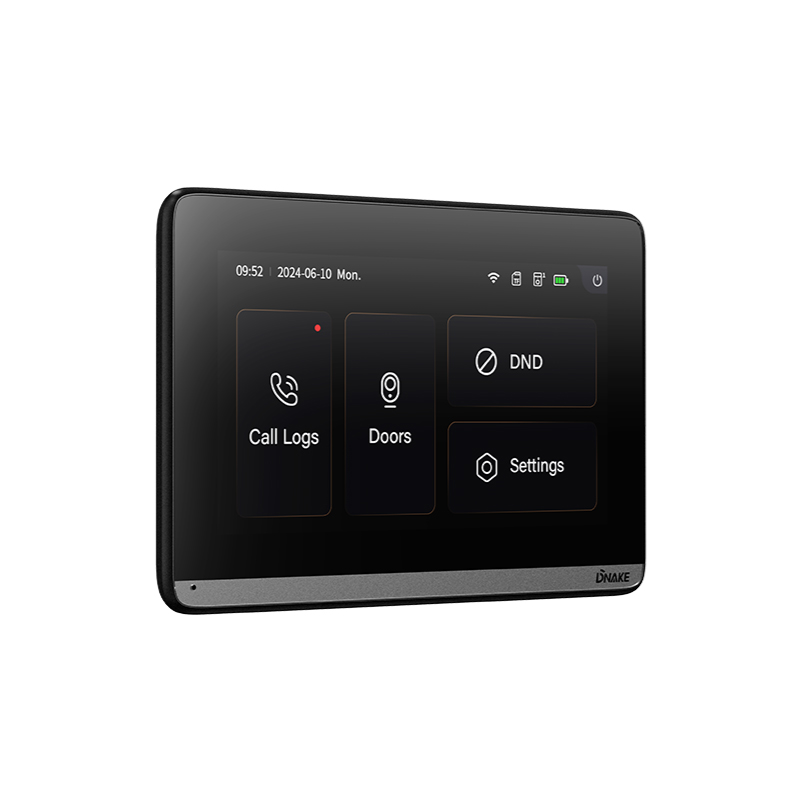

Inside, the DM60W gives you a dedicated 7-inch IPS capacitive touchscreen with 1024 × 600 resolution. You can answer or reject calls, speak to the visitor, view the door camera and operate a connected gate or compatible lock without needing to find your phone first.

The monitor also supports call logs, manual photo capture and video recording to a TF/microSD card of up to 32 GB. It can be surface-mounted on a wall or placed on a desktop, making it easy to position at the most convenient answering point.

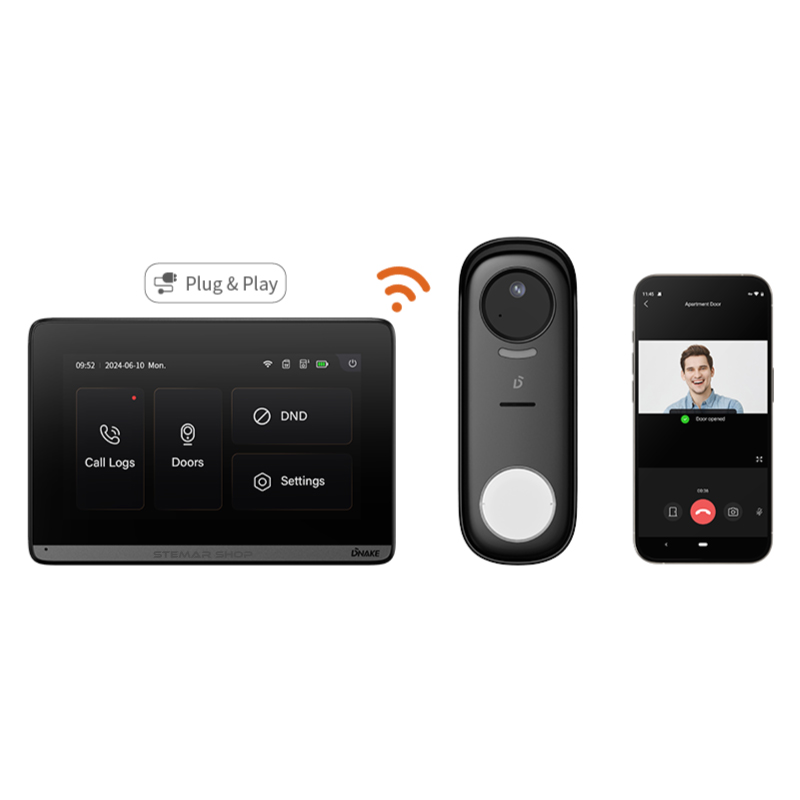

Answer the Gate from Your Phone

The DM60W adds 2.4 GHz and 5 GHz Wi-Fi connectivity for supported network and mobile-app functions. Once the system is registered with the DNAKE Smart Pro app, compatible remote functions allow you to deal with visitors even when you are away from the indoor monitor.

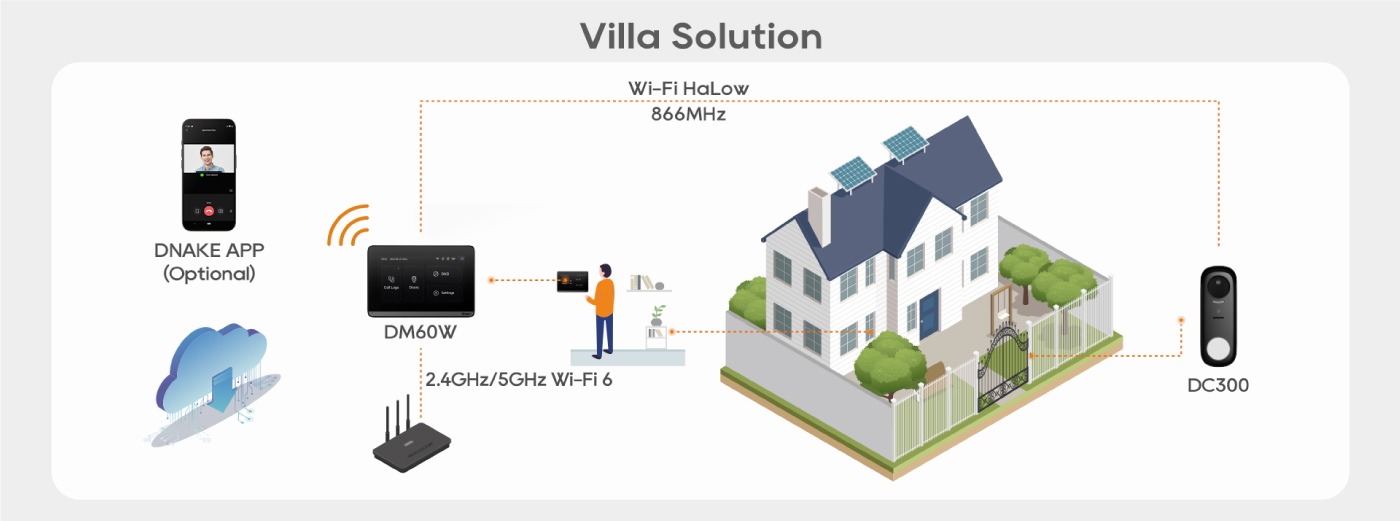

The important distinction is that ordinary home Wi-Fi is not carrying the long-distance connection from the gate to the house. The DC300-to-DM60W link uses Wi-Fi HaLow, while the indoor monitor connects the system to your local network for supported app access.

Choose the Best Power Option for Your Gate

The DC300 is deliberately flexible about power, which matters when the entrance is far from the main building.

The DM60W indoor monitor is powered from 12 V DC and also supports an optional 3.7 V / 2500 mAh rechargeable lithium battery.

Open the Gate from the Intercom

The DC300 includes a relay output for compatible gate motors, electric locks and other access-control equipment, so the system can do more than simply show you who is outside. An exit-button input is also provided for installations that require a local release button.

• 1 × relay output on the DC300
• 1 × exit-button input
• Maximum DC300 relay load of 2 A
• An additional configurable relay/dry-contact output is available from the indoor monitor for suitable system applications

One System, Two Entrances and Two Answering Points

The DK360W does not have to remain a single-door, single-monitor system. It can be expanded to support up to 2 door stations and 2 indoor monitors in total.

That makes it suitable for properties with a second pedestrian entrance, front and rear access points, or situations where you want an additional answering point elsewhere in the building.

Each DC300 that requires solar charging needs its own SA002 solar panel.

Check These Details Before Installation

• The 500 m figure is measured in an open area; buildings, walls, terrain and other obstructions reduce practical wireless range.
• A compatible gate motor, electric lock or access-control device is required if remote unlocking will be used.
• The DC300 relay load must not exceed 2 A.
• The SA002 solar panel is an optional accessory and is sold separately.
• A TF/microSD card is required for local snapshot and video storage and is sold separately. Maximum supported capacity is 32 GB.

Technical Specifications

What’s in the Box

• 1 × DNAKE DC300 door camera
• 1 × Rechargeable lithium battery for DC300
• 1 × DNAKE DM60W 7-inch indoor monitor
• 1 × Power supply
• 1 × Ethernet connector
• 1 × Cable
• 1 × Junction pressing plate
• 1 × T10 Torx screwdriver
• Door camera and indoor monitor fixing seats
• Mounting screws
• 1 × Protection diode
• 1 × User manual

TF/microSD card sold separately – View MicroSD Cards
