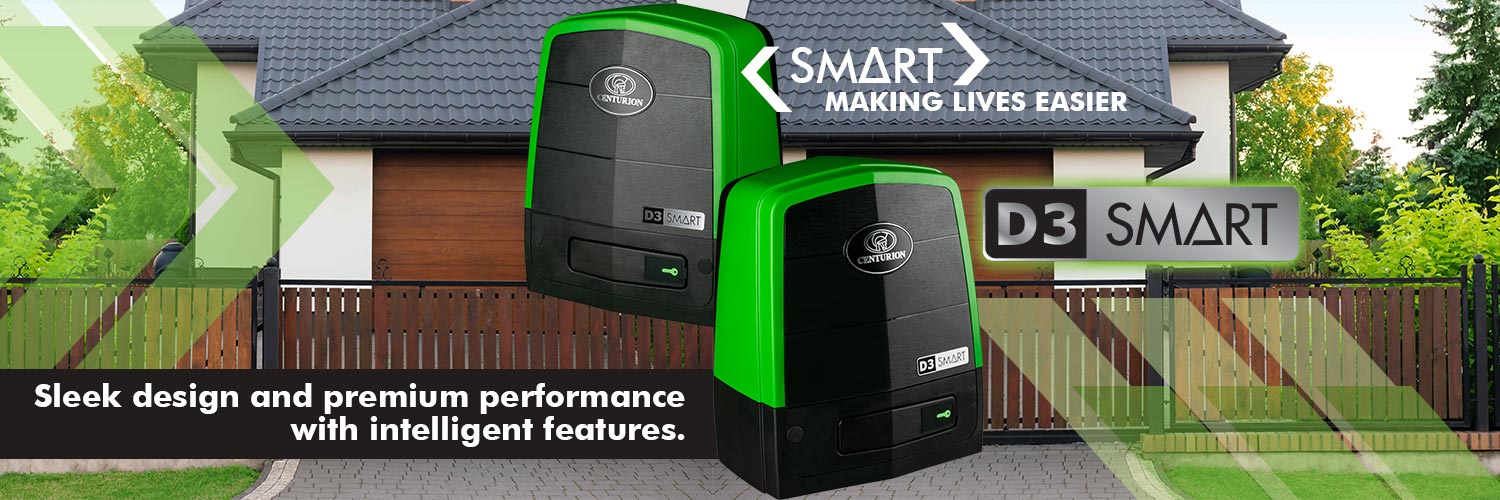

Centurion D3 Smart Sliding Gate Motor
R4,499.00 – R4,634.00 Incl. VAT
The perfect gate motor for residential gates weighing up to 300kg. The D3 SMART is packed with advanced, yet intuitive and user-friendly functionality to make your life easier.
*Price includes the Motor and 2x 4 Button NOVA Remotes only! Excludes foundation plate, batteries, rack and accessories.
NOTE: Foundation / Base plate not required if replacing existing D3 / D5 gate motor.
Description
Centurion D3 Smart Sliding Gate Motor – Gates up to 300kg.
The D3 SMART gate motor embodies the philosophy of simplicity being the pinnacle of sophistication. It combines sleek design and premium performance with intelligent features, making secure and reliable gate automation accessible to everyone.
D3 SMART is packed with advanced – yet intuitive and user-friendly – functionality to make your life easier. Effortlessly control your gate with the MyCentsys Remote smartphone app, receive advanced diagnostic feedback for ultimate peace of mind, and enjoy dependable battery-driven technology that stands up to power outages.
Installer-friendly, feature-rich, and budget-conscious, D3 SMART is the smarter choice for your home.
Here’s why you’ll love the D3 SMART:
- Fast and Secure: Open your gate in a flash, keeping unwanted visitors at bay
- Smart Control: Manage your gate with maximum convenience and flexibility with the user-friendly smartphone app
- Easy Installation: Saving installers time and effort with the industry-leading design
- Reliable Performance: Never miss a beat with dependable battery-driven technology
- Intelligent Features: Advanced alerts, notifications and reporting keep you informed and in control
- Peace of Mind: Enjoy outstanding security with the improved theft-resistant cage
- Convenient Commissioning and Operation: Effortless smartphone setup and single-action manual release
- Wireless, Effortless Safety: Compatible with Photon SMART Beams for a complete wireless experience
Technical Specifications
D3 SMART | |
Input voltage (1) | 110V – 240V AC 50/60Hz (1) |
Current consumption (mains) | 320mA peak |
Dx12V Battery charger current output | 1.8A @ 14.3V +/- 5% (28W) |
Maximum number of operations per day | 20 (3,6) |
Duty cycle – Mains present (2,3) | 25% |
Motor power supply | Battery-driven (Standard Capacity – 1x12V) |
Current consumption (motor at rated load) | 11A |
Fuse Protection | Type | Rating |
Main Control Card | Serviceable | 35A |
Aux. Supply | Resettable Fuse | 12V 300mA MAX (10sec Pulse) |
Charger (Mains Supply) | Non-serviceable | 3A slow-blow |
Motor push force – starting | 18kgf |
Motor push force – rated | 12kgf |
Gate mass – maximum | 300kg |
Gate speed (varies with load) (4) | Maximum: Up to 24m/min Rated: Up to 21m/min |
Manual Override | Lockable with key release |
Operations whilst in Battery backup mode with 7.2Ah Battery | Operating Mode Up to 24m/min 7kgf | Up to 24m/min 12kgf |
Half day (5,6,8) | 90 | 80 |
Full day (5,6,8) | 70 | 65 |
Collision Sensing | Electronic |
Operating temperature range | -15°C to +50°C |
Onboard receiver type | Code-hopping multichannel receiver with selective add and delete |
Receiver code storage capacity | 32 Remotes (7) |
Receiver frequency | 433.92MHz |
Degree of protection | IP55 |
Mass of unit packed (with standard kit, but excl. Rack and Battery) | 6.7kg |
Packaging dimensions (with standard kit, but excl. Rack and Battery) | 325mm wide x 245mm deep x 395mm high |
- Can operate off a solar supply, consult your local dealer for assistance
- Based on 25°C ambient temperature and unit not in direct sunlight
- Based on a motor push force of less than 50% of rated (Starting and Running forces)
- Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
- Can increase Battery capacity for longer standby times
- Based on 4m gate, excluding all accessories
- Multiple buttons per remote can be used
- Dependant on the type and condition of the Battery
What’s in the Box:
- 1x Centurion D3 Smart Sliding Gate Motor
- 2x 4 Button NOVA Remotes
*Excludes Battery (x1), Rack, Foundation Plate and Accessories
Additional information
Weight | 6700 g |
---|---|
Dimensions | 325 × 245 × 395 mm |
D3 Smart | Excluding Base Plate, Including Base Plate |
