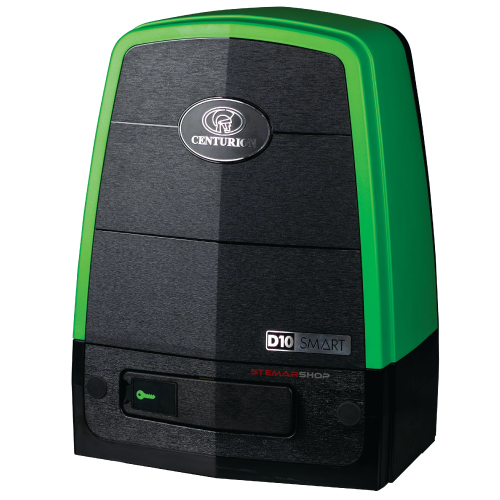

Centurion D10 SMART Sliding Gate Motor

R9,625.00R9,775.00 Incl. VAT

The Centurion D10 SMART includes a powerful 24v motor and die-cast aluminium gearbox that provides excellent security on sites ranging from townhouse complexes and residential estates to busy office parks and warehouse facilities for gates up to 1000kg.

*Price includes the Motor only! Excludes batteries, rack and accessories.

NOTE: Foundation / Base plate not required if replacing existing D10 / D20 gate motor.



Original price was: R11,520.00.Current price is: R9,625.00. Incl. VAT
Original price was: R11,748.00.Current price is: R9,775.00. Incl. VAT
SKU: N/A Category: Brand:

Description

Centurion D10 SMART Sliding Gate Motor – Gates up to 1000kg

Features

  • Taking intelligence to the next level – a machine crafted for excellence and perfected through innovation
  • Pushing the limits of technology to bring you the ultimate in strength, security and endurance – suitable for gates weighing up to 1t with 750 daily operations
  • SMART hardware and SMART connectivity provide the best experience for installers
  • Intelligent theft and break-in protection with an integral vibration sensor and patented theft-deterrent cage
  • More space and dedicated accessory tray for complementary solutions such as GSM devices
  • World-class reliability with a sealed gearbox and improved, more secure manual release mechanism
  • Die-cast aluminium gearbox coupled with a high-torque DC motor built for pure power and performance
  • Uncompromising security, uninterrupted convenience with 24V battery backup

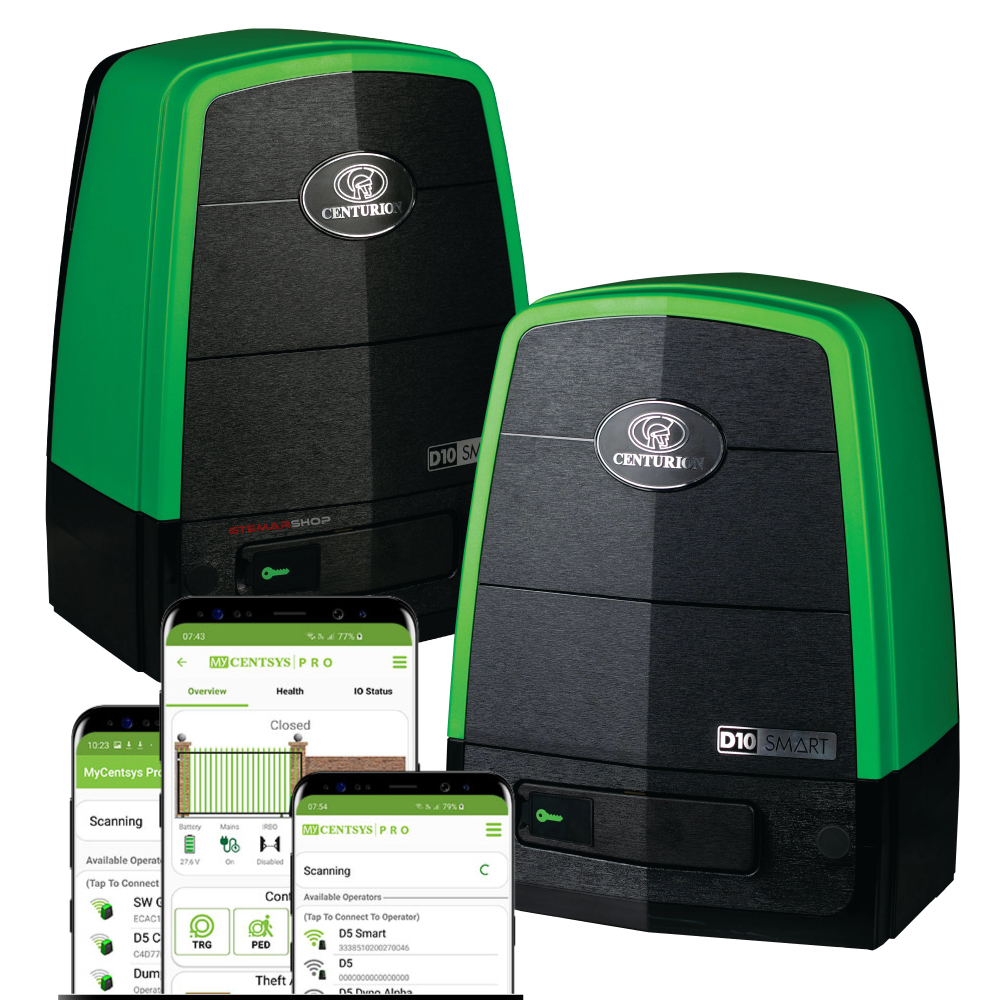

  • Instant access to advanced, in-app diagnostics and logs, monitoring system health in real time
  • Accurate and safe position control incorporating reliable Hall Effect technology
  • Improved wire routing
  • SMART universal controller – compatible with all CENTURION SMART solutions



Technical Specifications

Centurion D10-SMART Sliding Gate Motor
Input voltage90V – 240V AC +/-10% @ 50Hz 1
Current consumption (Mains)250mA
Battery charger current output1.8A @ 27.4V +/-1%
Maximum number of operations per day750 3, 6, 7
Duty cycle – Mains present 2, 345%
Motor voltage24V DC
Motor power supplyBattery-driven (Standard Capacity – 2x 12V 7.2Ah)
Current consumption (motor at rated load)8A
Input / Output sink currents (Max accessory current draw)
I/O 1-4100mA (12/24V)
I/O 5 and 63A (12/24V) 10sec Pulse
Motor push force – starting40Kgf
Motor push force – rated30Kgf
Gate mass – maximum1000Kg
Gate length – maximum50m
Gate speed (varies with load) 4Up to 26m/min 4
Manual OverrideLockable with key release
Drive Pinion17T Module 4
Operations in standby with 2x 7Ah batteriesPower saving (15m/min 15kgf) Normal (26m/min 15kgf)
Half day 2, 5, 6118 | 63
Full day 2, 5, 693 | 50
Collision SensingElectronic
Operating temperature range-15°C to +50°C
Onboard receiver typeCode-hopping multichannel receiver with selective add and delete
Receiver code storage capacity1500 Remotes 7
Receiver frequency433.92MHz
Degree of protectionIP54
Mass of unit packed (with standard kit, but excl. rack and battery)13Kg
Packaging dimensions (with standard kit, but excl. rack and battery)350mm wide x 282mm deep x 470mm high
  1. Can operate off a solar supply, consult your local dealer for assistance
  2. Based on 25°C ambient temperature and unit not in direct sunlight
  3. Based on a motor push force of less than 50% of rated (Starting and Running forces)
  4. Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
  5. Can increase battery capacity for longer standby times
  6. Based on 4m gate, excluding all accessories
  7. Multiple buttons per remote can be used
  8. Refer to the table below for D10 TURBO SMΔRT’s recommended gate speed for specified gates masses



What’s in the Box

Centurion D10 SMART Sliding Gate Motor

*Excludes Remotes, Foundation Plate, Batteries (x2) and Rack

Centurion D10 & D10 Turbo Smart Brochure

Centurion D10 & D10 Turbo Smart Installation Manual

Centurion D10 & D10 Turbo Smart Quick Guide

Centurion D10, D10 Turbo & D20 Smart Theft Deterrent Cage



Additional information

Weight13000 g
Dimensions350 × 282 × 470 mm
D10 Motor

Excluding Base Plate, Including Base Plate
