R12,545.00Original price was: R12,545.00.R10,995.00Current price is: R10,995.00. Incl. VAT

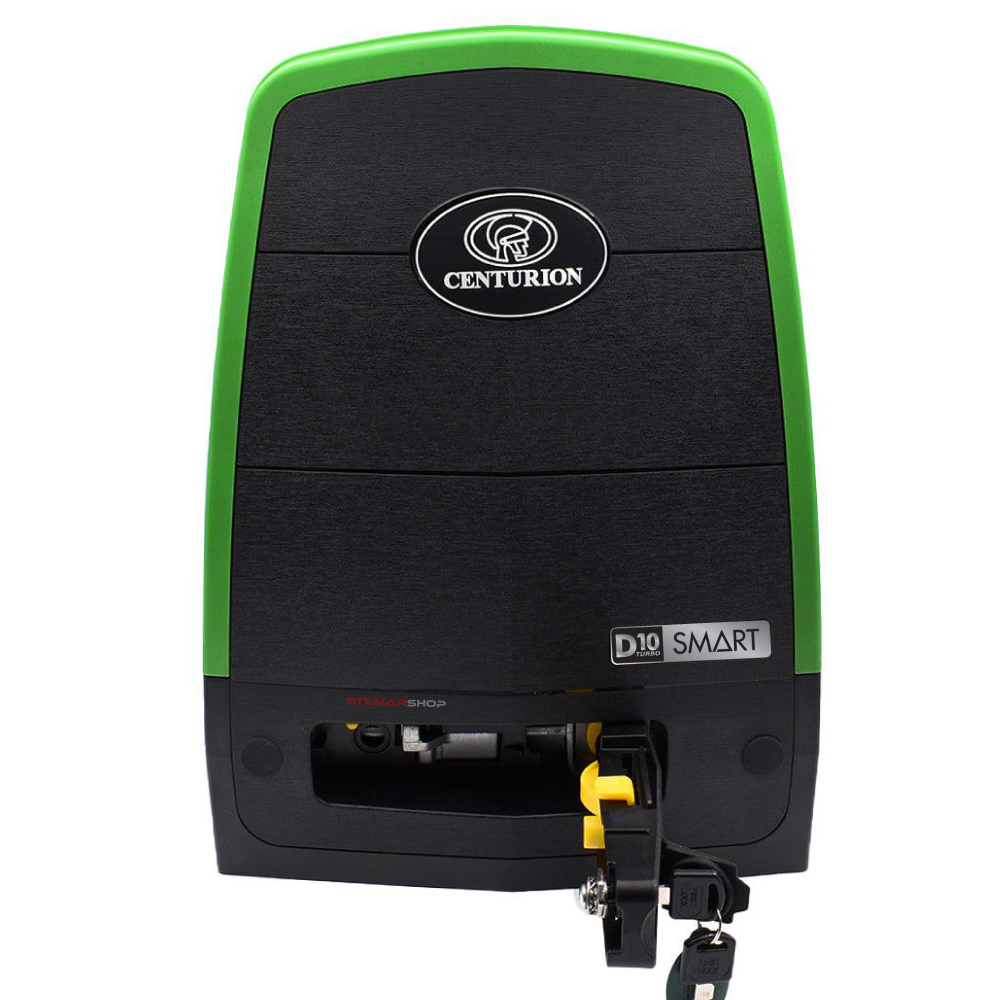

Centurion D10 Turbo SMART Sliding Gate Motor is lightning-fast and used for residential and light-industrial applications with a maximum gate mass of 250kg. The high-velocity sprinter combines Centurion’s most innovative technology with awe-inspiring speed to deliver a solution that leaves others in its dust.
*Price includes the Motor only! Excludes batteries, rack and accessories
NOTE: Foundation / Base plate is not required if replacing existing D10 / D20 gate motor.
Centurion D10 Turbo SMART Sliding Gate Motor – Gates up to 250kg.
Features
Taking intelligence to the next level – a machine crafted for excellence and perfected through innovation
Pushing the limits of technology to bring you the ultimate in strength, security and endurance – suitable for gates weighing up to 1t with 750 daily operations
SMART hardware and SMART connectivity provide the best experience for installers
Intelligent theft and break-in protection with an integral vibration sensor and patented theft-deterrent cage
More space and dedicated accessory tray for complementary solutions such as GSM devices
World-class reliability with a sealed gearbox and improved, more secure manual release mechanism
Die-cast aluminium gearbox coupled with a high-torque DC motor built for pure power and performance
Uncompromising security, uninterrupted convenience with 24V battery backup
Instant access to advanced, in-app diagnostics and logs, monitoring system health in real time
Accurate and safe position control incorporating reliable Hall Effect technology
Improved wire routing
SMART universal controller – compatible with all CENTURION SMART solutions
Technical Specifications
D10 TURBO-SMART
Input voltage
90V – 240V AC +/-10% @ 50Hz 1
Current consumption (Mains)
250mA
Battery charger current output
1.8A @ 27.4V +/-1%
Maximum number of operations per day
750 3, 6
Duty cycle – Mains present 2, 3
25%
Motor voltage
24V DC
Motor power supply
Battery-driven (Standard Capacity – 2x 12V 7.2Ah)
Current consumption (motor at rated load)
10A
Input / Output sink currents (Max accessory current draw)
I/O 1-4
100mA (12/24V)
I/O 5 and 6
3A (12/24V) 10sec Pulse
Motor push force – starting
24Kgf
Motor push force – rated
18kgf
Gate mass – maximum
250kg
Gate length – maximum
50m
Gate speed (varies with load) 4
Up to 45m/min
Manual Override
Lockable with key release
Drive Pinion
20T Module 4
Operations in standby with 2x 7Ah batteries
Power saving (15m/min 9kgf) Normal (45m/min 9kgf)
Half day 2, 5, 6
189 | 130
Full day 2, 5, 6
150 | 104
Collision Sensing
Electronic
Operating temperature range
-15°C to +50°C
Onboard receiver type
Code-hopping multichannel receiver with selective add and delete
Receiver code storage capacity
1500 Remotes 7
Receiver frequency
433.92MHz
Degree of protection
IP54
Mass of unit packed (with standard kit, but excl. rack and battery)
13.5Kg
Packaging dimensions (with standard kit, but excl. rack and battery)
350mm wide x 282mm deep x 470mm high
Can operate off a solar supply, consult your local dealer for assistance
Based on 25°C ambient temperature and unit not in direct sunlight
Based on a motor push force of less than 50% of rated (Starting and Running forces)
Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
Can increase battery capacity for longer standby times
Based on 4m gate, excluding all accessories
Multiple buttons per remote can be used
What’s in the Box
Centurion D10 Turbo SMART Sliding Gate Motor
Motor only, excludes accessories such as Remotes, Foundation Plate, Batteries (x2) and Rack
If you require more than just the motor, use our Build-It Bundle to add products as required.
