Description

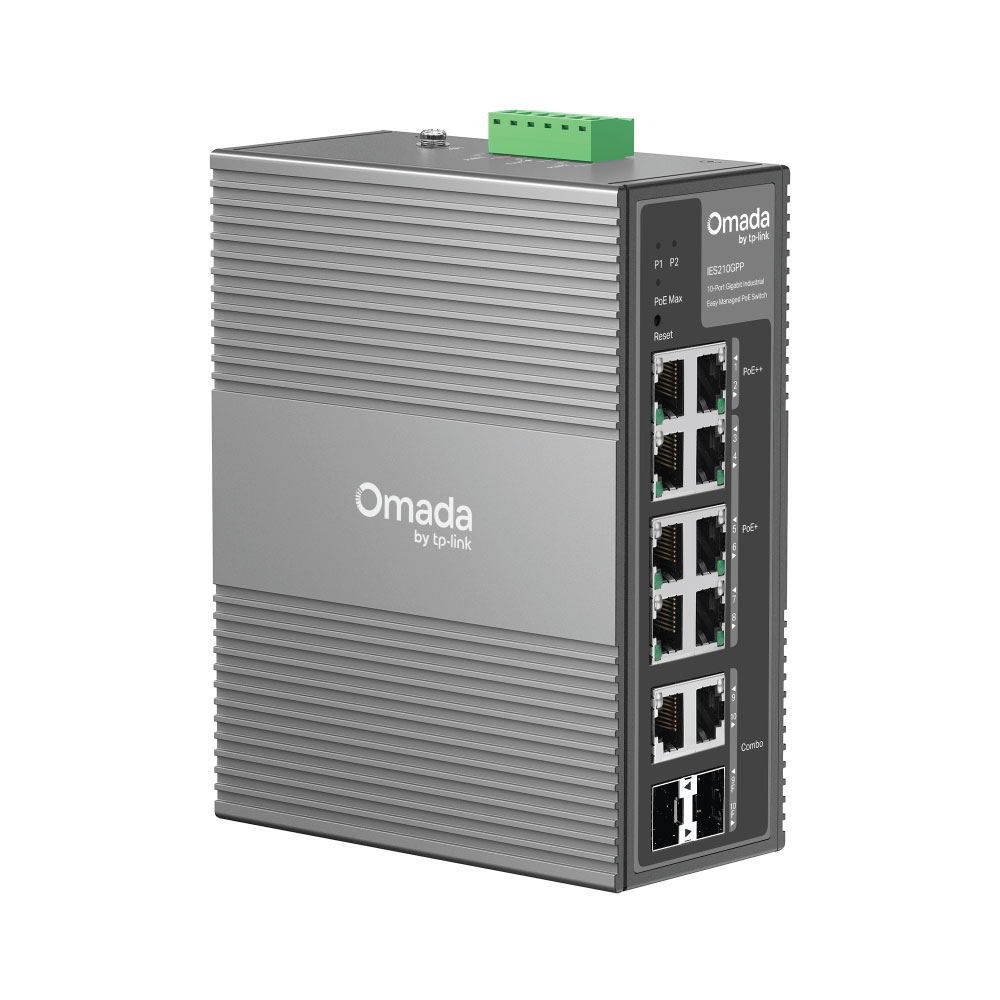

TP-Link Omada IES210GPP Industrial PoE++ Switch for Demanding Network Installations

The TP-Link IES210GPP combines Gigabit networking, high-power PoE and an industrial enclosure for installations where conventional desktop switches are not suitable. Its eight powered RJ45 ports can supply cameras, access points and other compatible PoE devices, while two additional Gigabit combo ports provide copper or SFP fibre uplink options.

Dual DC inputs, wide operating-temperature support and DIN-rail mounting make it particularly useful for CCTV cabinets, automation systems, plant rooms and distributed network installations.

Is This Right for You?

• Choose it when you need up to eight powered Gigabit Ethernet connections in an industrial installation.
• It suits deployments requiring a mixture of standard PoE+, higher-power PoE++ and optional Gigabit fibre uplinks.
• It is useful where redundant DC power inputs, fanless operation or DIN-rail mounting are important.
• If you require multi-gigabit 2.5GbE ports, this model is limited to Gigabit Ethernet.

Why Choose This Product?

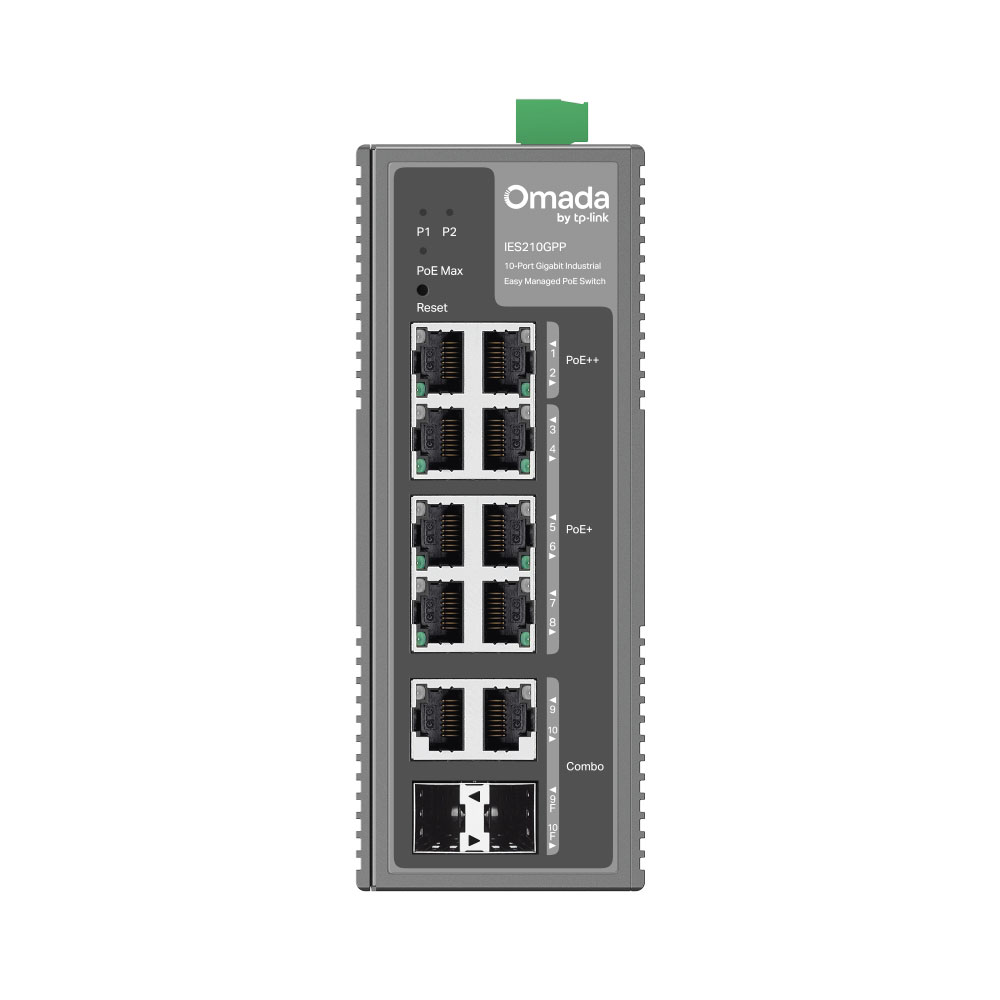

• High-power PoE where it is needed: Ports 1-2 support IEEE 802.3bt PoE++ at up to 60W per port, while ports 3-8 provide PoE+ at up to 30W each.
• Flexible uplinks: Two Gigabit RJ45/SFP combo interfaces let you choose copper or compatible SFP fibre connections to suit the site.
• Industrial operating range: The switch is specified for operation from -40°C to 75°C and uses a fanless IP40 aluminium enclosure.

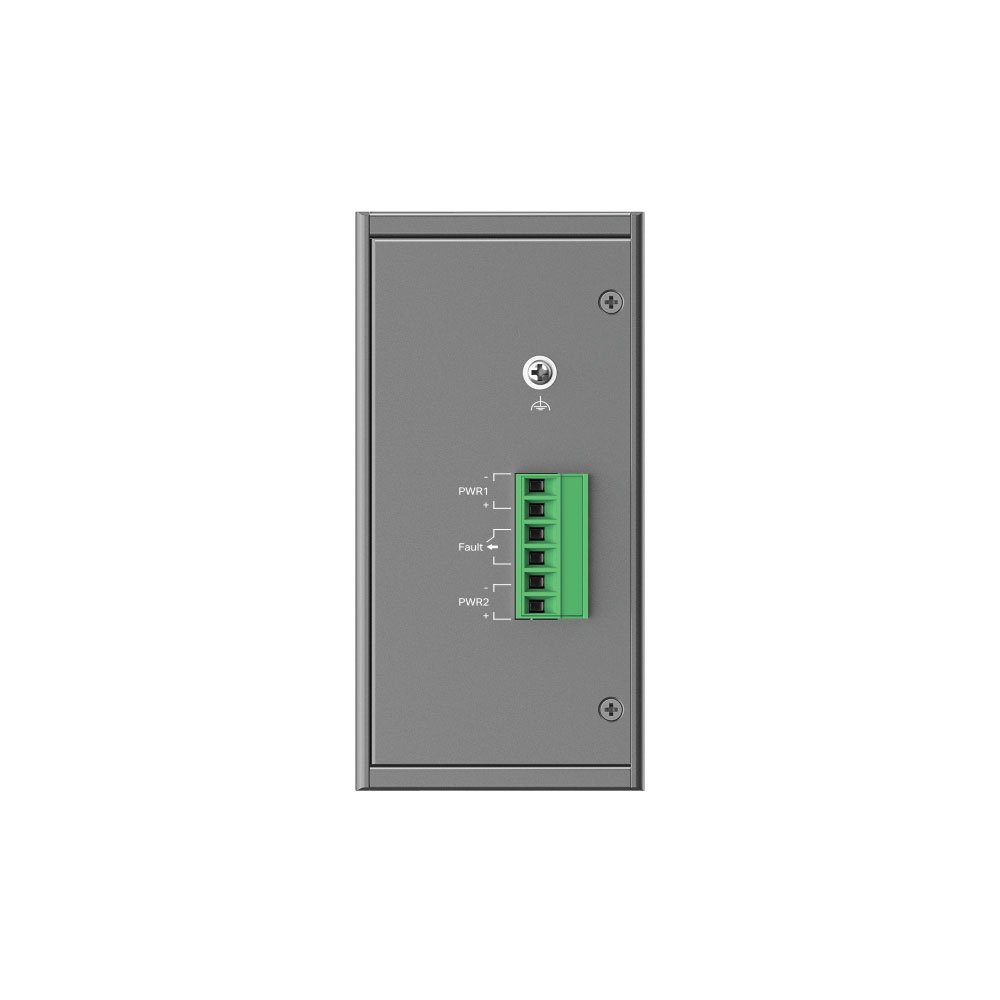

• Power resilience: Dual 12-57V DC inputs support a redundant power arrangement when suitable independent supplies are installed.
• Useful network control: VLAN, QoS, STP/RSTP, IGMP Snooping and port-management functions provide more control than a basic unmanaged switch.
• Centralised Omada management: It can be managed through supported Omada controllers for unified configuration, monitoring and firmware management.

Before You Buy

• The switch requires a suitable 12-57V DC power source connected to its DC terminals.
• The available PoE budget depends on the input supply: up to 60W at lower input voltages, 120W with a suitable 21-46V supply and 240W with a suitable 46-57V supply.
• The maximum 240W PoE budget therefore requires an appropriately rated DC power supply; the power supply is not listed among the confirmed package contents.
• The 250m extended-PoE function reduces the applicable port speed to 10Mbps, and actual distance depends on cable quality.
• Centralised cloud-management functions require a compatible Omada controller.
• The enclosure is rated IP40 and should not be treated as weatherproof for exposed outdoor installation.

Technical Specifications

What’s in the Box

• 1 × TP-Link Omada IES210GPP Industrial Easy Managed Switch
• 1 × DIN-rail mounting bracket
• Wall-mounting plates
• Installation guide
