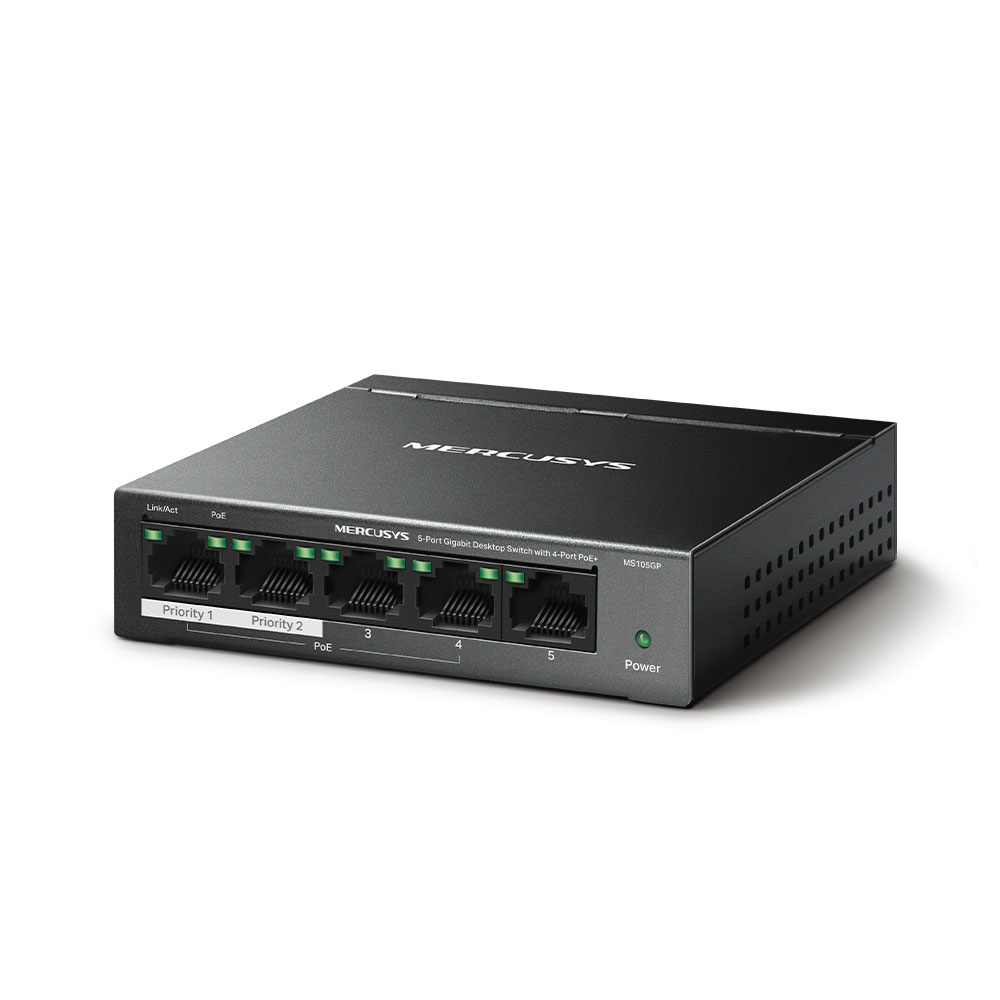

Mercusys MS105GP 5-Port Gigabit PoE+ Switch for Compact PoE Networks

The Mercusys MS105GP combines five Gigabit Ethernet ports with PoE+ power on ports 1 to 4, making it a practical choice for IP cameras, wireless access points, VoIP phones and other compatible PoE devices.

Its 65 W total PoE budget suits smaller installations where a large rack-mounted switch is unnecessary, while Extend and Isolation modes provide useful options for surveillance and dedicated-device deployments.

Is This Right for You?

Choose the MS105GP when you need up to four PoE-powered devices and one additional Gigabit Ethernet connection. It is particularly useful for small CCTV installations, access points, IP phones and compact office networks.

If your connected devices require more than 65 W in total, more than four PoE ports, or PoE standards beyond IEEE 802.3af/at, choose a switch with the appropriate capacity instead.

Why Choose This Product?

• Five Gigabit ports: All five RJ45 ports support 10/100/1000 Mbps Ethernet, avoiding the 100 Mbps limitation of entry-level Fast Ethernet PoE switches.
• Four PoE+ ports: Ports 1 to 4 can supply compatible IEEE 802.3af/at powered devices while carrying network data over the same Ethernet cable.
• 65 W PoE budget: The switch can provide up to 30 W on an individual PoE port, subject to the combined 65 W power budget.
• Extend Mode: Supports PoE transmission distances of up to 250 m for installations where devices are positioned beyond normal Ethernet distances. Actual achievable distance depends on the powered device, cable quality and cable type.
• Isolation Mode: Provides a simple way to isolate traffic between designated PoE ports, which can be useful in surveillance networks.
• Compact metal enclosure: Suitable for desktop or wall-mounted installation without requiring a network rack.

Before You Buy

PoE is available on ports 1 to 4 and is intended for powered devices compliant with IEEE 802.3af or IEEE 802.3at. The combined PoE load must remain within the switch’s 65 W budget, with a maximum of 30 W on an individual PoE port.

Standard Gigabit Ethernet cabling distances and the longer-distance Extend Mode are not the same operating condition. Mercusys specifies Extend Mode operation up to 250 m, but actual distance depends on cable quality, cable type and the power requirements of the connected device.

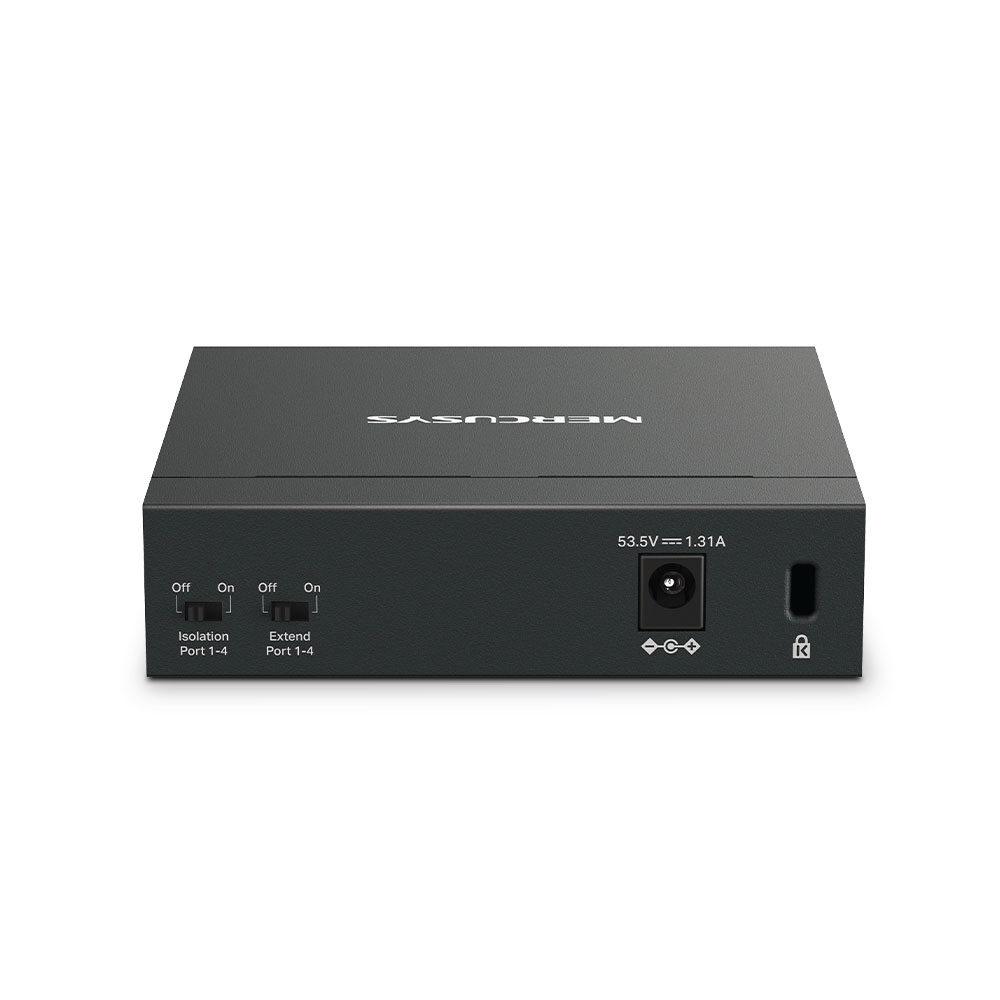

The supplied external power adapter is required to operate the switch and provide PoE power.

Technical Specifications

What’s in the Box

• 1 × Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+
• 1 × Power adapter
• 1 × Quick Installation Guide
