GENATA 8-Port Gigabit PoE Switch with 2 x Gigabit RJ45 Uplinks and 2 x Gigabit SFP Ports | GNT-P1012G6

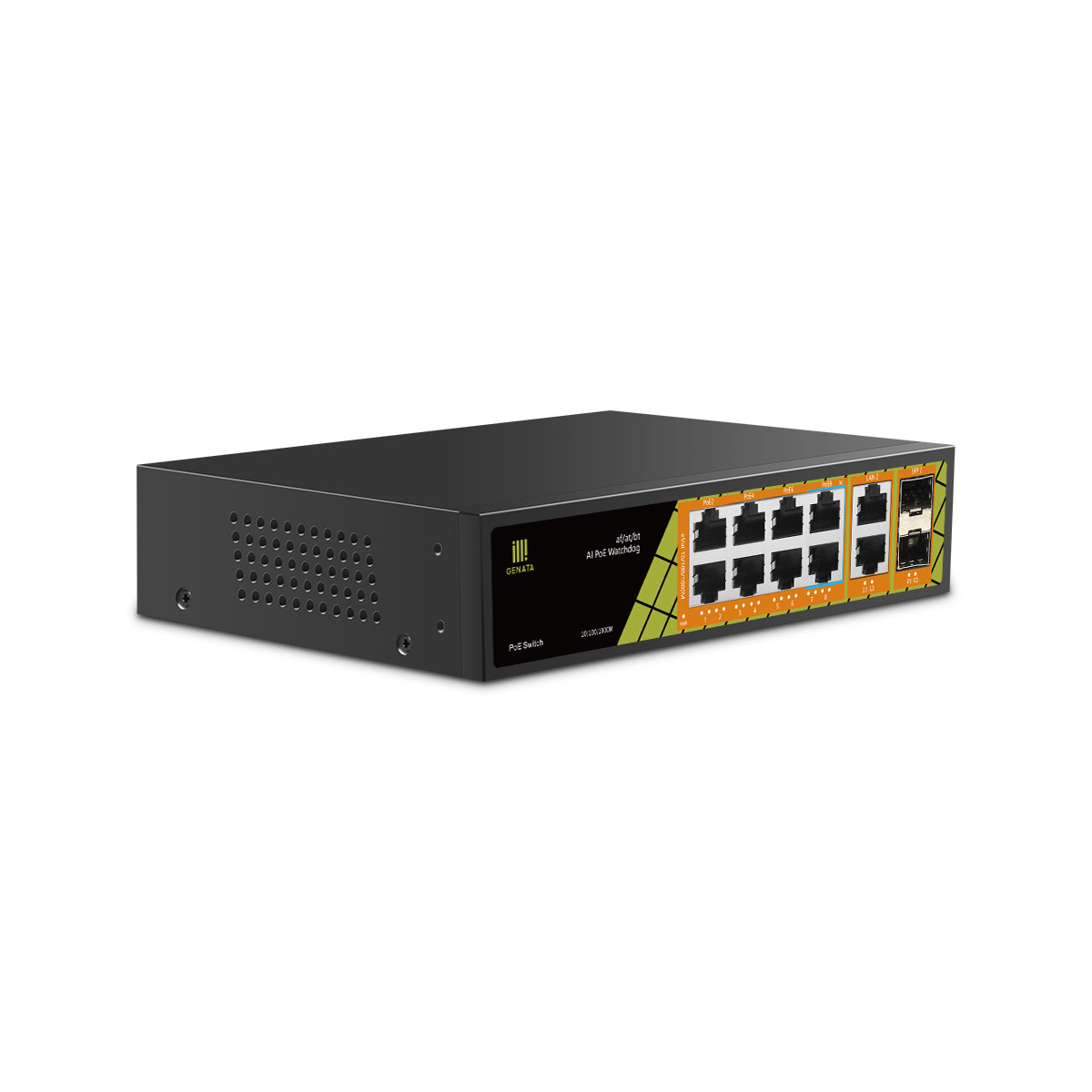

The GENATA GNT-P1012G6 is a full-gigabit PoE switch designed for CCTV, networking and other PoE-powered installations that require more port capacity and flexible uplink options. It features 8 gigabit PoE ports, 2 gigabit RJ45 uplink ports and 2 gigabit SFP ports, making it suitable for connecting IP cameras, wireless devices, VoIP equipment and other powered network devices.

A key advantage of this model is its support for high-power PoE on ports 7 and 8 up to 60 W, while ports 1 to 6 support standard PoE up to 30 W per port. With AI Watchdog monitoring, 24 Gbps bandwidth, surge protection and multiple mounting options, it is a practical choice for small to medium surveillance and network deployments.

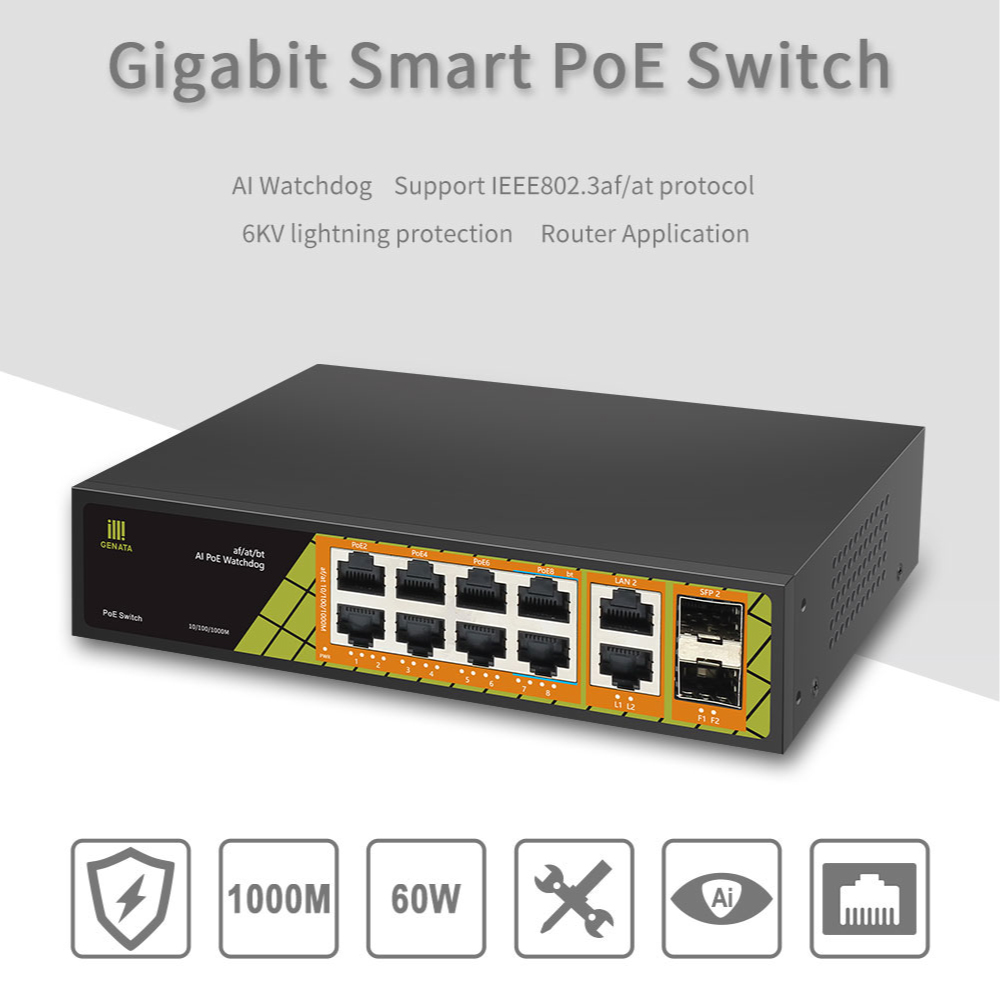

Key Features

Full Gigabit PoE Connectivity

All 8 PoE ports support 10/100/1000Mbps operation, helping maintain strong network performance for higher-resolution IP cameras and other bandwidth-sensitive devices.

Dual RJ45 and Dual SFP Uplinks

The switch includes 2 x gigabit RJ45 uplink ports and 2 x gigabit SFP ports, giving you flexible options for standard network uplinks or fibre backbones.

High-Power PoE Support

Ports 1 to 6 provide up to 30 W each, while ports 7 and 8 support IEEE 802.3bt high-power PoE up to 60 W, which is useful for more demanding powered devices.

AI Watchdog Function

The built-in AI Watchdog function works on ports 1 to 8 and is intended to help monitor connected PoE devices for improved stability.

Electrical Protection

This model includes 6 kV lightning protection and 8 kV ESD protection, adding a layer of protection in real-world installations.

Technical Specifications

General

• Model: GNT-P1012G6
• Bandwidth: 24 Gbps
• MAC address table: 8K

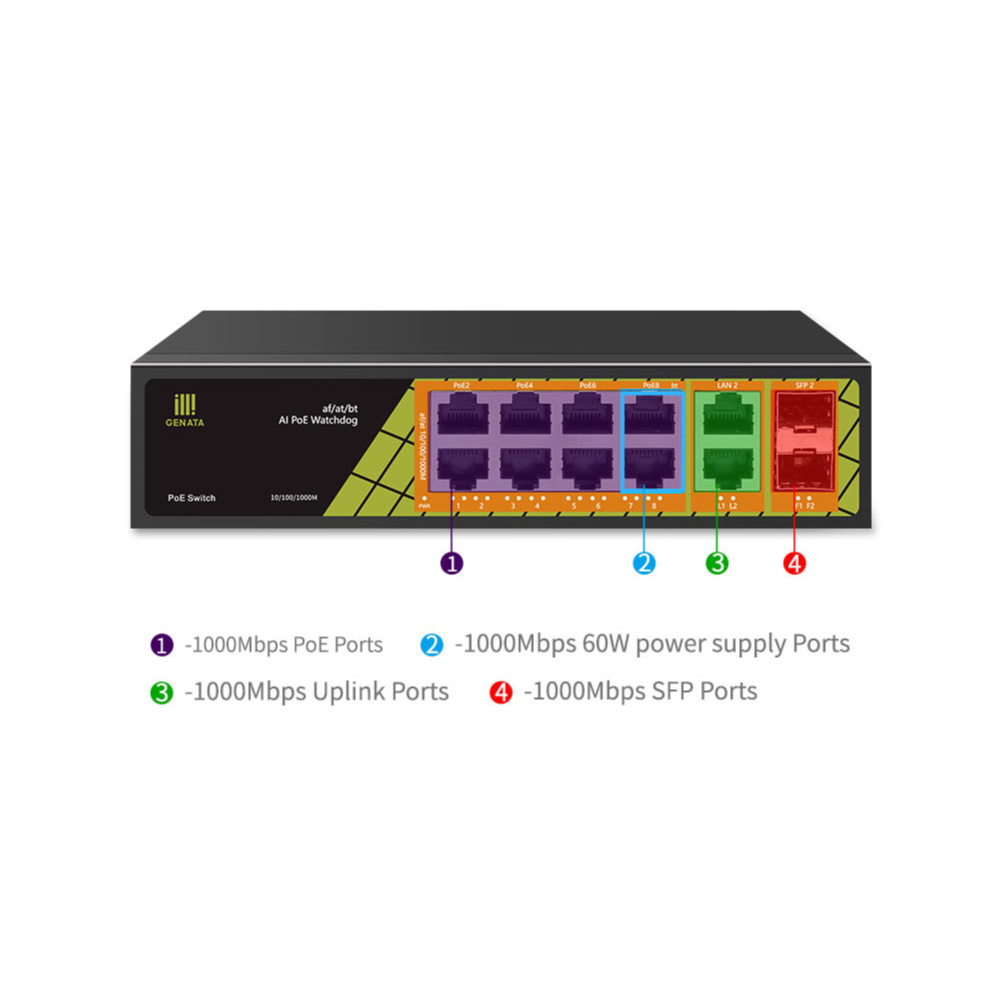

Ports

• 8 x 10/100/1000Mbps PoE ports (RJ45)
• 2 x 10/100/1000Mbps uplink ports (RJ45)
• 2 x 10/100/1000Mbps SFP ports

PoE

• PoE standards: IEEE 802.3af / at / bt
• PoE ports 1 to 6: up to 30 W per port
• PoE ports 7 to 8: up to 60 W per port
• AI Watchdog: Ports 1 to 8
• Total power input: AC 90 to 240 V, total ≤120 W

Performance

• Transmission rate: 2000Mbps full duplex; 10 or 100 or 1000Mbps half duplex
• Transmission distance: 130 m
• Network latency: ≤16 μs using 64-byte packet size

Protection

• Lightning protection: 6 kV
• ESD protection: 8 kV

Physical

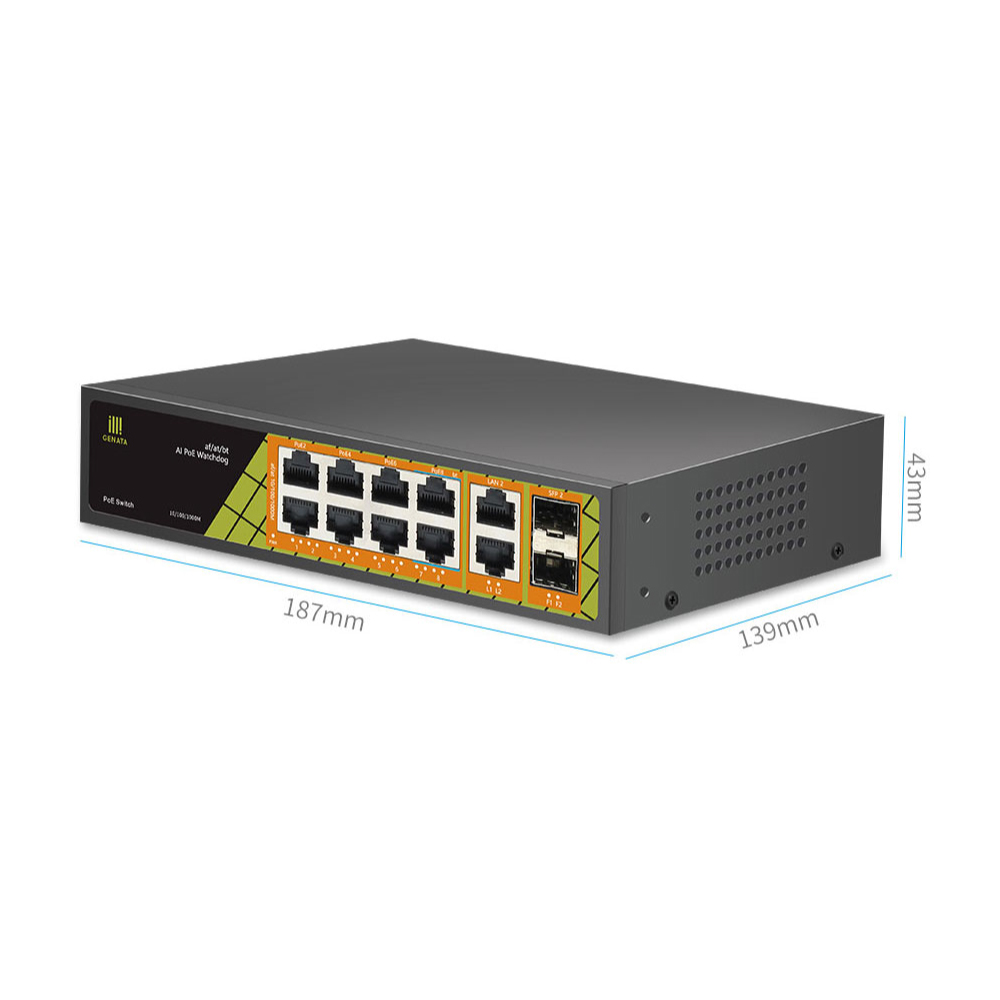

• Dimensions: 187 x 139 x 43 mm
• Weight: 1.0 kg

Environmental

• Operating temperature: -30 °C to 60 °C
• Storage temperature: -40 °C to 70 °C
• Operating humidity: 10% to 90% non-condensing
• Storage humidity: 5% to 90% non-condensing

Compliance and Warranty

• Certifications: CE, FCC Part 15 Class B and RoHS 2.0
• Warranty: 1 year

Applications

This switch is well suited to small to medium IP CCTV systems, PoE network expansions and installations where you need a mix of RJ45 uplinks and SFP fibre connectivity. That use case is an inference from the port layout, PoE support and switching features in the published specification.

What’s in the Box

• GENATA GNT-P1012G6 PoE switch
• AC power cable
• User manual
