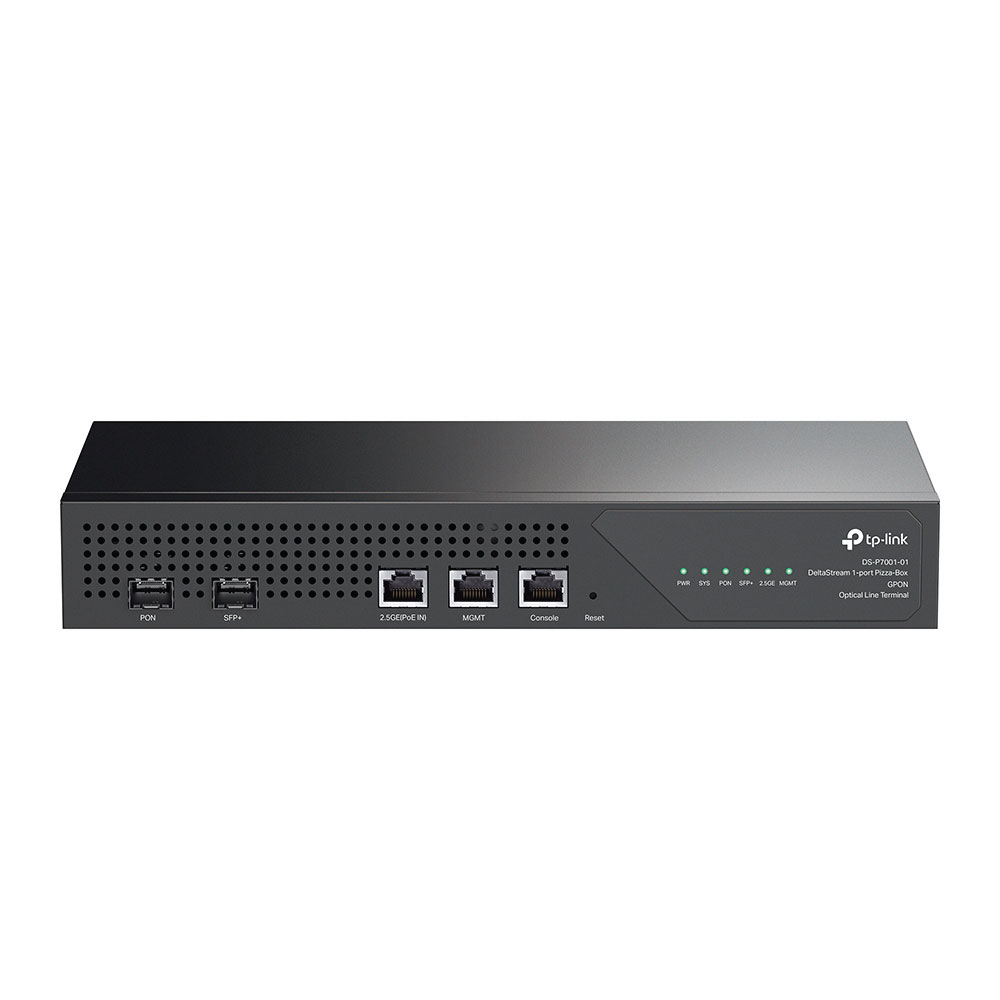

TP-Link DS-P7001-01 GPON OLT for Compact Fibre Network Deployments

The TP-Link DS-P7001-01 DeltaStream is a single-port GPON Optical Line Terminal designed for smaller fibre deployments where a full-size multi-port OLT would be unnecessary. Its single GPON interface can serve up to 128 ONUs through a supported 1:128 optical split.

A 10Gbps SFP+ uplink and 2.5Gbps Ethernet uplink give network operators flexible backhaul choices, while DC or 802.3at PoE power makes installation easier in different network environments.

Is This Right for You?

• Suitable for small GPON deployments requiring a single PON port.
• Useful for network operators that need centralised ONU provisioning and management.
• Supports up to a 1:128 GPON split from the single PON interface.
• Choose a larger multi-port OLT if your deployment requires several independent PON branches or substantially more subscribers.

Why Choose This Product?

• Up to 128 ONUs from one GPON port: The supported 1:128 split ratio provides room for smaller residential, commercial or managed fibre deployments without starting with a larger chassis.
• Fast uplink connectivity: A 10Gbps SFP+ port and 2.5Gbps RJ45 port provide two high-speed options for connecting the OLT to the upstream network.
• Flexible powering: Use the supplied 12V DC adapter or power the unit through an 802.3at PoE connection where suitable infrastructure is available.
• Centralised administration: DeltaStream PON Management System, SNMP, CLI and Web UI management provide several ways to configure and monitor the OLT.
• Automated ONU deployment: ONU auto-authentication and centralised configuration functions can reduce repetitive setup work when adding subscriber equipment.
• Compact installation: The 294 × 140 × 44mm enclosure is considerably smaller than conventional full-width network equipment and includes mounting hardware.

Before You Buy

• This is a GPON Optical Line Terminal for fibre network infrastructure; it is not a conventional Ethernet router or Wi-Fi access point.
• The GPON interface is specified as an SFP-slot PON port. Confirm that your intended optical interface, fibre type and GPON network design are compatible before installation.
• The specified GPON fibre type is 9/125μm single-mode fibre, with SC/UPC interface specifications.
• The OLT supports a maximum 1:128 split ratio. Actual fibre-network design must account for the optical budget, splitters, connectors and losses in the installation.
• Power options are 12V/2.5A DC or 802.3at PoE at 42.5–57V.
• The official package contents do not separately list a GPON optical module, so confirm the required optical hardware for your installation before ordering.

Technical Specifications

What’s in the Box

• 1 × TP-Link DeltaStream DS-P7001-01 GPON Optical Line Terminal
• 1 × DC adapter
• 1 × Console cable
• 1 × Installation guide
• Mounting brackets
• Screws
• Rubber feet
