Description

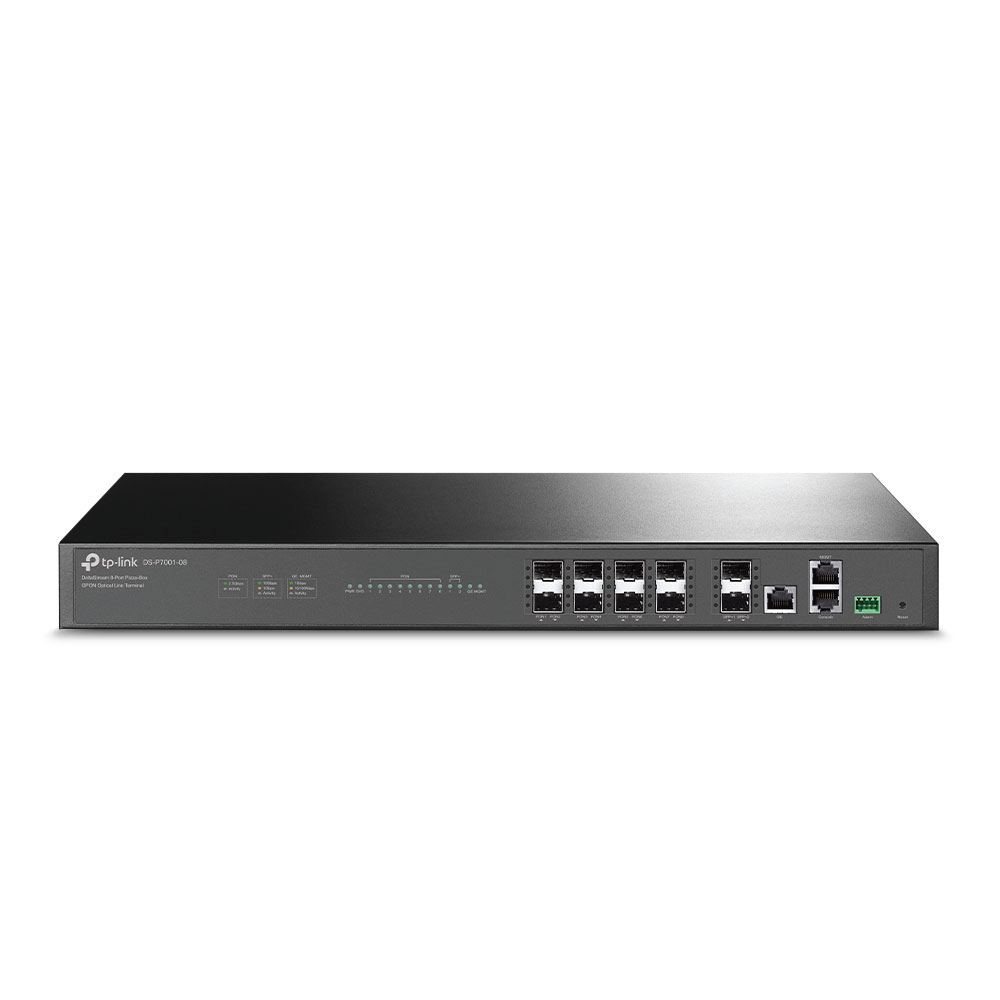

TP-Link DS-P7001-16 GPON OLT for High-Capacity Fibre Access Networks

The TP-Link DS-P7001-16 is a 16-port DeltaStream GPON Optical Line Terminal designed for service-provider, estate, campus and other managed fibre access deployments. Its high port density allows a single 1U-class rack unit to serve a large number of optical network terminals while providing multiple high-speed uplinks.

Centralised management and redundant power options make it particularly suited to networks where administrators need scalable subscriber provisioning, monitoring and service control from a dedicated OLT platform.

Is This Right for You?

• Suitable for GPON access networks requiring substantially more subscriber capacity than a 1-, 4- or 8-port OLT.
• Designed for managed fibre infrastructure rather than use as a conventional Ethernet switch or home router.
• A good fit where 10Gbps fibre uplinks, centralised ONU management and redundant power architecture are required.

Why Choose This Product?

• High subscriber capacity: Each of the 16 GPON ports supports a maximum 1:128 split ratio, giving the OLT capacity for up to 2048 ONTs when the optical network is engineered accordingly.
• Fast network uplinks: Four 10Gbps SFP+ uplinks provide high-bandwidth fibre connectivity, supplemented by two 10/100/1000Mbps RJ45 uplink ports.

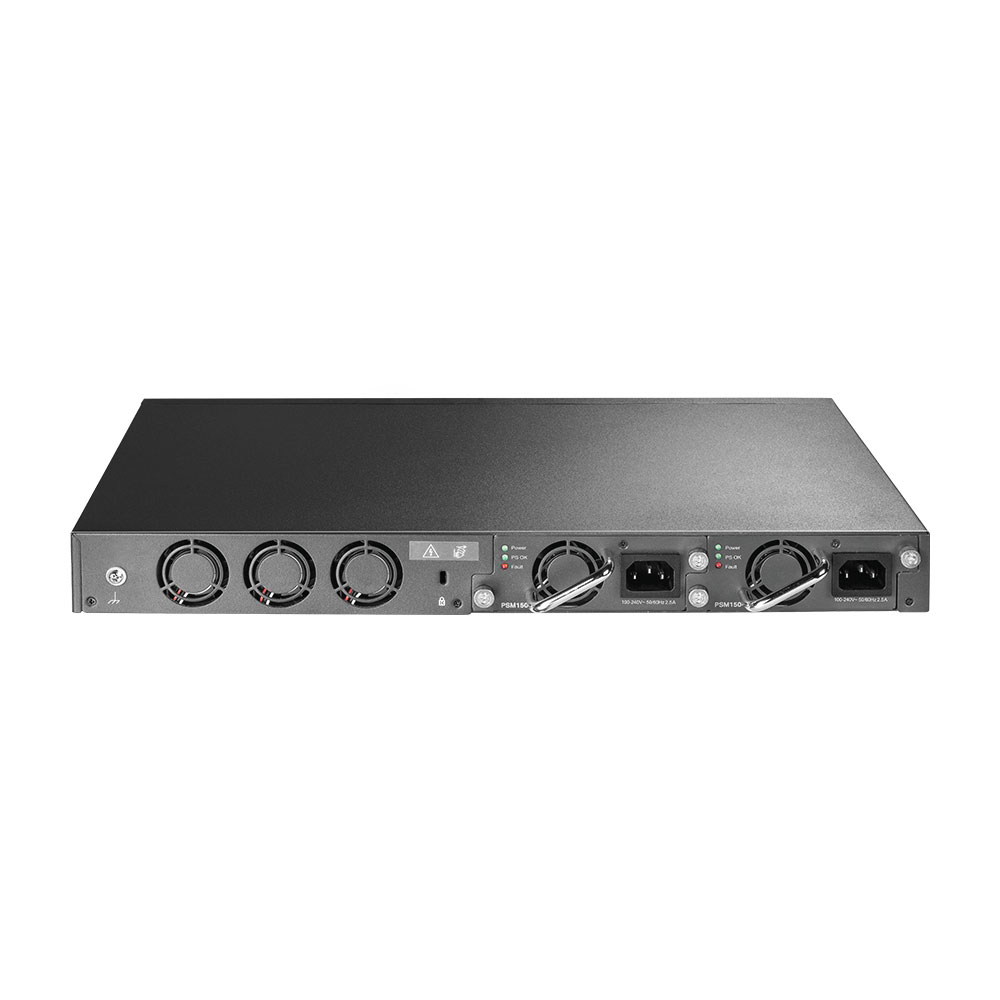

• Resilient power design: The dual hot-swappable power architecture can be configured with two AC supplies, two DC supplies or a mixed AC/DC arrangement.
• Centralised administration: DeltaStream DPMS, SNMP, CLI and the Web UI provide several options for configuration, monitoring and ongoing management.
• Service-provider network features: Static routing, IEEE 802.1p/DSCP QoS, DHCP server and relay, IGMP/MLD snooping and traffic controls support structured multi-service deployments.
• Automated ONU operation: ONU auto authentication and TP-Link provisioning functions help reduce repetitive subscriber activation work.

Before You Buy

• This is a GPON Optical Line Terminal for managed fibre access networks and requires appropriate GPON ONTs/ONUs, optical distribution components and network planning.
• The 16 PON interfaces are SFP slots. The manufacturer’s confirmed package contents do not list GPON optical SFP modules, so confirm and order the appropriate compatible modules separately where required.
• AC input is 100-240V, 50/60Hz. The platform also supports -38.4V to -72V DC power configurations.
• Management is available through DeltaStream PON Management System, SNMP, CLI and Web UI.
• TP-Link’s current South African product page specifies a maximum GPON transmission distance of 60km; actual optical-network design remains dependent on the selected optical modules, fibre plant, splitters and link budget.

Technical Specifications

What’s in the Box

• 1 × TP-Link DeltaStream DS-P7001-16 GPON Optical Line Terminal
• Power cord
• Console cable
• Installation guide
• Mounting brackets
• Screws
• Rubber feet
