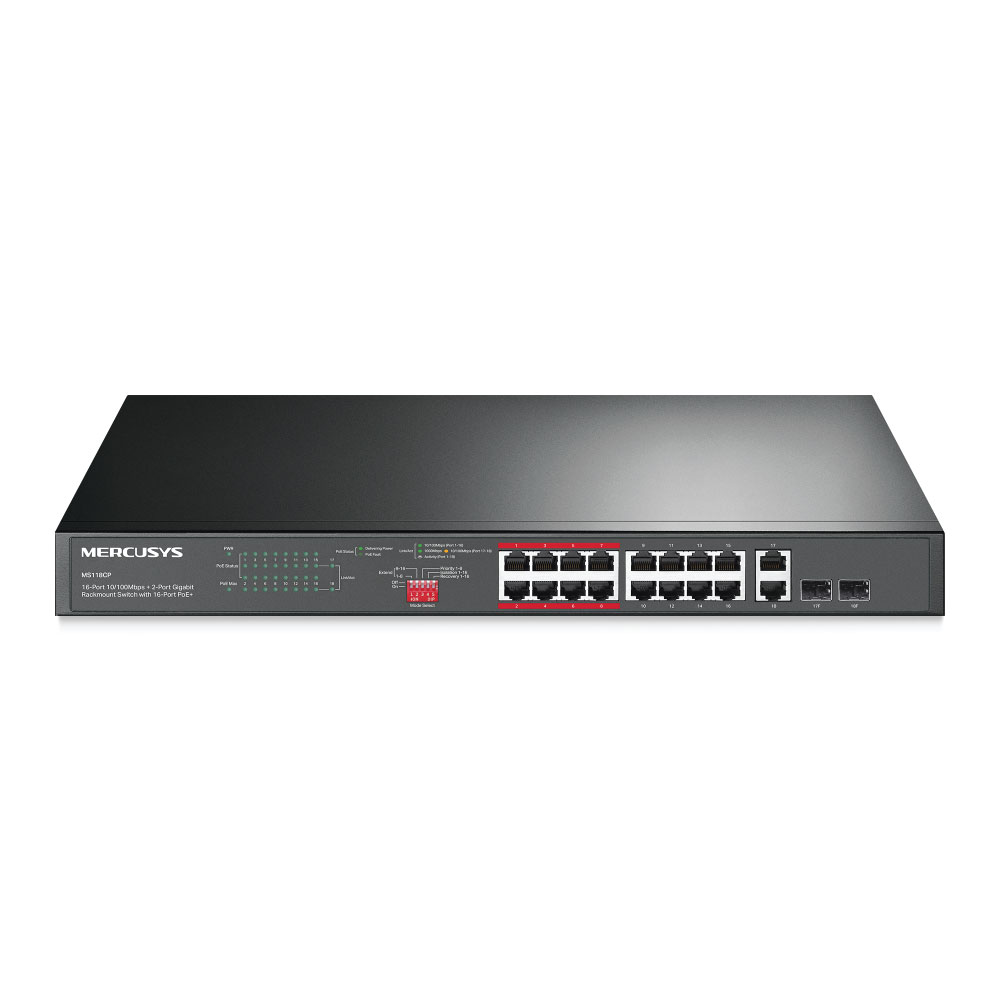

Mercusys MS118CP 16-Port PoE+ Rackmount Switch for CCTV and Business Networks

The Mercusys MS118CP is an unmanaged rackmount switch designed for installations that need to connect and power multiple PoE devices from one central point. Its 16 PoE+ ports provide a combined 190 W power budget, making it particularly useful for multi-camera surveillance networks.

Two Gigabit RJ45 ports and two combo Gigabit SFP slots provide faster uplink options to an NVR, router, core switch or fibre network while keeping the 16 powered device ports dedicated to edge equipment.

Is This Right for You?

Choose the MS118CP when you need a high-port-count PoE switch for devices that only require 10/100 Mbps Ethernet, such as many IP cameras, while retaining Gigabit uplinks for the rest of the network.

If every connected endpoint requires Gigabit Ethernet, this is not the right switch: ports 1–16 operate at 10/100 Mbps rather than Gigabit speeds.

Why Choose This Product?

• Power up to 16 PoE devices: ports 1–16 support IEEE 802.3af/at equipment, reducing the need for individual power adaptors at each device.
• 190 W shared PoE budget: provides substantial capacity for multi-device deployments, with up to 30 W available from an individual PoE port.
• Flexible Gigabit uplinks: two Gigabit RJ45 ports and two combo Gigabit SFP slots allow copper or fibre connectivity to the wider network.
• Extended CCTV runs: Extend Mode can carry data and PoE power up to 250 m where installation conditions allow.
• Automatic PoE recovery: PoE Auto Recovery can restart an unresponsive powered device without requiring a manual power cycle.
• Simple traffic controls: Priority Mode gives ports 1–8 priority, while Isolation Mode separates client traffic on ports 1–16.
• Plug-and-play operation: the unmanaged design requires no switch configuration for normal use.

Before You Buy

• PoE is available on ports 1–16 and is intended for IEEE 802.3af/at compatible powered devices.
• The 190 W PoE figure is a total shared power budget; individual PoE ports support up to 30 W.
• Ports 1–16 are 10/100 Mbps Fast Ethernet ports, not Gigabit ports.
• The two SFP interfaces are combo ports associated with the Gigabit uplink interfaces; they do not provide four additional independent Gigabit uplinks.
• Extend Mode reduces affected port speeds to 10 Mbps. The maximum claimed distance is up to 250 m and depends on cable quality, connected-device power requirements and installation conditions.
• SFP transceiver modules and network cabling are not listed as included and should be selected separately for the intended installation.

Technical Specifications

What’s in the Box

• 1 × Mercusys MS118CP switch
• 1 × power cable
• 1 × installation guide
• 2 × mounting brackets with fittings
