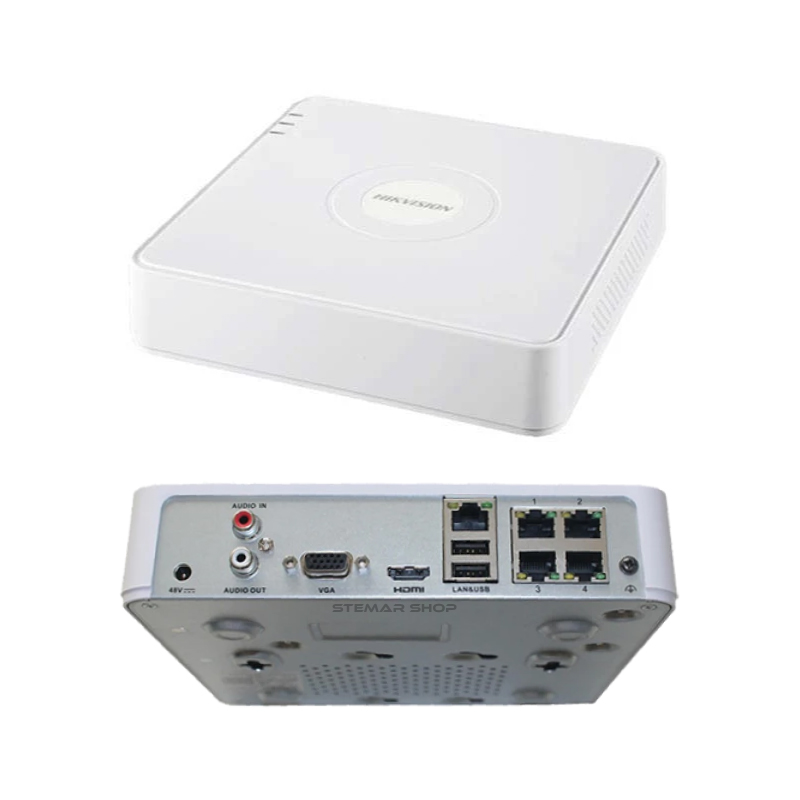

Hikvision DS-7104NI-Q1/4P 4-Channel PoE NVR for Compact IP CCTV Systems

The Hikvision DS-7104NI-Q1/4P is a compact four-channel network video recorder designed for small IP surveillance systems. Its four integrated PoE network ports allow compatible cameras to receive both data connectivity and power through their Ethernet cables, reducing the need for a separate PoE switch.

It supports IP camera inputs up to 6MP, H.265+ compression and a single internal SATA hard drive, making it a practical recorder for homes, small businesses and other installations requiring up to four network cameras.

Is This Right for You?

• • Suitable for an IP CCTV system with up to four network cameras.
  • A practical choice when you want the recorder to provide PoE directly to compatible cameras.
  • Suitable where one internal surveillance hard drive provides enough storage capacity.

• Choose a recorder with more channels if you expect to expand beyond four cameras.

Why Choose This Product?

• Four built-in PoE ports: Compatible PoE cameras can connect directly to the recorder for network data and power, helping simplify a small CCTV installation.
• Up to 6MP camera input: Supports compatible higher-resolution IP cameras while retaining four-channel recording capability.
• Efficient video compression: H.265+ support can reduce storage and bandwidth requirements compared with older compression formats, depending on the recorded scene and settings.
• Flexible monitor connection: HDMI and VGA outputs operate simultaneously and support display resolutions up to 1920 × 1080 at 60Hz.
• Remote connectivity: Hik-Connect support provides a convenient route to compatible remote viewing and management once the recorder and network are correctly configured.
• Compact storage configuration: One SATA interface accepts a hard drive with a supported capacity of up to 6TB.

Before You Buy

• This is an NVR for compatible IP/network cameras; it is not a DVR for conventional analogue TVI, AHD, CVI or CVBS cameras.
• The recorder provides four 10/100Mbps IEEE 802.3af/at PoE camera interfaces with a combined PoE power rating of up to 36W.
• Maximum supported internal storage is one SATA hard drive of up to 6TB.
• A hard drive is not stated as standard equipment for the recorder-only model and should be selected separately unless your supplied unit is specifically sold with storage installed.
• Network access is required for Hik-Connect and other remote network functions.

Technical Specifications

What’s in the Box

• 1 × Hikvision DS-7104NI-Q1/4P Network Video Recorder

Surveillance Hard Drive sold separately

Storage Guide – Choosing the Right Hard Drive

The amount of storage you need depends on the number of cameras, camera resolution, recording schedule, and how long you want to keep your footage.

Quick Reference

Suggested starting capacities for typical CCTV systems:

Choose a larger drive when recording continuously, using high-resolution cameras, or keeping footage for longer periods.

Consider More Storage If You:

• Record continuously, 24 hours a day
• Use 4MP, 6MP, or 8MP/4K cameras
• Need to retain footage for 30 days or longer
• Have busy areas with frequent movement
• Record audio together with video
• Plan to add more cameras later

Calculate Your Storage Requirements

For a more accurate estimate, use the Storage Calculator below. Enter your number of cameras, resolution, recording hours, frame rate, compression format and required retention period.

Calculate Your Storage Requirements
Opens Seagate website in a new tab.

Please note: These figures are general guidelines and do not guarantee a specific recording period. Actual storage use will vary according to your camera and recording settings. Always check the NVR’s maximum supported hard-drive capacity before ordering.
