Description

EZVIZ H90f Triple – three 5 MP lenses for wider outdoor coverage and closer tracked detail

The EZVIZ H90f Triple combines three 5 MP cameras in one motorised outdoor security camera, giving you multiple viewing perspectives without relying on a single lens to cover the entire scene. Its mixed zoom system reaches up to 12×, making it particularly useful for areas where you need both an overview and a closer look at activity further away.

Automatic tracking works alongside human and vehicle detection, while local familiar-face recognition can help distinguish known people without requiring a separate face-recognition subscription.

Is This Right for You?

The H90f is a practical choice when a conventional single-lens camera cannot comfortably cover the whole area you need to monitor.

• Driveways and entrances: maintain a wider overview while automatically following people or vehicles.
• Yards and perimeter areas: use the three-lens arrangement to monitor more than one part of the scene.
• Areas needing closer detail: up to 12× mixed zoom helps the camera move from the wider scene to a more detailed view.
• Smart home monitoring: receive detection events and access the camera remotely through the EZVIZ app.

How It Works

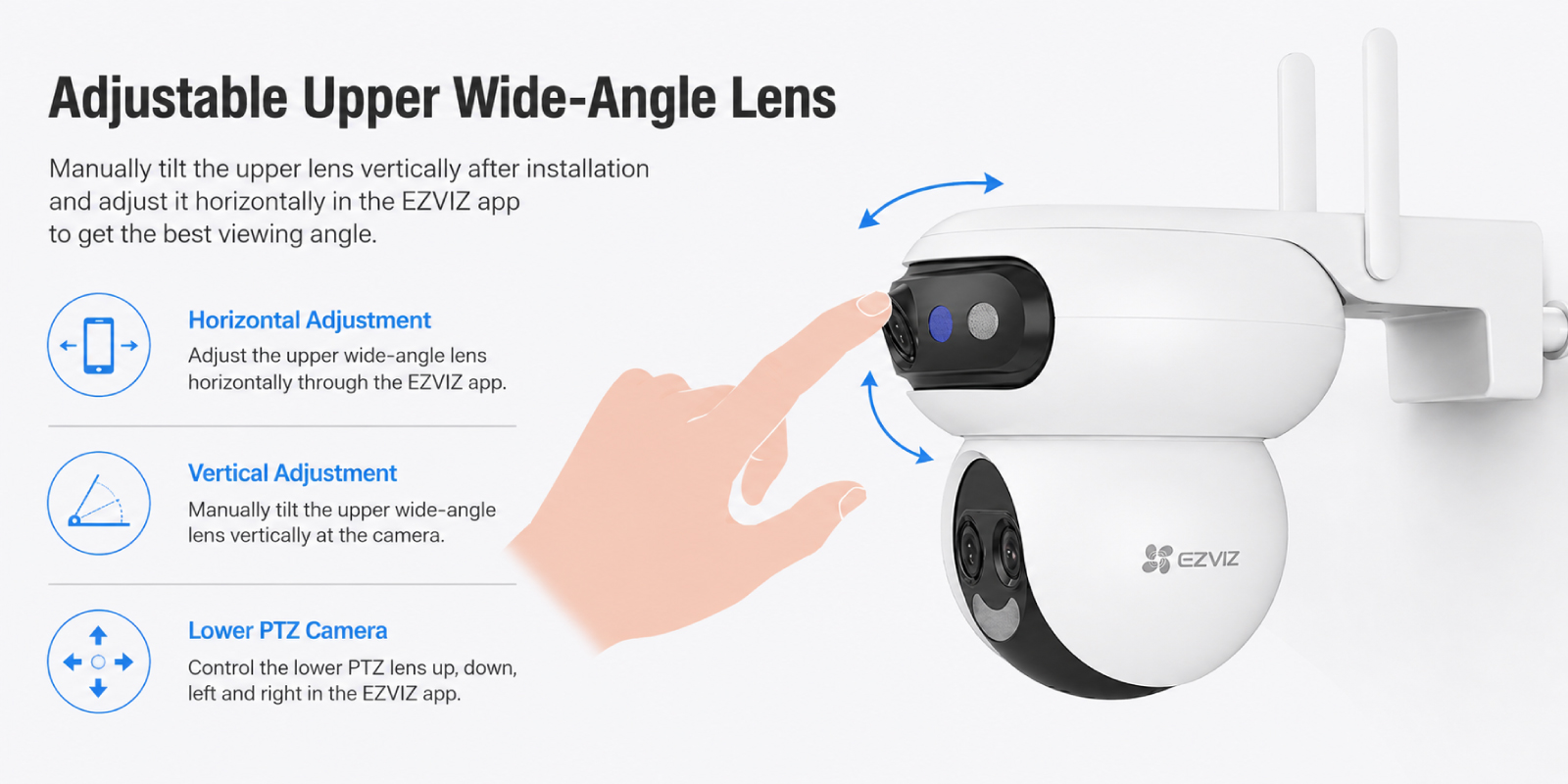

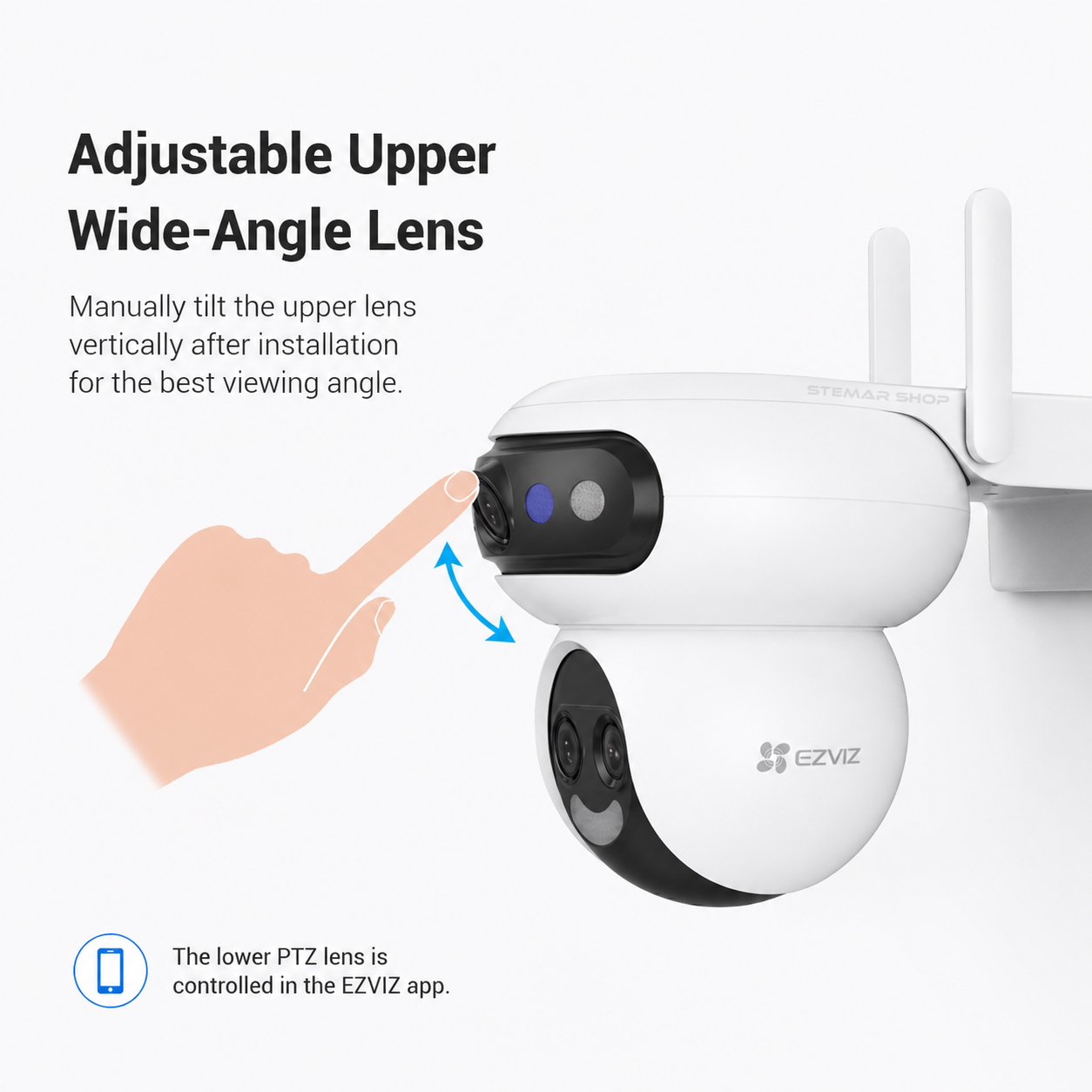

The H90f combines an adjustable upper wide-angle camera with a motorised lower PTZ camera. The upper lens can be adjusted horizontally through the EZVIZ app, while its vertical viewing angle is set manually at the camera. The lower PTZ camera can be moved up, down, left and right remotely through the EZVIZ app.

This arrangement lets you set the upper lens to maintain a useful overview of the area while using the lower PTZ camera to look around and follow activity in greater detail.

Human and vehicle recognition helps the camera focus on relevant movement. Familiar-face recognition is processed locally, allowing the camera to recognise known faces without requiring a separate subscription for that recognition function.

Why Choose This Product?

• Three 5 MP lenses: gives you more visual coverage from one camera position and reduces reliance on a single viewing angle.
• Up to 12× mixed zoom: provides closer detail when an event takes place further into the monitored area.
• Automatic tracking: works with person and vehicle detection so moving subjects can remain in view.
• Local familiar-face recognition: helps distinguish recognised people while processing the recognition locally.
• Dual-band Wi-Fi 6: provides modern wireless connectivity for live viewing, notifications and camera control through the EZVIZ app.

Before You Buy

• The EZVIZ H90f is mains powered and is not a battery or solar-powered camera.
• A suitable Wi-Fi network and the EZVIZ app are required for remote viewing, notifications and app-managed smart functions.
• Local recording is supported with a MicroSD card of up to 512 GB. The memory card is sold separately.
• Local familiar-face recognition does not require a separate face-recognition subscription; optional cloud services are separate from this local function.
• Local recording supports a MicroSD card up to 512 GB. For this triple-lens camera, a 128 GB – 256 GB is recommended or 512 GB high-endurance card is suggested where longer recording history or frequent recording is important. MicroSD card sold separately.

Technical Specifications

What’s in the Box

• 1 × EZVIZ H90f Triple camera
• 1 × H90f Triple camera
• 1 × Adjustable mounting bracket
• 1 × Drilling template
• 2 × screw sets
• 1 × Power cable
• 1 × Regulatory information
• 1 × Quick start guide

MicroSD card sold separately – View MicroSD Cards
