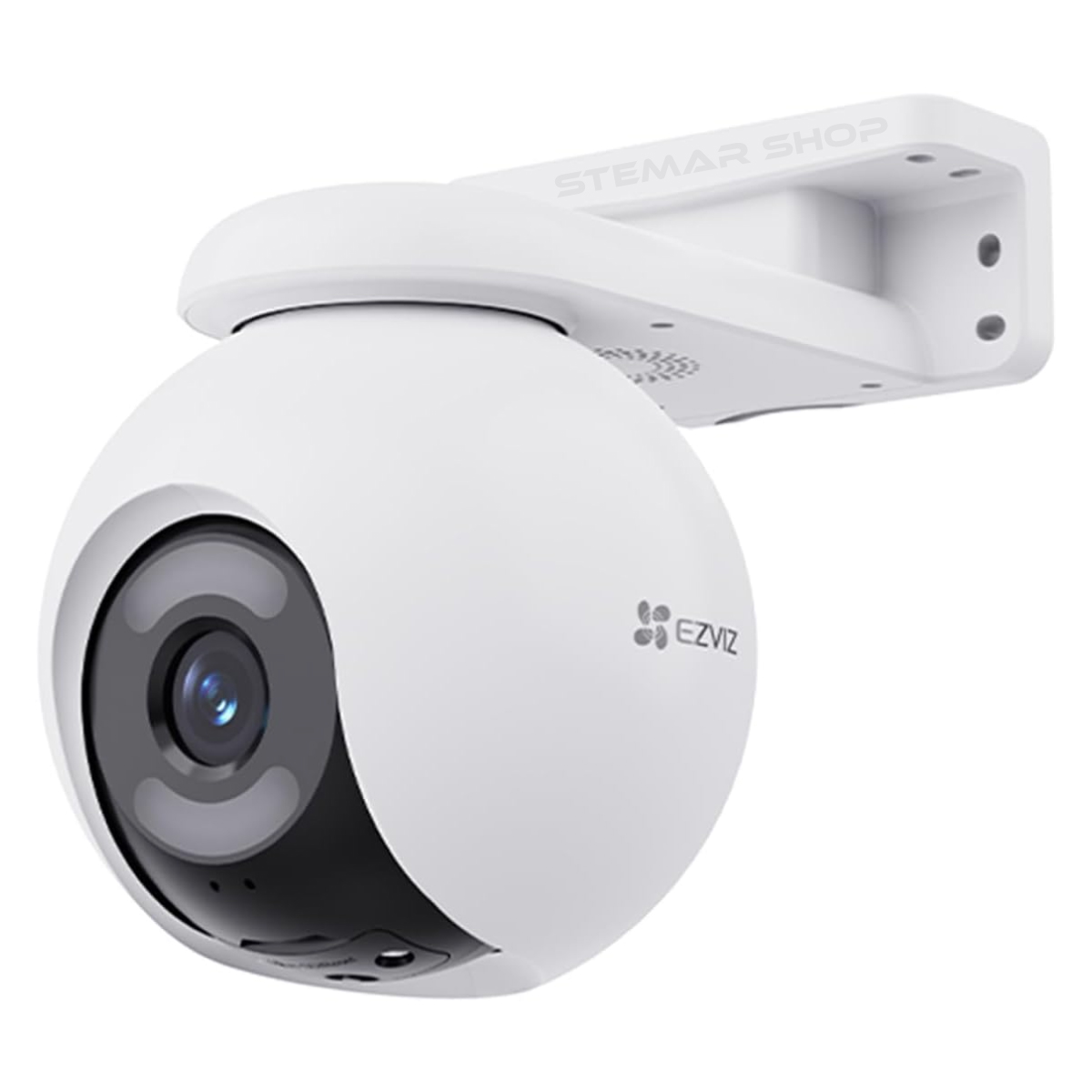

EZVIZ H8x Outdoor Pan/Tilt Wi-Fi Camera – Colour Night Vision, AI Tracking, 4mm (4MP)
R1,295.00 Incl. VAT
The EZVIZ H8x is a 4MP outdoor pan-and-tilt Wi-Fi camera for driveways, yards and entrances, combining ultra-low-light ColorFULL imaging with smart human and vehicle detection.
- 4MP 2560 × 1440 video with a 4mm F1.0 lens and large 1/1.8″ CMOS sensor
- ColorFULL imaging down to 0.01 lux for useful colour detail in very low light
- 340° pan and 70° tilt with auto-zoom human tracking and automatic patrol modes
- AI human and vehicle detection, two-way talk and active defence with siren and strobe light
- Local microSD storage up to 512 GB, with optional EZVIZ CloudPlay storage
- Requires 12 V DC power; wireless setup uses 2.4 GHz Wi-Fi, with 10/100 Ethernet also supported
Description
EZVIZ H8x CS-H8x-R100-8H4WKFL outdoor camera for wide-area 4MP monitoring
The EZVIZ H8x combines pan-and-tilt coverage with a large 1/1.8″ sensor and F1.0 lens to capture detailed 4MP video around entrances, driveways, gardens and other outdoor areas.
Its ColorFULL low-light technology is designed to retain natural colour detail in very dark conditions without relying on constant bright illumination, while built-in AI detection, tracking and patrol functions help the camera focus attention on people and vehicles.
Is This Right for You?
The H8x is a strong choice when you want one powered outdoor camera to cover a broad area rather than a fixed view. It suits locations with access to mains power and either a reliable 2.4 GHz Wi-Fi connection or Ethernet network point.
It is particularly useful where night-time image quality matters, as the 4mm F1.0 lens and 1/1.8″ sensor support ColorFULL imaging down to 0.01 lux.
Why Choose This Product?
- Detailed 4MP video: Records at up to 2560 × 1440 resolution for clearer identification of people, vehicles and activity around your property.
- ColorFULL low-light imaging: The F1.0 aperture and large 1/1.8″ sensor are designed to preserve colour and detail in very low light, with minimum illumination rated at 0.01 lux.
- Wide pan-and-tilt coverage: The camera can pan through 340° and tilt through 70°, reducing the number of fixed cameras needed to watch a broad outdoor area.
- AI human and vehicle detection: Built-in shape detection helps distinguish people and vehicles from less relevant movement, with customisable detection areas available in the EZVIZ app.
- Automatic tracking and patrol: Human movement can trigger auto-zoom tracking, while patrol modes can move the camera through selected viewpoints automatically.
- Active deterrence and communication: Two-way talk lets you speak through the camera, while the siren and strobe light provide an additional active-defence option.
- Flexible recording: Store footage locally on a microSD card up to 512 GB or use optional EZVIZ CloudPlay storage.
Before You Buy
- The camera requires continuous 12 V DC power. A power adapter is included.
- Wireless networking uses 2.4 GHz Wi-Fi. The H8x also has a 10/100 Mbps RJ45 Ethernet port; an Ethernet cable is sold separately.
- Setup, live viewing, alerts and camera management use the EZVIZ app.
- For local recording, use a Class 10 microSD card with a maximum supported capacity of 512 GB. The card is sold separately.
- EZVIZ CloudPlay is an optional subscription-based storage service and availability may vary by market.
Technical Specifications
| Product | EZVIZ H8x outdoor pan & tilt Wi-Fi camera |
|---|---|
| Stemar / supplier SKU | CS-H8X-4MP |
| Manufacturer model | CS-H8x-R100-8H4WKFL |
| Resolution | 4MP, 2560 × 1440 |
| Image sensor | 1/1.8″ Progressive Scan CMOS |
| Lens | 4mm, F1.0, M12 mount |
| Field of view | 92° horizontal, 48° vertical, 108° diagonal |
| Minimum illumination | 0.01 lux at F1.0, AGC on |
| Pan / tilt range | 340° pan, 70° tilt |
| Video compression | H.265 / H.264 |
| Smart detection | AI human shape detection and AI vehicle shape detection |
| Tracking | Auto-zoom tracking |
| Audio | Two-way talk |
| Wi-Fi | IEEE 802.11b/g/n, 2.4 GHz |
| Wired network | 1 × RJ45, 10/100 Mbps adaptive Ethernet |
| Local storage | microSD card up to 512 GB |
| Cloud storage | EZVIZ CloudPlay, subscription required |
| Weather protection | IP65 |
| Power supply | 12 V DC / 1 A |
| Maximum power consumption | 12 W |
| Operating conditions | −30 °C to 50 °C, humidity 95% or less, non-condensing |

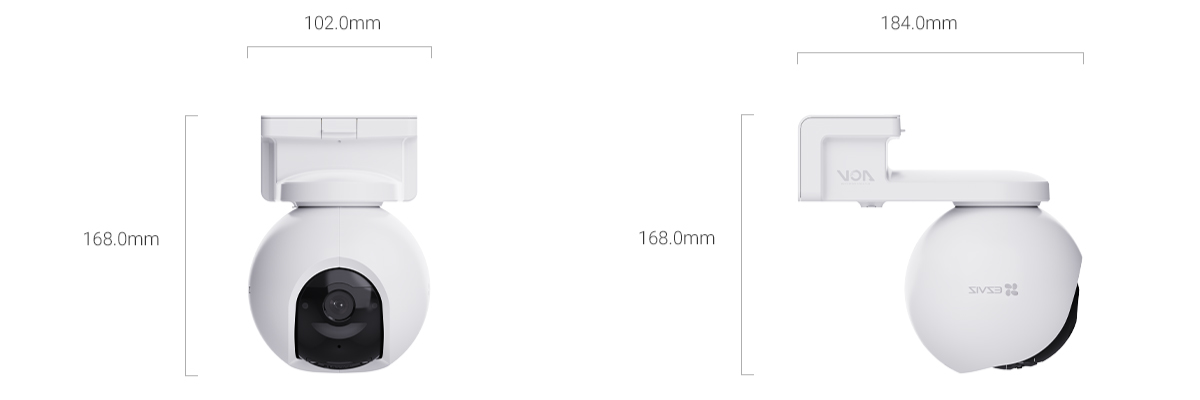

| Dimensions | 167 × 112 × 154 mm |
| Net weight | 607 g |
| Certifications | CE, UL, WEEE, RoHS, REACH |
What’s in the Box
- 1 × EZVIZ H8x camera
- 1 × Drill template
- 1 × Power adapter
- 1 × Waterproof kit
- 1 × Screw kit
- 2 × Regulatory information documents
- 1 × Quick start guide
MicroSD card sold separately – View MicroSD Cards
Additional information
| Weight | 1003 g |
|---|---|
| Dimensions | 205 × 176 × 194 mm |
| Camera Connectivity | Wi-Fi |
| Camera Power Source | 12V DC |
| Camera Resolution | 4MP |
| Camera Type | Pan & Tilt Camera |
| IP Rating | IP65 |
| Lens Focal Length | 4 mm |
| Lens Type | Fixed |
Downloads & Documentation
Specifications

| Specifications | |
|---|---|
| Model | CS-H8x-R100-8H4WKFL |
| Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.0 Field of view: 48° (vertical), 92° (horizontal), 108° (diagonal) |
| PT Angle | Pan: 340° , Tilt: 70° |
| Minimum Illumination | 0.01 Lux @ (F1.0, AGC ON) (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| Video & Audio | |
| Max. Resolution | 2K+ (2560 × 1440) |
| Frame Rate | Self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main profile |
| Video Bit Rate | Quad HD; Full HD; HD Adaptive bit rate |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK, WPS |
| Transmission Rate | 11b: 11 Mbps, 11g :54 Mbps, 11n :150 Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Function | |
| Smart Alarm | AI-powered human shape detection AI-powered vehicle shape detection |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports |
| Auto Zoom Tracking | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (max. 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| General | |
| Operating Conditions | -30ºC ~ 50ºC Humidity 95% or less ( non-condensing) |
| IP Grade | IP65 + 2 h rainstorm |
| Power Supply | DC 12 V / 1 A |
| Power Consumption | Max. 12W |
| Dimensions | 167 × 112 × 154 mm (6.57 × 4.41 × 6.06 inch) |
| Packaging Dimensions | 205 × 176 × 194 mm (8.07 × 6.93 × 7.64 inch) |
| Weight | Product: 607 g (21.4 oz) With package: 1003 g (35.4 oz) |
| In the box | |
| In the box | – H8x Camera |
| – Drill Template | |
| – Power Adapter | |
| – Waterproof Kit | |
| – Screw Kit | |
| – Regulatory Information × 2 | |
| – Quick Start Guide | |
| Certifications | |
| Certifications | CE / UL / WEEE / RoHS / REACH |
