EZVIZ CS-PSP8W 8W Type-C Solar Panel for Battery Cameras
EZVIZ 8W Solar Panel for Type-C Battery Cameras | CS-PSP8W lifestyle image
EZVIZ CS-PSP8W 8W Type-C Solar Panel for Battery Cameras

EZVIZ Solar Panel – 8W Type-C charge for Battery Cameras

R469.00 Incl. VAT

The EZVIZ CS-PSP8W is an 8 W solar charging panel for compatible EZVIZ outdoor battery cameras, helping reduce the need for regular manual recharging.

  • Up to 8 W charging power for compatible EZVIZ battery cameras
  • High-efficiency monocrystalline solar cells with 23.5% conversion efficiency
  • 3 m power cable and adjustable 360° mounting bracket for flexible positioning
  • IP65-rated construction for outdoor installation
  • USB Type-C connection for supported EZVIZ cameras
  • Choose this panel only for an EZVIZ outdoor battery camera with a Type-C charging port
Add To Wishlist
Remove From Wishlist
SKU: CS-PSP8W Categories: , , Brand:

Description

EZVIZ 8W Solar Panel for Type-C Battery Cameras | CS-PSP8W

The EZVIZ 8 W Solar Panel, supplied locally as CS-PSP8W, provides solar charging for compatible EZVIZ outdoor battery cameras. It is a practical option where running mains power to the camera is difficult or where you want to reduce routine battery recharging.

Its monocrystalline solar cells provide up to 23.5% conversion efficiency, while the 3 m cable and adjustable mounting bracket let you position the panel separately from the camera to make better use of available sunlight.

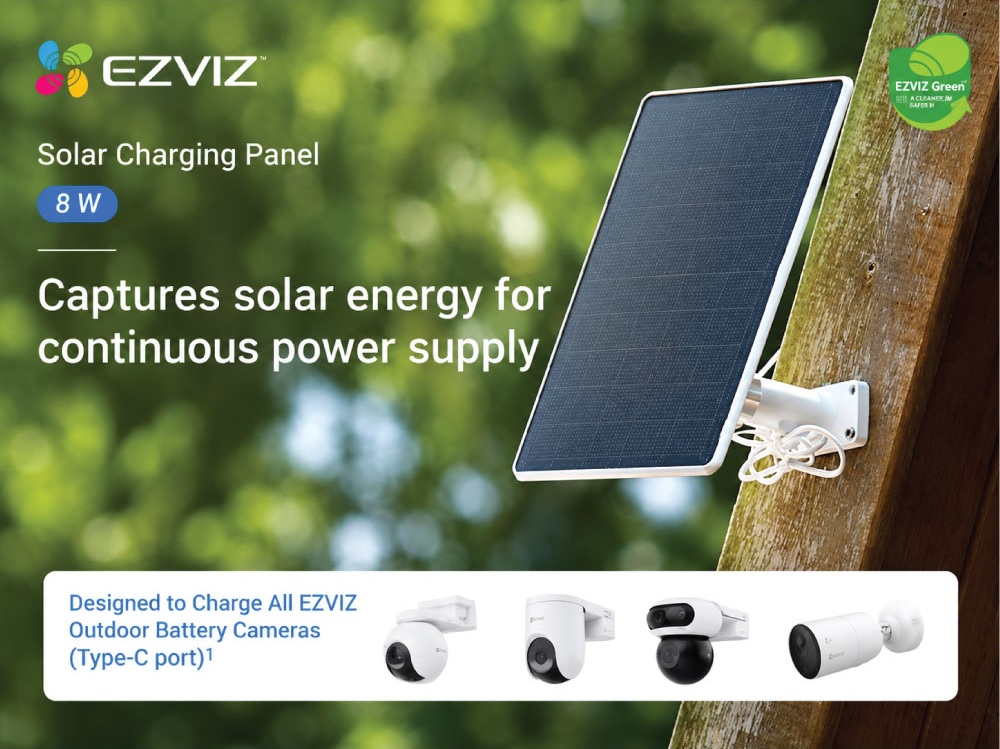

CS-PSP8W solar power supply
CS-PSP8W solar power supply

Is This Right for You?

This panel is designed for EZVIZ outdoor battery cameras that charge through a Type-C connection. It is particularly useful for cameras installed on gates, perimeter walls, gardens, farms and other locations where convenient mains power is unavailable.

Why Choose This Product?

  • Up to 8 W charging power: Provides a higher-capacity solar charging option for compatible EZVIZ battery cameras.
  • 23.5% solar-cell efficiency: Monocrystalline cells convert available sunlight efficiently to help maintain the camera battery.
  • Flexible positioning: The 3 m power cable allows the panel to be positioned where it can receive better sunlight even when the camera itself is mounted in a less exposed location.
  • Adjustable mounting: The 360° rotatable bracket makes it easier to aim the panel towards the strongest available sunlight.
  • Outdoor-ready construction: An IP65 rating helps protect the panel against dust and rain during permanent outdoor installation.

Before You Buy

  • Use with compatible EZVIZ outdoor battery cameras equipped with a Type-C charging port.
  • The security camera is sold separately.
  • Solar charging performance varies with sunlight intensity, panel orientation, weather and other environmental conditions.
  • Install the panel where it receives suitable direct sunlight and use the adjustable bracket to optimise its position.

Technical Specifications

Manufacturer modelCS-PSP8-R100-3M
Local / supplier codeCS-PSP8W
Maximum power8 W ± 5%
Power voltage5.4 V ± 5%
Power current1.48 A ± 5%
Open-circuit voltage6.8 V ± 5%
Short-circuit current1.64 A ± 5%
ConnectionUSB Type-C
Solar cell typeMonocrystalline
Solar cell efficiency23.5%
Power cable length3 m
IP ratingIP65
Operating temperature−20 °C to 60 °C, humidity 90% or less, non-condensing
Dimensions267 × 148 × 17.5 mm
Weight907 g

What’s in the Box

  • 1 × EZVIZ 8 W Solar Panel
  • 1 × Adjustable mounting bracket
  • 1 × Screw kit
  • 1 × Regulatory information document
  • 1 × Quick Start Guide

Additional information

Weight907 g
IP Rating

IP65

Downloads & Documentation

Product DatasheetPDF

Specifications

  • Model: CS-PSP8-R100-3M
  • Maximum Power: 8 W ± 5%
  • Power Voltage: 5.4 V ± 5%
  • Power Current: 1.48 A ± 5%
  • Open Circuit Voltage: 6.8 V ± 5%
  • Short Circuit Current: 1.64 A ± 5%
  • Interface: USB Type-C
  • Solar Cell Efficiency: 23.5%
  • Solar Cell Type: Monocrystalline solar cells
  • Operating Temperature: −20 °C to 60 °C
  • Operating Humidity: 90% or less, non-condensing
  • IP Rating: IP65
  • Power Cable Length: 3 m
  • Product Dimensions: 267 × 148 × 17.5 mm
  • Weight: 907 g
  • Certifications: CE, REACH, WEEE, RoHS
