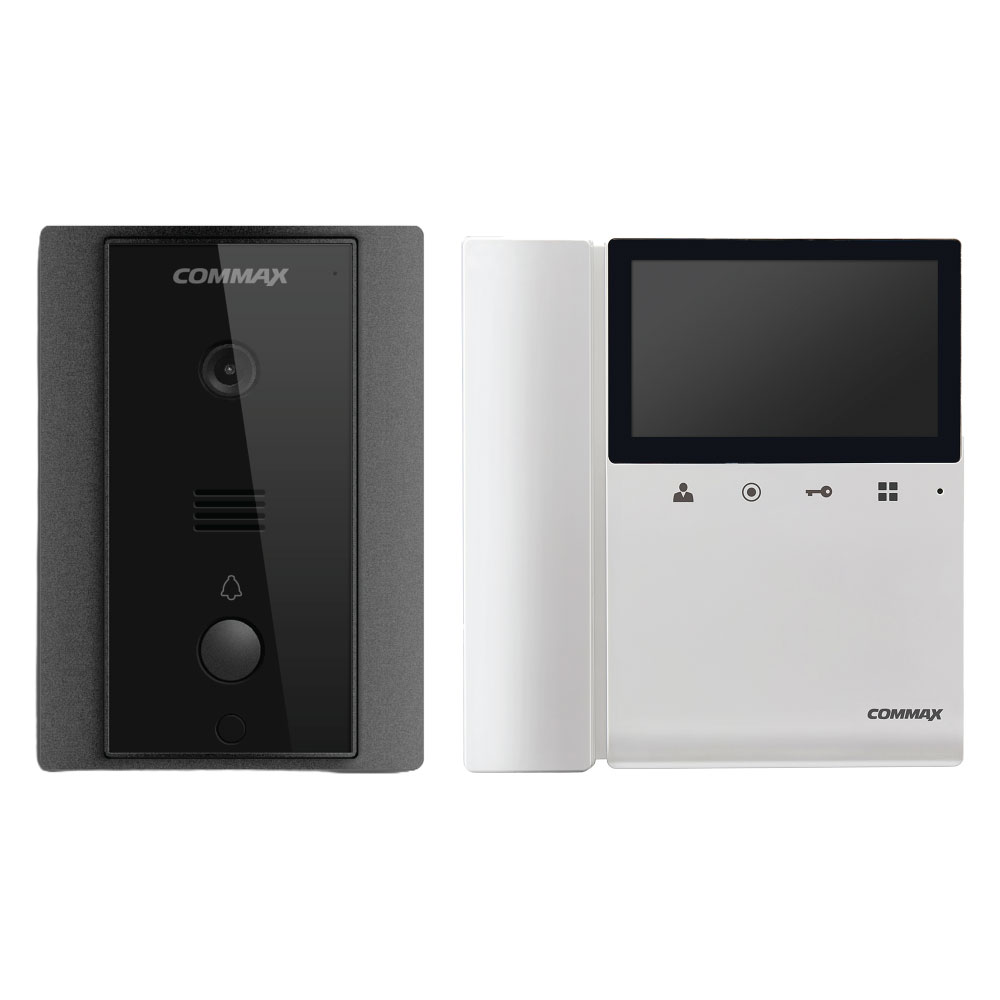

Commax CDV-43K / DRC-4LN 4.3-Inch Colour Video Intercom Kit – White / Dark Silver

Commax 4.3-Inch Colour Video Intercom Kit | White / Dark Silver

R2,895.00 Incl. VAT

The Commax CDV-43K / DRC-4LN is a wired video intercom kit for homes and small businesses that want a straightforward way to see, speak to and release the door for visitors from an indoor monitor.

  • 4.3-inch colour TFT LCD monitor with handset and touch-button controls
  • Surface-mounted DRC-4LN colour door camera with built-in LED illumination for low-light viewing
  • 68° horizontal × 50° vertical camera viewing angle with 13° upward angle adjustment
  • Supports video talk, door release and expansion to up to 2 monitors and 2 interphones
  • 4-wire connection between the monitor and door camera, with the camera powered from the monitor
  • Requires 100–240 V AC power at the monitor and suitable intercom cabling; electric lock is not included
Add To Wishlist
Remove From Wishlist
SKU: PI-1176 Categories: , , Brand:

Description

Commax wired video intercom kit for straightforward visitor screening | CDV-43K / DRC-4LN

The Commax CDV-43K / DRC-4LN combines a 4.3-inch colour indoor video monitor with a surface-mounted colour door camera for a practical single-entrance video intercom system. It lets you see and speak to a visitor before operating a connected electric door lock.

The CDV-43K uses a traditional handset for conversation while touch-sensitive controls provide quick access to monitoring, interphone, door-release and menu functions. At the entrance, the DRC-4LN provides colour video, built-in LED illumination for low-light conditions and an adjustable viewing angle.

See and speak to visitors before opening the door

  • 4.3-inch colour display: Provides a clear indoor view of the connected entrance camera.
  • Handset communication: Speak directly with visitors using the CDV-43K handset.
  • Touch-button controls: Gives the monitor a clean interface while keeping monitoring and door-release functions easy to access.
  • Low-light entrance viewing: The DRC-4LN includes an embedded LED that assists camera operation at night or in low-light conditions.
  • Adjustable camera coverage: A 68° horizontal and 50° vertical viewing angle is complemented by up to 13° upward angle adjustment.

Built for a simple wired entrance system

The kit uses a 4-wire polarity-sensitive connection between the CDV-43K monitor and DRC-4LN door camera. The door camera receives its 12 V DC supply from the monitor, reducing the need for a separate camera power supply.

The system can support up to 2 monitors, 1 door camera and 2 interphones, making it suitable where a second indoor answering point or additional audio interphones are required.

Check your wiring before installation

The CDV-43K requires a 100–240 V AC, 50/60 Hz supply. The connection between the monitor and door camera is polarity sensitive, so the four conductors must be wired correctly.

Supported monitor-to-camera distance depends on conductor diameter: up to 28 m with Ø0.5 mm cable, 50 m with Ø0.65 mm, 70 m with Ø0.8 mm and 115 m with Ø1 mm. A connected electric door lock uses a separate 2-wire connection from the door camera and is not included with the kit.

Technical Specifications

BrandCommax
Kit codePI-1176
Indoor monitorCDV-43K
Door cameraDRC-4LN
Monitor colourWhite
Door camera colourDark silver
Display4.3-inch colour TFT LCD
Monitor communicationHandset type, simultaneous communication
ControlsTouch buttons
Monitor power supply100–240 V AC, 50/60 Hz
Monitor power consumption2.5 W standby; 8 W operating
Monitor-to-camera wiring4 wires, polarity sensitive
Interphone wiring4 wires, polarity sensitive
System capacityUp to 2 monitors, 1 door camera and 2 interphones
Door camera power12 V DC supplied from monitor
Camera sensorColour C-MOS, CVBS
Video standardNTSC / PAL
Minimum illumination0.1 lux within 300 mm
Low-light illuminationEmbedded LED
Viewing angle68° horizontal × 50° vertical
Camera angle adjustmentUpward 13°
Electric door-lock connection2 wires, non-polarity
Camera-to-monitor distance28 m at Ø0.5 mm; 50 m at Ø0.65 mm; 70 m at Ø0.8 mm; 115 m at Ø1 mm
Monitor operating temperature0 °C to 40 °C
Door camera operating temperature−10 °C to 40 °C
Monitor dimensions28 × 157 × 167 mm (L × W × H)
Door camera dimensions35.2 × 99.8 × 142.4 mm (L × W × H)
MountingWall / surface mounted

What’s in the Box

  • 1 × Commax CDV-43K indoor colour video monitor
  • 1 × Commax DRC-4LN colour door camera

Specifications

  • Brand: Commax
  • Kit Code: PI-1176
  • Models: CDV-43K Monitor + DRC-4LN Door Camera
  • Monitor Colour: White
  • Door Camera Colour: Dark Silver
  • Display: 4.3-inch Colour TFT LCD
  • Monitor Type: Handset Video Doorphone
  • Controls: Touch Buttons
  • Communication: Simultaneous
  • Monitor Power Supply: 100–240 V AC, 50/60 Hz
  • Monitor Power Consumption: 2.5 W Standby / 8 W Operating
  • Monitor-to-Camera Wiring: 4-Wire, Polarity Sensitive
  • Interphone Wiring: 4-Wire, Polarity Sensitive
  • System Capacity: Up to 2 Monitors, 1 Door Camera and 2 Interphones
  • Door Camera Power: 12 V DC from Monitor
  • Camera Sensor: Colour C-MOS, CVBS
  • Video Standard: NTSC / PAL
  • Minimum Illumination: 0.1 Lux within 300 mm
  • Low-Light Illumination: Embedded LED
  • Viewing Angle: 68° Horizontal × 50° Vertical
  • Camera Angle Adjustment: 13° Upward
  • Door-Lock Connection: 2-Wire, Non-Polarity
  • Camera-to-Monitor Distance: 28 m at Ø0.5 mm / 50 m at Ø0.65 mm / 70 m at Ø0.8 mm / 115 m at Ø1 mm
  • Monitor Operating Temperature: 0 °C to 40 °C
  • Door Camera Operating Temperature: −10 °C to 40 °C
  • Monitor Dimensions: 28 × 157 × 167 mm (L × W × H)
  • Door Camera Dimensions: 35.2 × 99.8 × 142.4 mm (L × W × H)
  • Mounting: Wall / Surface Mounted
