Description

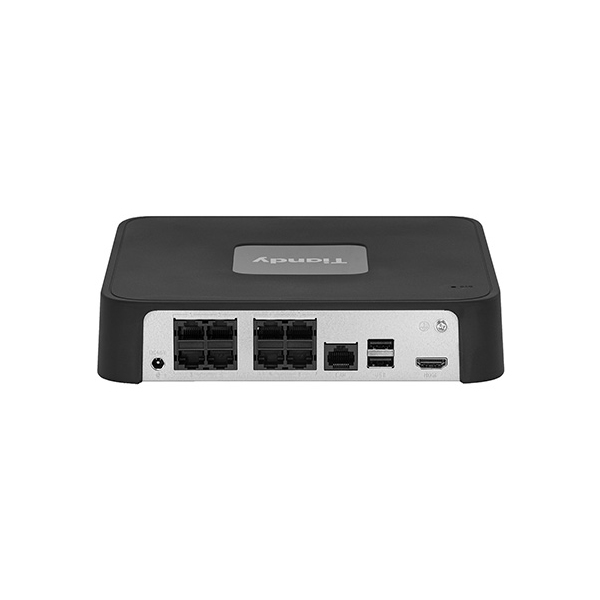

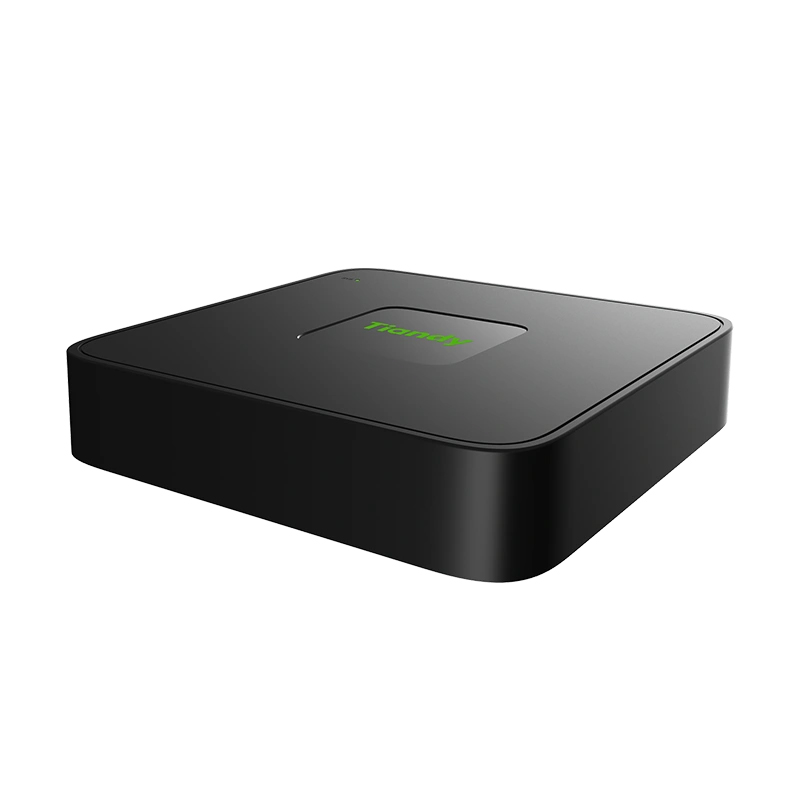

Tiandy TC-R3108 8-Channel PoE NVR with 8 × Built-In PoE Ports

The Tiandy TC-R3108 8-Channel PoE NVR is an excellent choice for homeowners and businesses wanting a dependable, easy-to-use CCTV system. With eight built-in PoE ports, you can power and connect your cameras directly to the NVR, keeping installation simple and clutter-free. It delivers smooth, high-quality video, supports 4K output for sharp viewing and uses advanced compression to save valuable storage space. Whether you’re upgrading or starting fresh, this NVR offers reliable performance, effortless remote access and long-term stability in a compact, user-friendly design.

Key Features

• 8-Channel IP NVR with 8 × built-in PoE ports for plug-and-play installation
• Supports up to 6MP live view and playback
• 4K HDMI output for clear, detailed monitoring
• S+265 / H.265 compression reduces storage needs by up to 75%
• 60Mbps incoming & 40Mbps outgoing bandwidth
• 4-channel synchronous playback with multiple view layouts
• Works with most brands via ONVIF & RTSP
• Motion detection, video loss and masking alarms
• Remote access via Android, iOS and P2P
• Supports up to 6TB HDD, plus USB backup
• Cloud firmware upgrades for long-term reliability

Technical Specifications

Video & Audio

• Channels: 8
• Incoming bandwidth: 60Mbps
• Outgoing bandwidth: 40Mbps
• Supported resolutions: 6MP / 5MP / 4MP / 3MP / 1080P and lower
• Preview decoding: Up to 6MP@30fps ×1, 4MP@30fps ×2, 1080P@30fps ×4
• Playback decoding: Up to 6MP@30fps ×1
• Video compression: S+265, H.265, S+264, H.264
• Audio formats: G711A, G711U, ADPCM_DIV4

Outputs

• HDMI: Up to 4K (3840×2160@30Hz)

Network

• Protocols: ARP, DHCP, DDNS, DNS, HTTP, ICMP, IPv4/IPv6, NTP, RTP/RTSP, TCP/IP, UPnP and more
• Remote access: Android, iOS, P2P
• Compatibility: ONVIF, RTSP

Recording & Playback

• Record modes: Schedule, alarm
• Multi-channel playback: 4
• Backup: USB

Alarms

• Motion detection, masking, video loss
• Exception alarms: IP conflict, network issues, disk errors, PoE overload, temperature warnings

Storage

• SATA: 1 × SATA port (up to 6TB)

PoE

• Ports: 8 × RJ45 (10/100 Mbps)
• PoE budget: 45W
• Per-port power: Up to 30W
• Standards: IEEE 802.3af/at

General

• Power: DC48V 1.35A
• Power consumption: <10W (without HDD/PoE)
• Operating temperature: –10°C to +55°C
• Dimensions: 200 × 200 × 43 mm

What’s in the Box

• Tiandy TC-R3108 8-Channel PoE NVR
• Power adapter (DC48V)
• USB mouse
• Screw pack
• User documentation

Surveillance Hard Drives Sold Separately

Storage Guide – Choosing the Right Hard Drive

The amount of storage you need depends on the number of cameras, camera resolution, recording schedule, and how long you want to keep your footage.

Quick Reference

Suggested starting capacities for typical CCTV systems:

Choose a larger drive when recording continuously, using high-resolution cameras, or keeping footage for longer periods.

Consider More Storage If You:

• Record continuously, 24 hours a day
• Use 4MP, 6MP, or 8MP/4K cameras
• Need to retain footage for 30 days or longer
• Have busy areas with frequent movement
• Record audio together with video
• Plan to add more cameras later

Calculate Your Storage Requirements

For a more accurate estimate, use the WD Surveillance Storage Calculator. Enter your number of cameras, resolution, recording hours, frame rate, compression format and required retention period.

Calculate My Storage Requirements (Opens the Western Digital website in a new tab)

Please note: These figures are general guidelines and do not guarantee a specific recording period. Actual storage use will vary according to your camera and recording settings. Always check the NVR’s maximum supported hard-drive capacity before ordering.
