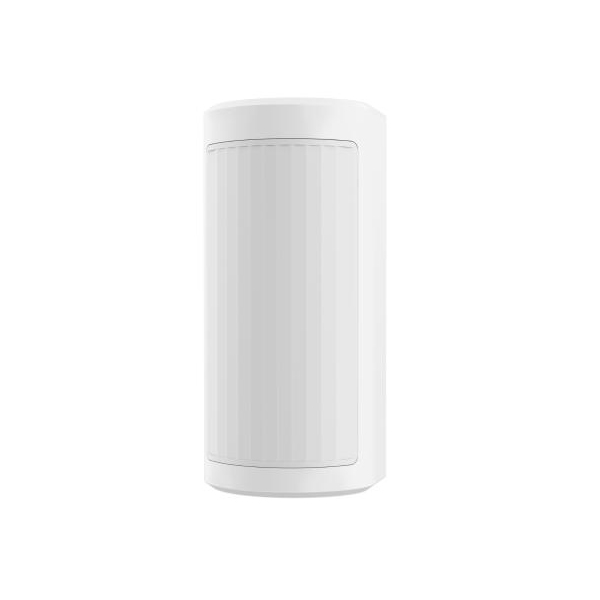

Hikvision AX Pro Wireless Double PIR Detector | DS-PDP18-HM-WE

The Hikvision AX Pro Wireless Double PIR Detector is a sophisticated motion detector designed to provide exceptional security in both indoor and outdoor environments. With its advanced features and robust design, this detector ensures reliable performance and easy installation.

Key Features

• High/Low Mount Adjustment: Flexibility in installation height ensures optimal coverage and detection efficiency.
• IP65 Weather Resistance: Designed for outdoor applications, this detector withstands harsh weather conditions.
• Easy Installation: Multiple enrolment methods including power up, remote ID, and QR code make setup straightforward.
• Frequency Hopping: Ensures reliable transmission by protecting against jamming.

Detection Performance

• Detection Method: Passive Infrared
• Detection Range: 18 meters
• Detection Angle: 90 degrees
• Detection Zones: 118 zones
• Detectable Speed: 0.3 to 2 meters per second
• Sensitivity: Auto and Pet sensitivity settings
• White Light Filter: 20000 lux, reducing false alarms caused by bright light
• Pet Immunity: Ignores pets up to 24 kg, minimising false alarms
• Digital Temperature Compensation: Maintains accurate detection performance across varying temperatures

Advanced Features

• Digital Processing: Enhanced detection accuracy and reliability
• Sealed Optics: Protects internal components from dust and moisture
• Tamper Protection: Front and rear tamper protection to prevent unauthorised access
• Environment Temperature Indicator: Provides real-time temperature data
• Signal Strength Indicator: Ensures optimal positioning for reliable transmission

Interface

• Power Switch: Easy power-up enrolling
• LED Indicator: Blue LED for alarm indication

Transmission

• Transmission Technology: Tri-X Wireless
• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 868MHz
• Transmission Security: AES-128 Encryption for secure communication
• Transmission Range (Free Space): Up to 1.6 km
• Frequency Hopping: Enhances transmission reliability

Electrical Characteristics

• Standard Battery Life: Up to 5 years (standby time)
• Power Supply: Battery powered with 2x CR123A batteries
• Typical Voltage: 3V

General Specifications

• Mounting Height (selectable): Low Mount – 0.8 to 1.2m | High Mount – 2.5 to 3m
• Operation Temperature: -25°C to 60°C
• Storage Temperature: -25°C to 60°C
• Operation Humidity: 10% to 90%
• IP Rating: IP65 for outdoor use
• Dimensions (W x H x D): 67.3 mm x 141.6 mm x 60 mm
• Weight: 301g
• Mounting Method: Wall-mounted with an adjustable bracket included
• Application Scenario: Suitable for both indoor and outdoor installations

What’s in the Box

• 1x Hikvision AX Pro Wireless Double PIR Detector including batteries (2x CR123A)
• 1x Swivel Bracket
