Ajax 12-24V PSU for Hub 4G | Hub 2 | Hub 2 Plus | ReX 2

R515.00 Incl. VAT

Ajax 12-24V PSU (type A) for Hub 4G | Hub 2 | Hub 2 Plus | ReX 2 | 8-32vDC Input Voltage

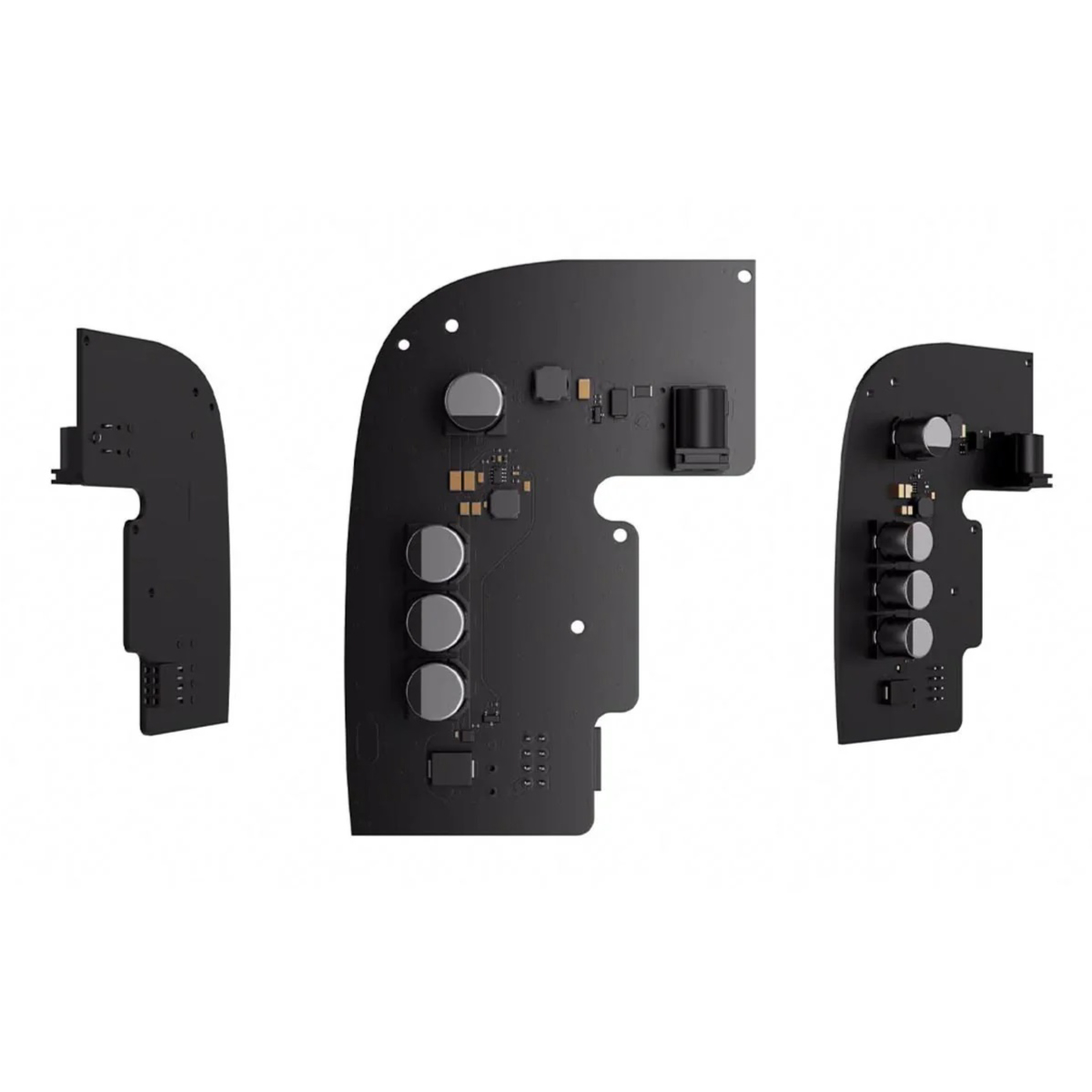

The Ajax 12-24V PSU (type A) is a replaceable power supply unit used to connect the Hub / Rex to a low-voltage power source or portable battery. An ideal solution for premises with no electricity, unstable power, mobile homes or boats.

The 12-24v PSU replaces the on-board 220v PSU

  • Input voltage: 8–32 V⎓
  • Output voltage: 4.8 V⎓ ± 5%
  • Switch on voltage: 8 V⎓ ± 2.5%
  • Switch off voltage: 7–7.5 V⎓ (depending on load)
  • Max input current: < 1 A
  • Max output current: 1.5 A
  • DC jack: (Female) 6.5 × 2 mm | (Male) 5.5 × 2.1 mm
  • Dimensions: 98 × 70 × 17 mm

SKU: 59359.94.NC Categories: , , , Brand:

Description

Ajax 12-24v PSU (type A) | 8-32vDC Input Voltage

Compatibility:

12-24V PSU (type A) is compatible with:



Protecting facilities lacking electricity

With an alternative 12-24 V⎓ power supply unit, an Ajax hub or a range extender can operate on a low-voltage power source instead of a normal power grid. This setup is ideal for protecting properties with unstable or no electricity.

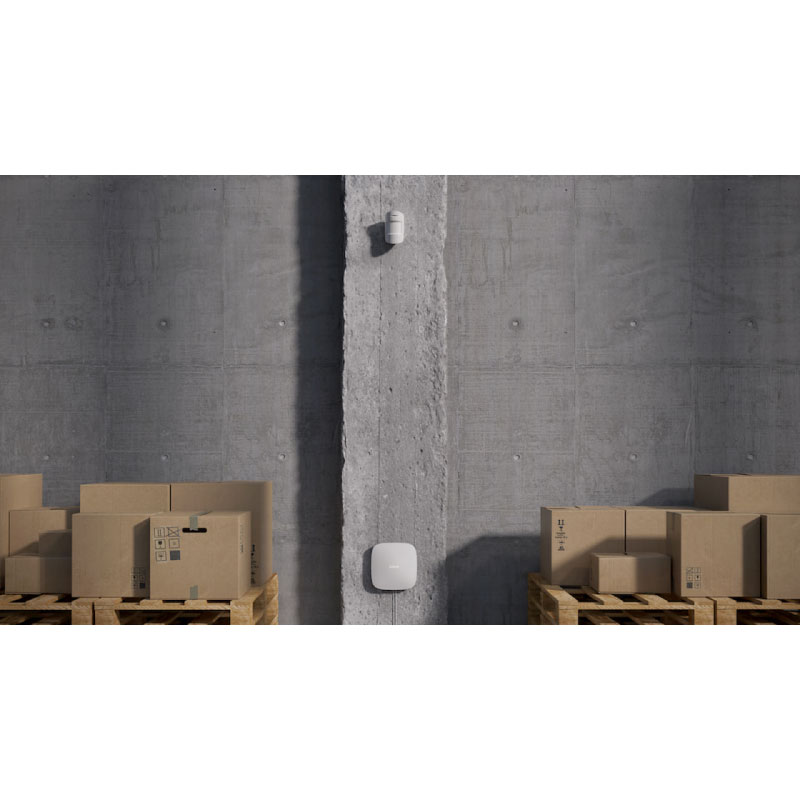

In Warehouses, Building Sites etc:

Use Ajax in premises lacking electricity or having an unstable power supply. A 12 V power supply unit allows connecting hubs and radio signal extenders to low-voltage networks or use a portable battery.

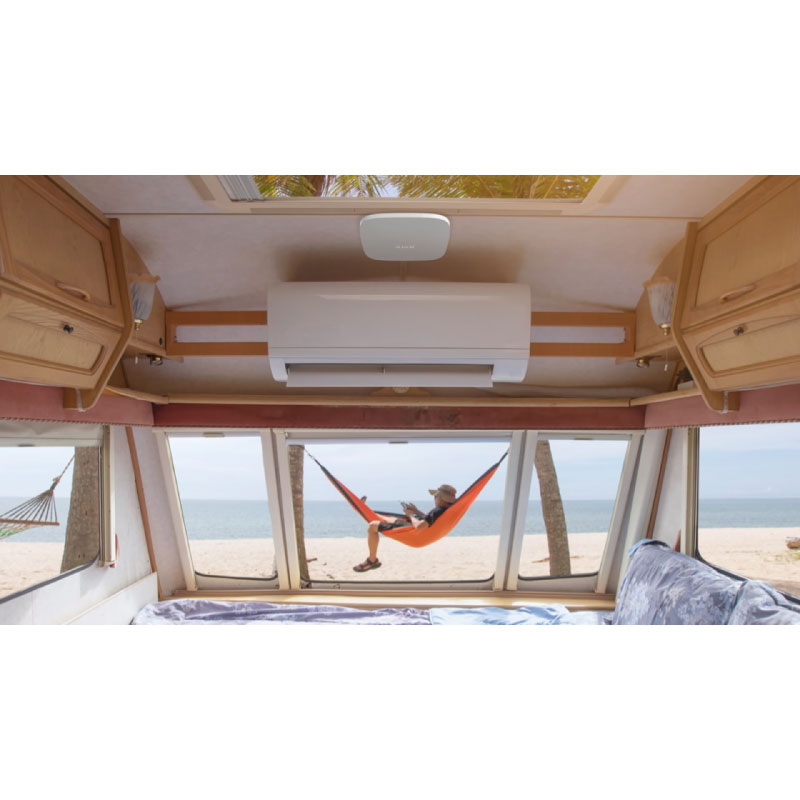

In Campervans and Caravans:

Ajax protects your home, even if it goes on wheels. Connect the hub to a car or portable battery and let the security system travel with you.

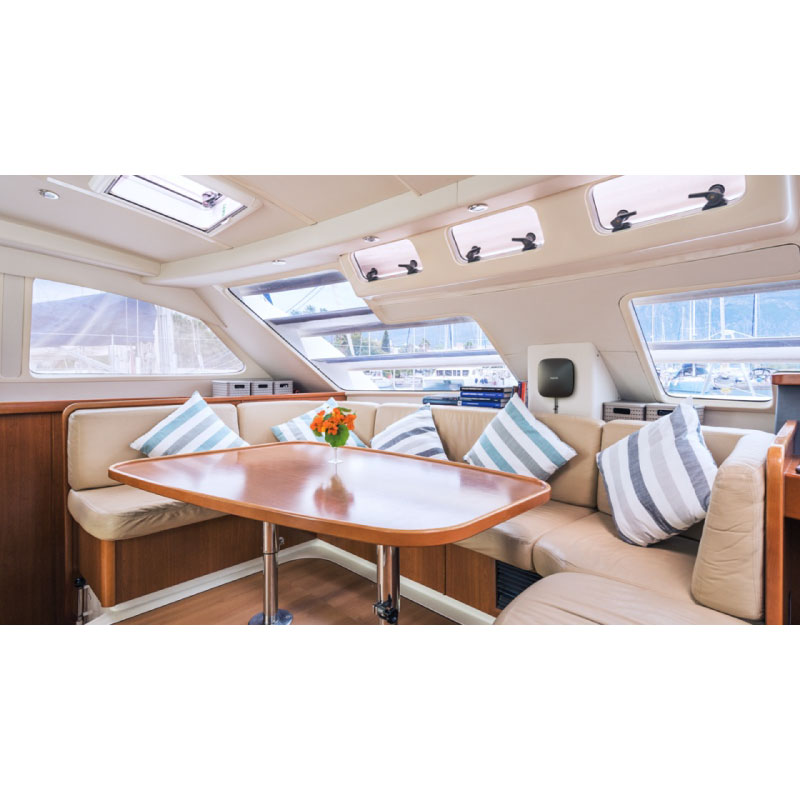

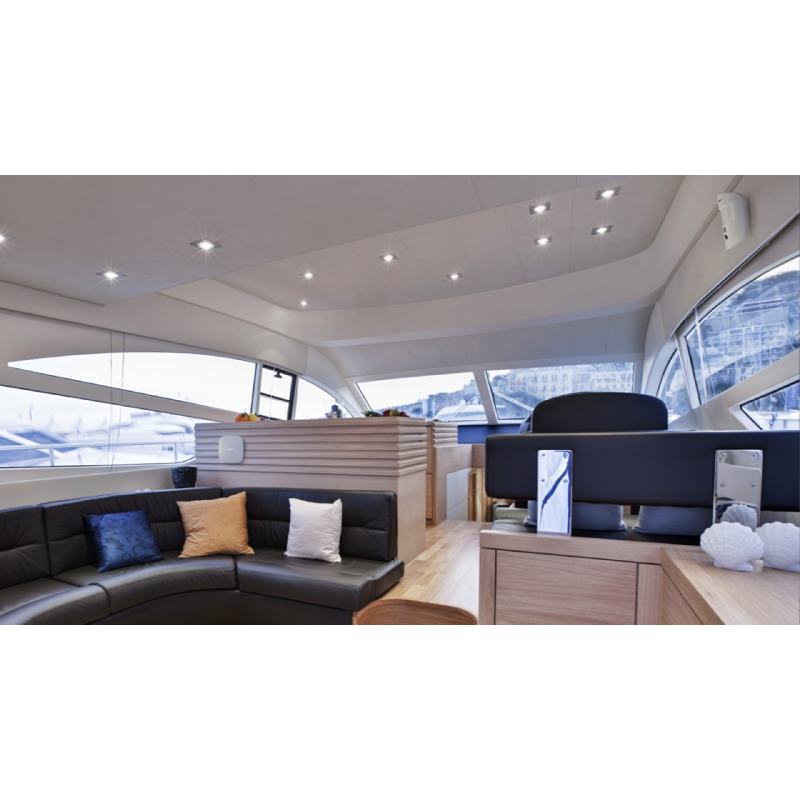

On Yachts:

Insert a SIM card and connect the hub to the on-board network or battery so that Ajax always guards your boat at the pier.



Installation:

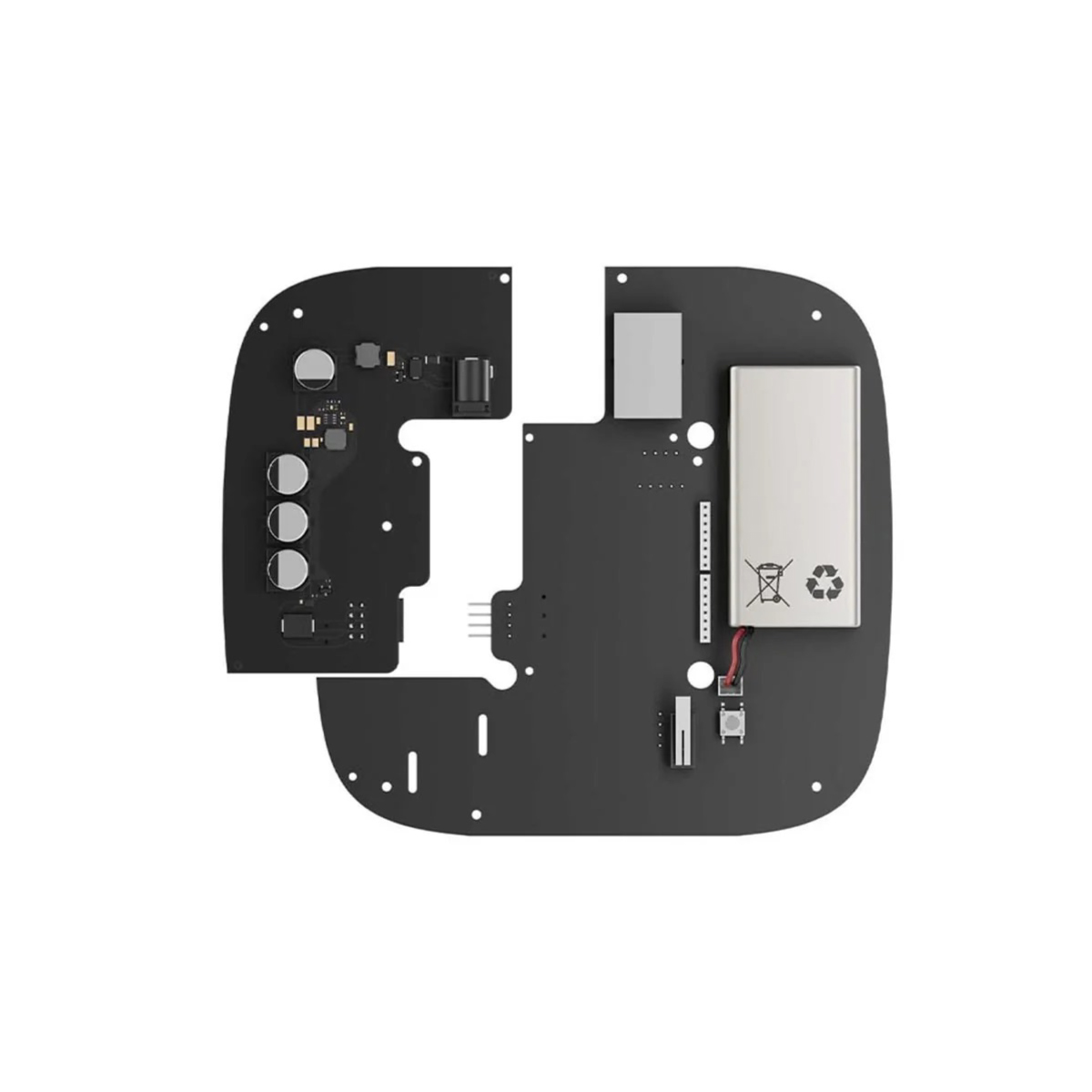

12-24V PSU (type A) is installed inside the device enclosure replacing the standard 110/230 V~ power supply unit. It has a standard jack plug to connect the power cable and includes a terminal adapter in the complete set. An installer only needs a screwdriver and a few minutes to switch the pre-installed power supply unit to 12-24V PSU (type A).



What’s in the Box:

  • Ajax 12-24V PSU (type A)

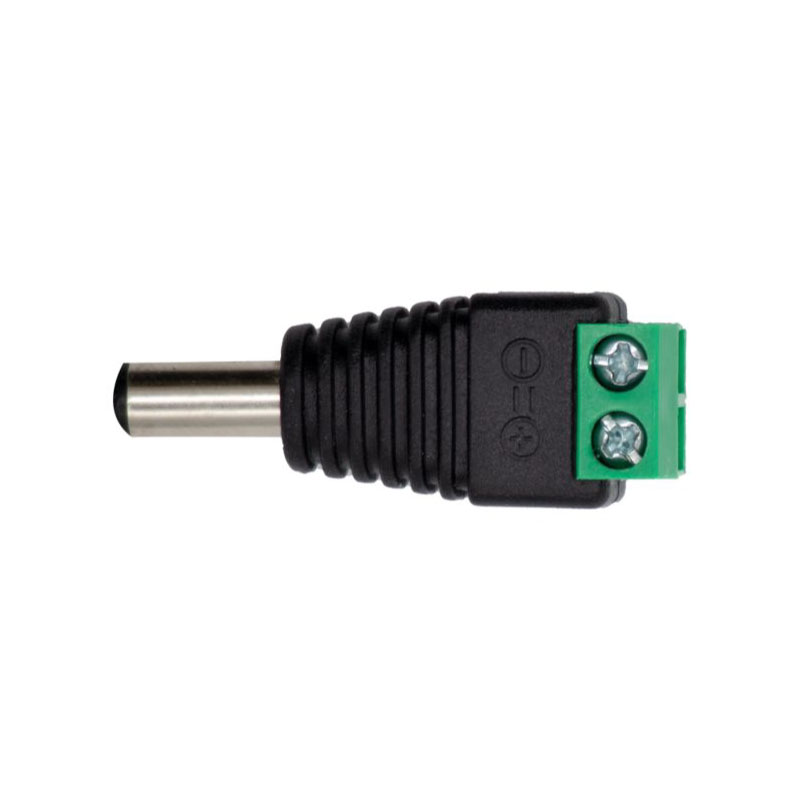

  • Terminal adapter
  • Quick start guide

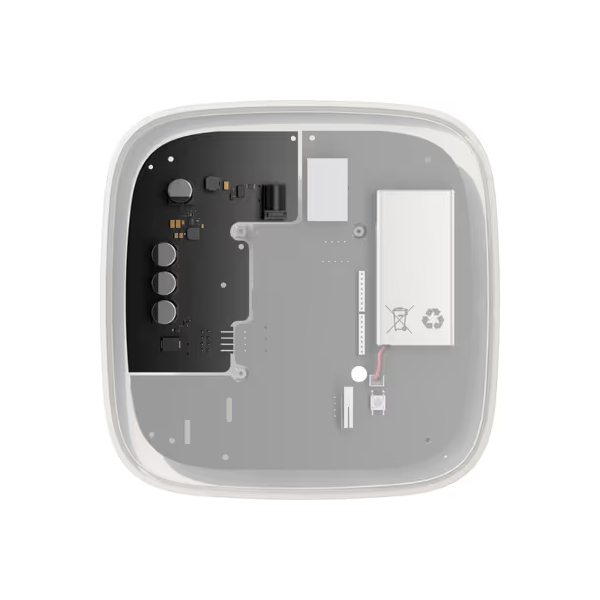

How to install 12-24V PSU (type A)

The PSU is installed into the device body replacing the pre-installed 110/230 V power supply unit.



Technical Specifications

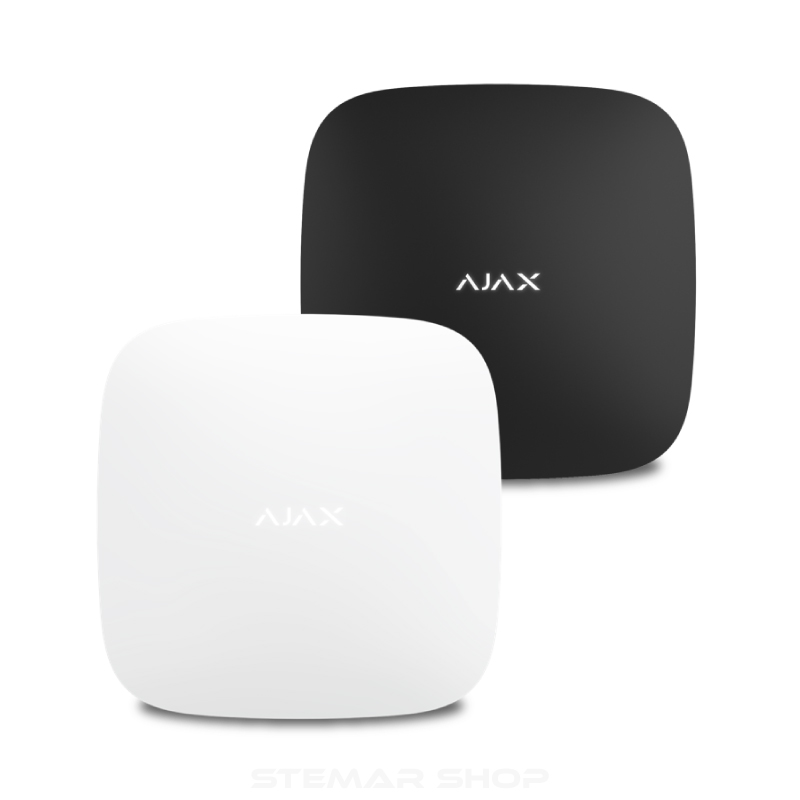

CompatibilityHub (4G), Hub 2, Hub 2 Plus and ReX 2
Input voltage8–32 V⎓
CurrentUp to 1 А
Turn-on Voltage8 V⎓ ± 2.5%
Turn-off Voltage7—7.5 V⎓ (depends on the load)
Output voltage4.8 V ± 5%
CurrentUp to 1.5 A
Connector Slot6.5 × 2 mm Power Jack (Female)
Connector5.5 × 2.1 mm Power Jack (Male)
Operating temperatures rangeFrom -10°С to +40°С
Operating humidityUp to 75%
Product dimensions98 mm x 70 mm x 17 mm
Product Weight26g
Package dimensions197 mm x 125 mm x 50 mm
Mass of unit packed250g
Warranty24 months limited Manufacturer’s warranty. The warranty does not cover batteries.



Ajax 12-24v PSU User Manual and Tech Specs

User Manual

Tech Specs

Control Panel power consumption when operating from 12 V



Additional information

Weight26 g
Dimensions98 × 70 × 17 mm
