Ajax vhfBridge

Instant alarm transmission without Internet

vhfBridge is a transponder that provides an Ajax Hub with an additional channel to communicate with an armed response company. With vhfBridge, you can use Ajax systems where the internet connection is unstable or if your preferred armed response is not Ajax ready / does not have the Ajax software installed on their servers.

vhfBridge can be used as a primary or a backup communication channel.

Elaborate autonomy – up to 75 hours battery backup

You can add a 7a/h backup battery inside a vhfBridge casing which can also power up the armed response radio transmitter. In the event of power failures, the vhfBridge and AR Radio Transmitter will continue operating for up to 75 hours.

Up to 75 hours of autonomous operation

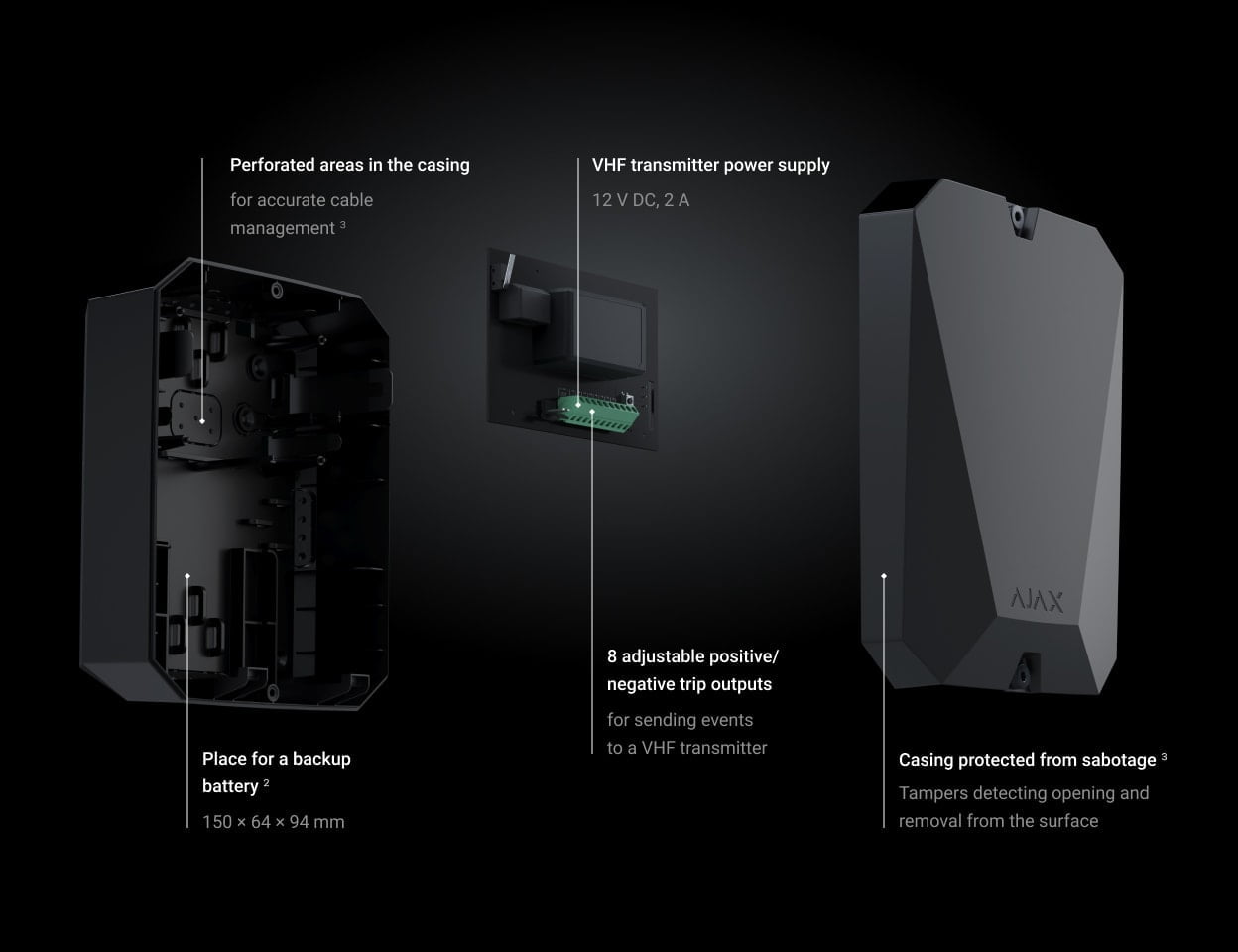

Place for a 7 Ah backup battery

Adjustable signalling

Get only events you need. You can configure each vhfBridge output in the Ajax app: set an event or disable it.

Events supported by vhfBridge:

1. Intrusion
2. Panic button
3. Malfunction
4. Tamper
5. Power loss of vhfBridge
6. Power loss of the hub
7. Hub’s battery discharged
8. Loss of connection between vhfBridge and the hub
9. Fire
10. Medical assistance
11. Any alarm
12. Change of security modes
13. vhfBridge battery discharged
14. Confirmed intrusion
15. Confirmed hold-up device alarm

What’s in the Box

Ajax vhfBridge (options of Black and White)

Option to include 8Ah Gel Battery

Ajax vhfBridge User Manual, Tech Specs and DataSheet
