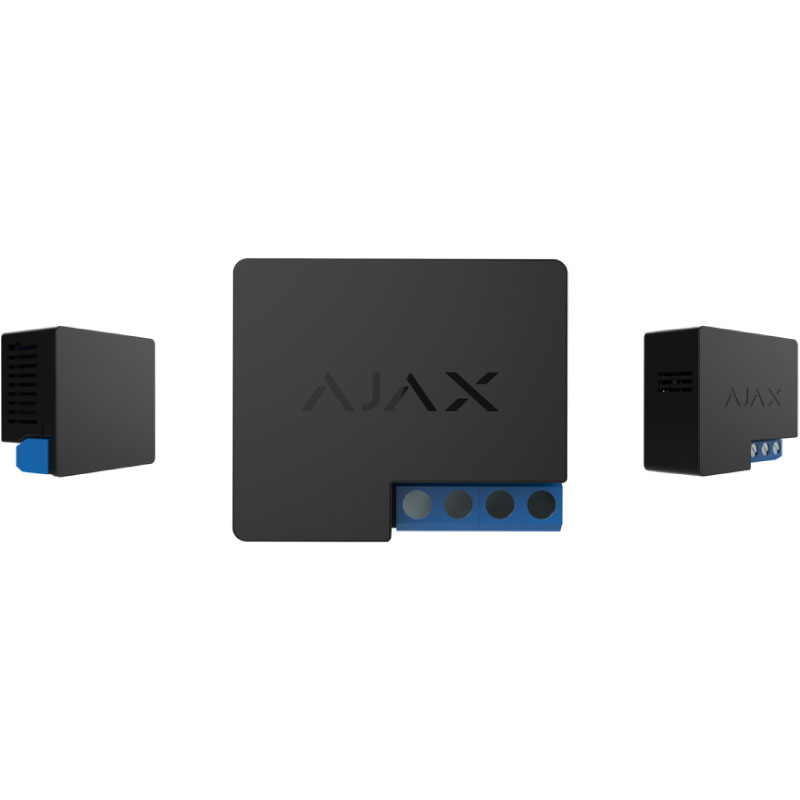

Ajax Relay

Original price was: R919.00.Current price is: R745.00. Incl. VAT

The Ajax Relay is a wireless, low-current relay designed to control low voltage devices and appliances remotely such as Gates, Garage motors, Electric locks etc.

When used in conjunction with the Ajax system, Ajax Relay allows you to make use of automation scenarios so your security system not only reports threats but also actively counters them. The dry contact is not galvanically connected to the device power supply so that it can be used both in low-voltage and household networks. The relay can easily be connected to a power supply unit paired with a backup battery.

The Relay can be controlled manually via the Ajax app, Button press or by Scenario.

  • Power supply: 7 – 24 VDC
  • Maximum load current: 5A at 36 VDC, 13A at 230 VAC
  • Relay: NO/NC | Bistable/Pulse
  • Operates with all Ajax Hubs and range extenders
  • Operating frequencies – 868.0 – 868.6 MHz
  • Dimensions: 39 × 33 × 18mm



SKU: 38204.19.NC1 Categories: , , Brand:

Description

Ajax Relay – Dry Contact for Low Voltage Devices

A wireless remote-control module that allows for one-click mobile app control of low voltage devices

  • Used for controlling devices such as Gate and Garage motors, Electric locks and other low current devices.
  • Automatic shutoff during surges and overheating
  • Voltage level information is available in the mobile app
  • 7-24VDC voltage source
  • Operates in both Pulse and Bistable modes



Use scenarios to program actions of automation devices (Relay, WallSwitch or Socket) in response to an alarm, Button press or schedule. A scenario can be created remotely in the Ajax app.



Ajax Relay User Manual and Tech Specs

User Manual

Tech Specs



Additional information

Weight25 g
Dimensions39 × 33 × 18 mm
