TP-Link Gigabit PoE+ Injector 30W

Original price was: R369.00.Current price is: R339.00. Incl. VAT

  • Supplies up to 30 W of PoE+ power to a compatible powered device
  • Gigabit data-in and power-plus-data-out ports support up to 1000 Mbps Ethernet
  • Supports IEEE 802.3af and IEEE 802.3at active PoE devices
  • Automatically detects the connected device’s power requirements
  • Plug-and-play operation with desktop or wall-mounted installation
  • Designed for standards-compliant 802.3af/at PoE devices; it is not a passive PoE injector
SKU: MI-TP-POE160S Categories: , Brand:

Description

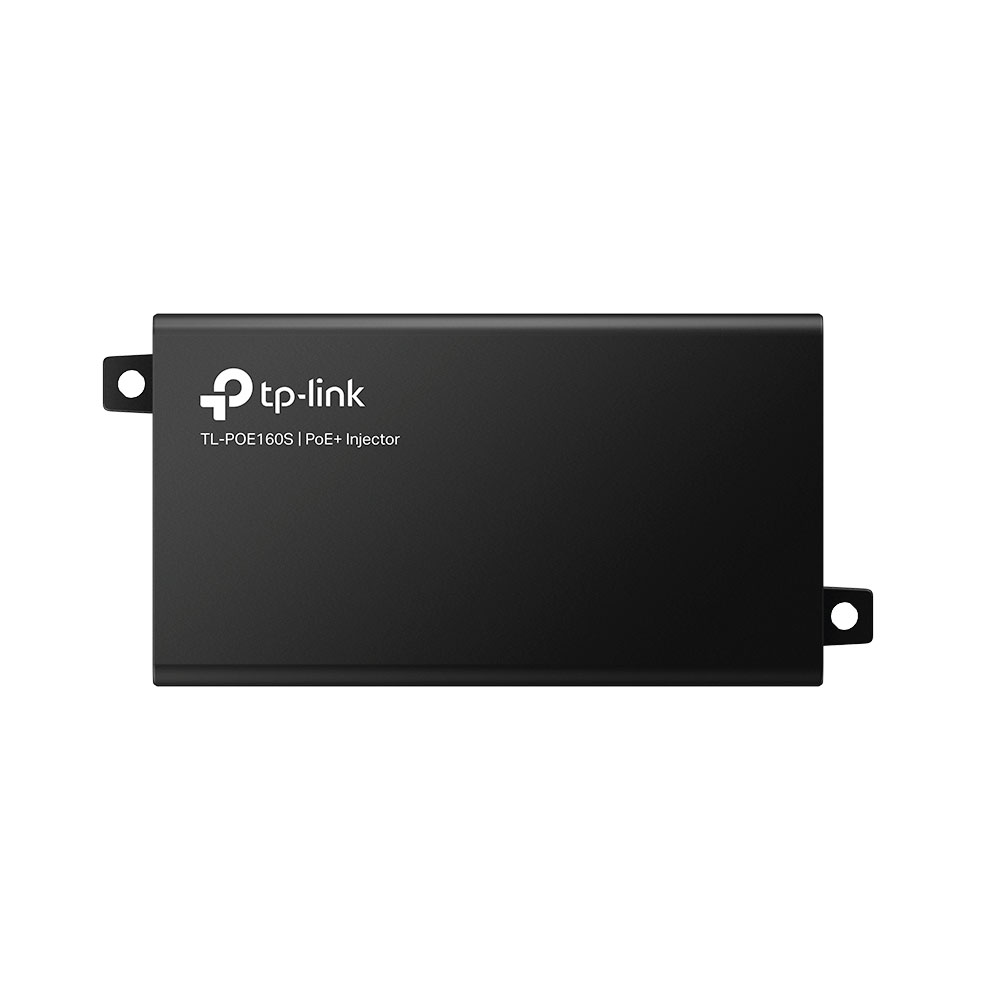

TP-Link POE160S Gigabit PoE+ Injector for Up to 30 W Power Delivery

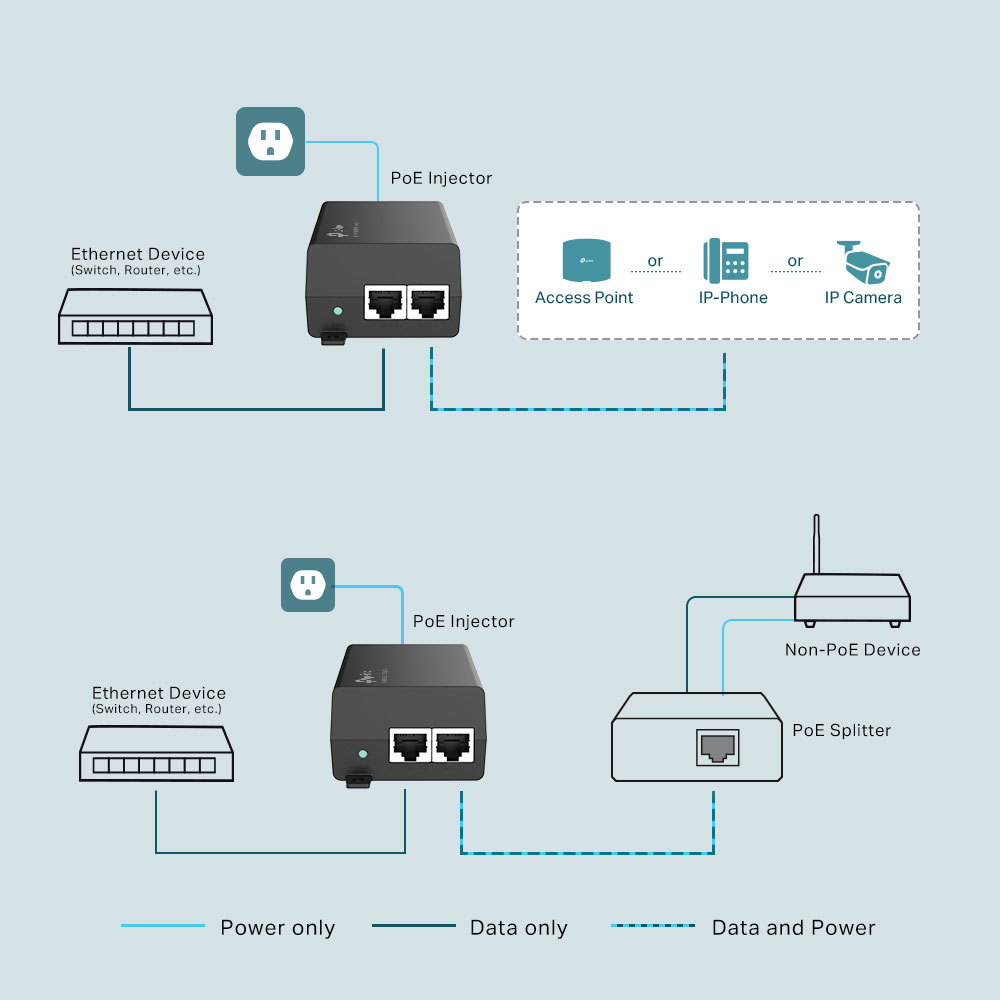

The TP-Link POE160S (TL-POE160S) adds standards-based PoE+ power to a Gigabit Ethernet connection, making it useful when your network switch does not provide PoE but the connected device supports IEEE 802.3af or 802.3at.

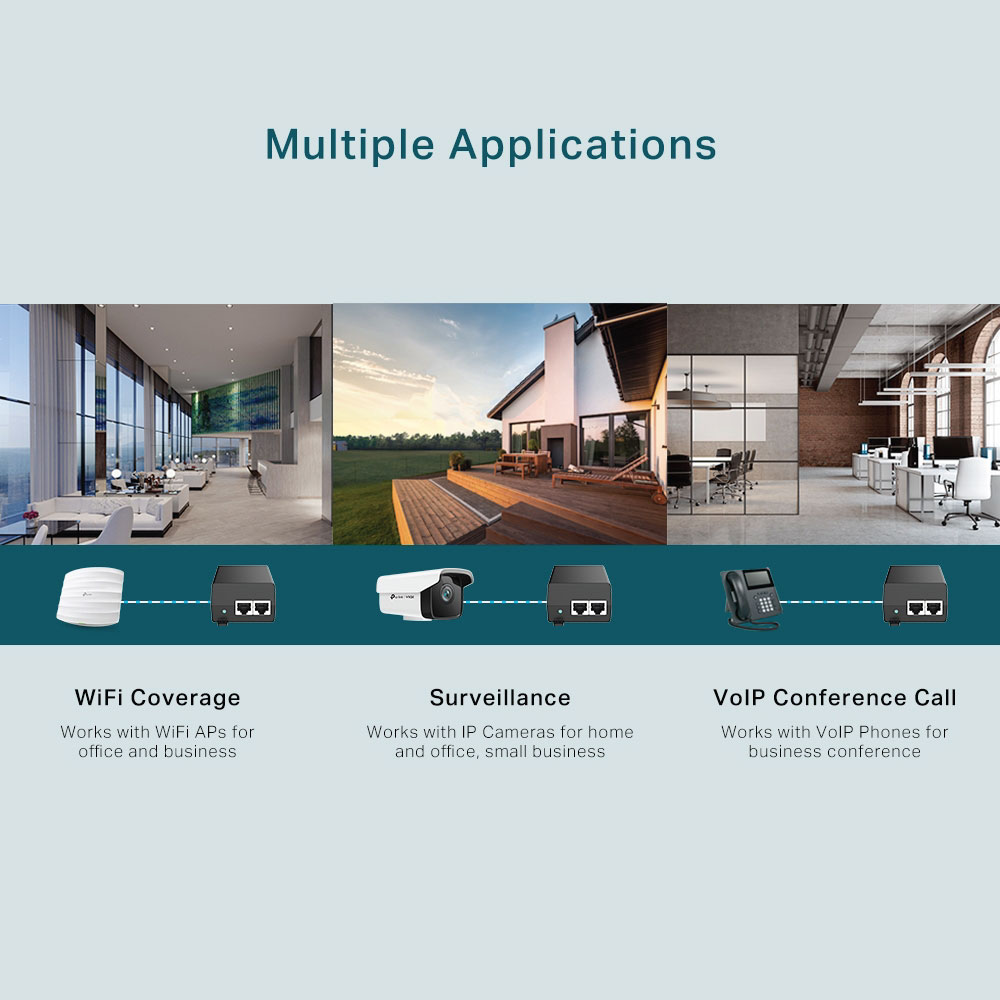

It combines data and power onto one Ethernet cable for compatible access points, IP cameras, VoIP phones and other powered devices, while automatically determining the power required by the connected equipment.

Is This Right for You?

  • Use it when you need to power one IEEE 802.3af or 802.3at network device from a non-PoE Ethernet connection.
  • Suitable for Gigabit network links where maintaining up to 1000 Mbps Ethernet connectivity is important.
  • Choose a different injector if your equipment requires passive PoE, PoE++ or more than 30 W.

Why Choose This Product?

  • Power and data over one cable: Helps simplify installations where a suitable mains outlet is not conveniently located beside the network device.
  • Up to 30 W PoE+ output: Supports compatible IEEE 802.3at equipment as well as lower-power IEEE 802.3af powered devices.
  • Gigabit Ethernet: Both network ports support 10/100/1000 Mbps operation, avoiding the 100 Mbps limitation of older injectors.

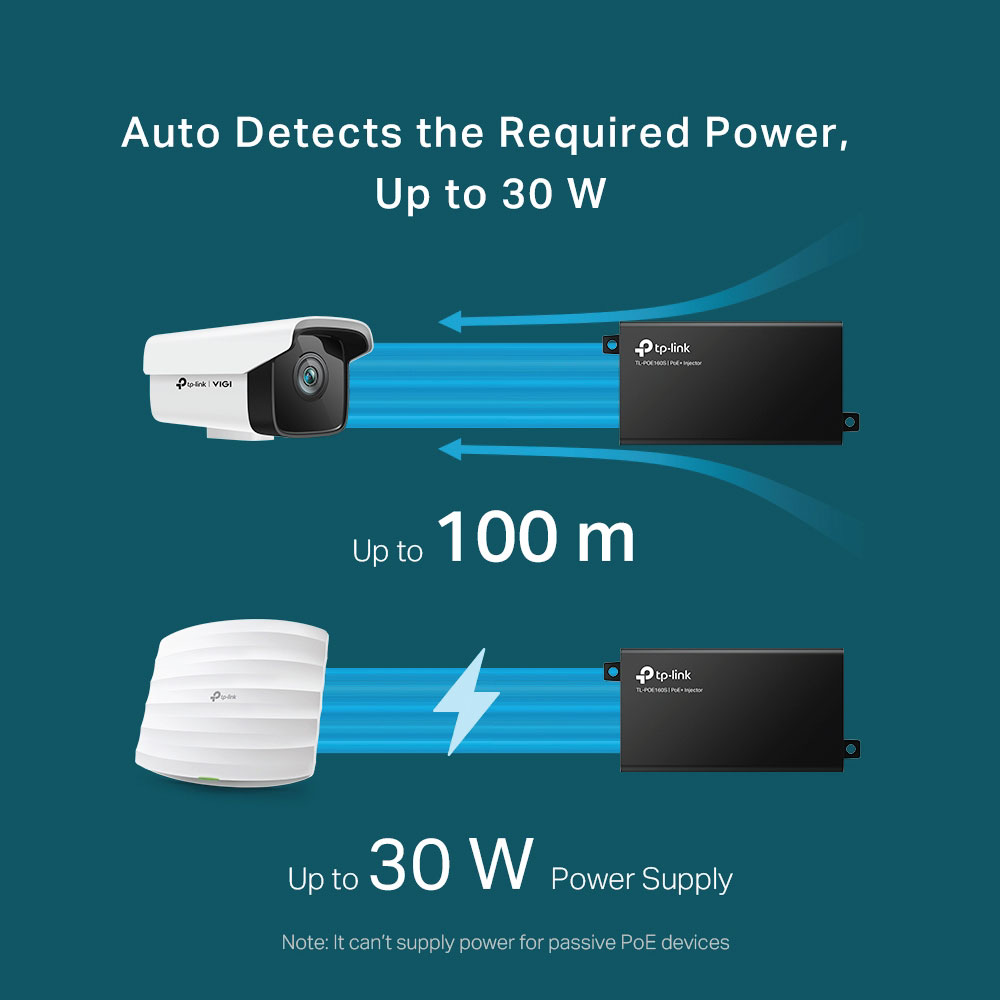

  • Automatic power detection: The injector determines the power requirements of standards-compliant connected devices rather than supplying fixed passive power.
  • Flexible placement: The compact unit can be used on a desktop or wall-mounted and requires no configuration.

Before You Buy

  • The connected device must support IEEE 802.3af or IEEE 802.3at PoE, or use a compatible PoE receiver adapter.
  • Maximum PoE output is 30 W.
  • This is an active standards-based PoE+ injector and should not be selected for equipment requiring proprietary or passive PoE.
  • One injector powers one connected PoE device.
  • Power input is 100-240 V AC, 50/60 Hz.

Technical Specifications

BrandTP-Link
ModelPOE160S (TL-POE160S)
Product TypePoE+ Injector
PoE StandardsIEEE 802.3af, IEEE 802.3at
Ethernet StandardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab
Data Input Port1 × 10/100/1000 Mbps RJ45
Power + Data Output Port1 × 10/100/1000 Mbps RJ45
Power Input100-240 V AC, 50/60 Hz
Maximum PoE Output30 W
InstallationDesktop or wall-mounted
LED IndicatorPower / PoE
Device Dimensions125 × 59.4 × 36.8 mm
Operating Temperature0°C to 40°C

What’s in the Box

  • 1 × TP-Link POE160S PoE+ Injector
  • 1 × Power cord
  • 1 × RJ45 cable
  • 1 × Installation guide
  • Wall-mounting kit

Additional information

Dimensions125 × 60 × 37 mm
