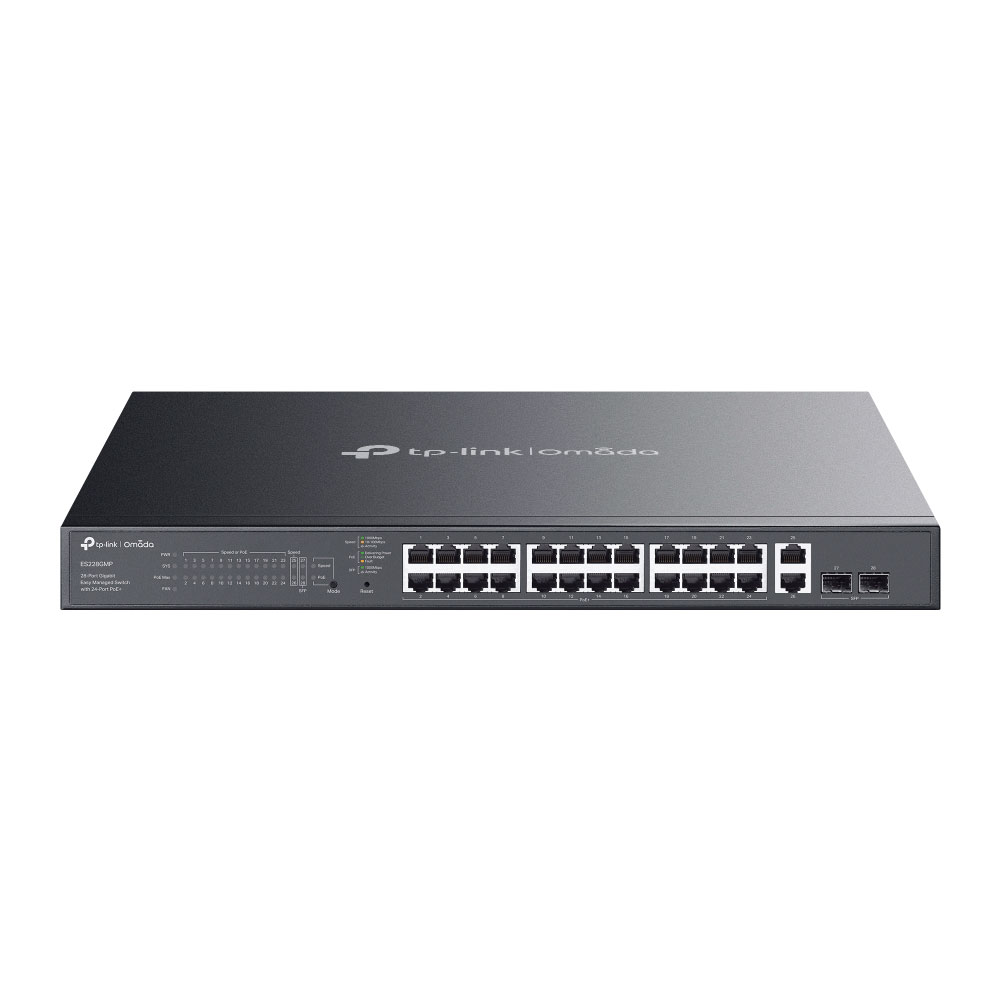

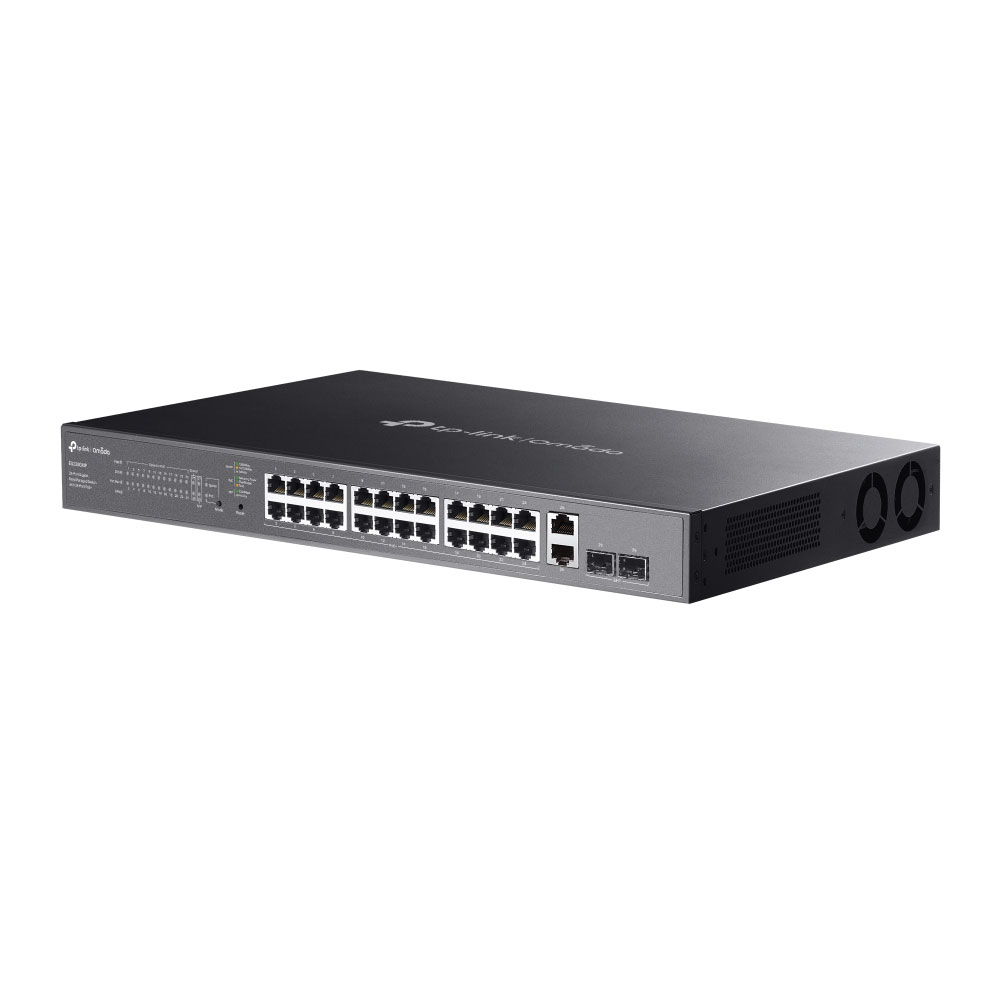

TP-Link Omada ES228GMP for High-Capacity Gigabit PoE+ Networks
The TP-Link Omada ES228GMP combines 24 Gigabit PoE+ ports with additional copper and SFP uplinks, making it well suited to larger surveillance, Wi-Fi and business networks where many powered devices need to share one switch.
Its 384W PoE budget supports substantial multi-device installations, while VLAN, QoS, port isolation, loop prevention and Omada management give you more control than a basic unmanaged switch.
Is This Right for You?
Suitable for networks with numerous PoE IP cameras, wireless access points or other IEEE 802.3af/at devices.
A good fit when you need up to 24 powered Gigabit ports together with separate RJ45 and SFP uplink options.
Useful for rack installations where centralised Omada monitoring and configuration are required.
Consider a different switch if you require multi-gigabit 2.5GbE ports or 10Gbps SFP+ uplinks.
Why Choose This Product?
Power more devices from one switch: 24 PoE+ ports and a 384W shared PoE budget reduce the need for separate power supplies or individual PoE injectors.
Flexible uplink choices: Two additional Gigabit RJ45 ports and two Gigabit SFP slots help separate powered device connections from copper or fibre uplinks.
Built for surveillance networks: Port isolation, QoS, PoE recovery and extended-distance PoE functions can help simplify larger camera deployments.
Manage locally or centrally: The switch supports a web interface as well as integration with compatible Omada hardware, software and cloud controllers.
Better traffic control: VLAN, IGMP Snooping, link aggregation and loop-prevention functions provide useful control over a growing network.
Rack-ready construction: The metal chassis and included mounting hardware suit structured network cabinets and equipment racks.
Before You Buy
The 384W figure is the total PoE budget shared across the PoE ports; each PoE port supports up to 30W.
Connected powered devices must be compatible with IEEE 802.3af or 802.3at PoE.
Omada App and centralised cloud access require a compatible Omada hardware, software or cloud-based controller.
Zero-Touch Provisioning requires an Omada Cloud-Based Controller.
When the extended 250m PoE function is used, the applicable port operates at 10Mbps; achievable distance also depends on cable quality.
SFP transceivers and network cabling are selected separately according to the installation requirements.
Technical Specifications
Model
ES228GMP
Product Type
Omada Gigabit Easy Managed PoE+ Switch
Total Ports
28 Gigabit ports
PoE+ RJ45 Ports
24 × 10/100/1000Mbps
Additional RJ45 Ports
2 × 10/100/1000Mbps
SFP Slots
2 × Gigabit SFP
PoE Standards
IEEE 802.3af / 802.3at
Total PoE Budget
384W
Maximum PoE per Port
30W
Extended PoE Transmission
Up to 250m at 10Mbps on supported ports
Switching Capacity
56Gbps
Packet Forwarding Rate
41.67Mpps
MAC Address Table
8K
Jumbo Frame
15KB
VLAN
MTU VLAN, port-based VLAN and 802.1Q VLAN
Management
Web GUI and compatible Omada controllers
Power Input
100–240V AC, 50/60Hz
Cooling
2 fans
Installation
Rack-mountable
Device Dimensions
440 × 330 × 44mm
Operating Temperature
-5°C to 45°C
What’s in the Box
1 × TP-Link Omada ES228GMP switch
1 × Power cord
Mounting brackets
Rubber feet
Screws
Installation guide
Additional information
Dimensions
440 × 330 × 44 mm
