TP-Link EC220-F5 AC1200 Wi-Fi 5 Router for Reliable Dual-Band Home Networking

The TP-Link EC220-F5 combines 2.4GHz and 5GHz Wi-Fi in a practical AC1200 router for everyday home or small-office internet access. Four external antennas help maintain stable wireless connections, while TP-Link Tether support provides convenient setup and network management from a compatible mobile device.

It is particularly well suited to internet connections of up to 100Mbps, with separate wireless bands allowing everyday devices to use 2.4GHz while compatible devices can take advantage of the faster 5GHz band.

Is This Right for You?

• Choose the EC220-F5 for home or small-office Wi-Fi where your internet connection does not require wired speeds above 100Mbps.
• It suits users who want both 2.4GHz for broader device compatibility and 5GHz for higher wireless speeds at suitable range.
• Access Point mode allows the unit to provide Wi-Fi from an existing wired network when routing is handled by another device.
• If your fibre or broadband service exceeds 100Mbps and you want to use the full speed over the WAN or LAN ports, consider a router with Gigabit Ethernet instead.

Why Choose This Product?

• Dual-band AC1200 Wi-Fi: Offers up to 300Mbps on 2.4GHz and 867Mbps on 5GHz, giving compatible devices a choice of wireless bands for different connection needs.

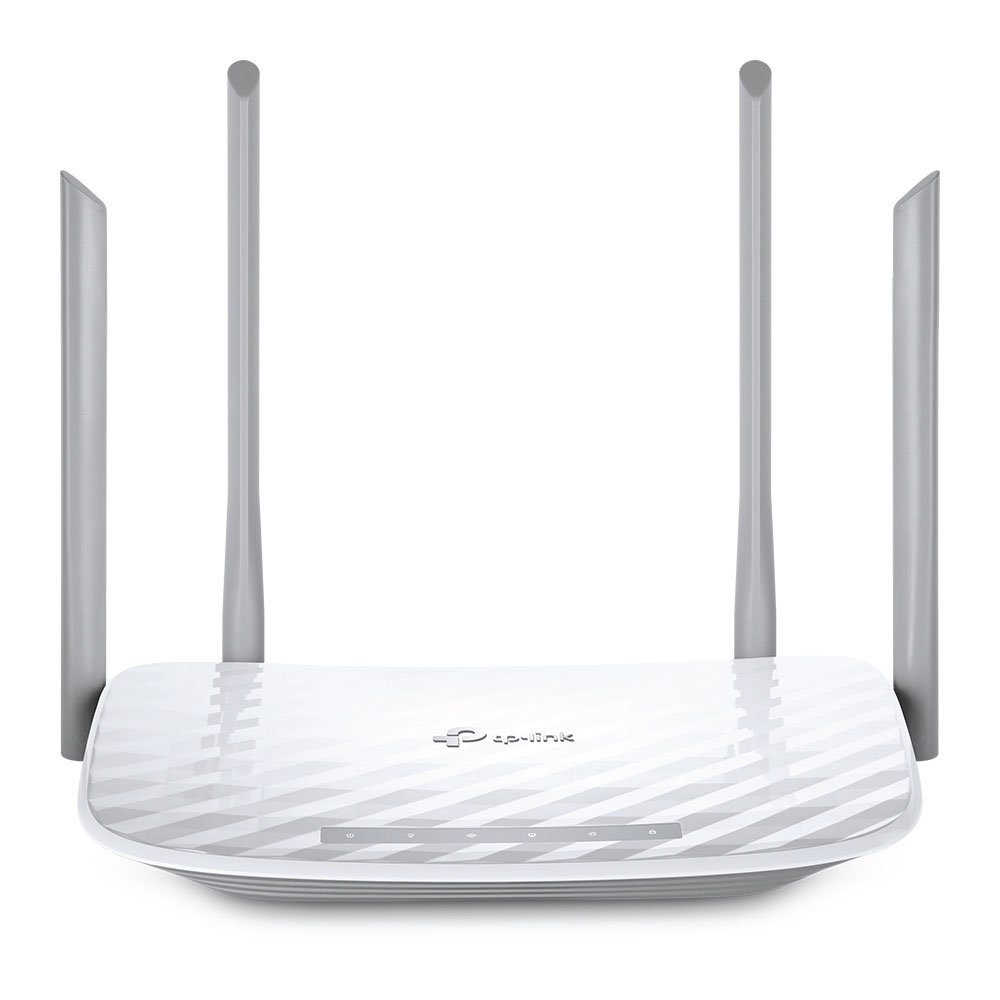

• Four external antennas: Designed to improve receiving sensitivity and provide more stable wireless connectivity around the installation area.
• Simple mobile management: TP-Link Tether support allows compatible Android and iOS devices to assist with setup and network management.
• Flexible operating options: Access Point mode can be used when you already have a router and simply need to add wireless connectivity.
• Useful network controls: Parental controls, access controls, QoS by device and Multi-SSID support provide additional control over connected users and devices.
• Service-provider management support: TR-069 and other supported remote-management protocols allow compatible service providers to configure and manage deployed routers remotely.

Before You Buy

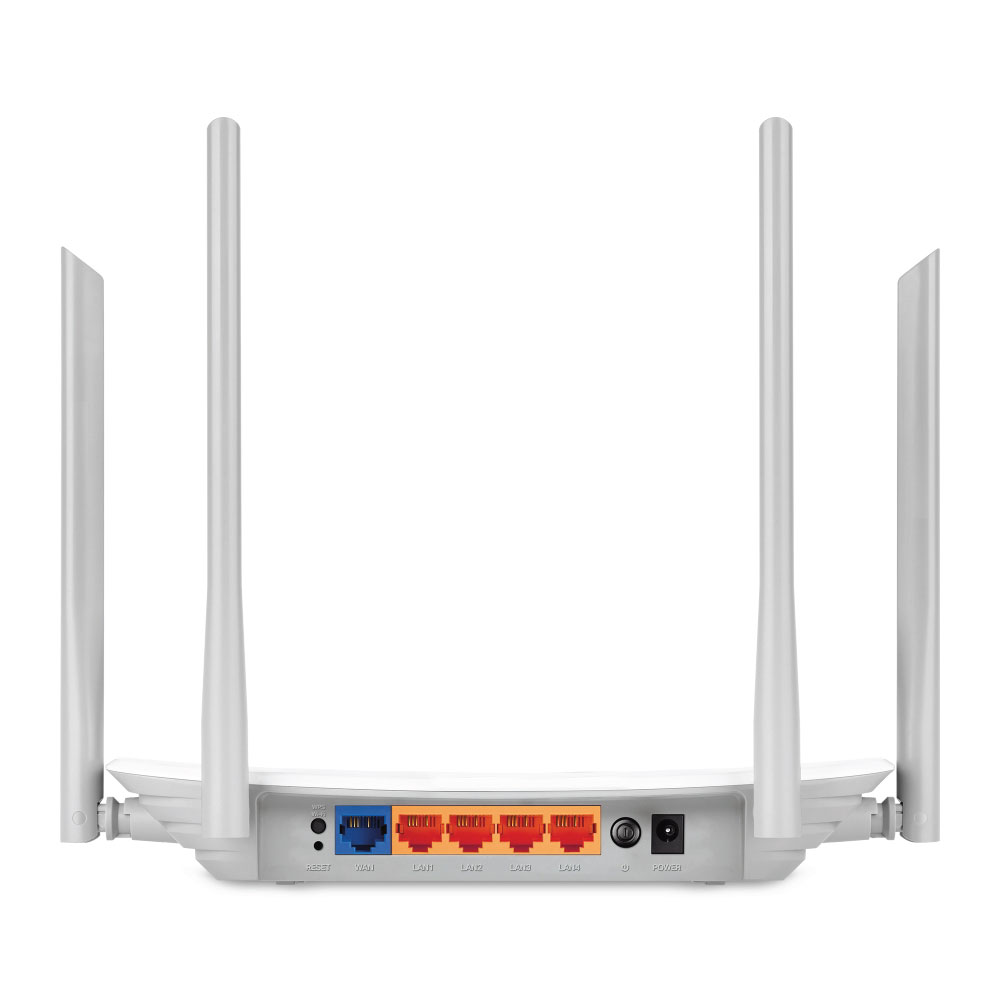

• The EC220-F5 uses 10/100Mbps Ethernet ports. Its WAN and LAN connections cannot provide wired throughput above 100Mbps.
• An active internet service subscription is required for internet access.
• A compatible upstream modem, ONT or other internet termination equipment may be required depending on your service provider and connection type.
• Maximum advertised Wi-Fi rates are theoretical physical-layer rates. Actual wireless throughput and coverage vary with client devices, interference, obstacles, network traffic and installation conditions.
• The router uses a 9V DC, 0.85A external power supply.

Technical Specifications

What’s in the Box

• 1 × TP-Link EC220-F5 Wi-Fi Router
• 1 × Power Adapter
• 1 × RJ45 Ethernet Cable
• 1 × Quick Installation Guide
