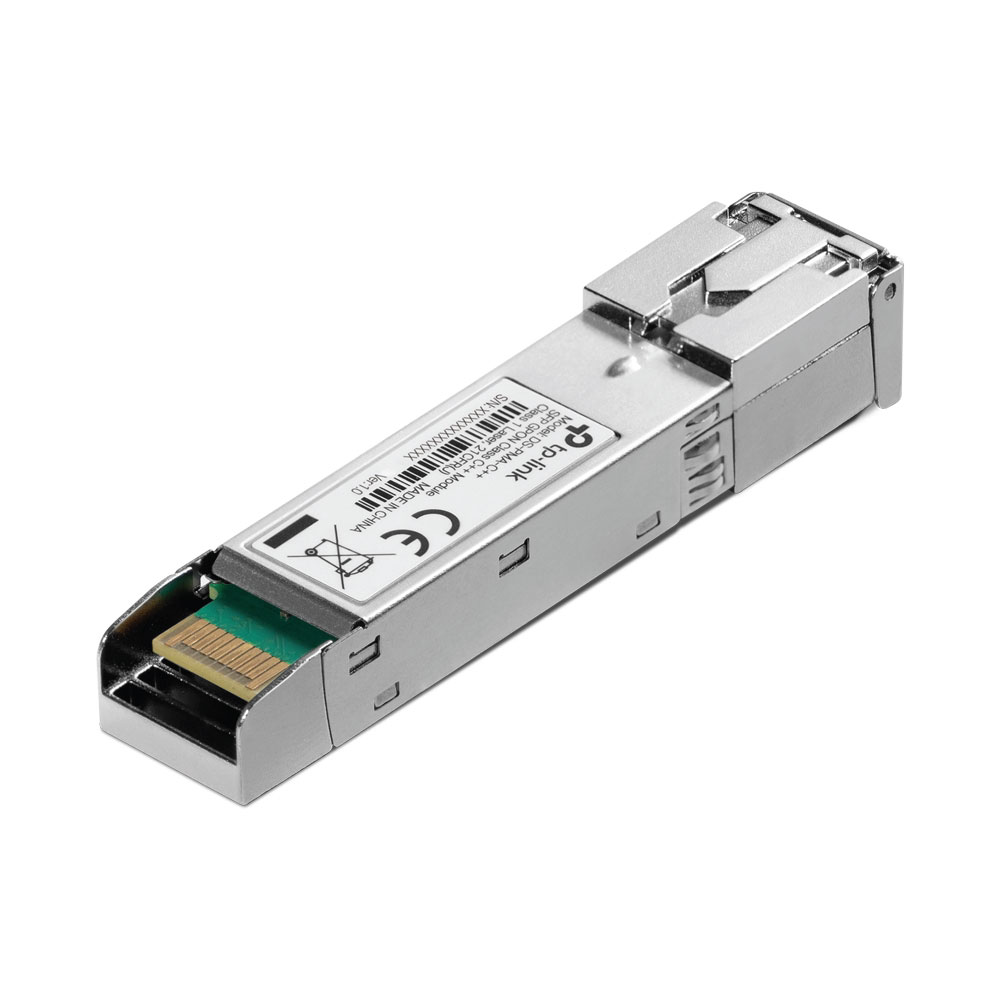

TP-Link DeltaStream DS-PMA-C++ GPON Class C++ SFP Optical Module
TP-Link DeltaStream DS-PMA-C++ GPON Class C++ SFP Optical Module - Image 2
TP-Link DeltaStream DS-PMA-C++ GPON Class C++ SFP Optical Module - Image 3

TP-Link DeltaStream DS-PMA-C++ GPON Class C++ SFP Optical Module

Original price was: R655.00.Current price is: R615.00. Incl. VAT

  • Single-fibre GPON Class C++ SFP optical transceiver
  • Supports GPON downstream 2.488Gbps and upstream 1.244Gbps
  • Extended optical budget for long-distance GPON deployments
  • Hot-pluggable SFP form factor for simple installation and maintenance
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with TP-Link DeltaStream GPON Optical Line Terminals
SKU: MI-TP-DS-PMA-C++ Categories: , , Brand:

Description

TP-Link DS-PMA-C++ Class C++ GPON SFP Module for Compatible OLTs

The TP-Link DS-PMA-C++ is a single-fibre GPON optical transceiver intended for the SFP port of a compatible GPON Optical Line Terminal. It provides the optical interface between the OLT and the passive fibre network.

Its Class C++ optics, SC/UPC connection, hot-swappable format and built-in diagnostic monitoring make it suited to professional fibre access installations where a higher-power GPON optical module is required.

Is This Right for You?

  • Choose the DS-PMA-C++ when your GPON OLT specifically requires a Class C++ SFP optical module.
  • It is designed for single-mode 9/125 µm fibre using an SC/UPC connection.
  • TP-Link lists compatibility with GPON OLT models including DS-P7001-04, DS-P7001-08 and DS-P7001-16.
  • It is an OLT optical module rather than an ONT, router or standalone fibre media converter.

Why Choose This Product?

  • GPON fibre performance: Supports 2488.32 Mbps transmit and 1244.16 Mbps receive data rates for GPON access networks.
  • Class C++ optical module: Provides the higher optical class required by suitably designed GPON deployments.
  • Single-fibre operation: Uses 1490 nm for transmission and 1310 nm for reception through a single 9/125 µm single-mode fibre.
  • Hot-swappable SFP format: The module can be fitted or replaced in a compatible host without the installation process associated with a fixed optical interface.
  • Built-in diagnostics: Digital Diagnostics Monitoring provides access to operating information such as module voltage, optical transmit/receive power and temperature.

Before You Buy

This is a GPON OLT SFP module and must be installed in compatible OLT equipment. Confirm that your OLT supports the DS-PMA-C++ and that the fibre installation uses the required SC/UPC connector and 9/125 µm single-mode fibre.

TP-Link documentation currently available for this model contains conflicting optical-output and maximum-distance figures between published versions. These values should therefore be confirmed against the hardware version supplied before designing an installation around a specific optical budget or link distance.

Technical Specifications

BrandTP-Link
ModelDS-PMA-C++
Product TypeGPON OLT SFP optical module
Optical ClassClass C++
GPON Transmit Data Rate2488.32 Mbps
GPON Receive Data Rate1244.16 Mbps
Transmit Wavelength1490 nm
Receive Wavelength1310 nm
Fibre TypeSingle-mode, 9/125 µm
Optical ConnectorSC/UPC
InterfaceGPON SFP
Hot SwappableYes
Digital Diagnostics MonitoringYes
Nominal Voltage3.3 V

What’s in the Box

  • 1 × TP-Link DS-PMA-C++ SFP GPON Class C++ module
