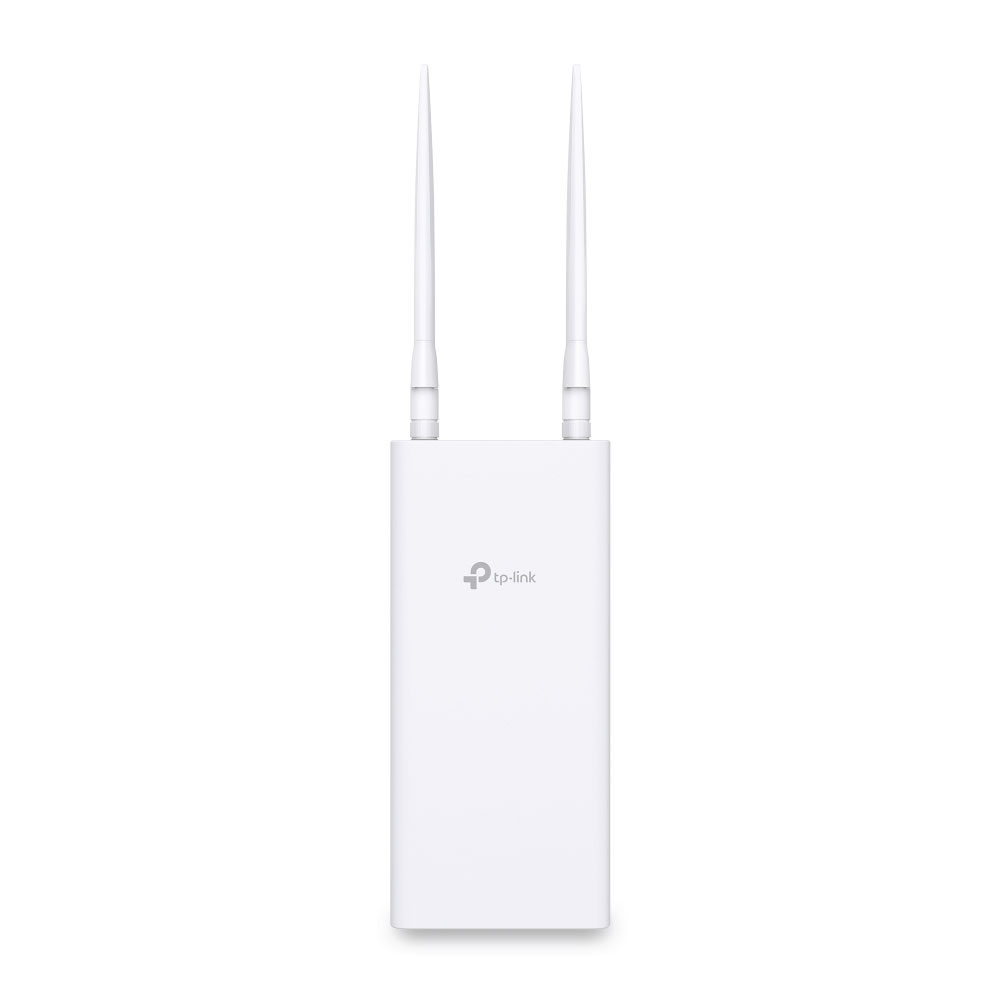

TP-Link Archer MR402-Outdoor 4G LTE Router for Flexible Outdoor Internet Access

The TP-Link Archer MR402-Outdoor gives you a practical way to place a 4G router where cellular reception is better, rather than being limited to an indoor router position. Insert a compatible Nano SIM and use the unit to provide Wi-Fi in homes, farms, outbuildings, temporary sites and other locations where fixed broadband is unavailable or inconvenient.

Its IP65 enclosure, multiple mounting options and PoE support make outdoor placement simpler, while TP-Link’s Tether app and web interface provide convenient network setup and management.

Is This Right for You?

• Suitable when your internet connection will primarily come from a 4G LTE SIM.
• Useful where placing the router outdoors or closer to a stronger mobile signal is beneficial.
• Suitable for pole, wall or window installation.
• Can also operate in Wireless Router mode using its Ethernet WAN/LAN connection.
• The Ethernet connection is Fast Ethernet at 100 Mbps, so choose another solution if you specifically require Gigabit Ethernet.

Why Choose This Product?

• Internet without a fixed-line connection: The integrated 4G LTE modem lets you connect using an activated Nano SIM, with supported LTE speeds up to 150 Mbps download and 50 Mbps upload.
• Designed for exposed installations: The IP65 enclosure provides protection against dust and water ingress when correctly installed.

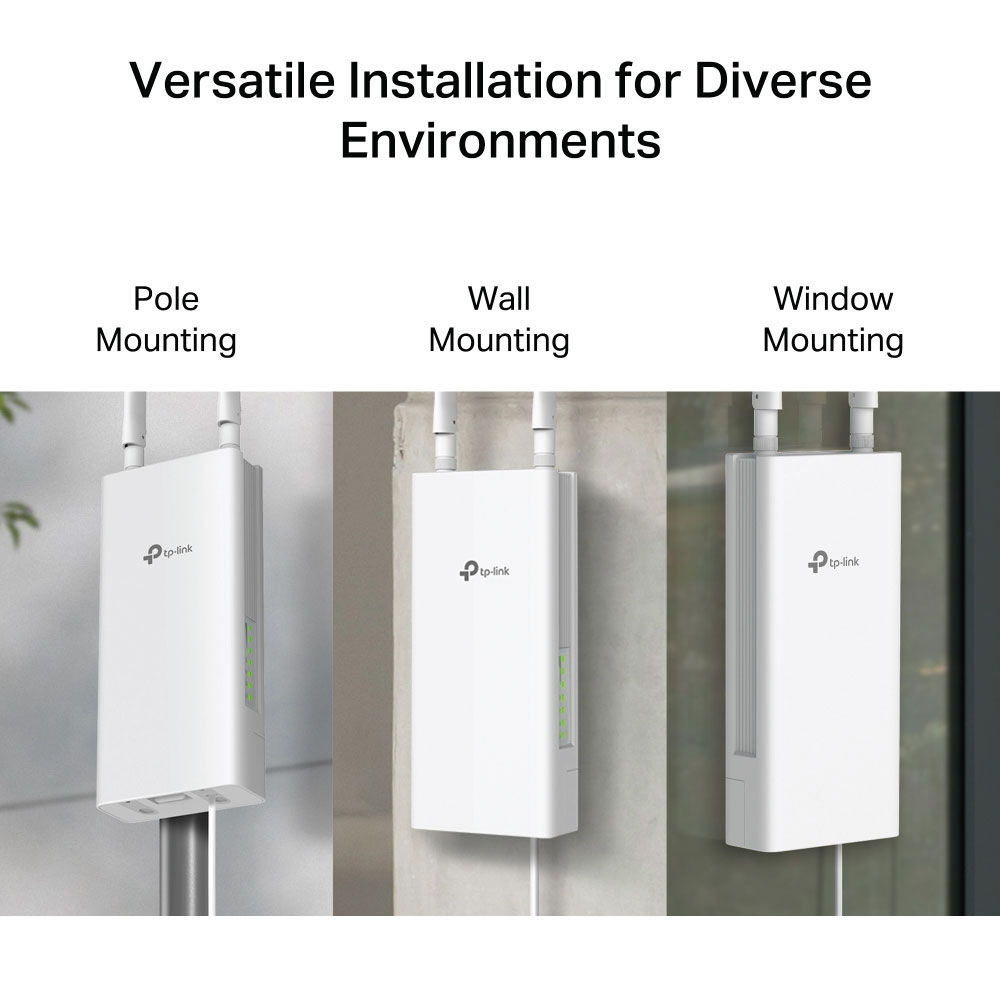

• Flexible positioning: Supplied mounting hardware supports pole, wall and window installations, helping you position the router where mobile reception is more suitable.

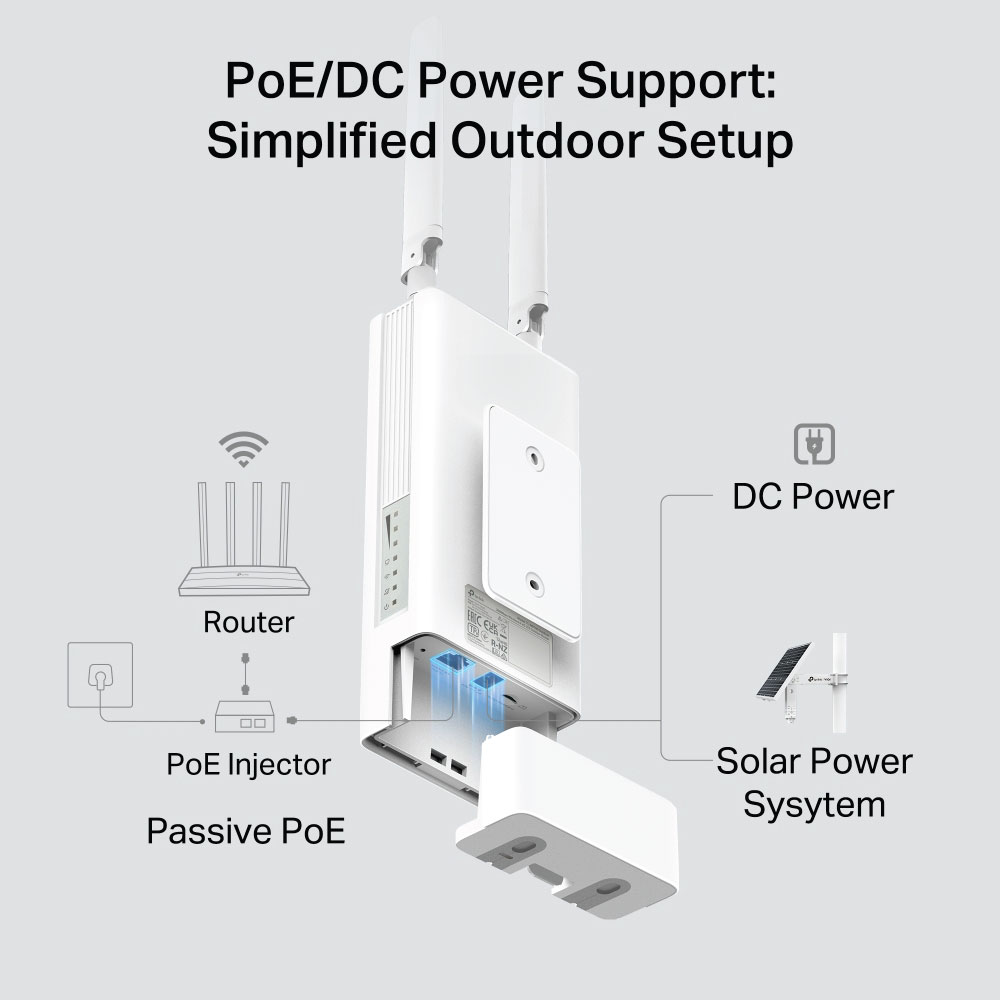

• Simpler outdoor power: Support for IEEE 802.3af/at PoE and passive PoE allows power and network connectivity to be carried to the installation point without requiring a nearby mains socket.
• Alternative DC power: The router can also operate from a 12V DC 1A supply where that better suits the installation.
• Easy network management: Configuration is available through a web interface and the TP-Link Tether app.

Before You Buy

• An activated Nano SIM and suitable 3G/4G cellular coverage are required when using the mobile connection.
• TP-Link advises using a SIM without an active PIN lock for straightforward setup.

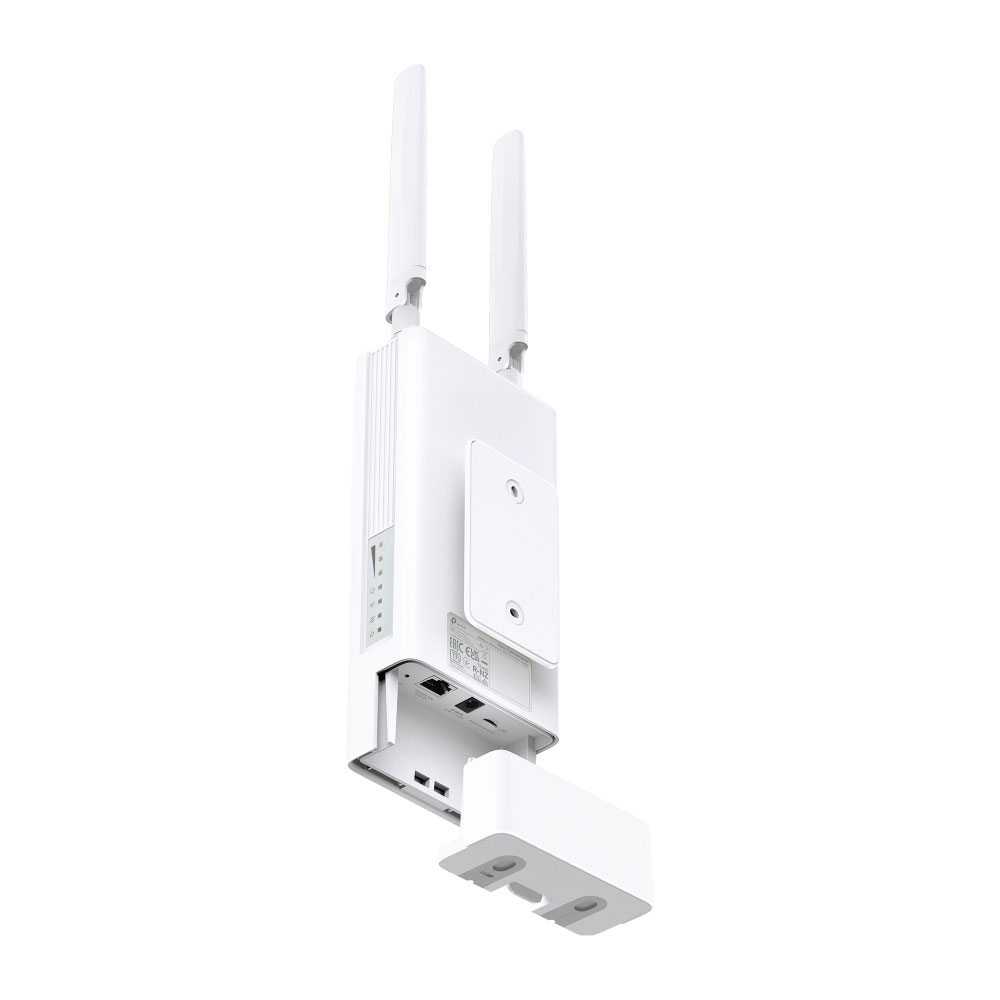

• The router has one 100 Mbps WAN/LAN Ethernet port, which also serves as the PoE input.
• Supported power options are 12V DC 1A, 24V 0.5A passive PoE and IEEE 802.3af/at PoE.
• A 12V DC power adapter is not listed as part of the manufacturer’s package contents; a PoE adapter and AC power cord are included.
• Actual cellular and Wi-Fi performance depends on network coverage, connected devices, interference and the installation environment.

Technical Specifications

What’s in the Box

• 1 × TP-Link Archer MR402-Outdoor router
• 1 × 10 m RJ45 Ethernet cable
• 1 × PoE adapter
• 1 × AC power cord
• 1 × Quick Installation Guide
• Window, pole and wall mounting kits
