Sherlotronics Single Pole Relay Board 12v AC/DC

Technical specifications

• Input Voltage Range: 10V ~ 16V AC/DC
• Switching Current DC: 10A @ 30VDC
• Switching Current AC: 7A @ 250VAC
• Operating temp: -3C to 60C
• Dimensions (L x W x H): 35 x 30 x 16 mm
• Gross Weight: 17g
• Warranty: 24 Months

Features

• Full bridge rectification so you can use AC/DC
• LED indication
• Normally Open
• Normally Closed
• Potentially Free Common contact

Applications

• Converting Normally Closed contact to Normally Open
• Isolating electric fence energiser outputs to sensitive transmitter inputs
• Switching heavy current like sirens or strobe lights
• Switching high voltages like 240VAC lights

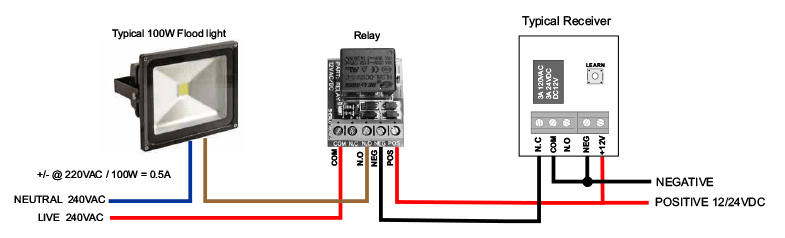

Typical Wiring Diagram

Sherlotronics Relay Board Specifications
