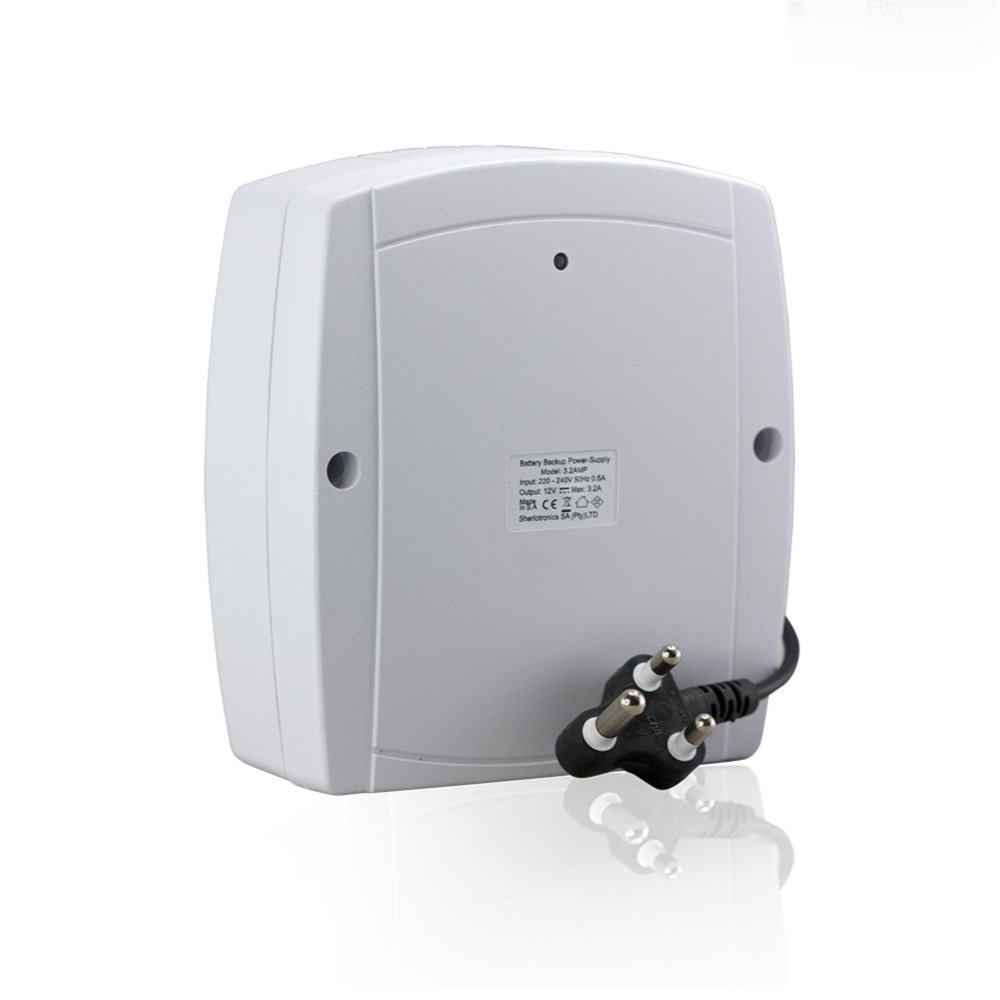

Sherlotronics Fixed Panic Panel

R985.00R1,785.00 Incl. VAT

Sherlotronics Fixed Panic Panel is a self-contained wireless panic system with battery backup (battery sold separately / included in kit). It has been designed for both Hard-Wired Panic buttons as well as Remote Control. The system features a 3 minute siren output, latching Strobe light output as well as armed response Radio TX trigger.



R985.00 Incl. VAT
R1,785.00 Incl. VAT
SKU: N/A Category: Brand:

Description

Sherlotronics Fixed Panic Panel – triggered via Hardwired Panic Button/s or Remote Control

Designed to be hardwired to static panic buttons as well as Remote panic buttons. When a Panic is activated, the unit will trigger the 3 Minute siren output as well as the Radio Transmitter output and a Latching Strobe output. All activations can be reset either via the Remote control or the Hardwired Panic button. The Low battery cut-out @ 10vDC will safeguard the battery from deep discharge.

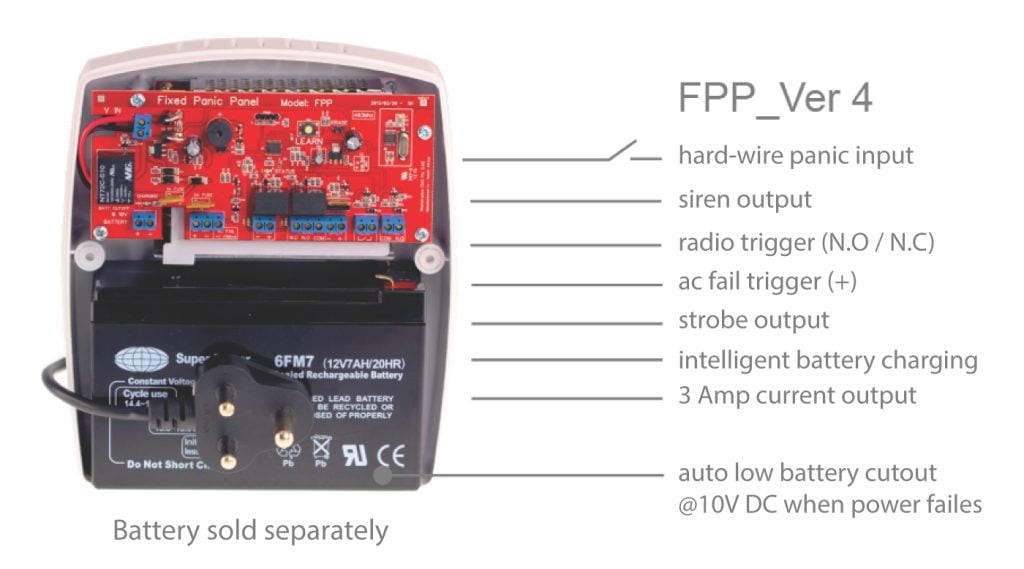

Sherlotronics Fixed Panic Panel Features



Applications

  • Office panic
  • Shop panic
  • Home panic
  • Factory panic
  • Guard house panic



Features

  • Microprocessor Controlled charging output.
  • Low battery switch off at 10V DC.
  • Buzzer tones on battery low and AC Fail.
  • Resettable Fuse protection on output.
  • Fuse protection on AC input.
  • ABS Plastic enclosure.



Specifications

  • Input Voltage Range: 110V ~ 230V AC 50Hz
  • Output Voltage: 13V ~ 14.4V Adjustable
  • Max Current output: 3.2A DC @ 14V
  • Relay contact rating: 10A
  • AC Fail output rating: 140mA Positive switching
  • Operating temp: -3°C to 60°C
  • Dimensions (L x W x H): 200 x 180 x 87mm
  • Gross Weight: 0.895Kg
  • Warranty: 12 Months



What’s in the box

Option 1 – Panic Panel:

1x Sherlotronics Fixed Panic Panel (excludes Battery and Panic Remotes)

Option 2 – Panic Panel Kit:

1x Sherlotronics Fixed Panic Panel

2x Sherlo Panic Remotes

1x Gel Battery

1x 15W Siren

Fixed Panic Panel Installation Manual



Additional information

WeightN/A
DimensionsN/A
Option

Panic Panel, Panic Panel Kit
