Securi-Prod Lithium Power Store 14.6VDC 3Amp - PS49-L
Securi-Prod Lithium Power Store 14.6VDC 3Amp - PS49-L front box

Securi-Prod Lithium Power Store 14.6VDC 3Amp

R644.00 Incl. VAT

Securi-Prod Lithium Power Store 14.6VDC 3Amp – PS49-L

This Lithium Power Store is a long-awaited product. Its purpose is to keep the 7Ah LiFePO4 (lithium) batteries fully charged and in optimum working condition. This charger does not float charge the battery but consistently charges at 2Amps.

BMS Wake-Up Feature – It has the ability to “wake the battery up” from the BMS protection mode when AC Power is restored.

Designed for: Securi-Prod 7ah 12.8v Lithium (LiFePO4) Battery or similar size Lithium batteries.

NOTE: Not suitable for SLA, Gel and Deep Cycle batteries!



SKU: PS49-L Categories: , , , Brand:
loading

Description

Securi-Prod Lithium Power Store 14.6VDC 3Amp – PS49-L

Key Features:

High current charging, designed for charging 7Ah LiFePO4 batteries only.

BMS wake-up feature from low voltage disconnect protection.

Constant Current – Constant Voltage charging algorithm.



Technical Specifications:

INPUTVoltage Range110 – 240VAC
Frequency Range50 – 60Hz
OUTPUTVoltage (AC Mode)14.6V ± 0.5V DC
Rated Output Current3A
Rated Power (Total)73W
Efficiency (Typ.)≥82%
Status/RelayMonitorAC fail relay and buzzer
CHARGINGVoltage14.6V ± 0.5V DC
Current2A
CC-CV Only for LiFePO4 Battery (BA50-1 or Equivalent)
PROTECTIONInput2A / 250VAC fuse
Battery Low Voltage12.2V ± 0.2V DC
PSU shuts down until AC power recovers. LiFePO4 Battery wake-up ≥ 300S
Short CircuitRecovers automatically after fault condition is removed.
ENVIRONMENTTemperatureWorking: -20 – 50°CStorage: -30 – 80°C
HumidityWorking: 20 – 80%RHStorage: 10 – 90%RH
SAFETY & EMCEMC StandardsEN 55022: 2010, EN 55024: 2010, EN 61000-3-2: 2014, EN 61000-3-3: 2013
LVD StandardsEN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013

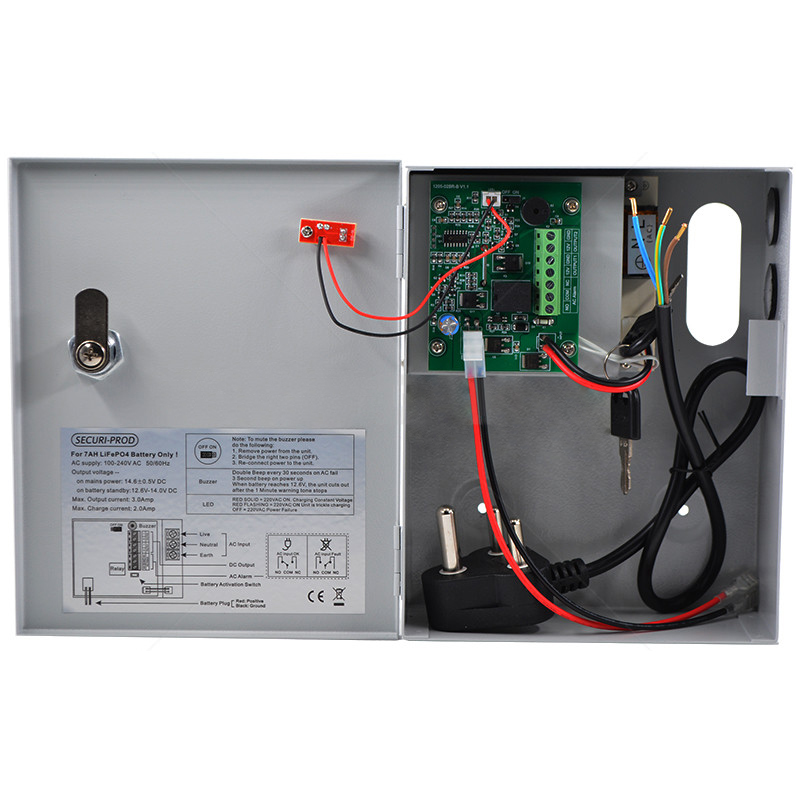

METAL BOX & PACKINGMetal Box with Key203(H) x 163(W) x 74(D) mm, fits 12V 7Ah battery. Green branding for model differentiation



New Product Release Notes and Spec Sheet:

PS49-L – Securi-Prod Lithium Power Store 14.6VDC 3Amp

PS49-L Spec Sheet



Additional information

Dimensions203 × 164 × 74 mm
