Description

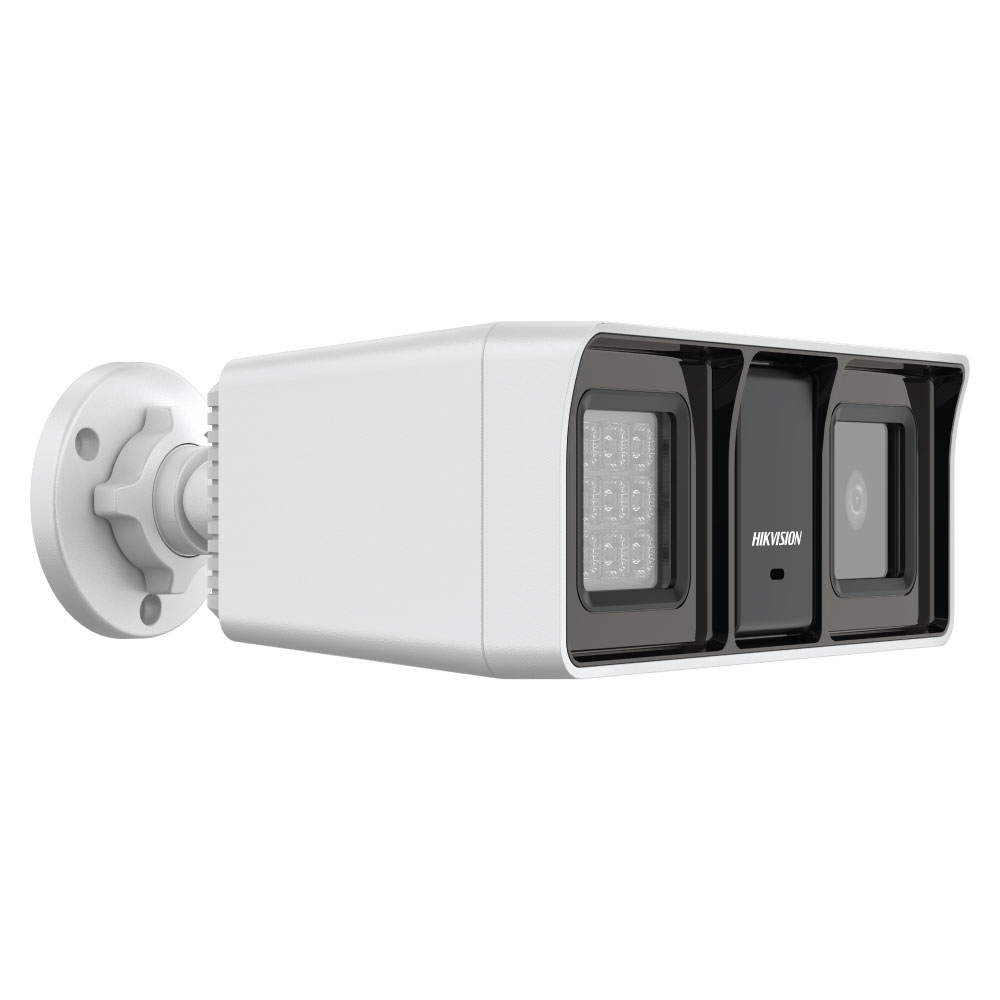

Hikvision DS-2CE18D0T-LFS 2MP Smart Hybrid Light Bullet Camera – Choose 2.8mm or 6mm

The Hikvision DS-2CE18D0T-LFS is a Full HD analogue bullet camera designed for longer-range outdoor monitoring, with Smart Hybrid Light, built-in audio and a choice of two very different viewing angles. It is particularly useful where you need either broad coverage of an entrance or yard, or a tighter view along a driveway, boundary or perimeter.

Both versions use the same 2MP camera platform and provide up to 60m infrared and white-light illumination. Your main decision is therefore the lens: 2.8mm gives a much wider scene, while 6mm concentrates the available image detail into a narrower area further ahead.

Choose the Right Option

Choose 2.8mm when you want to see a broad area close to the camera, such as a driveway entrance, yard, parking area or the front of a building.

Choose 6mm when the important area is further away and you want a significantly narrower view. It is better suited to focusing down a driveway, along a boundary or towards a particular entrance rather than trying to capture everything around the camera.

Is This Right for You?

• Suitable for compatible HD analogue CCTV systems using coaxial video cabling and a DVR.
• The 2.8mm option suits installations where broad situational coverage matters most.
• The 6mm option suits positions where a narrower section of the property needs to occupy more of the recorded image.
• The larger camera body and long illumination range make it useful for exposed perimeter and outdoor positions.
• Hikvision specifically notes that this model is not recommended for use in narrow spaces.
• If you need a camera that connects directly to an Ethernet network, PoE switch or NVR, choose an IP camera instead.

Why Choose This Product?

• Choose the view to suit the installation: The 101° horizontal view of the 2.8mm lens covers considerably more of the surrounding scene, while the 49.2° 6mm view is far more focused.
• Full HD surveillance: The 2MP CMOS sensor records at up to 1920 × 1080 for clear everyday CCTV monitoring.
• Flexible night illumination: Smart Hybrid Light combines infrared and visible white light, with both illumination methods specified for distances of up to 60m.
• Audio without a separate microphone: The built-in microphone has a specified pickup radius of up to 5m and carries audio over the coaxial connection when used with compatible equipment.
• Flexible analogue compatibility: A switchable output supports TVI, AHD, CVI and CVBS, making the camera suitable for a range of compatible HD analogue recorders.
• Outdoor protection: IP67 dust and water resistance allows installation in exposed outdoor surveillance locations.

Before You Buy

• This is an HD analogue camera and requires a compatible DVR. It does not connect directly to an NVR, network switch or PoE network.
• Select the lens before ordering. The 2.8mm and 6mm versions are separate fixed-lens cameras and the focal length is not adjustable after installation.
• The 2.8mm lens provides a 101° horizontal field of view, while the 6mm lens provides 49.2°. The difference is substantial, so choose according to the area you need to monitor.
• The camera supports 1080p at 25fps or 30fps over TVI, AHD and CVI. CVBS output supports PAL or NTSC.
• Audio is carried over coaxial cable from the built-in microphone, so the connected recorder must support the required audio functionality.
• The camera requires 12V DC ±25% power and consumes up to 9.8W. Hikvision recommends using one power adapter per camera.
• Hikvision does not recommend this particular camera for installation in narrow spaces.

Technical Specifications

What’s in the Box

• 1 × Hikvision DS-2CE18D0T-LFS Bullet Camera in the selected lens focal length
