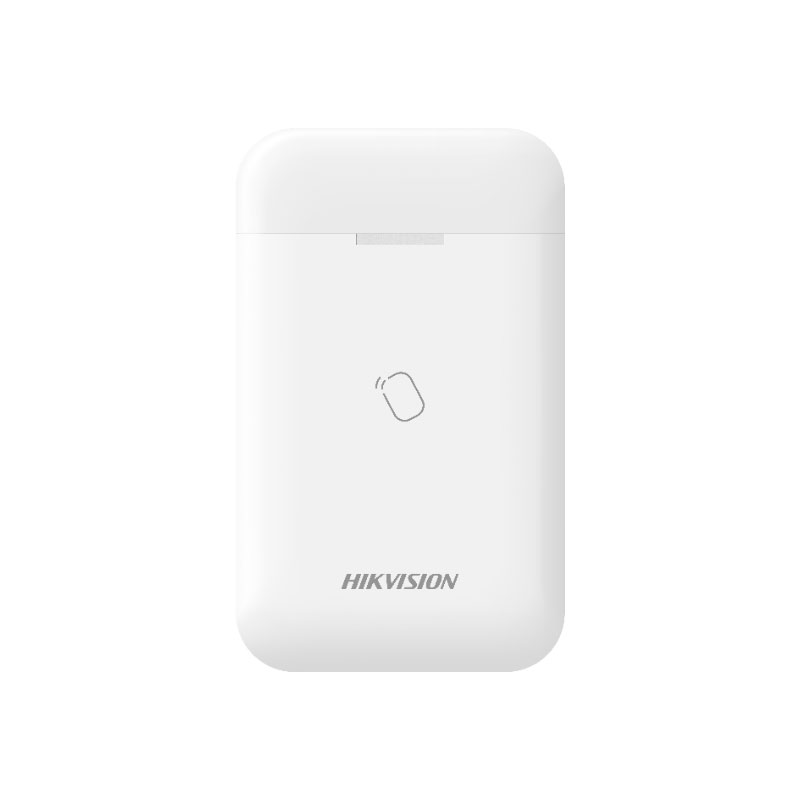

Hikvision AX PRO Wireless Tag Reader
Original price was: R895.00.R751.00Current price is: R751.00. Incl. VAT
- 868MHz two-way wireless communication
- AES-128 encryption
- LED display, show the different feedbacks with easy understanding
- Operation: Stay arm/away arm/disarm by areas
- Arming process with fault confirm, more secure
- Patrol tag check in
- Front and rear panel tamper-proof
Description
Hikvision AX PRO Wireless Tag Reader | DS-PT1-WE
- Works with AX Pro Tag
Hardware Features
- Switch: Power on/off
- LED display, shows 5 status colours – Blue – Area | Orange – Fault | Blue – Arm | Green – Disarm | Red – Alarm | Red / Green – Signal
RF Transmission
- RF Modulation: 2GFSK
- RF Frequency: 868 MHz
- RF Range: 1200m (open area)
Electrical Characteristics
- Battery Type: Three AA batteries
- Battery Life Span: 2 years (swipe tag 10 times per day)
Power Consumption
- Quiescent current: 110 uA
- Max current: 292mA
- Voltage: 1.5 VDC
General
- Operation Temperature: -10°C to +55°C (-4°F to +122°F)
- Operation Humidity: 10% to 90% (no condensing)
Dimension (W x H x D):
- 75 x 124 x 21 mm
- 176g (with battery)
- Colour: White
Installation Method: Wall mounting
Additional information
Weight | 176 g |
---|---|
Dimensions | 75 × 124 × 21 mm |
