Description

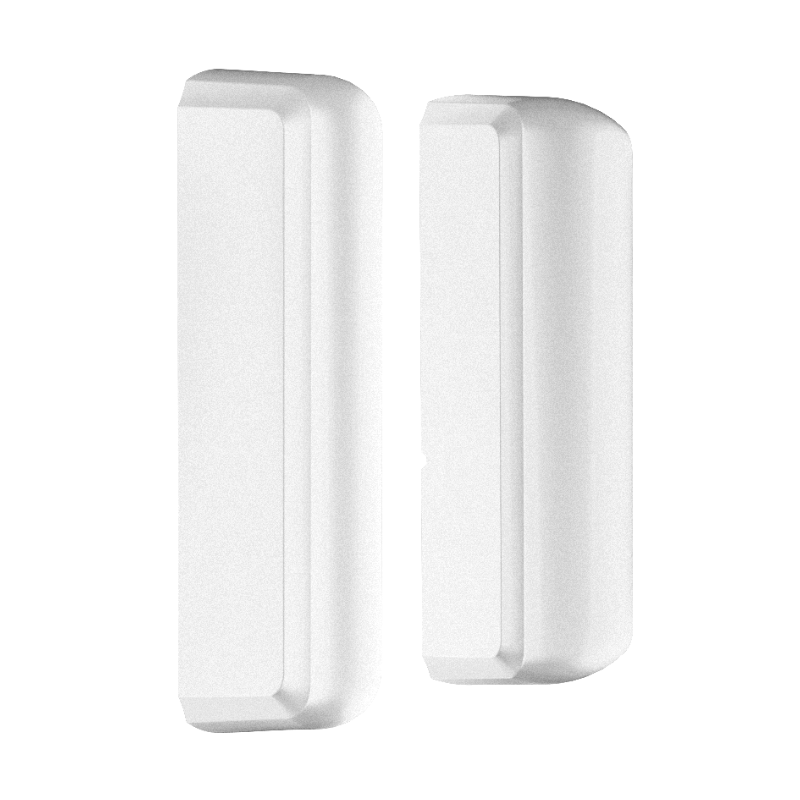

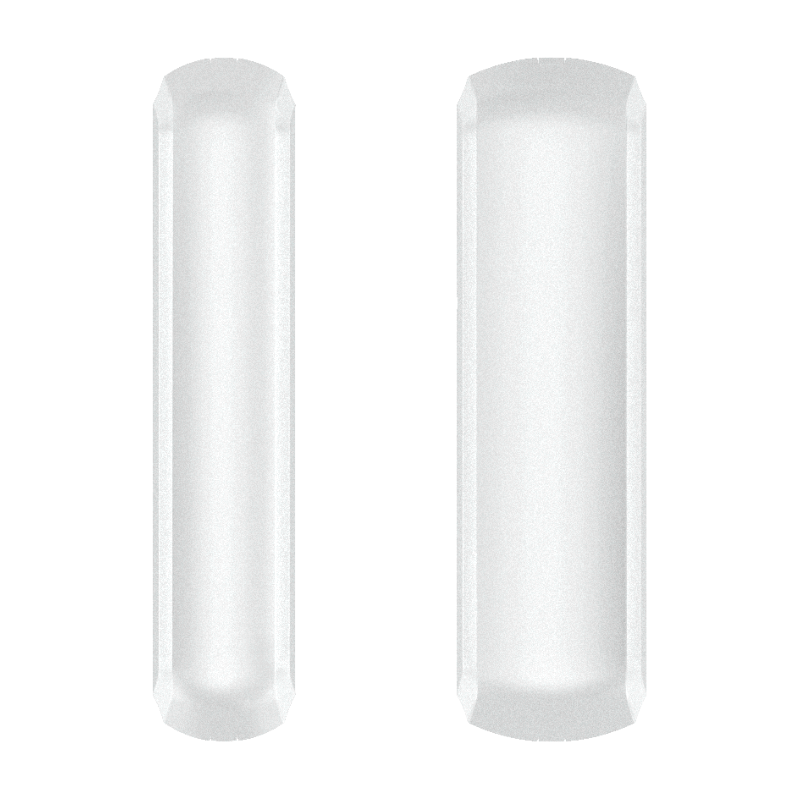

Wireless Outdoor Magnetic Contact | DS-PDMCX-E-WE | (Outdoor / Weatherproof)

• IP66 Protective level, UV stable
• 868MHz two-way Tri-X wireless technology
• Frequency hopping against jamming for reliable transmission;
• RF Range: 1,600m (open space)
• Multiple Enrolling Methods: Power up, Remote ID, QR Code
• SSI (Signal Strength Indicators)
• Environment Temperature Indication
• Fully remote configurable through APP
• Battery Type: 1x CR123A battery (included by default, easy replaceable)
• Battery Life: 5 years (triggered 10 times every day)

Dimensions:

• Sensor: (W) 40.5mm × (H) 146mm × (D) 40.9mm
• Magnetic Stick: (W) 30.5mm × (H) 146mm × (D) 40.9mm

Data Sheet
