Description

Ajax 12v PSU for Hub, Hub Plus & Rex | 8-20v Input Voltage

A power supply unit used for connecting the Hub, Hub Plus control panels and ReX radio signal range extender to low-voltage power sources.

In Warehouses:

Use Ajax in premises lacking electricity or having an unstable power supply. A 12 V power supply unit allows connecting hubs and radio signal extenders to low-voltage networks or use a portable battery.

In Campervans and Caravans:

Ajax protects your home, even if it goes on wheels. Connect the hub to a car or portable battery, and let the security system travel with you.

On Yachts:

Insert a SIM card and connect the hub to the on-board network or battery so that Ajax always guards your boat at the pier.

Compatibility:

The power supply unit is compatible with Hub, Hub Plus, and ReX. It features a standard socket for connecting the power jack plug and has a bundled terminal adapter.

Installation:

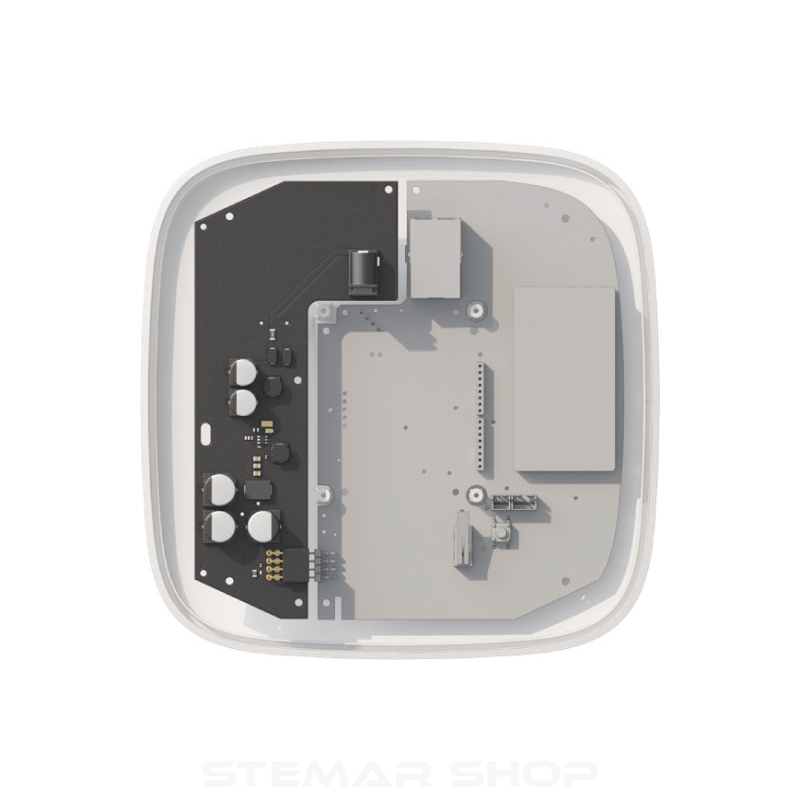

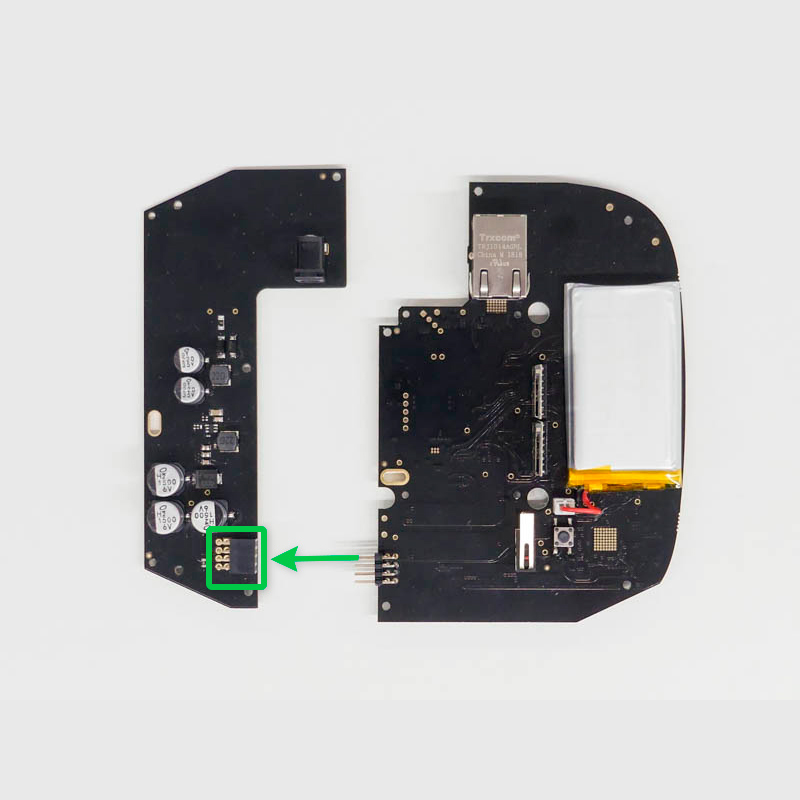

12V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit.

The 12v PSU replaces the on-board 220v PSU

• Input voltage: 8 – 20 VDC
• Output voltage: 4.65 VDC ± 3%
• Switch on voltage: 8 VDC ± 2.5%
• Switch off voltage: 6.9 – 7.5 VDC (depending on load)
• Max input current: < 1 A
• Max output current: 1.5 A
• Connection to mains: Socket: 6.5 × 2mm | Plug / DC Jack (Male): 5.5 × 2.1 m
• Dimensions: 138 × 64 × 13 mm

What’s in the box

• Ajax 12V PSU for Hub/Hub Plus/ReX
• Terminal adapter
• Quick start guide
