EZVIZ HP7 2K Smart Home Video DoorPhone Kit

Original price was: R4,265.00.Current price is: R3,749.00. Incl. VAT

EZVIZ HP7 2K Video DoorPhone Kit features:

  • 2K Resolution (1024 x 600)
  • 7-Inch Colour Touch Screen
  • Remote Door/Gate Unlock¹
  • 2-Wire system
  • Smart Human Motion and Lingering Detection
  • Two-Way Talk (Supports voice changer feature)
  • Built-In Doorbell with Multiple Ringtones
  • Live view, playback, two-way talk, video call
  • Smart RFID Unlock (3 tags included)
  • Weatherproof Design
  • 3 Name Cards Included
  • Supports 2.4 / 5 GHz Dual-Band WiFi
  • Supports MicroSD Card (Up to 512 GB) & EZVIZ CloudPlay Storage



SKU: CS-HP7-R105 Categories: , , , Brand:

Description

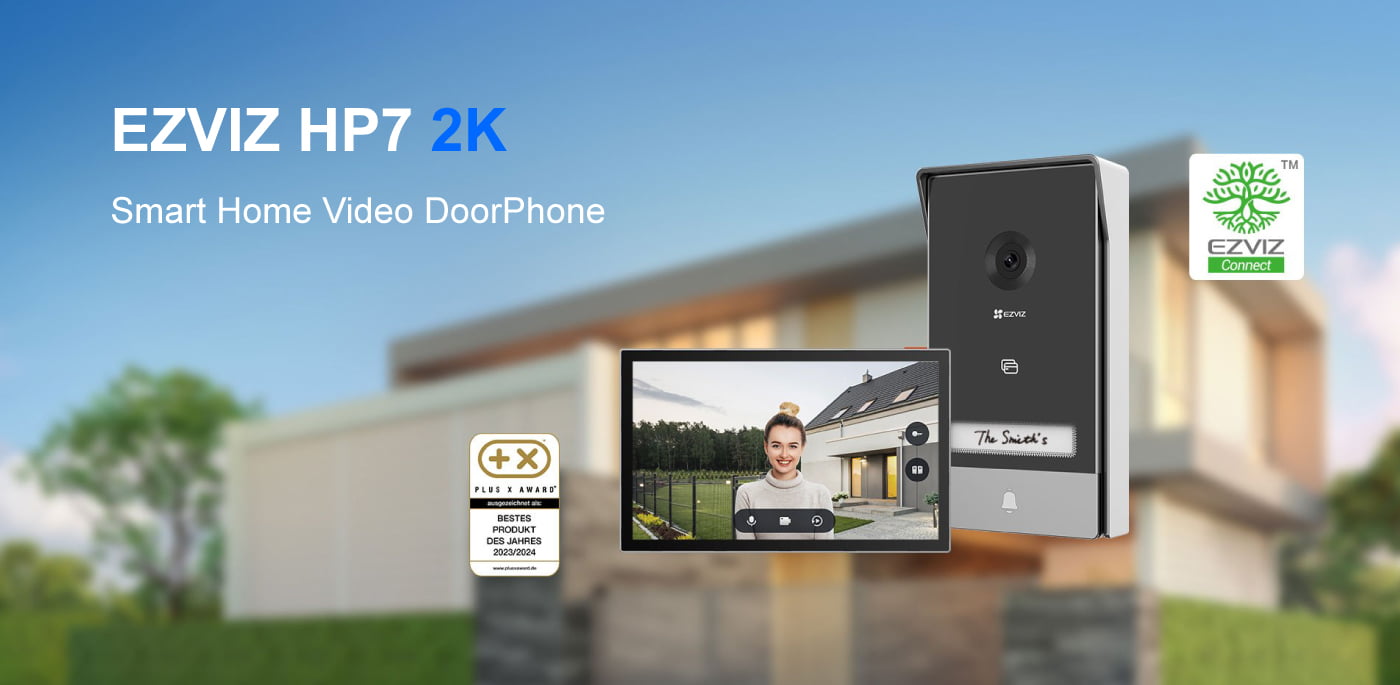

EZVIZ HP7 2K Smart Home Video DoorPhone Kit

A connected choice for safer, smarter home access

Upgrade your old intercom to an internet-connected, remotely accessible and app-controlled system with EZVIZ’s first-ever HP7 Video DoorPhone. This innovative device allows homeowners to view, communicate with, and grant access to visitors even when they are not home. It enhances home safety with its 2-in-1 outdoor camera and phone, recording videos in 2K clarity and providing real-time mobile notifications for detected activity.



Built for Style and Reliability

The HP7 is perfect for those looking to replace their bulky intercom for convenient communication and robust security. This sleek kit combines a 2-in-1 outdoor video doorbell with a large indoor monitor, seamlessly fitting any home style.



Manage your door easily – even remotely

Heavy dangling keys can now be history. The HP7 provides far easier access controls while adding visual protection to verify your visitors.



An all-in-one touch monitor to communicate & control

The 7-inch colour touch screen is where you set up and manage your outdoor DoorPhone, respond to visitors, and save important video clips. Whenever a visitor rings your door, the indoor screen will automatically light up to let you know who’s outside.

Crisp live viewing

Two-way talk

Gate/Door unlock

Video history and storage

(Supports microSD card of up to 512 GB)



It’s easier than ever to respond from afar

Even if you’re not home, the HP7 makes sure you don’t miss a visitor. You can always use your phone to stay connected and open the door for guests remotely. When responding to uninvited strangers, you can enable change the voice feature to keep yourself unidentified and to add another layer of protection.



Next-level vision for a home intercom

The HP7 is designed to render ultra-wide and clear imaging day and night. With a 162-degree viewing angle and 2K lens, you can easily see a person from head to toe without pixelated or blurry details. The HP7 camera also provides 5-meter infrared night vision for peace-of-mind 24/7.



Enhanced security with smart human motion detection

Whenever the HP7 video doorbell detects human activity at your entrance area, it will send you mobile notifications right away in case there’s an uninvited guest. You can always fine-tune the detection sensitivity and set up specific detection zones to reduce unwanted alerts.



Thoughtful features for additional convenience

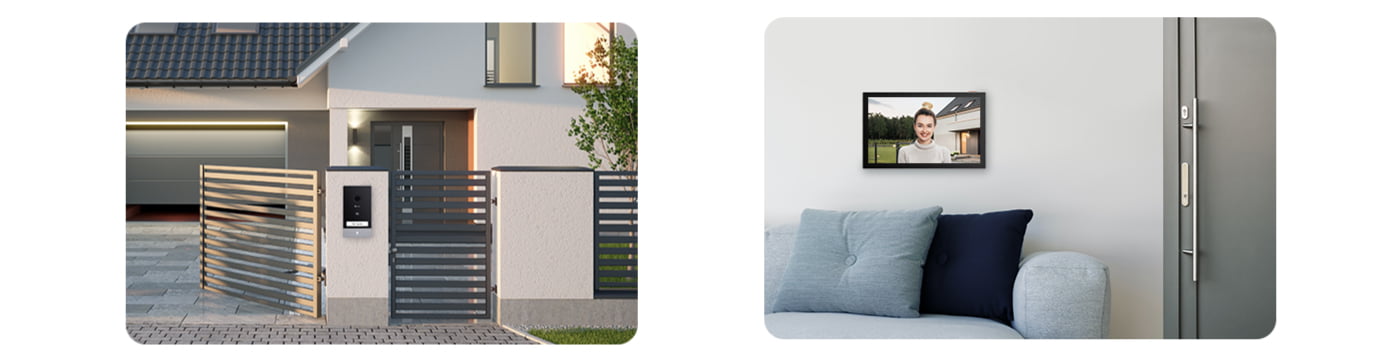

Elegant design elevates your front door

The HP7 kit adopts a refined, minimalist look, with a simple, consistent glossy black for both devices. A standout from traditional intercoms, the HP7 satisfies modern tastes for a stylish home. The indoor monitor screen also maximizes the touch area, enhancing the whole user experience.

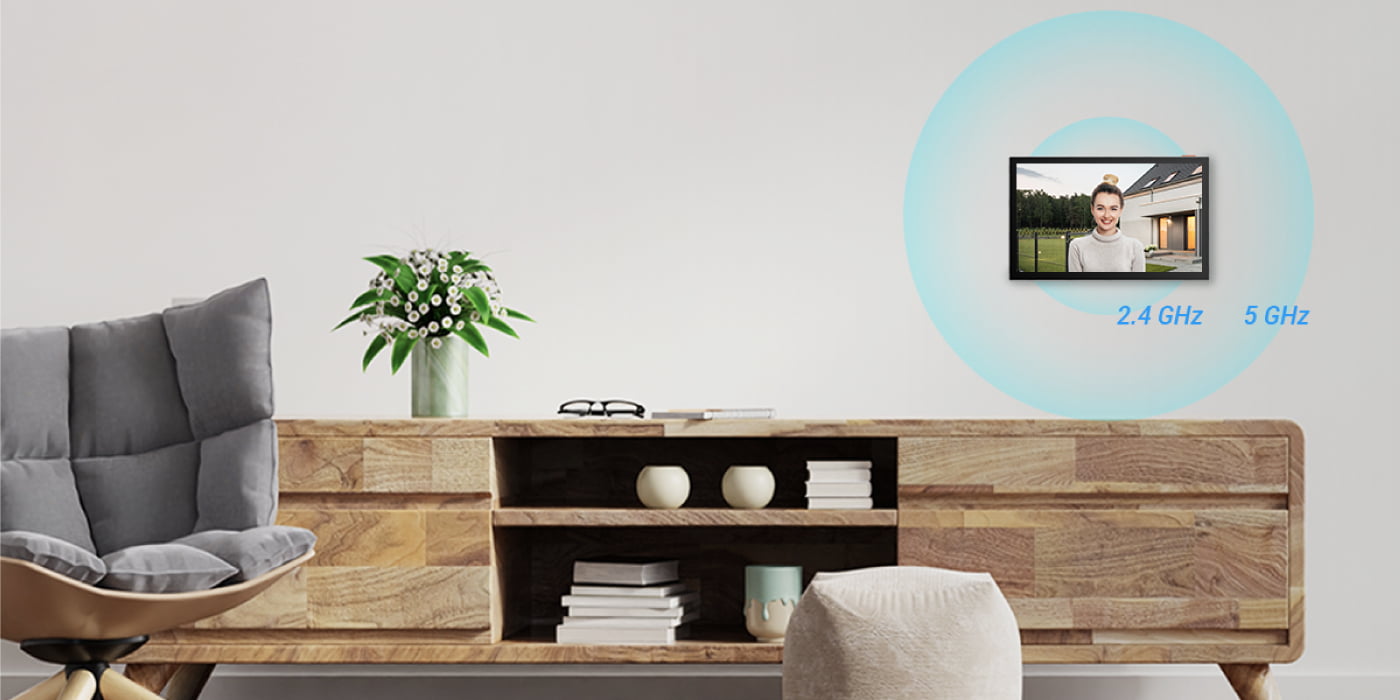

Steady connection for boosted performance

To maximize the connected experience with remote controls, you can connect the indoor monitor to either the 2.4 or 5 GHz band. Enjoy strong Wi-Fi with lower latency, larger bandwidth, and a stable signal.



Enhanced viewing pleasure with smaller video files

Compared against the prevailing H.264 video compression technology, H.265 creates a more fluid viewing experience with recorded footage. Meanwhile, you won’t have to worry about large video files taking up too much of your storage space – H.265 technology can reduce their sizes by up to 50%⁴.



Extra-Large, safe storage options that you can trust

You can secure your recorded videos on a local microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted cloud storage.

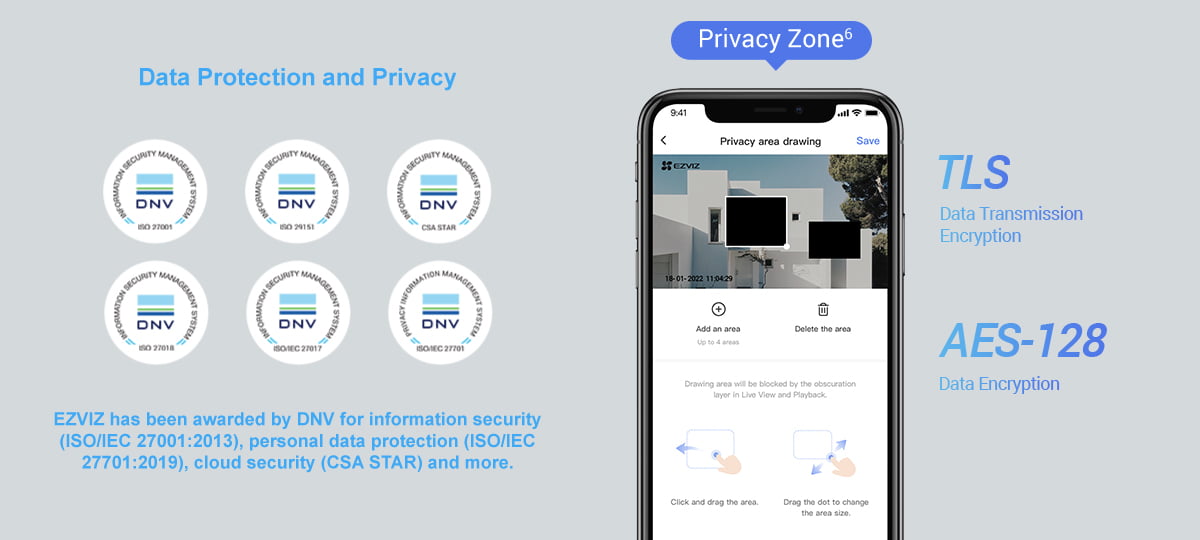

EZVIZ does their best to protect data and privacy

The product is designed to respectfully protect your data and privacy. You can also set up no filming zones to make sure recording only happens when it’s appropriate and allowed.

What’s in the Box

Monitor:

EZVIZ HP7 2K Monitor
Wall Bracket for Monitor
Power Adapter for Monitor
Drill Template for Monitor

Intercom Panel:

Intercom Door / Gate Station
Drill Template for Intercom Panel
Screwdriver – Badges (x3)
Screw Kit (x2)
Name Card (x2)
Wires and Wire Connectors
DC 24V Power Supply Jack Connector Cable
Regulatory Information (x2)
Quick Start Guide

*MicroSD Card (Up to 512GB) Sold Separately



1  To check the installation requirements and product compatibility, please refer to the User Manual for detailed information.

2  The local storage card must be purchased separately. The cloud storage service is only available in certain markets. Please verify the availability before making a purchase.

3  Users are able to customize the ringtone sent by the indoor display by touch controls or via the EZVIZ App. The outdoor doorbell only provides one default ringtone and cannot be customized.

4  Data from EZVIZ Lab‘s test results under standard conditions. Will vary with the frequency and complexity of the activity captured, and other environmental factors.



Additional information

Dimensions161 × 87 × 20 mm

Technical Specifications

Specifications
ModelCS-HP7-R105-1W2TFC
Outdoor Doorbell
Image Sensor1/2.7″ Progressive Scan CMOS (Supports low light sensitivity)
Lens2.0 mm @ F2.2,viewing angle: 162° (Diagonal)
Day & NightIR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m)
Max. Resolution2048 × 1296
DNR2D / 3D DNR
Video CompressionH.265 / H.264
Frame RateMax: 15fps; Self-Adaptive during network transmission
Connection and Function
Connection MethodWired connection (2-Wired, capable with 4-Wired), digital signal transmission
Transmission DistanceΦ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m
Open the door (Gate)Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A
Unlock (Electric strike plate)Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual.
Door Open Methods1.RFID badge unlock (Badges × 3 pcs) 2.App remote unlock 3.Indoor display unlock
Outdoor Doorbell Interface
Audio InputBuilt-in high-sensitivity microphone
Audio OutputBuilt-in high-power speaker
Doorbell ButtonYes. The light can be set on or off.

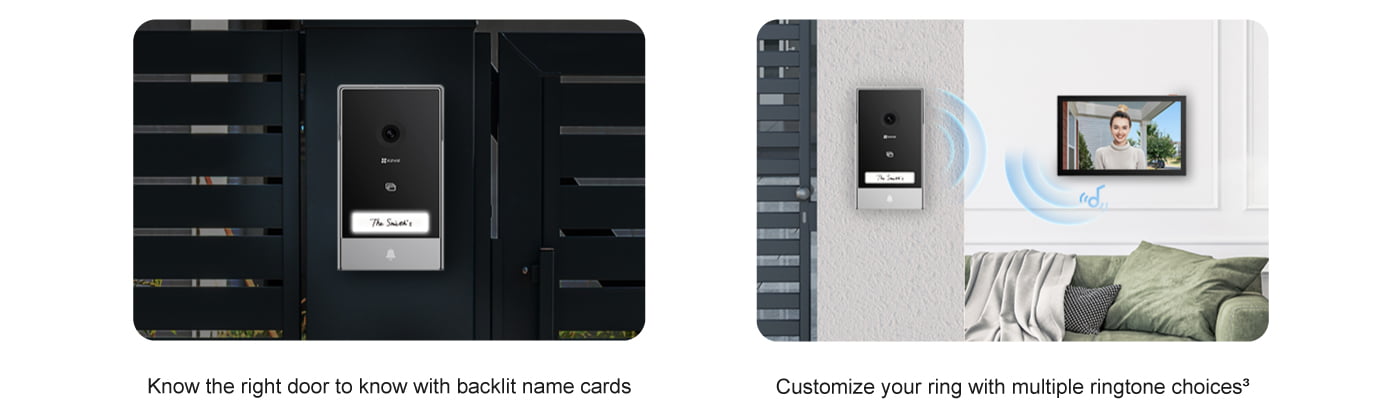

Name CardThree handwritten name cards in total (one already on the intercom panel). The light can be set on or off.
TerminalTwo wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate.
Functions
Intelligent AlarmSmart human motion detection, Lingering Detection
Tamper AlarmSupports
Video IntercomLong-distance video two-way talk
General
Operation Conditions-30°C to 60°C , Humidity 95% or less (non-condensing)
IP GradeWaterproof, with shield cover
Size161 × 87 × 20 mm (6.34 × 3.42 × 0.79 inch)
Interior Display
Display size7” touch screen
Resolution1024 × 600
Interface
Audio InputBuilt-in high-sensitivity microphone
Audio OutputBuilt-in high-power speaker
ButtonScreen On / Off Button
TerminalTwo wiring ports to connect 1st outdoor doorbell.
StorageSupports microSD card up to 512 GB

Supports EZVIZ Cloud storage

Network Parameters
ProtocolEZVIZ Cloud Proprietary Protocol
Interface ProtocolEZVIZ Cloud Proprietary Protocol
ProtocolEZVIZ Connect Protocol
Wi-Fi Parameters
Wi-Fi StandardIEEE802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz
Channel BandwidthSupports 20MHz
Security64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps
Function
Multiple ringtonesUp to 20 ringtones
FunctionsLive view, playback, two-way talk, video call
General
Operation Conditions-10°C to 45°C, humidity 95% or less (non-condensing)
WeightNet weight: 855 g (30.16 oz) With package: 1825 g (64.37 oz)
Size180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch)
Power SupplyDC 24V / 1A power supply, adaptor (100- 240Vac)
Power Consumption8W, Max. 24W
In the box
In the box– Monitor
– Wall Bracket for Monitor
– Power Adapter for Monitor
– Drill Template for Monitor
– Intercom Panel
– Drill Template for Intercom Panel
– Screwdriver
– Badges (×3)
– Screw Kit (×2)
– Name Card (×2)
– Wires and Wire Connectors
– DC 24V Power Supply Jack Connector Cable
– Regulatory Information (×2)
– Quick Start Guide
Certifications
CertificationsCE / REACH / WEEE / RoHS
