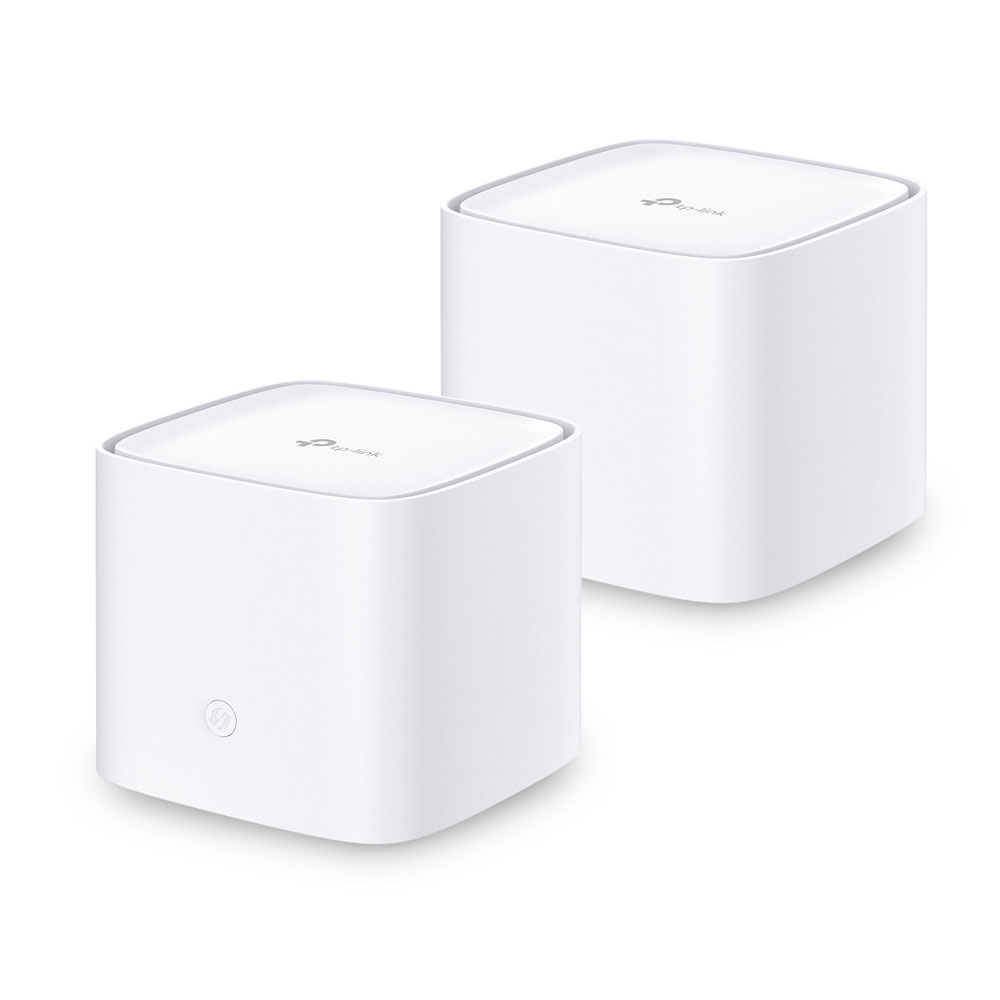

TP-Link HX220 AX1800 Wi-Fi 6 EasyMesh system for flexible whole-home coverage

The TP-Link HX220 combines dual-band Wi-Fi 6 with EasyMesh technology, allowing you to start with one unit or use multiple units to create a unified wireless network across a larger home or office.

Each HX220 can operate as a router or access point and includes three Gigabit Ethernet ports, making it suitable for fibre connections, wired devices and optional Ethernet backhaul.

Choose the Right Option

Is This Right for You?

• Suitable when you want Wi-Fi 6 performance with the option to expand coverage using additional compatible mesh units.
• A useful choice for fibre or Ethernet internet connections where Gigabit wired ports are required.
• Supports both wireless mesh links and Ethernet backhaul where network cabling is available.
• It does not include a built-in cellular modem; an appropriate Ethernet internet connection is required when used as your main router.

How It Works

Multiple HX220 units can form one EasyMesh network using a common Wi-Fi name. Compatible client devices can move between mesh points while the system helps steer them towards a suitable connection. Units may communicate wirelessly or use Ethernet backhaul when cabling is available.

Why Choose This Product?

• Wi-Fi 6 capacity: OFDMA and MU-MIMO help the network serve multiple compatible devices more efficiently.
• Expandable mesh coverage: EasyMesh allows additional compatible units to be added where broader coverage is required.

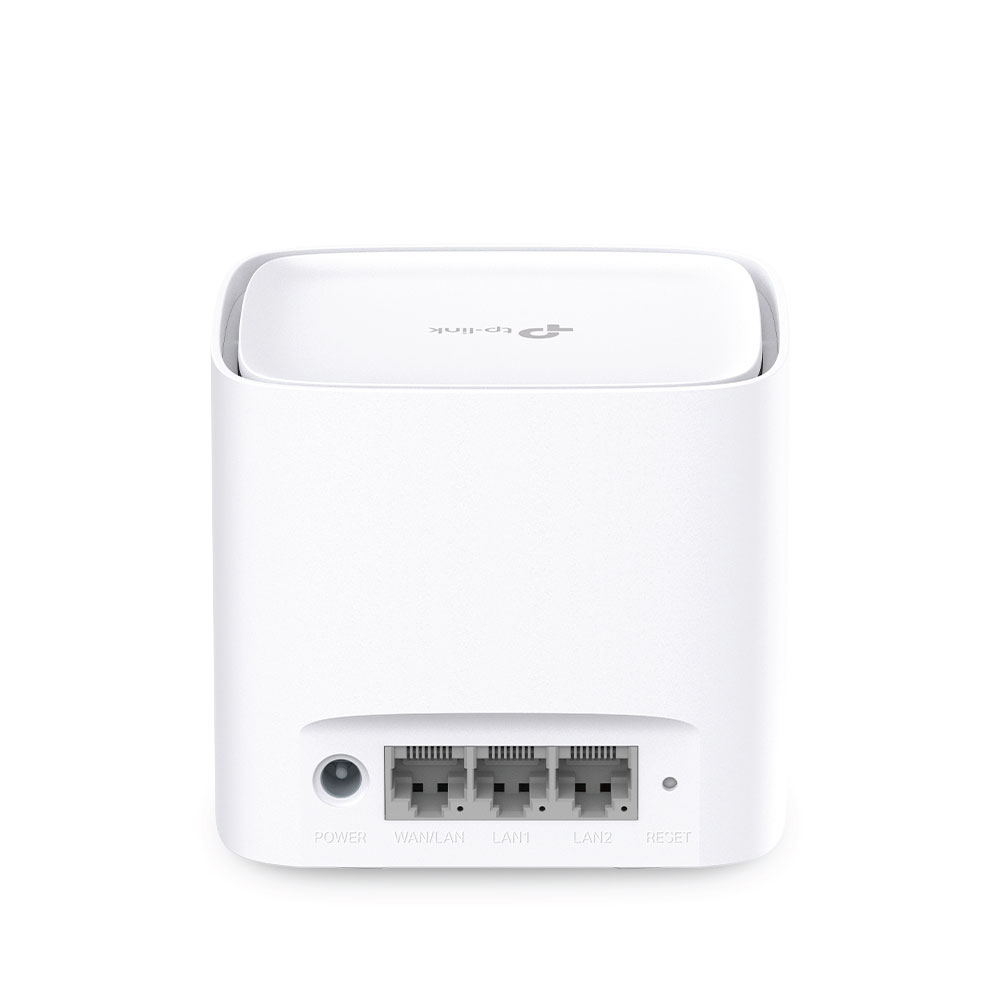

• Fast wired connections: Three Gigabit Ethernet ports per unit support broadband uplink, local wired equipment and Ethernet backhaul.
• Flexible installation: Router Mode can create the main private network, while Access Point Mode can add Wi-Fi to an existing wired network.
• Modern wireless security: WPA3 support is available for compatible client devices, alongside WPA and WPA2 support.
• Practical management: Settings can be managed locally through the Aginet app or web interface, with TP-Link service-provider remote-management technologies also supported.

Before You Buy

• The HX220 is a dual-band 2.4 GHz and 5 GHz Wi-Fi 6 system and does not provide a built-in 4G or 5G internet connection.
• When used as your main router, connect the WAN/LAN port to a suitable Ethernet broadband source such as a fibre ONT.
• Some mesh and seamless-roaming benefits require two or more compatible units and compatible client devices.
• Actual wireless speed, coverage and connected-device capacity depend on the building, interference, network traffic and client hardware.
• Each unit requires a 12 V DC, 1 A power supply.

Technical Specifications

What’s in the Box

1-Pack:

• 1 × TP-Link HX220 unit
• 1 × RJ45 Ethernet cable
• 1 × power adapter
• 1 × Quick Installation Guide

2-Pack:

• 2 × TP-Link HX220 units
• 1 × RJ45 Ethernet cable
• 2 × power adapters
• 1 × Quick Installation Guide
