Description

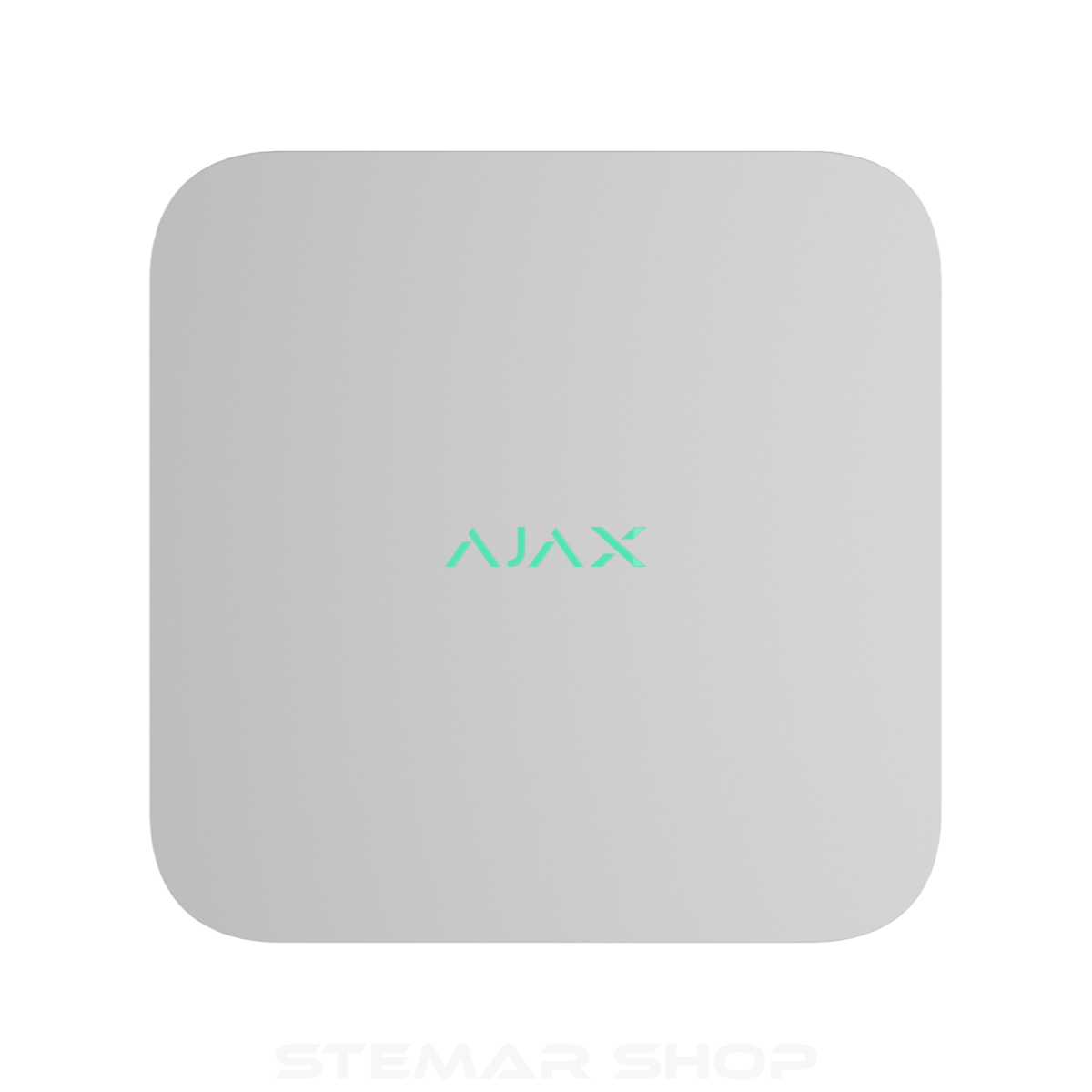

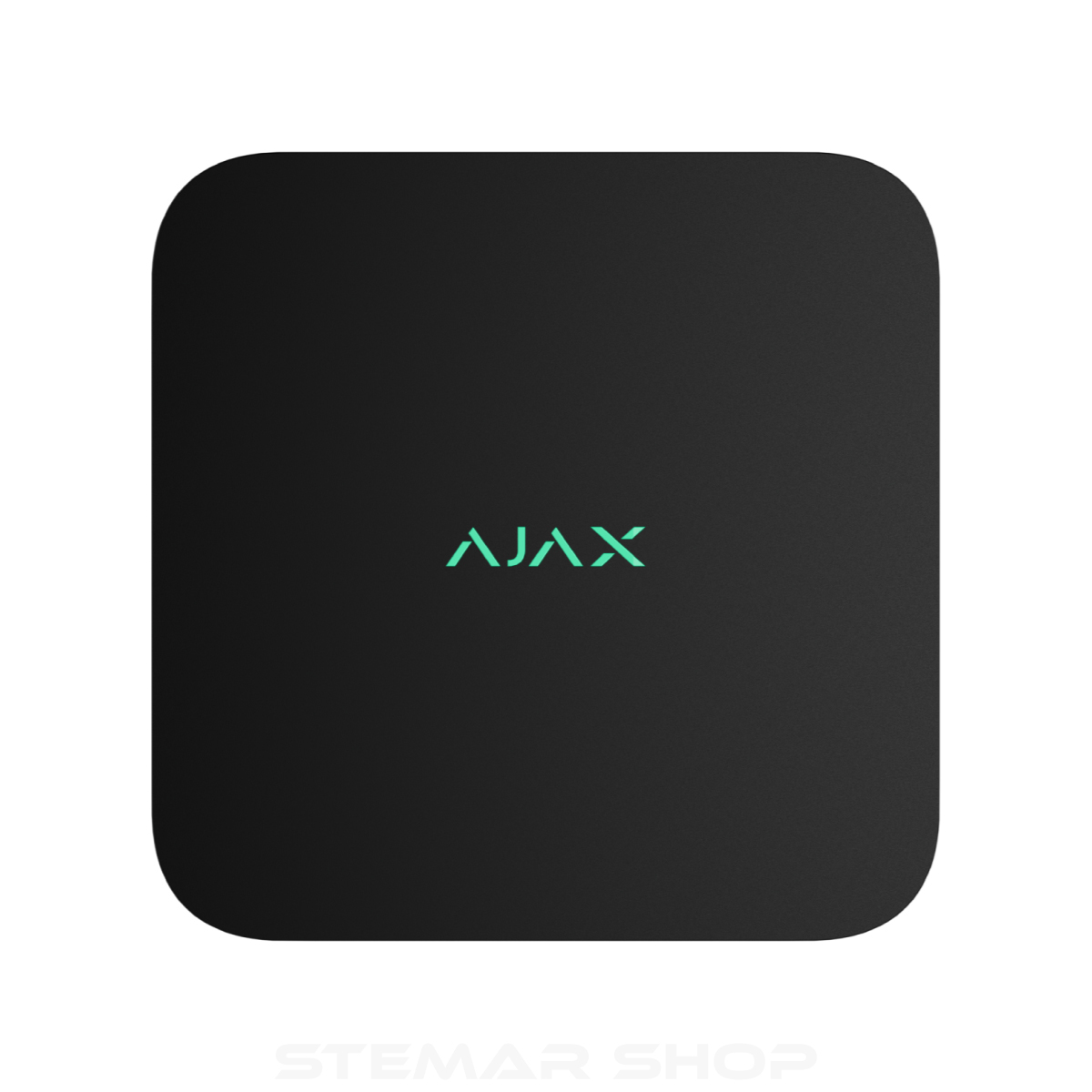

Ajax NVR DC | 8 & 16 Channel Options | Low Voltage 9–16V DC

The Ajax NVR DC is a low-voltage network video recorder designed for Ajax video surveillance systems and compatible third-party IP cameras. Powered by 9–16 V DC, it is ideal for installations where a central low-voltage power supply or backup power arrangement is preferred instead of a standard mains-powered recorder.

Available in 8-channel and 16-channel options, the Ajax NVR DC provides reliable video recording, live viewing and archive access through the Ajax app. It supports Ajax cameras as well as ONVIF and RTSP-compatible IP cameras, making it suitable for both new Ajax surveillance installations and selected upgrade projects.

Seamless Video Meets Trusted Security

The NVR combines advanced video surveillance with the power of Ajax’s security ecosystem. Experience lightning-fast system performance and instant access to video archives; anytime, anywhere. Designed for broad compatibility, it effortlessly integrates with most IP cameras bringing together video monitoring, intrusion detection and smart automation. Built on Ajax’s reputation for professional-grade protection, the NVR is security you can rely on – trusted by millions worldwide.

Key Features:

Two Models:

Choose between the 8-channel NVR DC (for up to 8 cameras) or the 16-channel NVR DC  version (for up to 16 cameras). For larger surveillance systems, up to 14 NVRs per account can be added allowing you to manage up to 220 cameras across a single system. This scalability makes the Ajax NVR ideal for both residential and commercial use.

Low-Voltage DC Power

The NVR DC is powered by 9–16 V DC making it a practical choice for installations where the recorder needs to operate from a low-voltage power system, battery backup setup or centralised DC power supply.

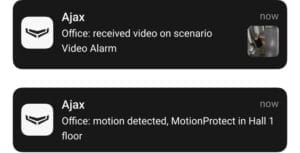

Instant alarm verification in High Resolution

Receive instant notifications via the Ajax app complete with a video clip that directs you to the camera capturing the event. Whether it’s detecting humans, animals, vehicles or general motion, you can assess the situation in real-time.

Built-in configurable motion detection

Optimise your video archive by setting up the pixel movement detection feature. Define specific zones to ensure recordings are triggered only when movement occurs in the selected area. This conserves HDD space and streamlines archive navigation.

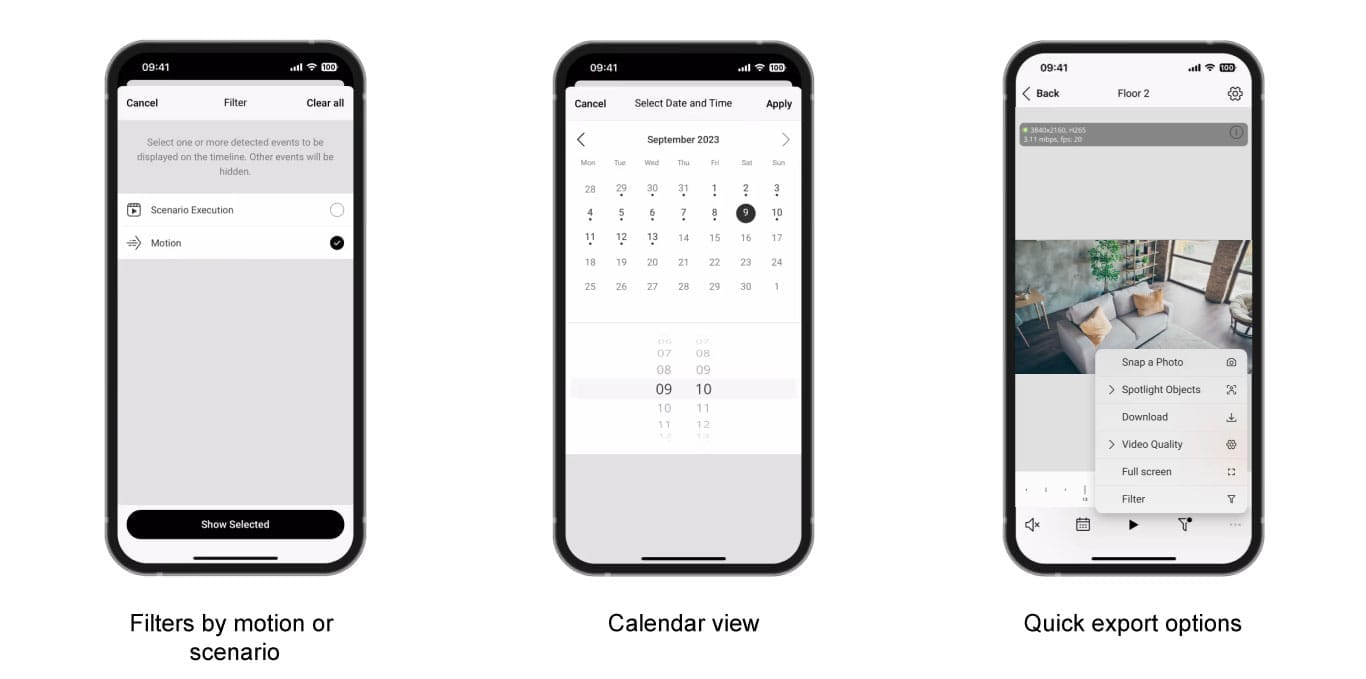

Smooth archive navigation

Effortlessly access the archive by clicking on an event in the notification log. You will be instantly directed to the exact camera recording at the event’s timestamp. Everything is just one click away with our advanced features, including

Customisable video wall for simultaneous monitoring

Integrate all your visual data in a streamlined interface. The Video wall tab combines the latest snippets from IP cameras offering a comprehensive view of your space. Rearrange tiles according to your preference. The video wall is accessible via both mobile and desktop Ajax apps.

JetSparrow: Lightning-Fast Video Streaming

Ajax has developed JetSparrow, its proprietary video transmission technology, to deliver an ultra-responsive VMS experience. With JetSparrow, navigating the local HDD archive is as smooth as browsing the cloud, making archive access fast and intuitive. Live view starts instantly, ensuring seamless video monitoring without delays.

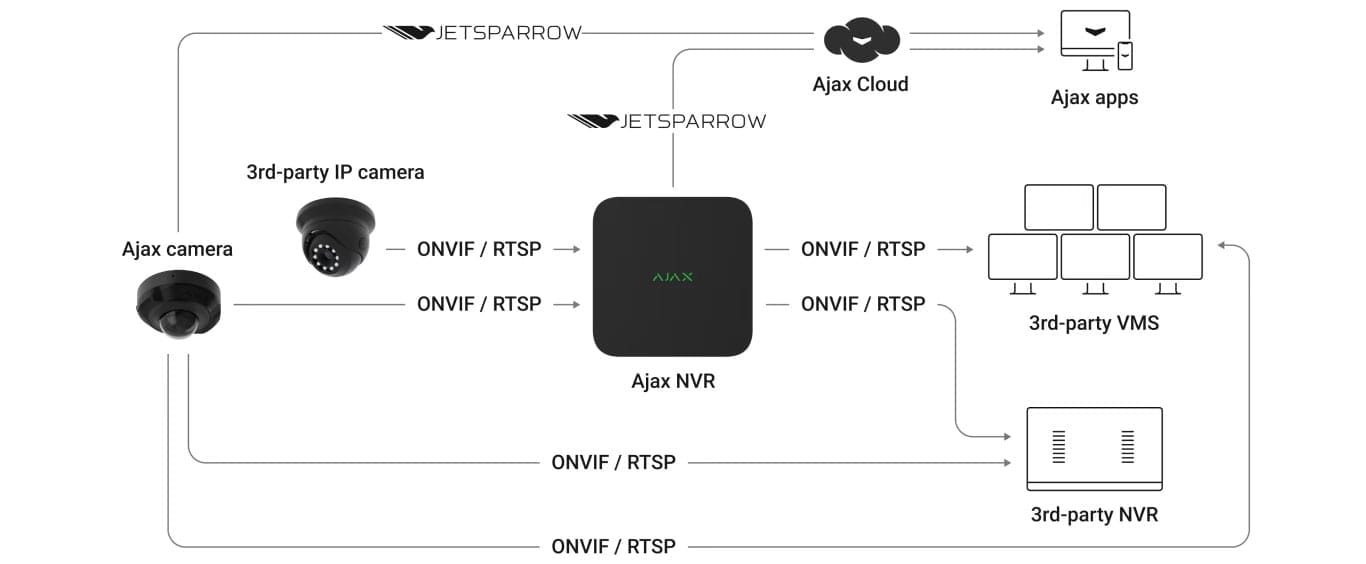

Effortless Integration via ONVIF and RTSP

Ajax video devices are built for easy integration, supporting ONVIF and RTSP protocols without the need for complex configurations. Whether you’re upgrading an existing system or building from scratch, Ajax opens the door to seamless compatibility with third-party surveillance and video management systems (VMS). Setup is streamlined with a built-in wizard in the Ajax apps, which automatically retrieves all essential network data. Enjoy smooth streaming, flexible image settings, and the freedom to design a video system that fits your needs—your way.

Customisable Scenarios:

Configure scenarios to automatically activate specific cameras based on Ajax detectors ensuring you capture the most important moments.

Network Camera Connectivity

The Ajax NVR DC connects to the network via Ethernet and works with Ajax cameras and compatible ONVIF/RTSP IP cameras. PoE cameras require a separate PoE switch or PoE power supply as the NVR DC does not include built-in PoE camera ports.

The NVR DC differs from the standard Ajax NVR by using a low-voltage DC power input, making it suitable for installations where the recorder is powered from a compatible DC power supply, battery backup system or low-voltage security power setup.

Advanced Motion Detection:

Customise specific zones within the camera’s field of view to trigger recordings only when movement occurs in selected areas. This feature helps to avoid unnecessary recordings of irrelevant motion, such as swaying vegetation or distant passers-by.

Video Storage and Archiving:

The NVR DC supports internal surveillance hard drives of up to 16TB, providing ample space for long-term video retention. Customisable video walls allow for streamlined monitoring, but please note that the hard drive is not included in the box.

Fanless Design for Silent Operation:

The fanless design ensures quiet operation making the NVR suitable for indoor environments without causing noise disturbances.

Standalone Operation:

The Ajax NVR operates independently of the Ajax Hub, meaning you don’t need additional hardware to run the system via the Ajax app.

What’s in the Box:

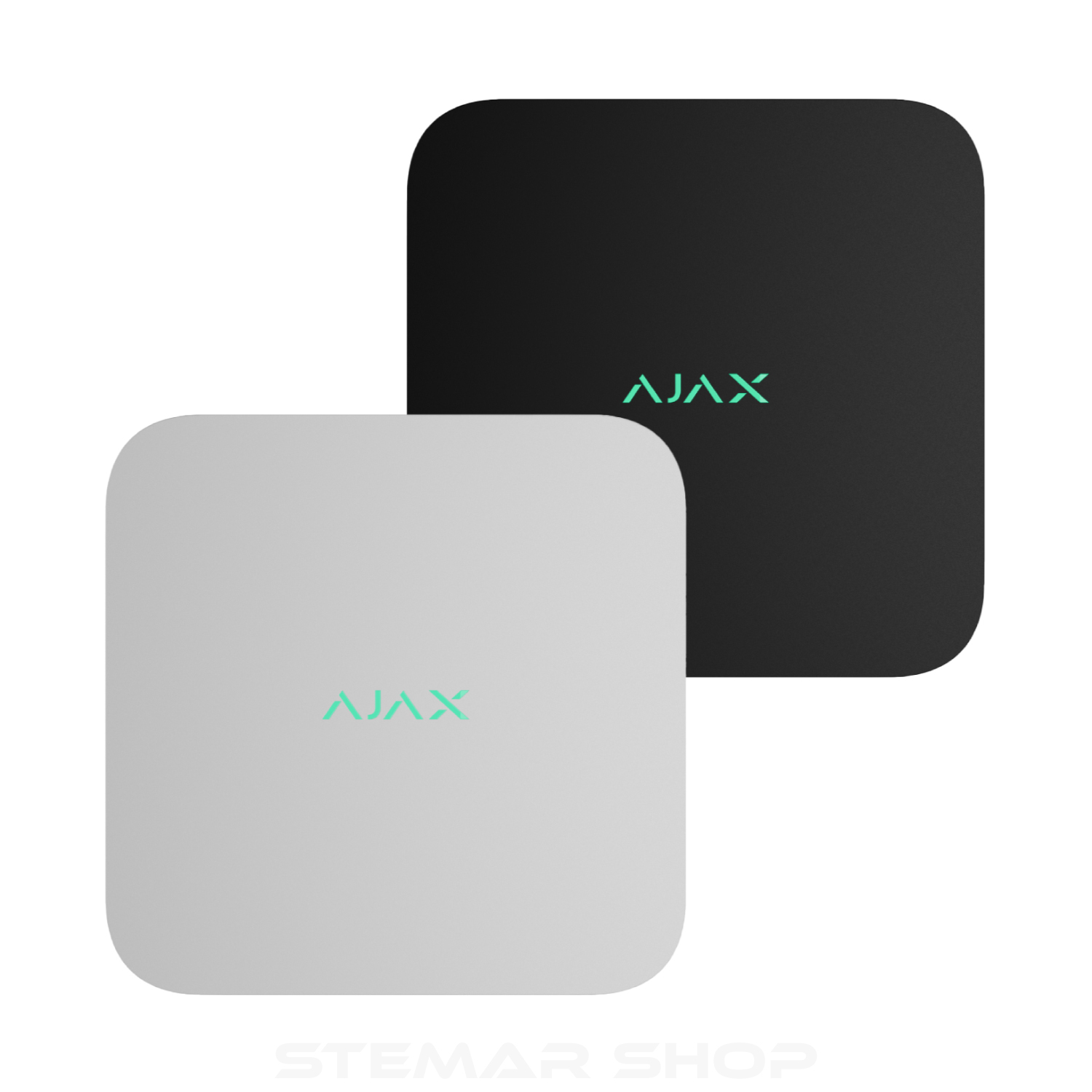

• Ajax NVR DC | 8 and 16 channel options in Black or White
• SmartBracket mounting panel
• Terminal adapter
• Ethernet cable
• Installation kit
• Quick start guide

Surveillance Hard Drive sold separately
