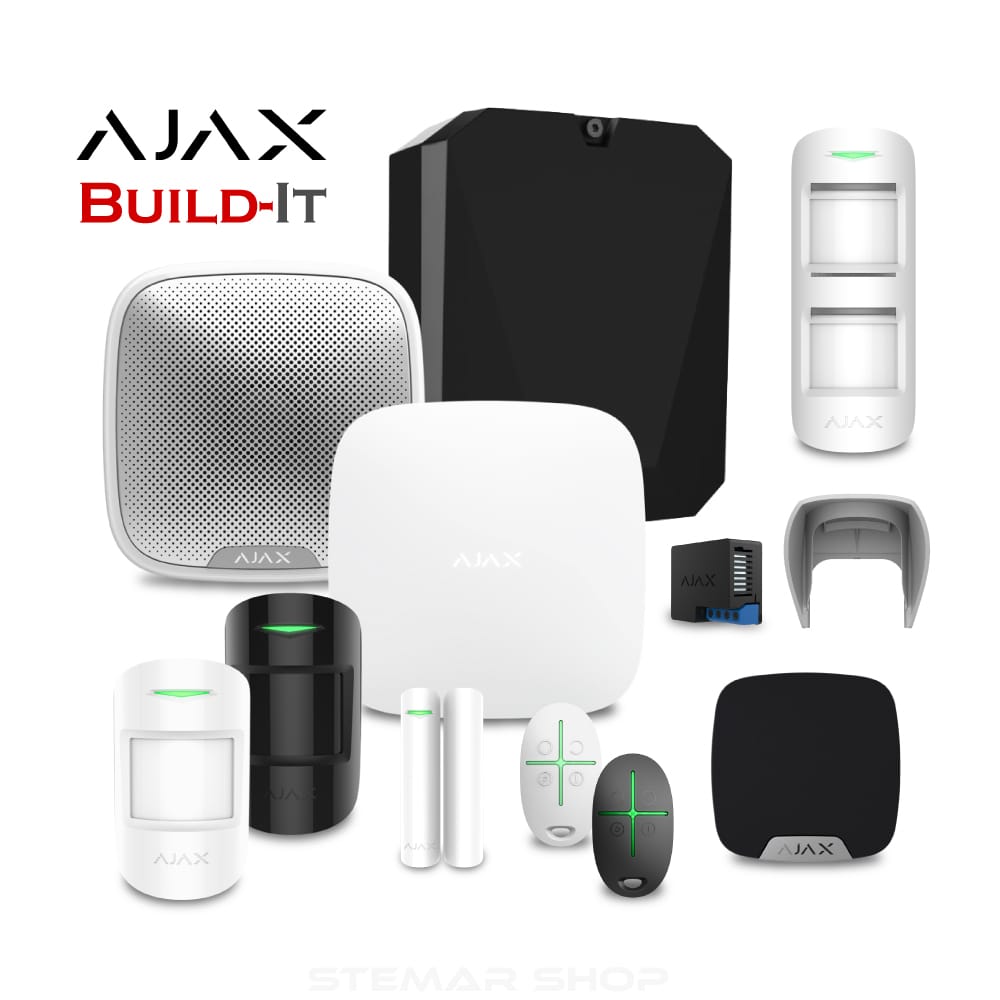

Ajax Hub (4G) Build-It Bundle – No MotionCam Support

Ajax Hub (4G), not to be confused with Hub 2 (4G), is ready to work out the box. It includes a built-in power supply, battery, ethernet port and 1x 4G/LTE SIM slot all smartly integrated into the compact control panel enclosure.

Setting up the system is a breeze. Simply connect the hub to power and internet, scan the hub QR code using the Ajax mobile app and it’s ready to use.

Build your own system with Ajax Hub (4G) Build-It Bundle along with a few minimum quantities (7 devices including Hub) to receive discounted pricing.

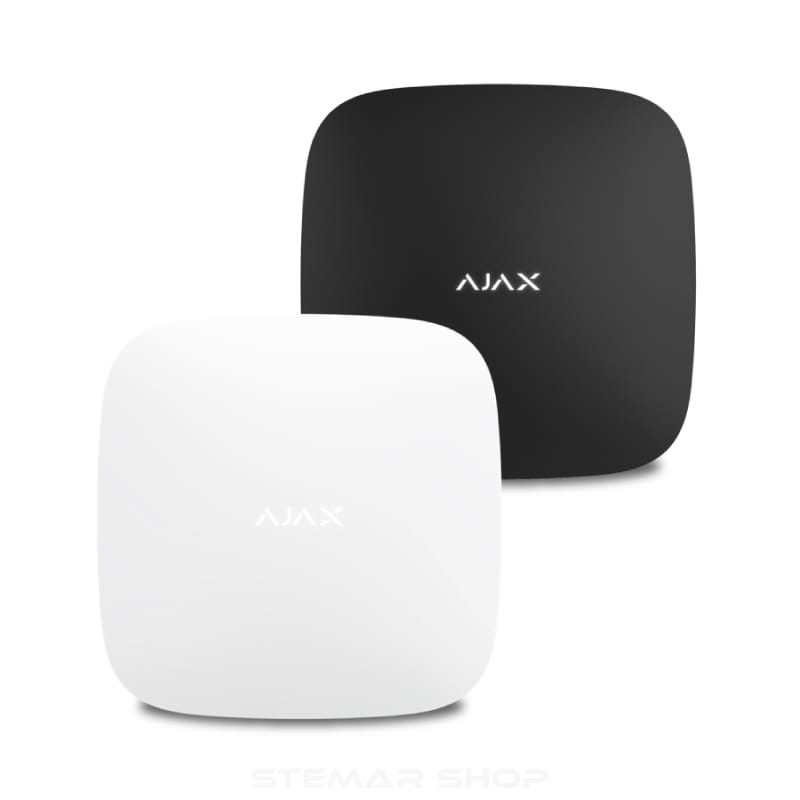

About Ajax Hub (4G)

Ajax Hub (4G) is based mostly on the original Ajax Hub’s technology, now upgraded with a 4G SIM slot replacing the 2G slot of the initial version. Unlike the Hub 2 (4G), this model does NOT include Wings Technology and is ideal for systems that do not require MotionCam detectors or other devices listed below.

Specifications:

100 Zones for Ajax wireless and/or third party wired devices (MultiTransmitter required for wired devices)
50 Users – admin settings to control user permissions
50 rooms / areas
9 groups (partitions)

Built-in:

Battery backup for up to 15 hours
Transformer (power cable included)
SIM Slot: 1x 4G (LTE) SIM Slot
Ethernet Port (cable included)

Supports:

5x ReX (1) Range Extenders
5x Scenarios
iOS and Android mobile applications

CCTV Cameras & NVR’s

14x Ajax NVR’s
200x Ajax Cameras / 224 Ajax Cameras via Ajax NVR’s
224 third party cameras when using ONVIF via Ajax NVR’s10x third party IP cameras using RTSP via SDK

Features:

Geolocation
Authentication to prevent forgery
Jamming detection and communication channels encryption
Tamper alarm
Easy installation and setup

Compatibility:

Ajax Hub (4G) is compatible with all Jeweller devices excluding the following:

Rex 2
vhfBridge
WaterStop
LifeQuality
LightSwitch
Manual CallPoint
MotionCam / PhOD
Keypad TouchScreen
DualCurtain Outdoor
MotionCam Outdoor / PhOD

Ajax Mobile App Download:

Hub control panels are set up using the Ajax mobile app for Android and iOS devices. Wireless devices are paired to the Hub by scanning their QR Codes, no programming or technical skills required!!

Seamless Setup:

It takes minutes to install Hub. Connect it to the Internet and plug the power cord. Then scan the QR code using Ajax app. In most cases, your devices won’t require any additional tuning. Hub begins to operate once online.

Automates Security

Create scenarios to minimise the impact of human factor on security. Scenarios enables the Hub to arm and disarm the complete system or groups by schedule, activate smoke machines when device is triggered or shut off water when a leak is detected. Control lights, electric locks, roller shutters, and garage doors by arming/disarming, button press or alarm detection.

Armed Response Linkup

Via Cloud – There are hundreds of South African armed response companies that have the Ajax software installed on their monitoring systems. You will find a list of these companies on the Ajax mobile app. If the company of your choice is not on the list, Contact Us with the Company Name, Contact Person and Location so that we can refer them to our Ajax support team.

Via Ajax Hardware – Should your armed response company not be Ajax ready, an Ajax vhfBridge is can be used to connect to their radio transmitter. Alternatively two Ajax Relays can be connected, one for alarm and one for panic.

Hub PSU (Power Supply Unit):

Ajax Hub has a built-in 220v PSU including a battery for backup. However should you want to install the Hub in yachts, caravans, building sites or properties where no 220v power is available, the 220v PSU can be easily replaced with an Ajax 12vDC PSU for a low voltage power feed and Solar setup.

Justworx IoT SIM Card for Backup to Internet Failure

Ajax Hubs rely on the internet for remote communication and includes SIM card slots for backup to internet failure. Justworx are non-steering SIM cards that automatically connect to the strongest Vodacom or MTN network in your area to ensure the Hub remains connected to Ajax cloud.  Justworx SIM card includes Data for up to 30 years (dependent on selected package).

No Monthly Fees | No Subscriptions | No Recharge Fees | Data Never Expires
