Hikvision AX Pro Wireless Smart Alarm

One App for Alarm, CCTV, Intercom & Access Control

Monitor and Control  your Hikvision AX Pro Alarm System, CCTV Cameras, IP Intercom and Access Control System from one single app, i.e. Hik-Connect.

See, Hear, Speak and Secure.

SHOP - All AX PRO Products
SHOP - All AX PRO Products

Hikvision AX Pro Starter Kits

Hikvision AX-PRO 64 Zone Wireless Alarm Kit

(DS-PWA64-KIT-WE) Kit Includes:

  • AX PRO 64 Zone Panel (DS-PWA64-L-WE) – 1x 2G SIM Slot
  • Wireless PIR Motion Detector (DS-PDP15P-EG2-WE)
  • Wireless Magnet Detector – Door Contact (DS-PDMC-EG2-WE)
  • Wireless Key fob / Remote control (DS-PKF1-WE)
  • Voice Prompt

Hikvision AX-PRO 96 Zone Wireless Alarm Kit

(DS-PWA96-KIT-WE) Kit Includes :

  • AX PRO 96 Zone Panel (DS-PWA94-M-WE) – 4G SIM Slots
  • Wireless PIR Motion Detector (DS-PDP15P-EG2-WE)
  • Wireless Magnet Detector – Door Contact (DS-PDMC-EG2-WE)
  • Wireless Keyfob Remote Transmitter (DS-PKF1-WE)
  • Built-in Tag Reader on Panel

Hikvision AX Pro Control Panels

AX Pro (L) Panel - 64 Zones

  • 2G Backup to internet failure
  • Long RF communication
  • Up to 64 Inputs / Outputs
  • 2x Repeaters
  • 32 Users and 16x Partitions
  • PIRCAM supported
  • 8x Keypads & Tag Readers
  • 32x Key fobs, 32x Tags, 4x Sirens

AX Pro (M) Panel - 96 Zones

  • 4G / LTE backup to internet failure
  • Long RF communication
  • Up to 96 Inputs / Outputs
  • 4x Repeaters
  • 48x Users and 32x Partitions
  • PIRCAM supported
  • 8x Keypads & Tag Readers
  • 48x Key fobs, 48x Tags, 6x Sirens
  • Built-in Siren & Tag Reader on Panel

AX Pro 8 - 24v PSU

  • Convert Hub from 220v to DC / low voltage input by replacing built-in 220v PSU.
  • Power Source: 8-24v DC / solar
  • Uses: Farms, building sites, storage facilities and assets on the move (Caravans, Campervans, Yachts etc)

AX Pro Wireless Repeater (Range Extender) and Sirens

AX Pro Wireless Repeater

  • Tri-X and Cam-X wireless protocol
  • Auto-pairing between devices and control panel
  • Two-way communication
  • Up to 35 hours battery backup

AX Pro Wireless Indoor Siren

  • Indoor siren
  • Buzzer Decibel: 90 – 110dB
  • Fully remote configurable through App
  • Arming / Disarming prompt sound
  • LED Indicator

AX Pro Wireless Outdoor Siren

  • Outdoor siren – 110dB
  • Fully remote configurable through App
  • 3x Alarm sounds: Fire, Panic and Intrusion
  • Front and Rear tamper proof
  • IP65 Protective level

AX Pro Wireless Controllers & Panic

AX Pro LCD Keypad

  • LCD screen & LED to indicate system status.
  • System configuration through LCD screen.
  • Multiple operations -stay/away arm, disarm. silent alarm, output control.
  • Full touch key design with LED backlight.
  • Fully remote configurable through App.

AX Pro Keypad

  • LED indicators with LED backlit touch key design.
  • Front & rear tamper.
  • 4x AA batteries included.

AX Pro Tag Reader (Indoor)

  • Supports arm/disarm & patrol tag check-in functions.
  • 3x AAA batteries included.

AX Pro Tag

  • Hikvision white Mifare 13.56MHz tag

Compatible with:

  • AX Pro (M) Panel – 96 zones
  • AX Pro Tag Reader

AX Pro Key Fob / Remote

  • Hikvision Ax Pro keyfob.
  • 4 programmable buttons.
  • 1x CR2032 battery included.

AX Pro Panic Button

  • Hikvision Wireless emergency button.
  • 1x CR2450 battery included.

AX Pro Portable Panic Button

  • Hikvision white Mifare 13.56MHz tag

Compatible with:

  • AX Pro (M) Panel – 96 zones
  • AX Pro Tage Reader

AX Pro Wristband Accessory

  • Hikvision Wireless emergency button.
  • 1x CR2450 battery included.

AX Pro Wireless Indoor Detectors

AX Pro Indoor PIR

  • Up to 15m range x 85.9°
  • Up to 30kg pet immunity,
  • Sealed optics & creep zone,
  • Up to 5 years battery life,
  • 1x CR123A Battery included.

AX Pro Indoor Curtain PIR

  • Up to 15m range x 6.3°
  • Sealed optics & creep zone.
  • Up to 5 years battery life.
  • 1x CR123A Battery included.

AX Pro Indoor Dual Tech PIR

  • PIR + 24Ghz Microwave detector.
  • Up to 12m / 85.9° range.
  • Up to 30kg pet immunity.
  • Sealed optics & creep zone.
  • Up to 5 years battery life.
  • 1x CR123A Battery included.

AX Pro Indoor PIR with Camera

  • Up to 12m range x 85.9°
  • VGA image capture with up to 12m IR range,
  • Up to 30kg pet immunity,
  • Sealed optics & creep zone,
  • Up to 6 years battery life,
  • 3x CR123A Batteries included.

AX Pro Indoor 360 Degree PIR

  • Indoor ceiling-mount.
  • Up to 12m range x 360°
  • Up to 5 years battery life.
  • 1x CR123A Battery included.

AX Pro Indoor PIR + Glass Break

  • PIR up to 12m range 85.9°
  • Glass break up to 8m range.
  • Up to 30kg pet immunity.
  • Up to 4 years battery life.
  • 2x CR123A Batteries included.

The following brackets are completely OPTIONAL and NOT included nor required for standard installations

Ceiling Mount Bracket

  • Hikvision Ceiling-mount bracket for indoor PIR/Dual-tech/PIRCAM detectors.

Universal Bracket

  • Hikvision Universal-mount bracket for indoor PIR/Dual-tech/PIRCAM detectors.

Wall Bracket

  • Hikvision Wall-mount bracket for indoor PIR/Dual-tech/PIRCAM detectors.

AX Pro Wireless Outdoor Detectors

AX Pro 90° Outdoor PIR

  • Hikvision Tri-tech PIR with 2x PIR + 24GHz Microwave detectors.
  • Up to 15m range.
  • 90° PIR adjustable angle.
  • Active IR anti-masking.
  • Up to 40Kg pet immunity.
  • Up to 5 years battery life.
  • 5x CR123A
  • Compatible with RF Camera Module

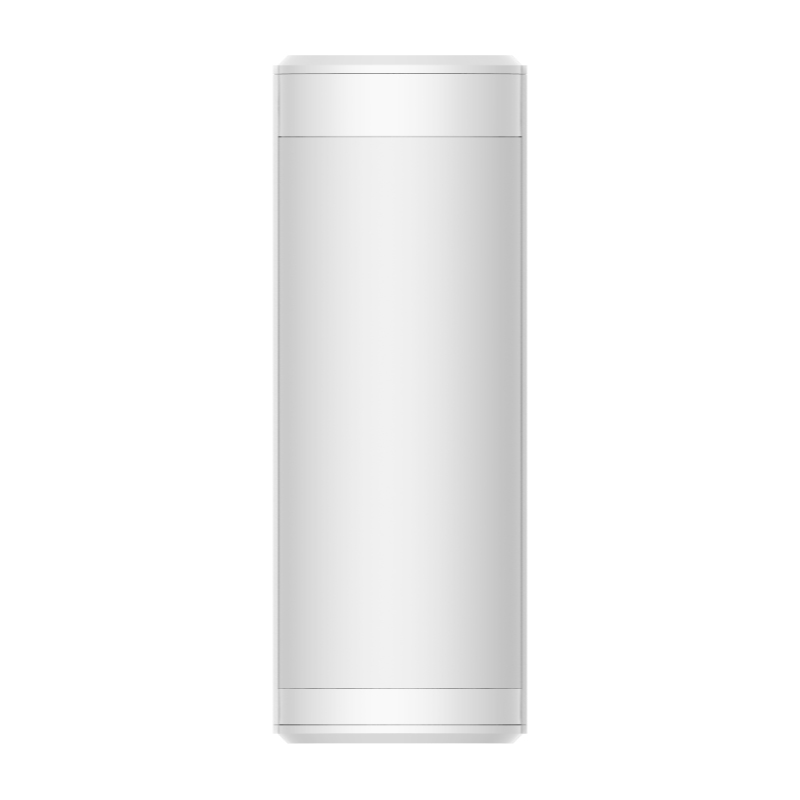

AX Pro 180° Outdoor PIR

  • Hikvision AX Pro 180 Degree Outdoor Detector
  • 180° Panoramic coverage
  • 15m Detection range
  • 180 Degree detection angle
  • 40 Detection zones
  • Pet immunity up to 40kg (cm height)
  • Active IR anti-masking
  • Compatible with RF Camera Module

AX Pro RF Camera Module

  • Add-on Accessory for Hikvision 90 and 180 degree outdoor detectors
  • Takes photos of the cause of the alarm activation.
  • 2mm Fixed lens

AX Pro 90° Double PIR Detector

  • Selectable Mounting Height: Low mount 0.8 – 1.2m | High mount 25 – 3m.
  • Detection range: 18m x 90-degrees
  • IP65 Rated.
  • Up to 5 years battery life.
  • 2x CR123A battery included.

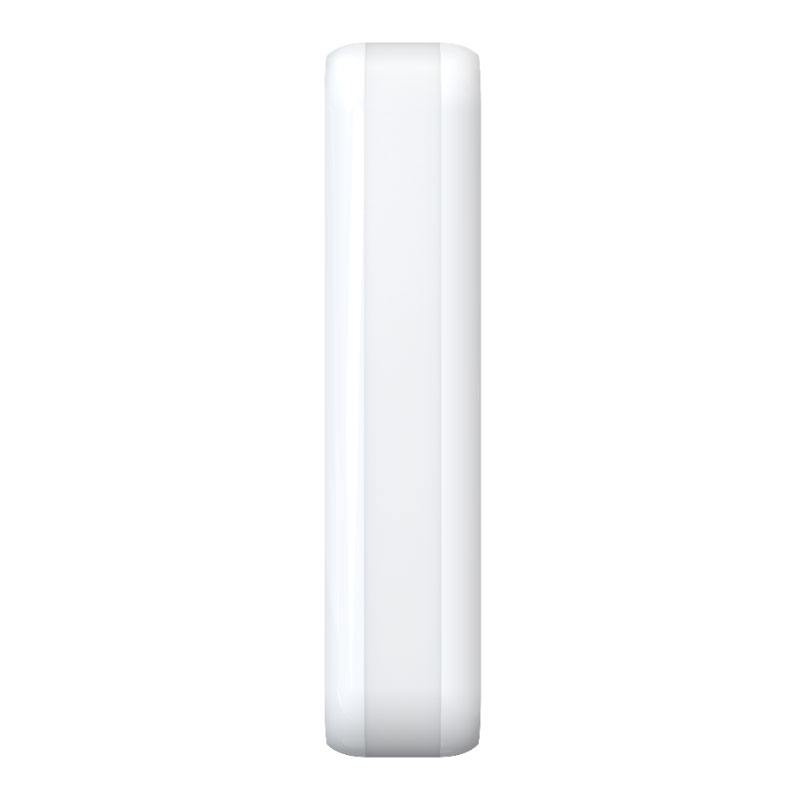

AX Pro AM Curtain Detector

  • Passive Infrared
  • Active IR Anti-Masking
  • Installation height: 2 – 3.5m
  • Detection range: 10m wall mount, 5m ceiling mount
  • IP66 Rated.
  • Up to 5 years battery life.
  • 2x CR123A battery included.

AX Pro Dual-Tech Curtain

  • Dual Detection – PIR & Microwave
  • Anti-Masking
  • Installation height: 2 – 3.5m
  • Detection range: 10m wall mount, 5m ceiling mount
  • IP66 Rated.
  • Up to 5 years battery life.
  • 2x CR123A battery included.

AX Pro Outdoor Magnetic Contact

  • IP66 Protective level, UV stable
  • Environment Temperature Indication
  • 1x CR123A battery included
  • Up to 5 years battery life

AX Pro Swivel Bracket

  • Outdoor Swivel Bracket for AX Pro Double PIR Detector
  • Vertical adjustable: -10° – 30°
  • Horizontal adjustable: ±45°

AX Pro Wireless Door, Window and Glass Detectors

AX Pro Wireless Magnetic Contact

  • Two-way Tri-X wireless technology
  • 2 External zones for wired detectors
  • Up to 5 years battery life.
  • 1x CR123A battery included.

AX Pro Slim Magnetic Door Contact

  • Slim design
  • Two-way Tri-X wireless technology
  • 2 External zones for wired detectors
  • Up to 3 years battery life.
  • 1x CR123A battery included.

Tilt & Shock Magnetic Contact

  • Combined Shock and Tilt detection
  • Two-way Tri-X wireless technology
  • 2 External zones for wired detectors
  • Up to 3 years battery life.
  • 1x CR123A battery included.

AX Pro Wireless Glass Break Detector

  • Up to 8m range.
  • Supports 2x external zones for wired sensors.
  • Up to 5 years battery life.
  • 2x CR123A batteries included.

AX Pro Smoke, Leak and Temperature Detection

AX Pro Water / Leak Detector

  • Hikvision Indoor wireless water leak detector.
  • Place under washing machines, dishwashers, bathrooms, geyser drip tray etc
  • 1x CR2450 battery included.

AX Pro Fire / Smoke Detector

  • Hikvision Indoor wireless smoke detector.
  • 85dB buzzer.
  • Up to 10 years battery life.
  • 1x CR17450 battery included, non-replaceable.

AX Pro Temp & Humidity Detector

  • Hikvision Internal wireless temperature & humidity detector.
  • -35 to 99 °C temperature range.
  • 2x AAA batteries included.

AX Pro Wireless Automation Devices

AX Pro Relay (low voltage)

  • Wireless Relay Module
  • 868MHz
  • 1 Relay Output (NO-NC)
  • Supports Scenarios
  • Smart Automation (IoT)
  • Controlled with APP, Keypad or Keyfob

AX Pro Wall Switch (high voltage)

  • Wireless Wall Switch
  • 868MHz
  • 1 Relay Output (220VAC – 13A)
  • Supports Scenarios
  • Smart Automation (IoT)
  • Controlled with APP, Keypad or Keyfob

AX Pro Smart Plug

  • Hikvision Internal wireless temperature & humidity detector.
  • -35 to 99 °C temperature range.
  • 2x AAA batteries included.

AX Pro 3rd-Party Integration

AX Pro Multi I/O Transmitter

  • 16 inputs, 2 alarm outputs,
  • 12v output to power up wired detectors
  • Space for 7Ah Battery
  • Frequency hopping against jamming
  • Full remote configuration through APP

AX Pro Transmitter

  • Hikvision Wireless input transmitter.
  • 1x Programmable input/output port.
  • 1x 3.3vDC 10mA output for to power up 3rd party detectors.
  • 3x CR123A batteries included

AX Pro Electric Fence Kit

  • Receive instant fence alarms notifications via the Hik-Connect app
  • Arm / Disarm your electric fence energizer from anywhere
  • Includes a tamper input and a PGM, can be used as zone input or alarm output

Armed Response Radio Transmitters Cable Connectors

RDC Radio TX Integration

  • Cable / Module for RDC Radio Transmitters
  • To connect AX PRO control panel to armed response radio transmitter

FSK Radio TX Integration

  • Cable for FSK Radio Transmitters
  • To connect AX PRO control panel to armed response radio transmitter

Hikvision AX Pro Bundles - 96 Zone (4G / LTE)
