Description

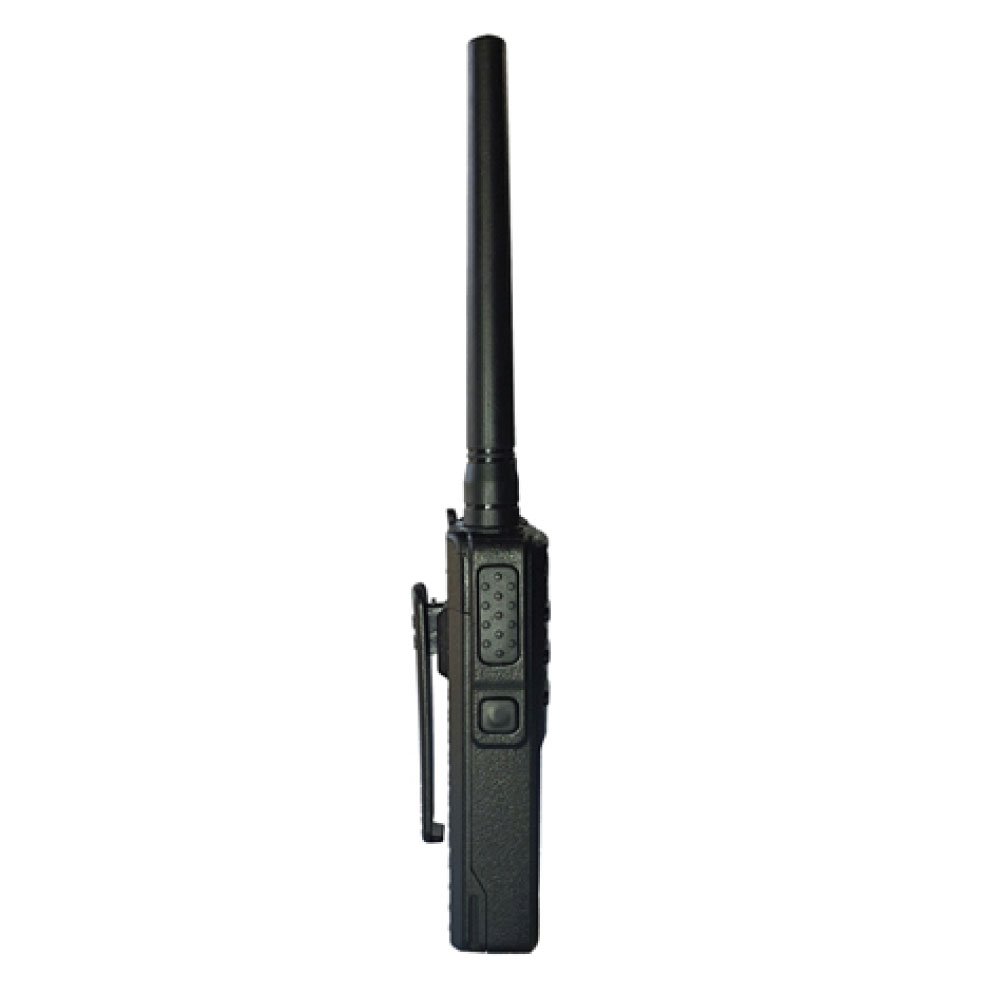

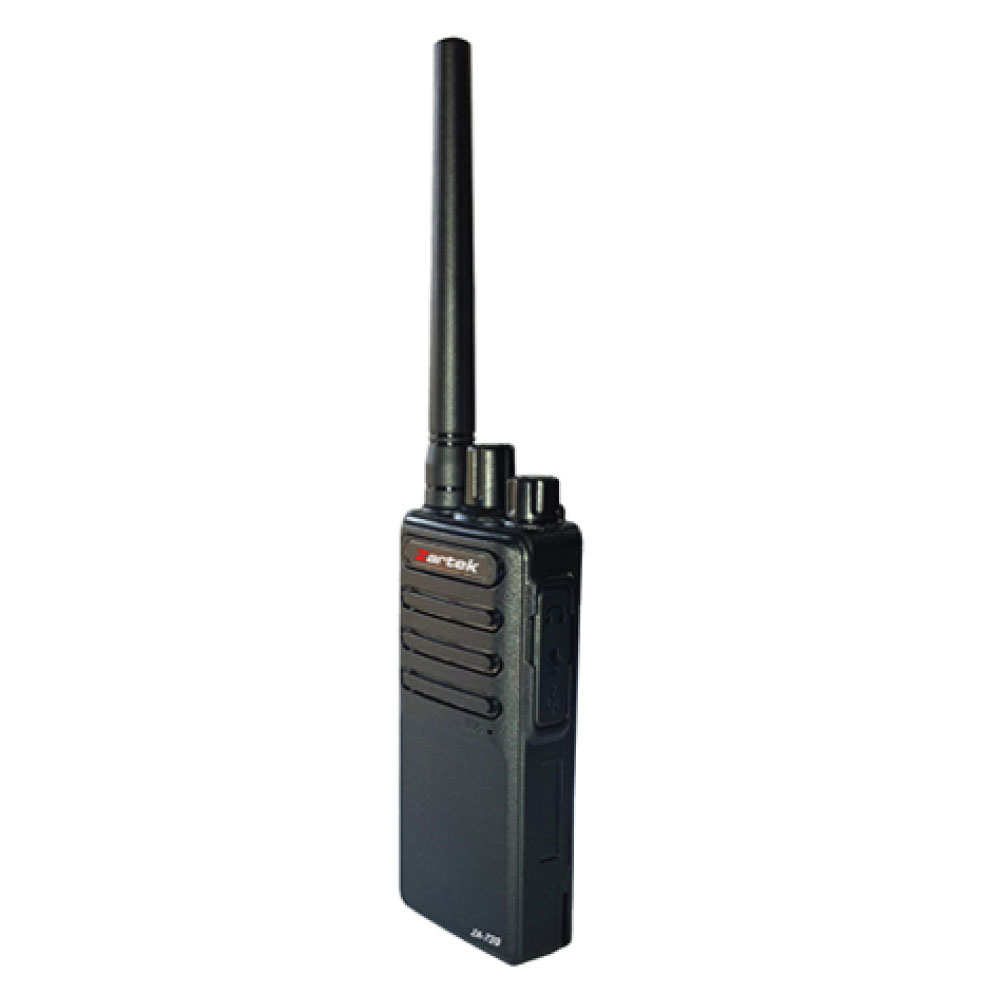

Zartek ZA-720 UHF Two-Way Radio for Flexible Licence-Free Communication

The Zartek ZA-720 combines straightforward push-to-talk communication with a slim, lightweight radio body, rechargeable Li-ion battery and two convenient charging methods. It is designed for everyday communication in warehouses, hospitality, events, outdoor activities and other medium-duty applications.

At its standard factory settings, the ZA-720 operates at 500 mW on Zartek’s preset licence-free 446 MHz and 464 MHz channels. It can also be professionally programmed for operation from 400–470 MHz at up to 2 W where the appropriate radio licensing is in place.

Is This Right for You?

The ZA-720 is a practical choice when you need a single rechargeable radio that can be added to an existing compatible Zartek licence-free radio fleet or used as part of a new multi-radio setup.

• Suitable for general business, warehouses, hotels, events, outdoor use and medium-duty communications.
• Its 16 channels allow teams to separate different workgroups where channel programming permits.
• Factory-programmed channels can communicate with several other Zartek licence-free radios when both radios are configured to matching frequencies and tones.
• For licensed commercial frequencies or 2 W operation, programming and the appropriate radio licence are required.

Why Choose This Product?

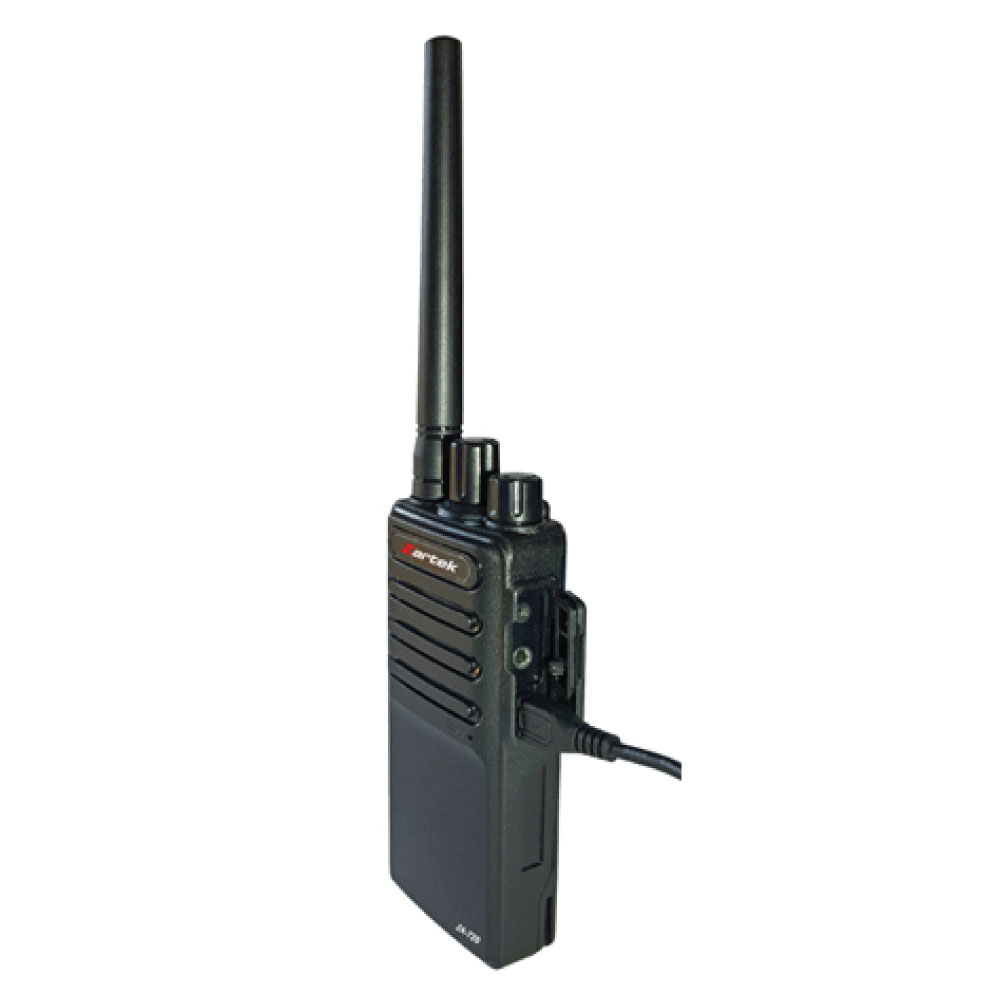

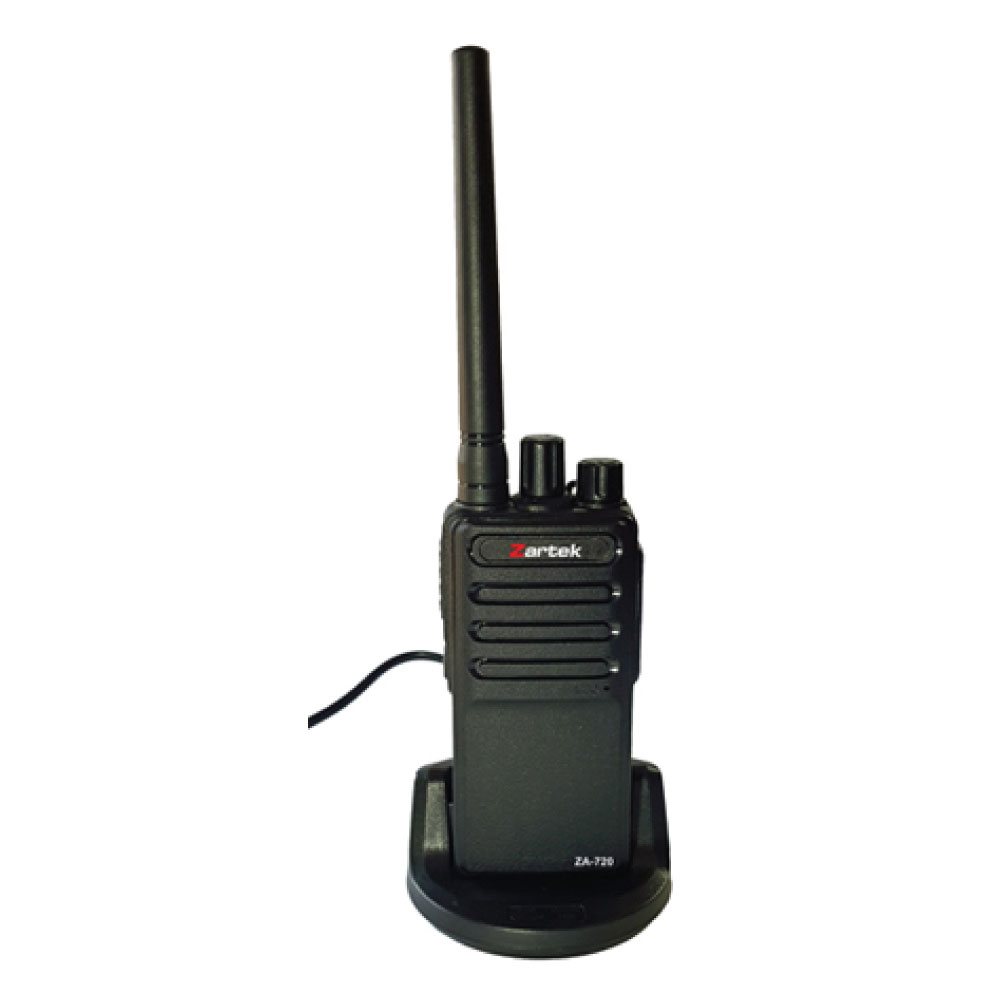

• Flexible charging: recharge through the radio’s USB charging port or use the supplied desktop charging stand.
• Long operating time: the supplied 1600 mAh Li-ion battery is rated by Zartek for approximately 25 hours average operation at 500 mW on a 5:5:90 duty cycle.
• Useful hands-free functions: VOX can automatically activate transmission from voice or sound, while scanning can monitor programmed channels for activity.
• PC programmable: compatible programming equipment allows channels, frequencies, tones, squelch, timeout timer and VOX settings to be configured.
• Accessory support: the 2-pin microphone/speaker connection works with a range of specifically approved Zartek headsets, microphones and programming accessories.
• Detachable antenna: allows the radio to be used with selected Zartek external antenna accessories where specifically supported.

Before You Buy

The ZA-720 is supplied pre-programmed for 500 mW licence-free operation on Zartek’s 446 MHz and 464 MHz public-frequency channel plan. Zartek also specifies 400–470 MHz operation at up to 2 W, but this mode requires appropriate licensing and programming.

Communication range depends heavily on terrain, buildings, elevation, interference and antenna position. Zartek’s manufacturer estimates are 600 m–1.2 km indoors, 2–6 km outdoors and 10–30 km with elevated line-of-sight; these figures should not be treated as guaranteed operating distances.

Other Zartek radios can communicate with the ZA-720 only when their channel frequencies and tones match. Radio-to-radio interoperability is separate from physical accessory compatibility.

An optional programming cable is required for PC programming. For verified batteries, audio accessories, charging equipment and antennas, refer to the Compatibility tab.

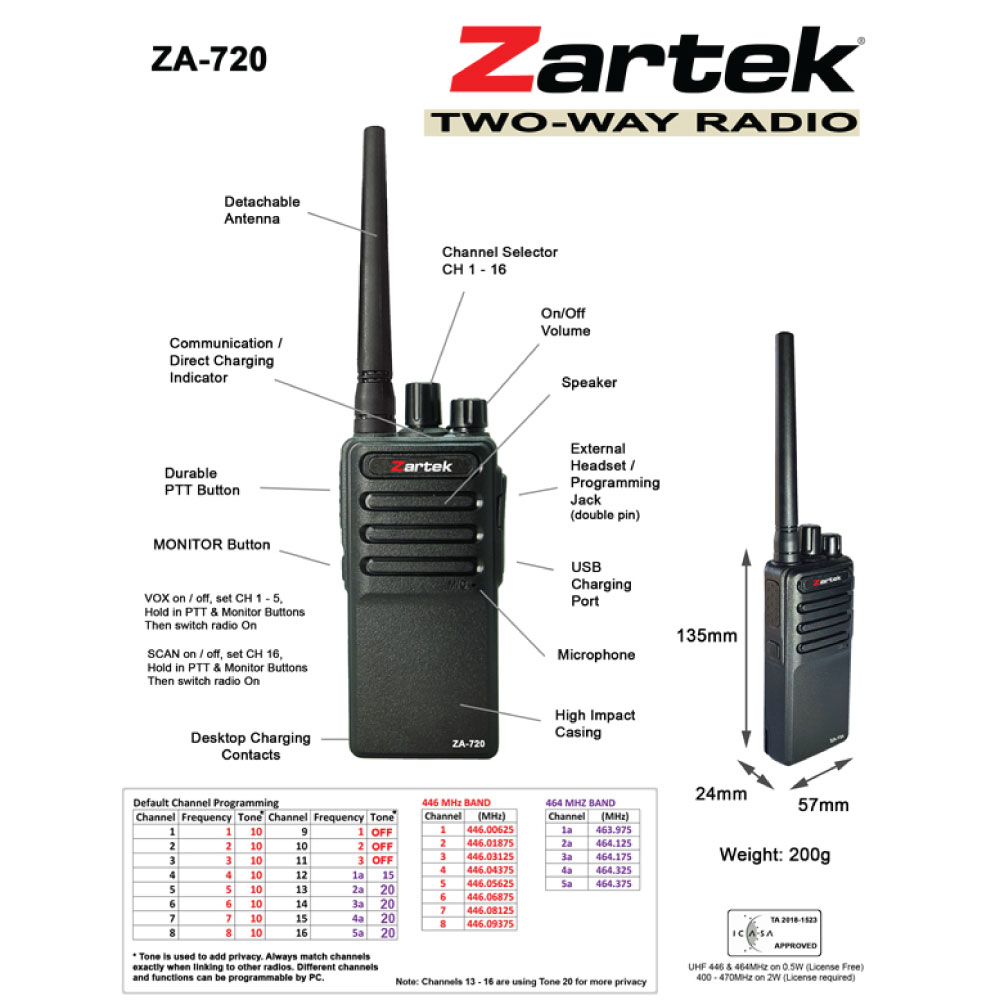

Technical Specifications

What’s in the Box

• 1 × Zartek ZA-720 handheld UHF FM transceiver
• 1 × Detachable antenna
• 1 × Desktop mains charger
• 1 × 1600 mAh Li-ion battery pack
• 1 × Belt clip
• 1 × User manual
