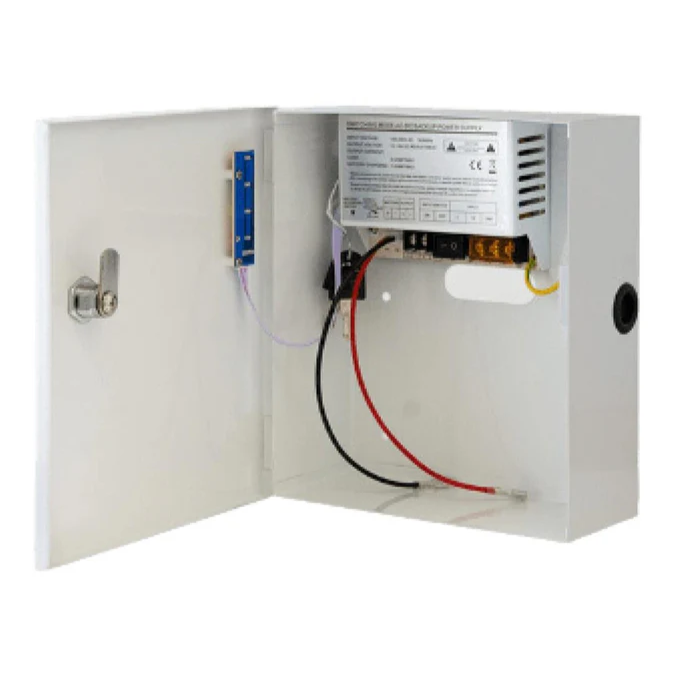

Titanium I 12V 3A Backup Power Supply & Battery Charger for 7Ah to 9Ah AGM / Gel / LiFePO4 Batteries

The Titanium I is a compact 12V 3A backup power supply and charger designed for reliable battery charging and standby power in security and low-voltage installations. It is suited to 7Ah to 9Ah batteries and supports AGM, Gel and LiFePO4 battery types through a user-selectable charging mode making it a flexible solution for installers and end users who need one unit for different battery chemistries.

Its smart controlled charging design helps maintain battery health while providing dependable backup power during mains failure. The unit includes a low battery cut-off at 10.2V, a built-in AC fail relay, LED indication for charging and discharge status and an audible buzzer to alert users when mains power is lost. The lockable metal casing makes it suitable for security, CCTV, alarm and access control environments where a neat and protected installation is important.

The Titanium I is a good choice for applications such as alarm panel battery backup, access control backup, router backup, emergency lighting and other 12V standby power requirements. It is intended for indoor use only and should be installed by qualified personnel.

Key Features

Smart Charging for Multiple Battery Types

Use the battery selector switch to match the charger to LiFePO4 or AGM/Gel/Lead batteries for safer and more suitable charging.

Reliable Backup Power

When mains power fails, the unit automatically draws from the connected battery to keep supported devices powered. The built-in buzzer and LED indication help users quickly identify battery and mains status.

Battery Protection

The Titanium I includes output over-voltage, over-current, short circuit, battery overcharge, battery over-discharge and reverse polarity protection, with self-recovery when the fault is removed.

Security-Friendly Enclosure

A lockable metal casing helps protect the power supply in security and utility installations.

Technical Specifications

• Model: ZTP1203B
• AC Supply: 100–240VAC, 50/60Hz
• Power: 65W
• Max Output Current: 3A
• Max Charge Current: 2A
• Recommended Battery Size: 7Ah–9Ah
• Battery Types: AGM / Gel / LiFePO4
• Charging Mode: Selectable battery type mode
• Low Battery Cut-Off: 10.2V
• Operating Temperature: -10°C to 45°C max
• Humidity: 90% non-condensing
• Use Environment: Indoor use only
• Certifications / Approvals: SANS/IEC 60950, IEC/EN60939, LOA No. 000000187960/001

Applications

• Alarm panel battery backup
• Access control backup power
• CCTV backup solutions
• Emergency lighting
• 12V router backup
• General 12V battery charging and standby power applications

What’s in the Box

• 1 x Titanium I backup power supply / charger
• 1 x SA power cord
