Description

SPOTBOT USB Relay Module (SUR) – Smart Automation for CCTV Systems

The SPOTBOT USB Relay Module expands the capabilities of your SPOTBOT AI Detection System by introducing intelligent automation. Designed as a plug-and-play accessory, it connects directly to the SpotBot unit via USB and activates connected security devices based on detection events.

Whether you want a siren to sound when an intruder enters the property or a floodlight to switch on automatically at night, the SUR module makes it possible, instantly and reliably.

How the SPOTBOT USB Relay Module Works

The SPOTBOT USB Relay is what turns your AI detection system into an active defence system. Instead of only sending alerts, your SPOTBOT can now automatically respond by lighting up the area, sounding a siren or triggering any other connected 12 V–240 V device the instant a human or vehicle is detected.

1. Connection

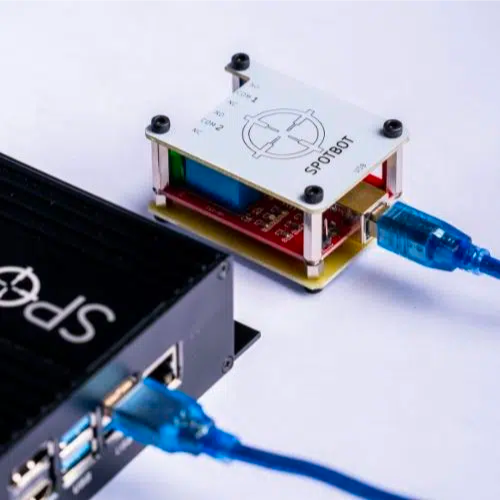

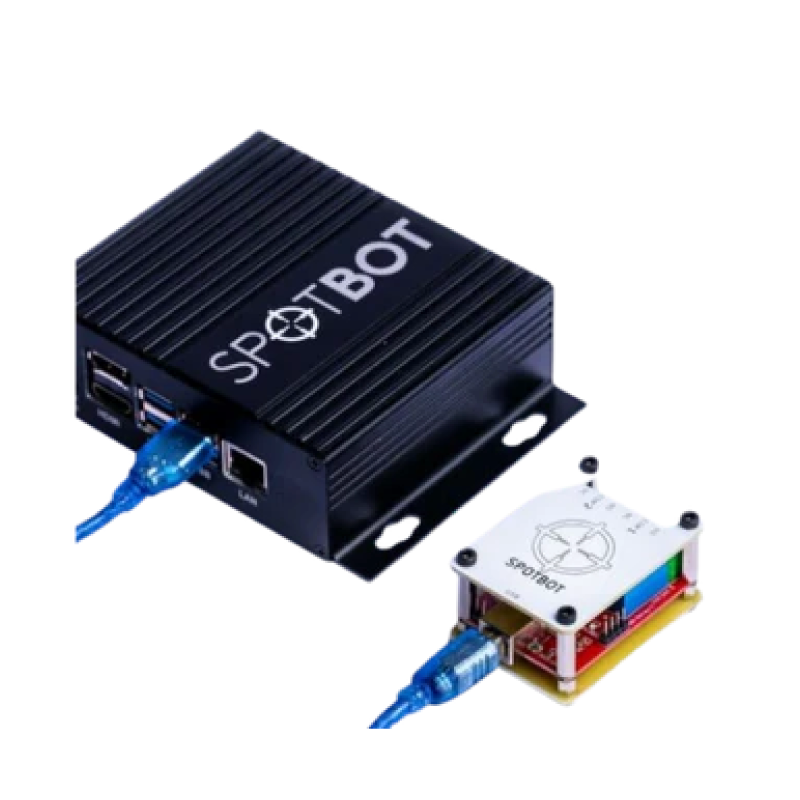

The USB Relay Module plugs directly into one of the USB ports on the SPOTBOT unit. No separate power supply or wiring to your network is required – it’s powered and controlled through that USB connection.

2. Integration with SPOTBOT AI

The SPOTBOT continuously analyses your CCTV feeds. When its onboard AI detects a human or vehicle, it registers a verified “detection event.”
When such an event occurs, SPOTBOT sends an electronic signal through the USB port to the relay module.

3. Relay Activation

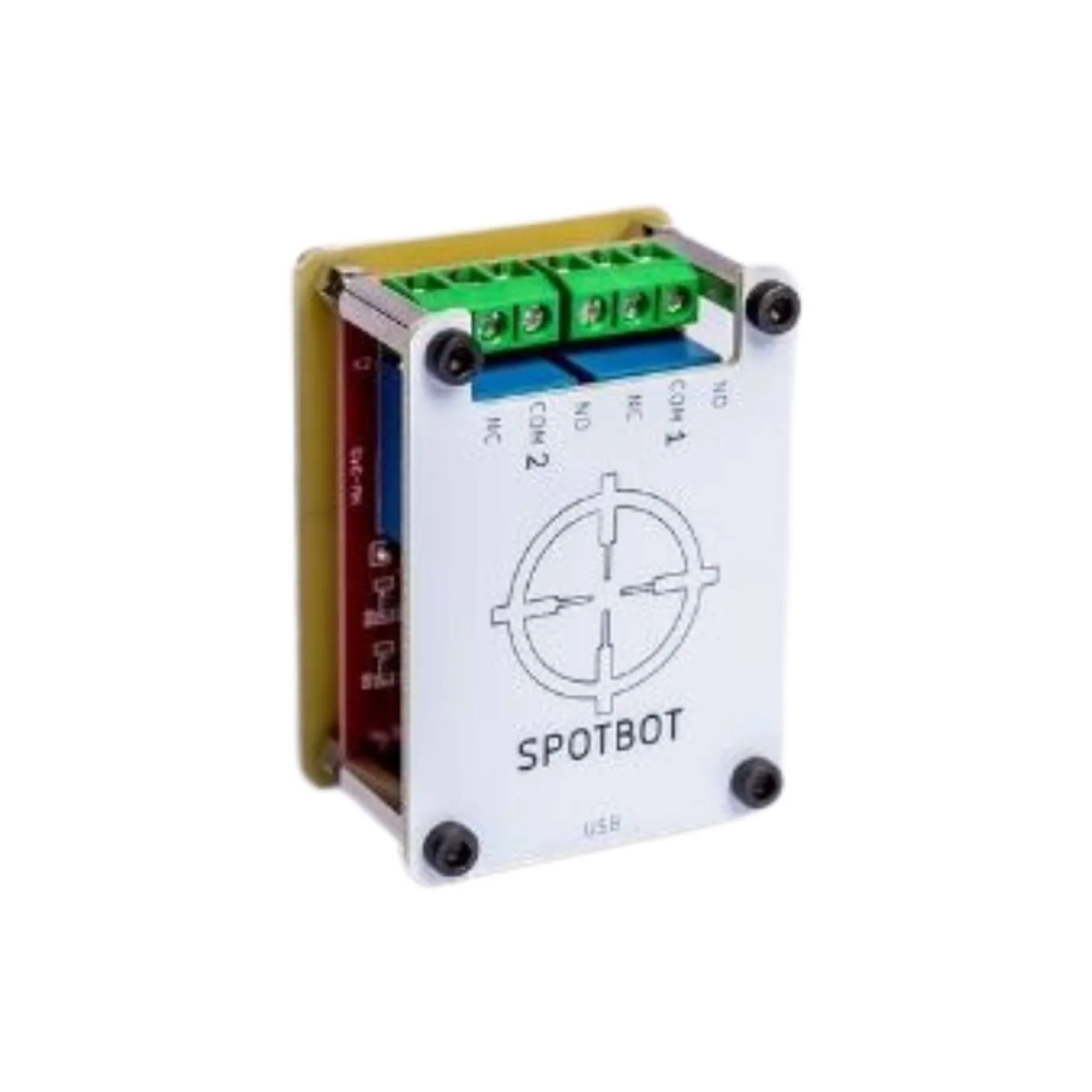

Inside the module are two independent relays (think of them as smart switches). Each relay can be programmed within the SPOTBOT interface to respond to specific detection events, for example:

• • Relay 1 turns on a floodlight connected to the front camera when motion is detected at night.
  • Relay 2 triggers a siren connected to another zone when a person is detected at the gate.

The relay acts as a bridge between the low-voltage SPOTBOT control signal and the higher-voltage external device – safely switching the device on or off.

4. Automation and Reset

The relay stays activated for the duration set in your SPOTBOT configuration (for example, 10 seconds or 60 seconds), then automatically resets and waits for the next detection.

Key Features and Benefits

• Dual relay outputs – control up to two external devices independently
• Plug-and-play USB connection – quick, tool-free installation
• Integrates seamlessly with all SPOTBOT 4-Channel and 8-Channel systems
• Trigger floodlights, sirens or strobes automatically upon verified detection
• Reliable solid-state switching for consistent performance
• Compact, durable design for long-term reliability
• Transforms SPOTBOT into an active deterrence system, not just a passive monitor

Installation and Compatibility

Simply plug the module into one of the SPOTBOT’s USB ports and configure your desired automation actions within the SPOTBOT interface. Each output can be linked to specific cameras or detection events giving you precise control over your site’s security response.

The module is compact, requires no external power supply and operates silently – ideal for both residential and commercial installations.

Technical Overview

• Connection Type: USB (Type-A host)
• Relay Outputs: 2 × independent relays (NO/NC)
• Output Voltage: Up to 250 V AC / 30 V DC
• Load Current (per relay): up to 10 A
• Control Interface: SpotBot AI Detection System
• Indicators: LED status per output
• Compatibility: SPOTBOT 4-Channel and SPOTBOT 8-Channel units

What’s in the Box

• SPOTBOT USB Relay Module (SUR)
• Quick-start guide
