Description

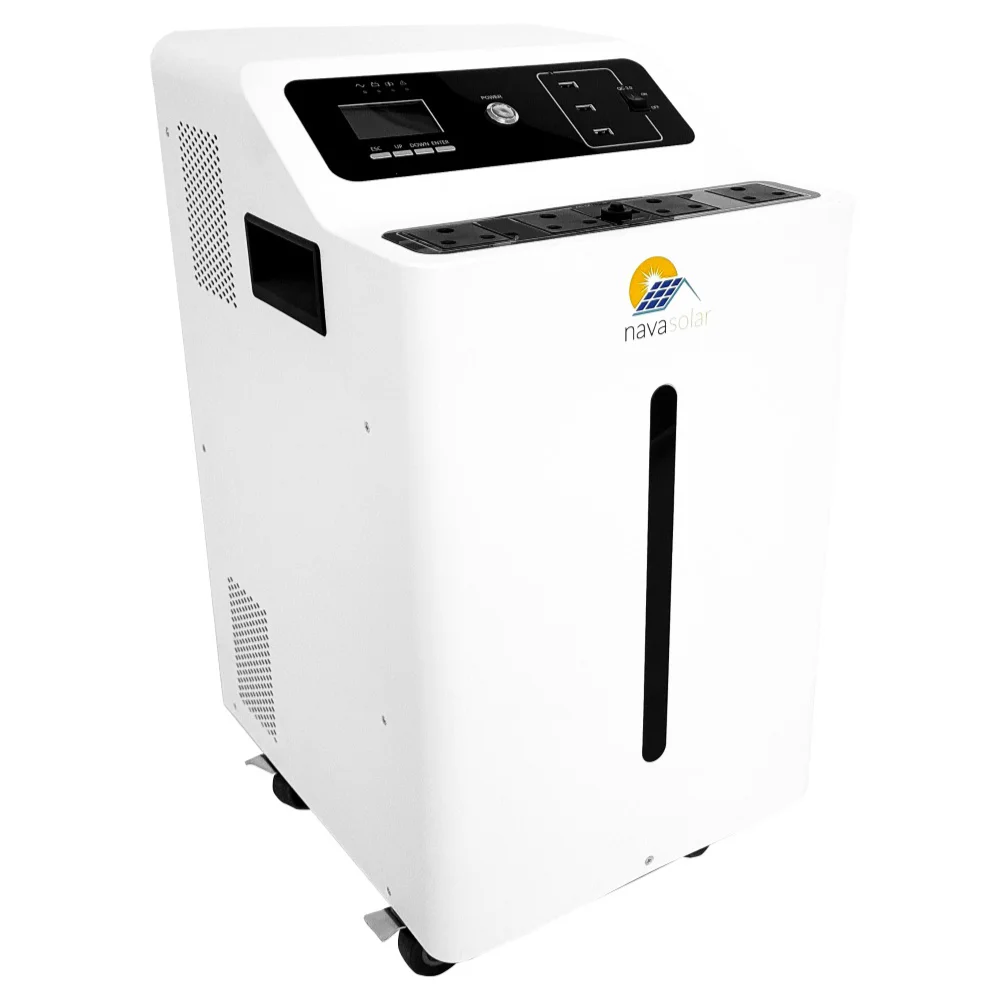

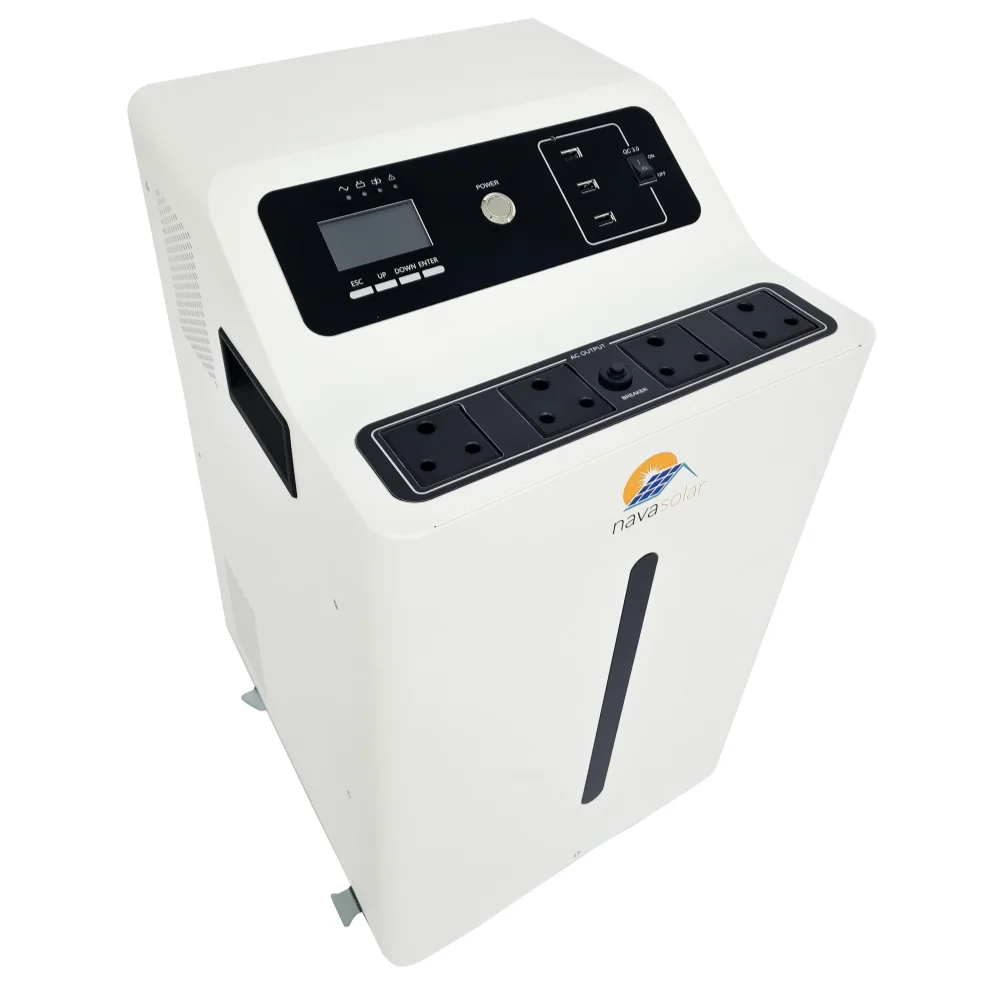

NavaSolar TI-3024 3KW Trolley Inverter with 25.6v 100Ah Lithium Battery

Specifications:

• Model: NV-TI-3024
• Rated Inverter Power: 3000VA/3000W

Input:

• Voltage: 230Vac+-5%
• Voltage Range: 154-264Vac
• Frequency Range: 40-70Hz
• AC Input Connection: IEC C20
• PV Input Connection: PP75

Output:

• AC Voltage Regulation (Batt. Mode): 230VAC+-5%
• Surge Power: 3000VA
• Efficiency (Peak): 93.50%
• Transfer Time: 20ms (Typical)
• Waveform: Pure Sine Wave

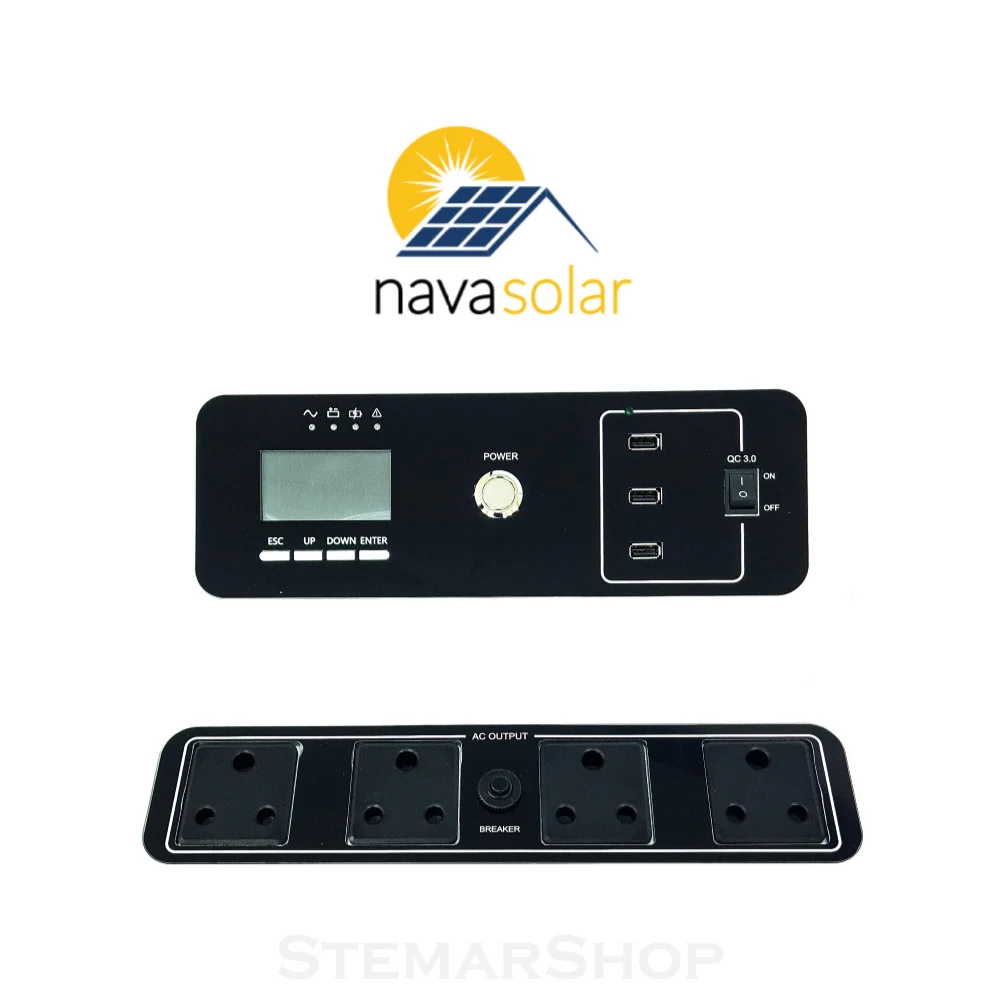

• Output Type: 4 x AC Outlets, 2 x USB PD Ports (QC3.0)

Solar Charger and AC Charger:

• Solar Charger Type: MPPT
• Maximum PV Array Power: 1500W
• Maximum PV Array Open Circuit Voltage: 30-115Vdc
• Maximum Solar Charge Current: 60A
• AC Charge Current: 40A
• Maximum Charge Current: 100A

Battery:

• Capacity: 2560Wh (25.6V 100Ah)
• Nominal Voltage: 25.6Vdc
• Charging Voltage: 27.6V
• Max Continuous Discharging Current: 100A

Communication:

• Communication Ports: USB/RS232 (Baud Rate2400)

Protection:

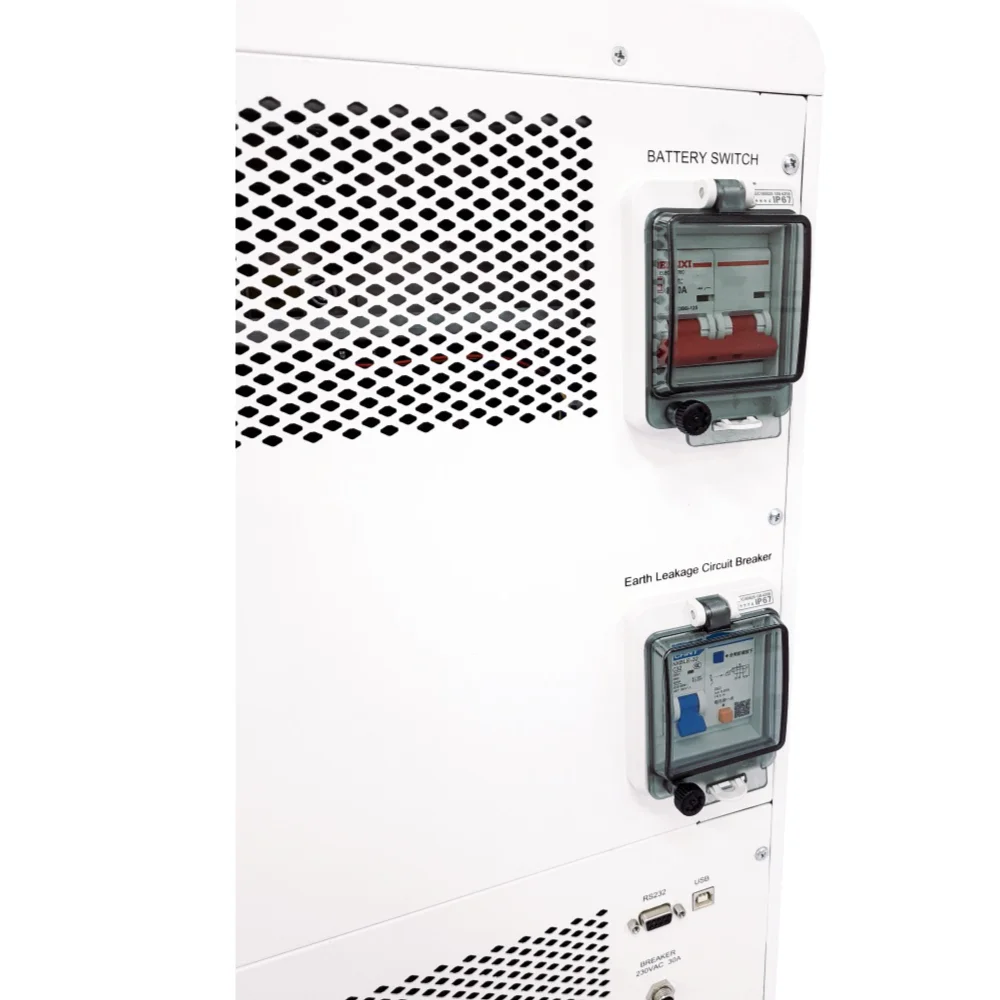

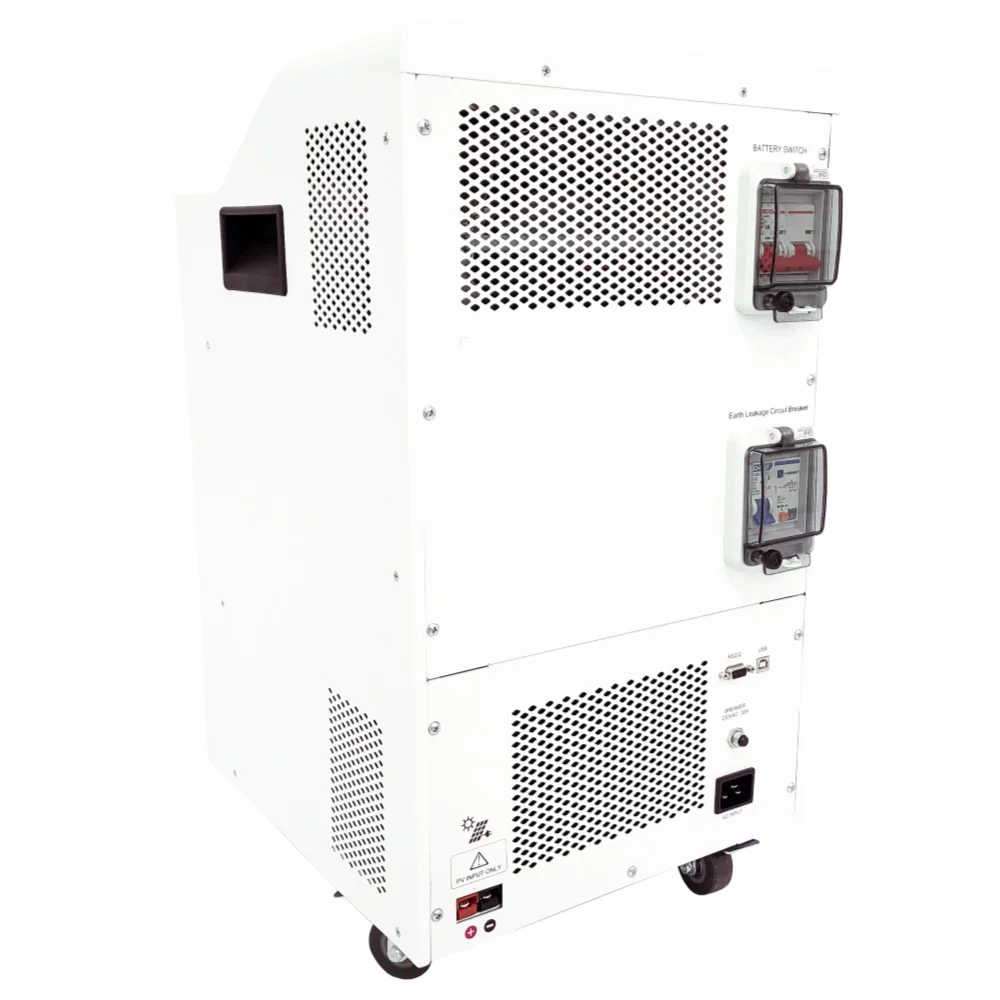

• Protection Type: AC Input/Output Breakers, Battery Switch, Earth Leakage Circuit Breaker

Environment:

• Humidity: 20%-95% (No Condensing)
• Storage Temperature: -15 – 60
• Operation Temperature: 0 – 40

Physical:

• Dimension (net) : (H) 605 x (W) 380 x (D) 330mm
• Dimension (package) : (H) 677 x (W) 385 x (D) 465mm
• Net Weight : 38.7kg
• Gross Weight : 40.62kg

What’s in the box

• 1x NavaSolar TI-3024 3KW Trolley Inverter including 100Ah Lithium battery.

What are Trolley Inverters?

Trolley inverters are power inverters that are designed to convert DC voltage from a battery bank into AC voltage that can be used to power electronic devices and appliances. They are called trolley inverters
because they are often designed to be portable, and come with wheels and a handle, similar to a trolley or
cart, making them easy to move around. Trolley inverters are commonly used in off-grid or backup power
systems, where there is no access to grid power or where the grid power is unreliable.

They can be used in conjunction with renewable energy sources, such as solar panels or wind turbines, to
provide a continuous supply of electricity. Trolley inverters come in various sizes and power ratings, ranging
from small inverters that can power a few lights and electronic devices to larger inverters that can power
entire homes or even businesses. They may also include features such as built-in battery chargers, input/
output ports, and monitoring systems to monitor battery voltage and power output.

What are the Benefits?

Backup Power: One of the main benefits of using an inverter trolley at home is that it can
provide backup power in case of a power outage.

Clean Energy: Inverter trolleys can be paired with renewable energy sources such as solar
panels, wind turbines, or hydro turbines to provide clean energy.

Noise-Free Operation: Inverter trolleys are typically quiet and do not produce any noise
or fumes, unlike generators that run on fuel.

Cost-Effective: Inverter trolleys can be a cost-effective solution for backup power
compared to generators that require fuel and maintenance. They are also more efficient,
meaning they can provide more power for a longer period of time on the same amount of
battery power.

Easy to Install and Use: Inverter trolleys are easy to install and use, and most come with
user-friendly interfaces and monitoring systems that allow you to monitor battery voltage,
power output, and other parameters.
