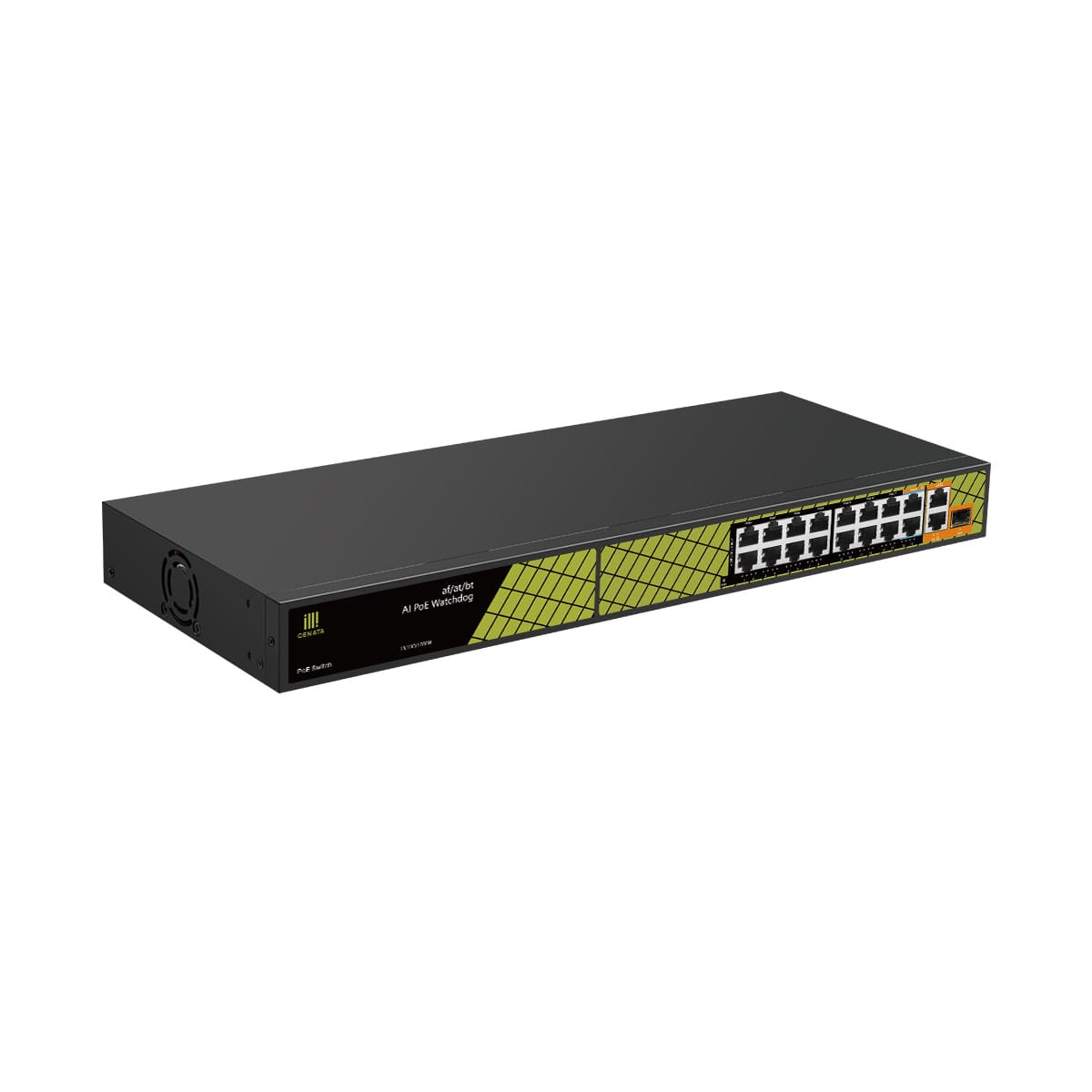

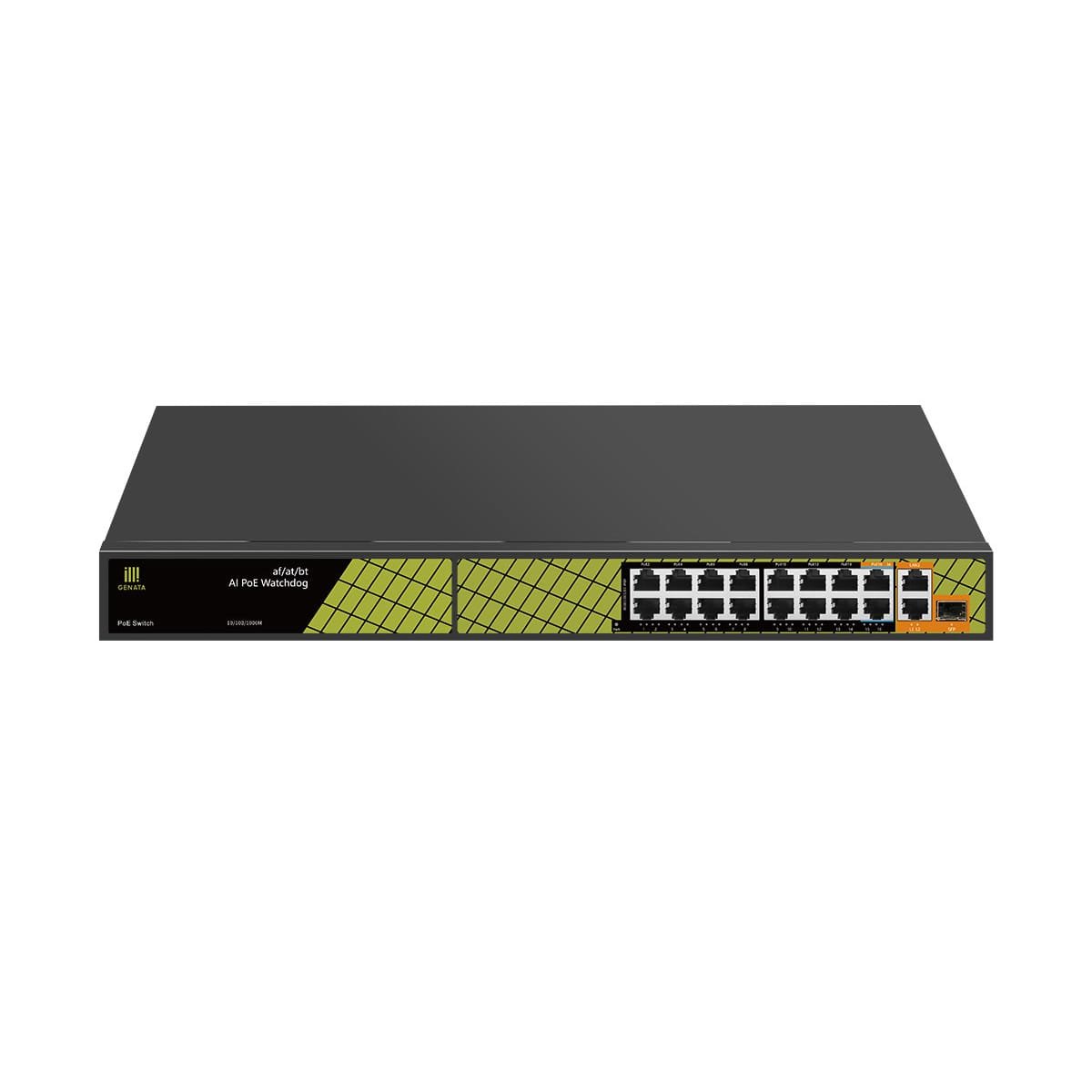

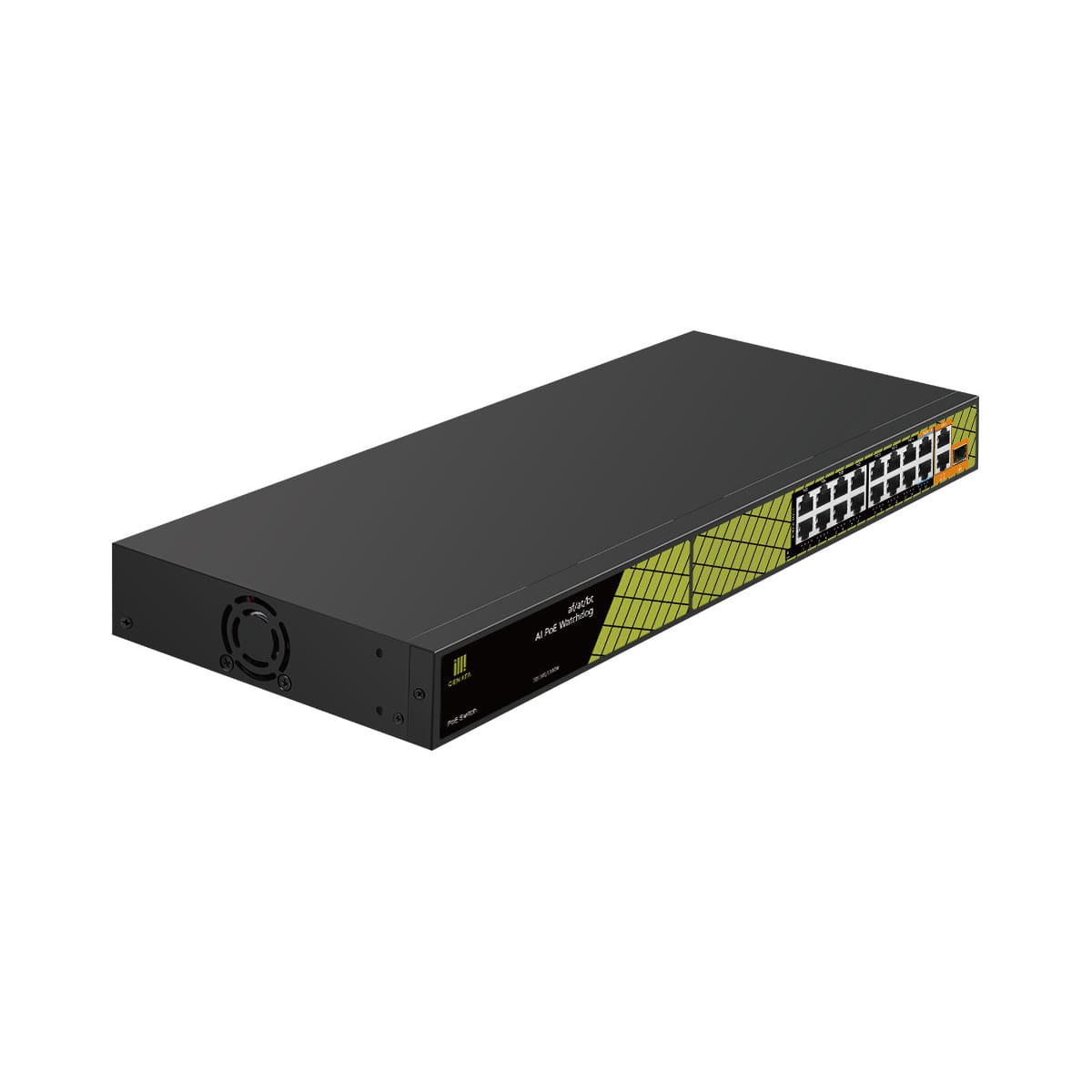

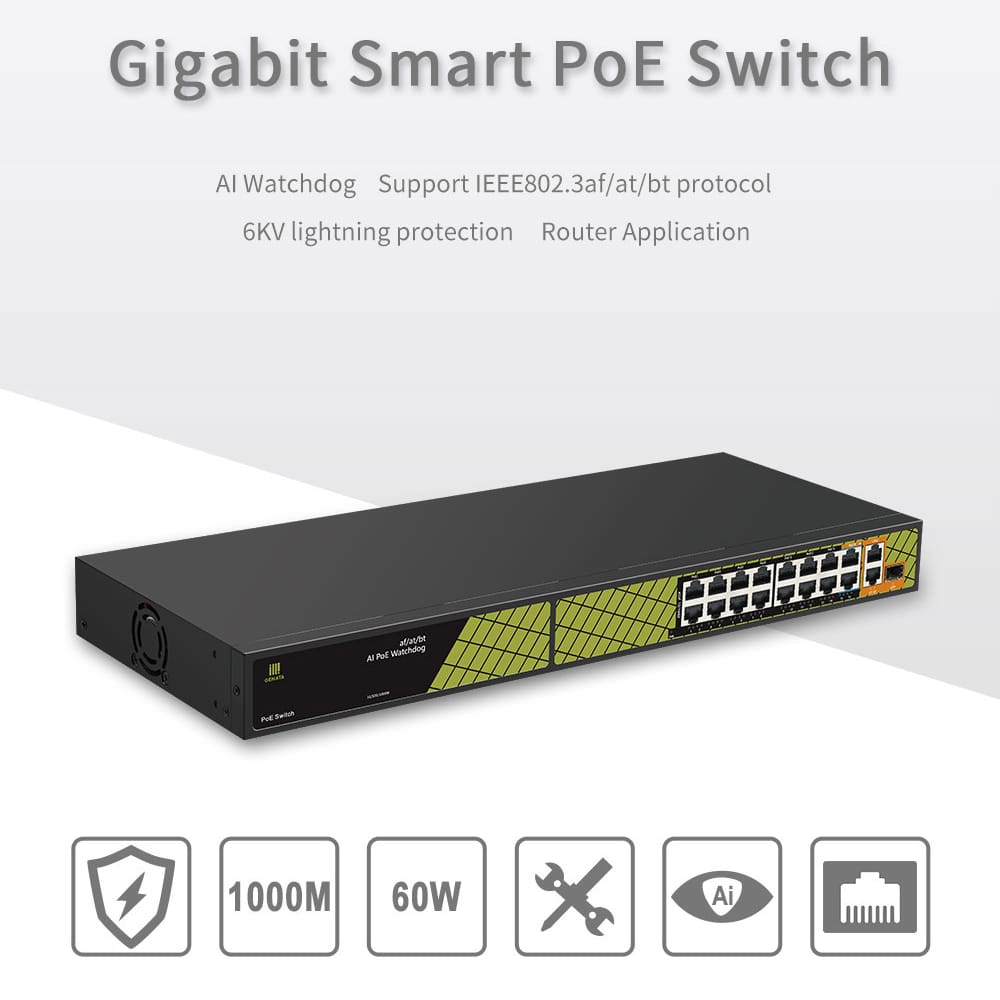

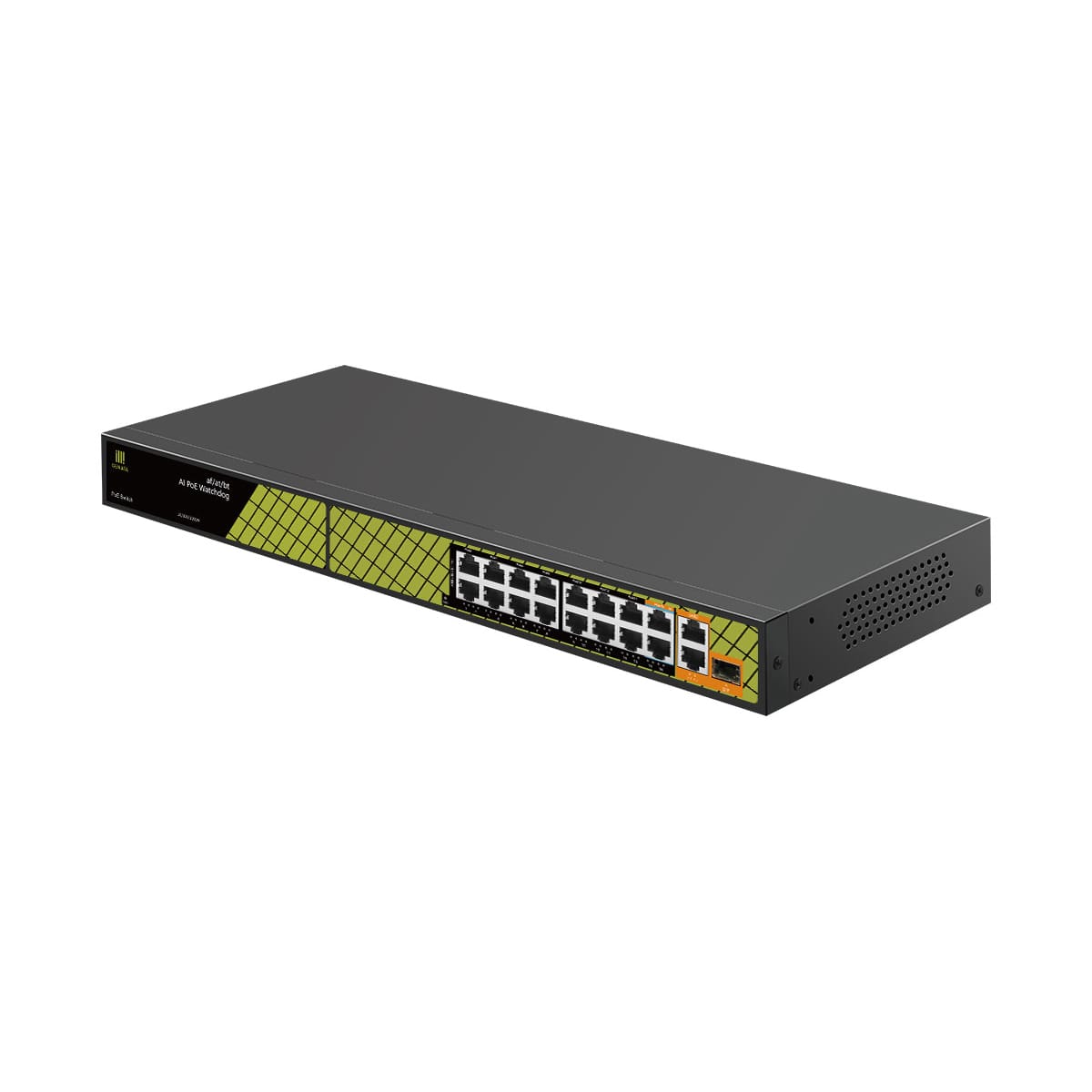

GENATA 16 Port AI PoE Switch GNT-P4813V6 + 2Gbps RJ45 + 1 SFP

Upgrade your network with the GENATA 16 Port AI PoE Switch GNT-P4813V6, a high-performance solution engineered for stability, speed and intelligent management. Delivering robust power and seamless data transmission, this 16-port switch is perfect for IP surveillance systems, access points and demanding enterprise environments.

Key Features:

• Total 300W PoE Power Supply
• 16 PoE Ports + 2 Uplink Ports + 1 SFP Port
• Supports 60W High Power on Select Ports
• AI Watchdog Function – Automatically detects and recovers unresponsive devices
• Lightning & ESD Protection – 6KV lightning and 8KV ESD safeguards
• Auto-Adaption 250m Transmission Distance
• Bandwidth: 12.8Gbps
• Full Duplex Transmission Rate: Up to 2000Mbps

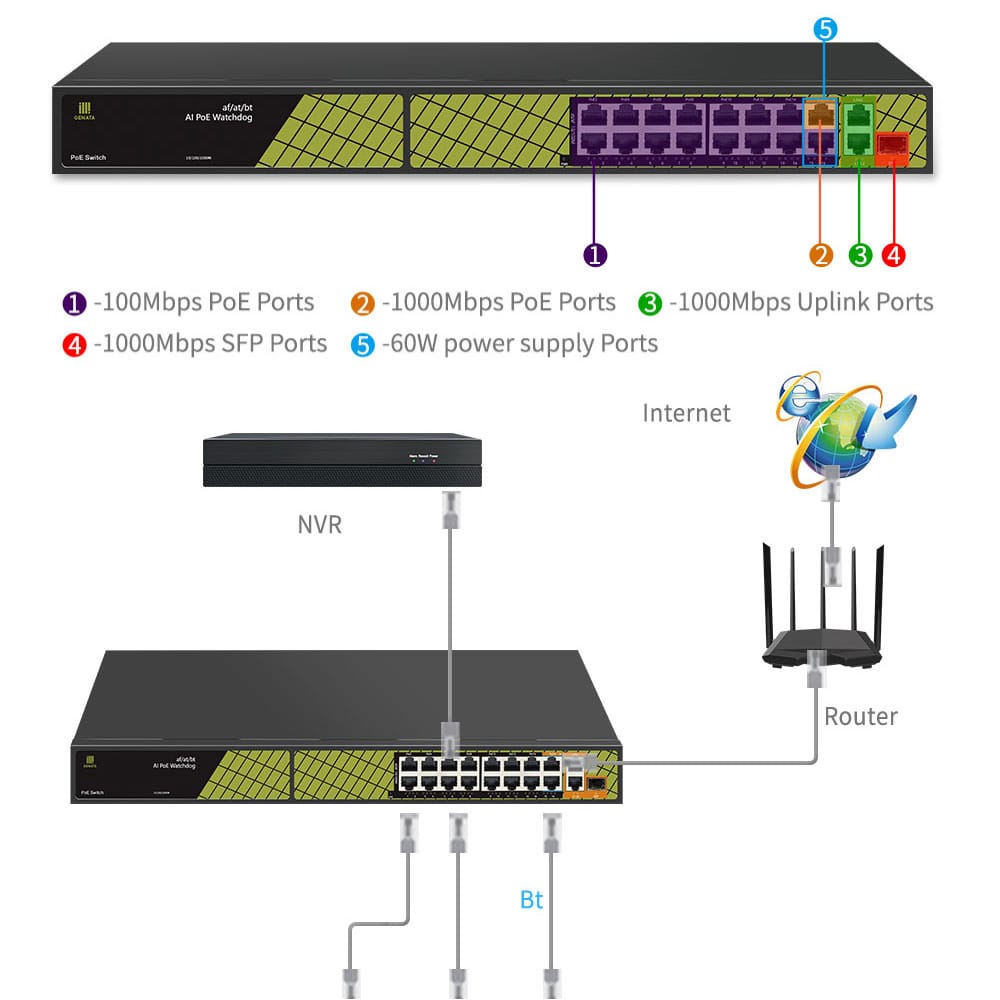

Ports Overview:

• Ports 1–14: 10/100Mbps PoE Ports (Max 30W per port)
• Port 15: 10/100Mbps High Power PoE (Max 60W)
• Port 16: 10/100/1000Mbps High Power PoE (Max 60W)
• LAN Ports 1–2: 10/100/1000Mbps Uplink Ports
• SFP Port: 10/100/1000Mbps Fibre Uplink

Technical Specifications:

• MAC Address Table: 8K entries
• Transmission Rate: 10/100/1000Mbps Auto-Negotiation
• Latency: ≤16μs
• Networking Standards:
  • IEEE 802.3i/802.3u/802.3ab
  • IEEE 802.3x Flow Control
  • IEEE 802.3af/at/bt Power over Ethernet
• Protection: IEC61000-4-5 Lightning, IEC61000-4-2 ESD
• Operating Temperature: -30°C to 60°C
• Storage Temperature: -40°C to 70°C
• Humidity: 10%–90% (Operating), 5%–90% (Storage)

Physical & Power:

• Dimensions: 430mm x 180mm x 45mm
• Weight: 2.65kg
• Power Input: AC 90–240V
• Mounting: Desktop, Rack, or Wall

Certifications:

• CE Mark
• FCC Part15, Class B
• RoHS 2.0 Compliant

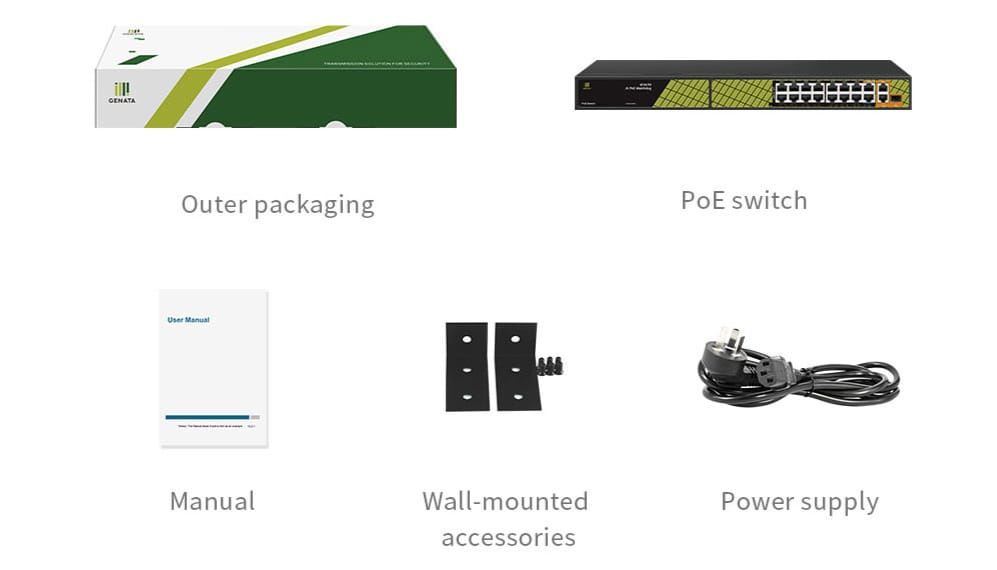

Whats in the Box:

• 1x GENATA 16 Port AI PoE Switch GNT-P4813V6
• AC Power Cable
• User Manual

GENATA 16 Port AI PoE Switch GNT-P4813V6 Tech Specs
