EZVIZ 4 Piece Home Sensor Kit – A3 Home Gateway
Original price was: R2,451.00.R1,925.00Current price is: R1,925.00. Incl. VAT
EZVIZ 4-Piece Home Sensor Kit
The EZVIZ 4 Piece Home Sensor Kit includes the following:
- EZVIZ A3 Home Gateway (alarm control panel)
- EZVIZ T1C PIR Motion Sensor
- EZVIZ T2C Open-Close Door Sensor
- EZVIZ T3C Smart Button
Description
EZVIZ 4 Piece Home Sensor Kit | A3 Home Gateway (Alarm System)
A well-thought-out solution for a safer home
You can know on the go all the activity happening at home. This kit offers a one-stop solution to free you from worrying about anything from home break-ins to family emergencies. The seniors and kids at home alone can also send a request for help just by using the smart button.

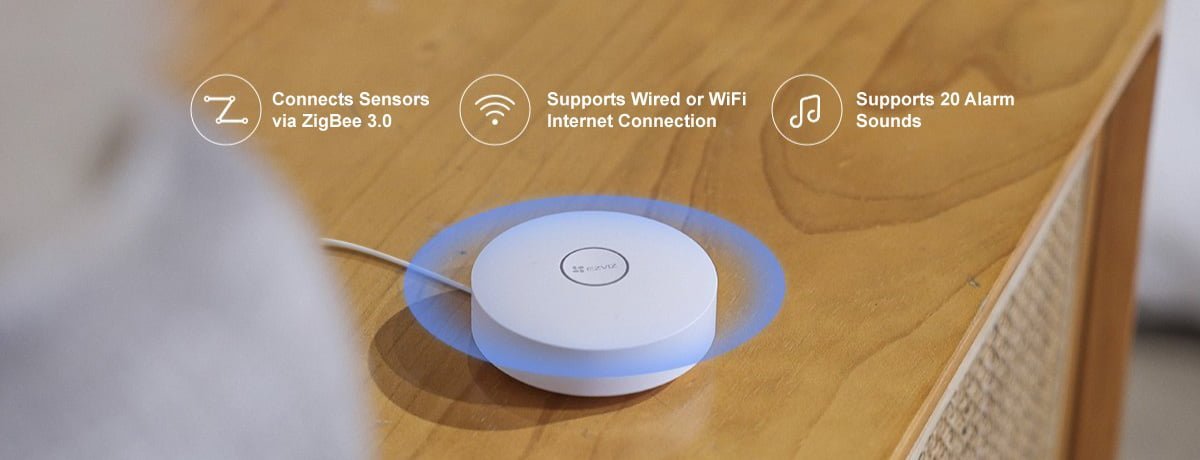

A hub that connects and interacts
The A3 Gateway works as the central hub of connectivity. You can manage, arm, and receive alerts from all your connected sensors via the all-in-one EZVIZ App. You can also purchase add-on sensors to scale up the protection³.

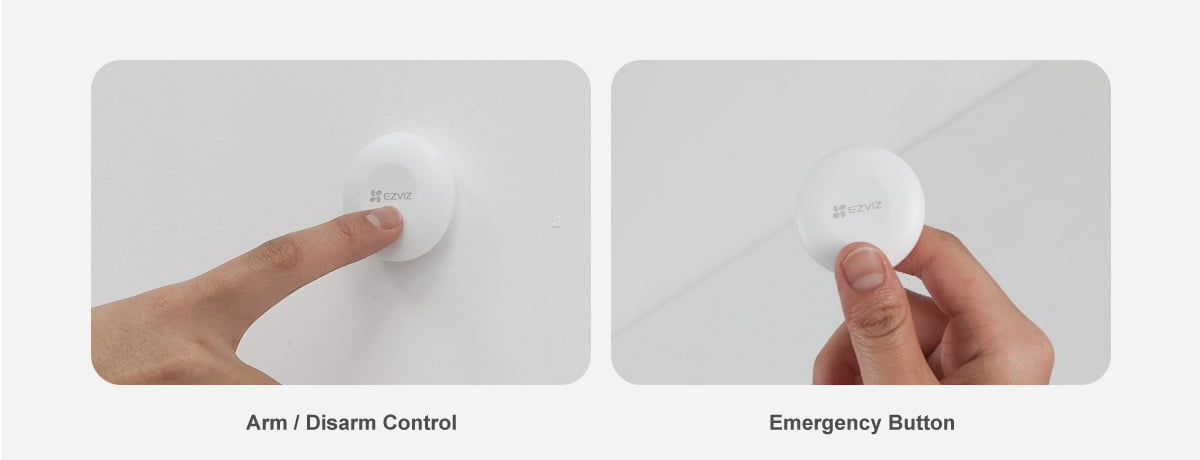

Control with a simple click
Use the smart button in two ways – switch on and off your entire sensor system or press it to send an emergency alarm. Use the peel-and-stick method to place it anywhere within your reach – you can even carry it in your pocket⁴.

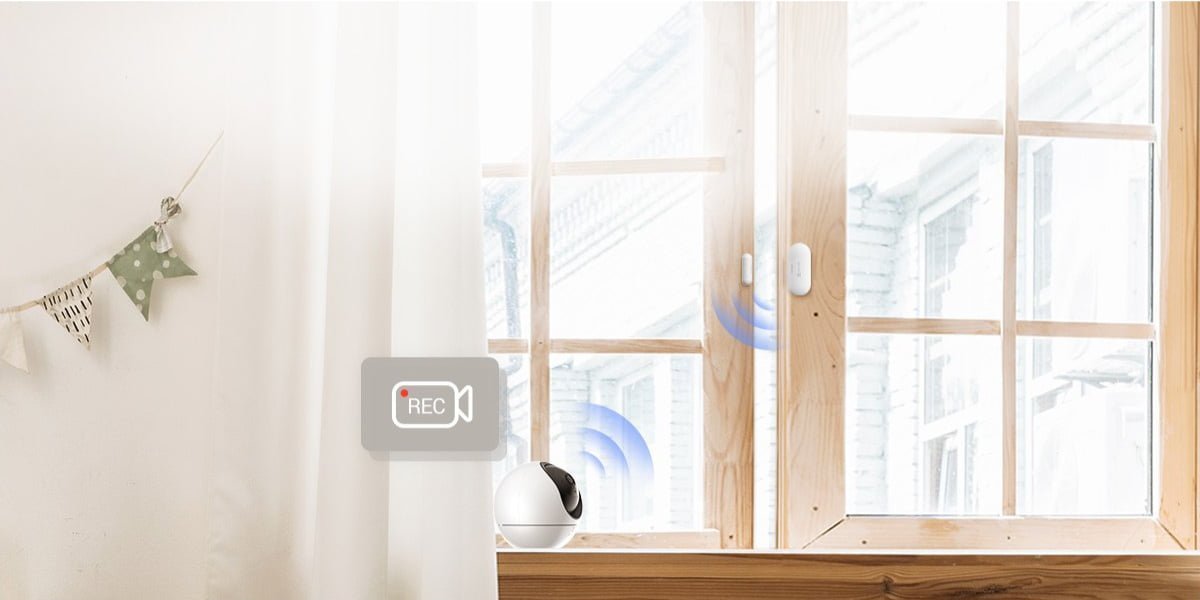

Easy integration with your smart home
Link your sensor kit with your EZVIZ cameras² for enhanced protection. If you use a local storage card or have subscribed to EZVIZ CloudPlay, the camera can begin auto-recording for 5 seconds whenever the sensor detects an activity⁵. You can also voice-enable the sensor system with Google Assistant or Amazon Alexa.

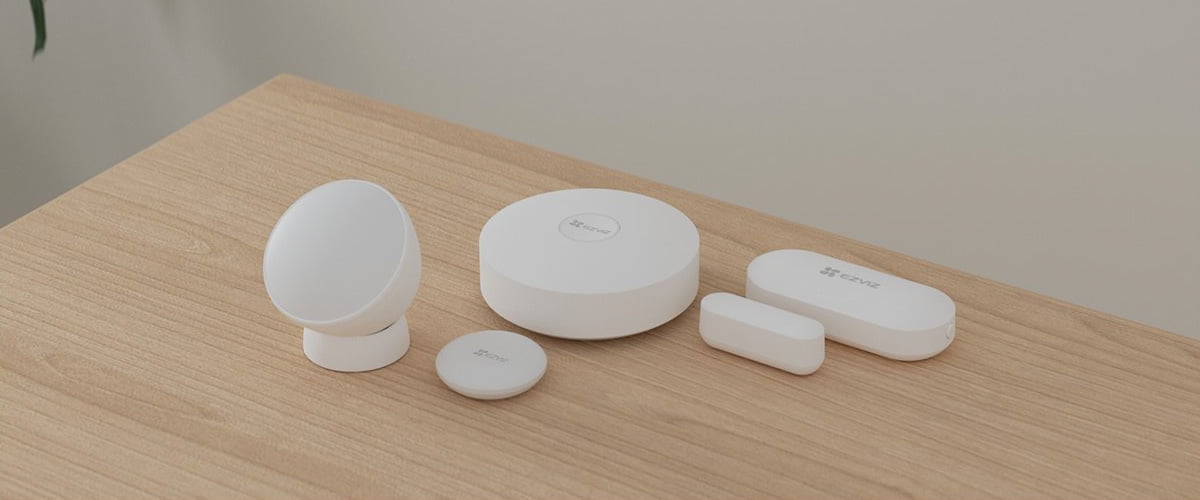

Beautifully designed to fit any home style
Each device in the kit combines user-friendly functionality with contemporary style. Small and minimal in design, each piece blends perfectly with any style.
1 The A3 Home Gateway is not battery-powered and needs to be connected to a power outlet. The sensors and the button are battery-powered with included cell batteries.
2 This sensor kit can only integrate with wired EZVIZ cameras launched with version 5.3.4 or later firmware. Please contact the support team to confirm any other camera’s compatibility.
3 The A3 Home Gateway can connect up to 32 battery-powered devices. Currently, only the three sensor models included in this kit can be connected to the A3 Home Gateway. Please verify any other sensor’s compatibility before making a purchase.
4 The button can only be used at home with your EZVIZ Home Gateway to ensure steady connectivity. Once it’s disconnected from the A3 Home Gateway, it will no longer work as an operating controller.
5 The current version only allows the C6 Smart Camera to auto-track activities upon sensor detection. Other pan/tilt cameras will only record at its original fixed viewing angle when the sensor detects activity.
EZVIZ 4 Piece Home Sensor Kit – In the Box
- A3 Home Gateway
- Power Adapter for A3
- USB Cable for A3
- T1C PIR Sensor
- Pet Shield for T1C
- T2C Open/Close Sensor
- T3C Smart Button
- Doubled-sided Tape Strips (3)
- Regulatory Information
- Quick Start Guide
EZVIZ 4 Piece Home Sensor Kit DataKit
Additional information
| Weight | 311 g |
|---|
Technical Specifications
Specifications – Home Gateway | |
| Model | CS-A3-A0-W |
General | |
| Operation Conditions | -10 °C to 55 °C (14 °F to 131 °F ), humidity 95% or less (non-condensing) |

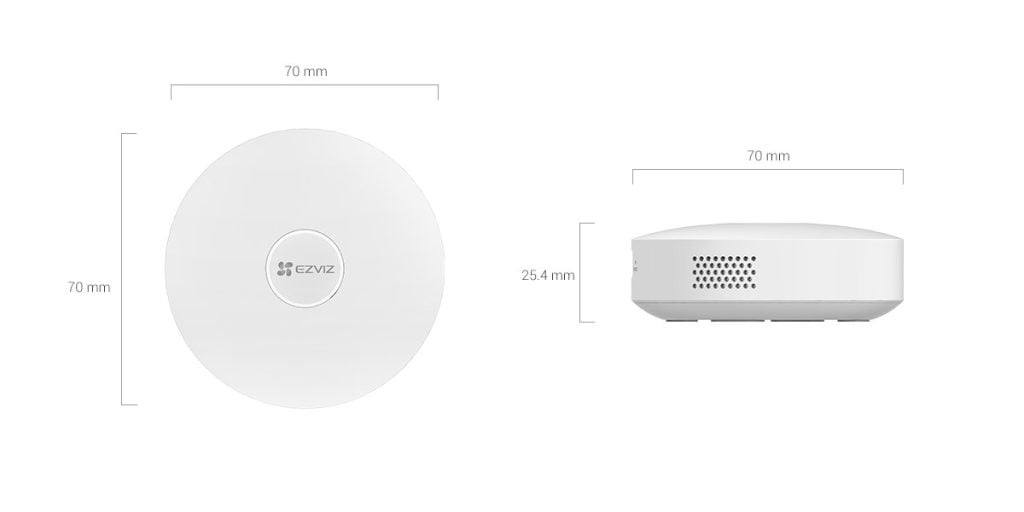

| Dimensions | Φ 70.0 × 25.4 mm (Φ 2.75 × 1.00 inch) |
| Net Weight | 71 g (2.5 oz) |
| Package Size | 95.5 × 80.5 × 98.5 mm (3.8 × 3.2 x 3.9 inch) |
| Power Supply | Uses Micro USB, DC 5V / 1A |
| Power Consumption | Max.3W |
Network | |
| Communication Methods | RJ45 interface network cable Wi-Fi 2.4 GHz ZigBee 3.0 |
| Communication Distance | Wi-Fi (2.4 GHz) < 200 m ZigBee 3.0 < 200 m (Tested in open environment) |
| Antenna | Built-in |
Specifications – PIR Sensor | |
| Model | CS-T1C-A0-BG |
General | |
| Operation Conditions | -10 °C to 55 °C (14 °F to 131 °F), humidity 95% or less (non-condensing) |
| Dimensions | Main body: Φ 43.5 × 32.0 mm (1.7 × 1.3 inch) Base: Φ 29.0 × 9.5 mm (1.1 × 0.4 inch) |
| Package Size | 92 × 52 × 93 mm (3.6 × 2.0 × 3.7 inch) |
| Weight | 92 g (3.2 oz) with package |
Detection | |
| Detection Type | Passive infrared (PIR) |
| Detection Distance | Up to 7 m / 23 ft |
| Detection Angle | 90° horizontal, 90° vertical |
| Recommended Installation Height | 1.8 to 2.5 m for wall-mounted installation |
| Pet-Proof Detection | Requires using the pet shield and an installation height of 50 cm or higher above the pet |
Function | |
| Low Battery Reminder | Supports |
| Anti-Tamper Alarm | Supports |
| Installation Methods | Adhesive back with magnetic parts. Supports wall and ceiling flip-over installation |
Battery | |
| Battery Type | Cell battery CR2450 |
| Battery Life | High-performance mode: Up to 1 year Energy-saving mode: Up to 2 years |
Network | |
| Protocol | ZigBee 3.0 |
| Communication Distance | < 200 m (Tested in open environment) |
Specifications – Open/Close Sensor | |
| Model | CS-T2C-A0-BG |
General | |
| Operation Conditions | -10 °C to 55 °C (14 °F to 131 °F), humidity 95% or less (non-condensing) |
| Dimensions | Main body: 53.5 × 22.5 × 13.5 mm (2.1 × 0.9 × 0.5 inch) Magnet: 32.0 × 10.5 × 13.5 mm (1.2 × 0.4 × 0.5 inch) |
| Package Size | 92 × 52 × 93 mm (3.6 × 2.0 × 3.7 inch) |
| Weight | 80 g (2.8 oz) with package |
Detection | |
| Detection Type | 80 g (2.8 oz) with package |
| Recommended Trigger Distance | Wooden door > 25 mm Iron door > 15 mm |
Function | |
| Low Battery Reminder | Supports |
| Anti-Tamper Alarm | Supports |
| Installation Method | Adhesive back for peel-and-stick installation |
Battery | |
| Battery Type | Cell battery CR1632 × 2 |
| Battery Life | Up to 2 years (Based on the usage of 30 detections per day) |
Network | |
| Protocol | ZigBee 3.0 |
| Communication Distance | < 200 m (Tested in open environment) |
Specifications – Smart Button | |
| Model | CS-T3C-A0-BG |
General | |
| Operation Conditions | -10 °C to 55 °C (14 °F to 131 °F ), humidity 95% or less (non-condensing) |
| Dimensions | Φ 40.6 × 12.3mm (Φ 1.6 × 0.5 inch) |
| Package Size | 92 × 52 × 93 mm (3.6 × 2.0 × 3.7 inch) |
| Weight | 68 g (2.4 oz) with package |
Control Methods | |
| Single Click | < 2 s |
| Double Click | Interval time < 0.5 s |
| Long Press | ≥ 2 s |
| Modes | Arm / Disarm Mode, Emergency Button Mode |
Function | |
| Low Battery Reminder | Supports |
| Anti-Tamper Alarm | Supports |
| Installation Method | Place anywhere; adhesive back for peel-and-stick installation |
Battery | |
| Battery Type | Cell battery CR2032 |
| Battery Life | Up to 2 years (Based on the usage of 15 clicks per day) |
Network | |
| Protocol | ZigBee 3.0 |
| Communication Distance | < 200 m (Tested in open environment) |
In the box | |
| In the box | – A3 Home Gateway |
| – Power Adapter for A3 | |
| – USB Cable for A3 | |
| – T1C PIR Sensor | |
| – Pet Shield for T1C | |
| – T2C Open/Close Sensor | |
| – T3C Smart Button | |
| – Doubled-sided Tape Strips (3) | |
| – Regulatory Information | |
| – Quick Start Guide | |
